2012 Prius - New Calipers, Pads Still Dragging (hot brake discs)

Discussion in 'Gen 3 Prius Care, Maintenance & Troubleshooting' started by andreimontreal, Nov 17, 2019.

  1. andreimontreal

    Joined:
    Jan 30, 2019
    311
    96
    28
    Location:
    Montreal
    Vehicle:
    2012 Prius
    Model:
    N/A
    It was all about the caliper's cylinder not retracting.

    The Raybestols RL calipers that I got, both are not retracting properly. Either because somebody got in too much grease that's not of good quality and the piston slips on the O-ring. OR because the rubber they used in the O-ring is not doing it's job of flexing back - I don't know 100%. I'd have to play those a bit to see if I can figure stuff out.

    I think initially, the RL the oem caliper was literally seized from rust accumulation in the pins. I just discarded them not wanting to troubleshoot (you know, in the middle of a Canadian winter, with lots of things to do you kinda feel like saying "nope" when Rockauto gives you new calipers for 120 cad). So the caliper itself might've been good - I keep everything anyway, sorted out, because you never know - like now. I rebuilt it because I saw the boot was broken (an accident - most likely after I took it off as there's no indication of rust inside, I would say). When I measured it with the dial, after the rebuild, the numbers might've been wrong and I caught on this when I saw the dial seizing, leaving a space between it's tip and the cylinder. So I did tests by eye and it seemed to me the Tokico was working fine and I decided to use it and see if I'm right - and I was.

    A few more thoughts for future plans ...

    I will rebuild both calipers and I will use the Raybestos brackets for now (since they're doing a good job - the Tokico brackets are most likely pitted from rust, just like the pins are, and will damage my rubber bits so polishing a turd might not be a good idea - I think?? opinions?).

    I was planning to spray under the car with this special epoxy primer I heard of in the USA (Tamco - they have one urethane and a couple of epoxies which are supposed to be very good for encapsulating and protecting from rust for decades, car restaurers love them) so I should technically put a strong durable finish on those calipers when I get to do those cosmetic mods. Heck I am thinking of painting the whole car. I'll assess it to see how rusted it is - maybe I might wanna pick a newer thing for my projects; I got time to think about it anyway, I won't start until next year. And there's also the purpose it was bought for: mini van life mod.

    I'll finish that mod first (of course I'll share pics), test it out AND if they'll finally open those damn borders and let me down to FL that would be sweet. And then decide if I want a newer Prius, a hybrid Highlander or even a manual Civic hatch SI (did I offend anybody :p).

    Mendel Leisk likes this.
  2. ChapmanF

    ChapmanF Senior Member

    Joined:
    Mar 30, 2008
    10,696
    7,853
    0
    Location:
    Indiana, USA
    Vehicle:
    2010 Prius
    Model:
    IV
    I have the sense that there is quite an unsuspected (by the uninitiated) amount of materials-science wizardry that goes into these things. One thing I noticed with the reman I bought was that it came with a much shinier piston: polished to a near mirror, unlike the matte grind on the Toyota piston. And I would not be surprised if that can affect the grip between the piston and seal. Not even getting into the possibility of using different elastomers for the seal, or the chance that a good grease for one elastomer is not a good grease for a different one.

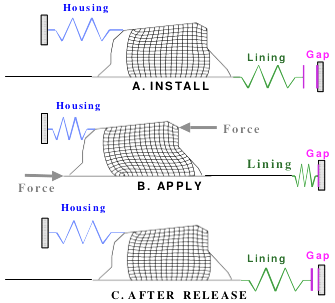

    Then there's that groove in the cylinder where the seal lives: to the naked eye, it just looks like a square-cut channel, but that finite-element model from Delphi showed it as anything but, with a sloping bottom and an odd partial-depth spread that the seal can kind of lean into during brake application.
