2013 Prius Two: Adding an auto-dimming & Homelink mirror

Discussion in 'Newbie Forum' started by Firephoenix1980, May 8, 2013.

  1. Firephoenix1980

    Firephoenix1980 Junior Member

    Joined:
    Mar 25, 2013
    16
    9
    7
    Location:
    Fort Lauderdale, Florida
    Vehicle:
    2013 Prius
    Model:
    Two
    Good afternoon everyone, I just bought a this mirror from a seller on Ebay, all the description says is that it comes from a 2012 Prius. When I ask the seller if the mirror comes with all the cables necessary, he replied with "it's located in the center of the headliner under the plastic cover."

    I am afraid that he believes the car comes pre wired for the mirror so he will not be including any cables.

    My question is, where would I be able to get the cables if they don't arrive in the package?

    Thanks for your help in advance!

    PriusGuy32 likes this.
  2. Firephoenix1980

    Firephoenix1980 Junior Member

    Joined:
    Mar 25, 2013
    16
    9
    7
    Location:
    Fort Lauderdale, Florida
    Vehicle:
    2013 Prius
    Model:
    Two
    Hy Everyone!
    I finally figured it out with some time and patience.

    • I bought a used Gentex mirror from a 2012 Prius with an FCC ID NZLOBIHL4
    • I bought a 10 pin wire harness but it didn't work so with the help of a post on here I went to TigerDirect store and bought 6" F/F Premium Jumper wires, spliced 3 of them to the 3 wires that came out from the Wire Harness I purchased.

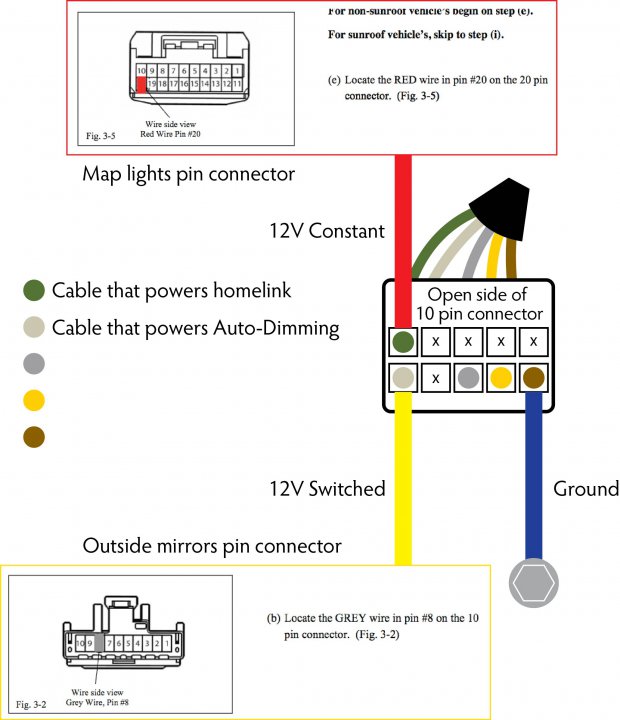

    • The wiring diagram attached shows what the wires are connected to. Hope it helps!


    Attached Files:

    PriusGuy32 likes this.
