40%-Efficient Engine, Really?

Discussion in 'Prime Technical Discussion' started by mr88cet, Apr 24, 2017.

  1. Roy2001

    Roy2001 Active Member

    Joined:
    Apr 1, 2009
    369
    151
    0
    Location:
    Sacramento, CA
    Vehicle:
    2017 Prius Prime
    Model:
    Prime Premium
    Simple calculation proves it is true.

    1 gal of gas equivalent electricity (33.6kWh) drives Prime for 133 miles. One gallon of gas drives it for 54 miles, 54/133=40.6%

    mr88cet likes this.
  2. Kevin_Denver

    Kevin_Denver Active Member

    Joined:
    Mar 18, 2016
    580
    401
    1
    Location:
    Denver, CO
    Vehicle:
    2009 Prius
    Model:
    N/A
    It's actually a major misconception with hybrid cars that the main thing that improves the efficiency is the addition of the electrical drive system. It's not. The main thing that improves the efficiency of hybrid cars is the implementation of the Atkinson cycle in the engine instead of Otto. This means the engine holds the intake valve open for part of the compression stroke, allowing some air/fuel mixture to come out, reducing compression ratio. A Prius engine operates with a typical ~8:1 compression ratio, but ~13:1 expansion ratio. This allows the engine to extract more useful work from each combustion.

    The disadvantages of the Atkinson cycle are significantly reduced power and torque, especially at low RPM. The electric system compensates for this by providing high power and torque (which it's perfectly suited for) while the engine is at low RPM.

    This is why when you look at two cars, one hybrid, one not, you can see increases in the highway fuel economy on the hybrid car (where an electrical system theoretically has almost no advantages). Regenerative braking obviously greatly improves fuel economy in city driving.

    Another note here is that some of the more modern engines that can use an Atkinson cycle via VVT still won't be able to achieve the same efficiency of a dedicated Atkinson engine (without special fully variable compression and expansion ratio engines - Mazda's Skyactive engine is the only one I'm aware of currently). On the more modern Toyota engines, they have ~10.5:1 compression and expansion ratio. When using VVT, they can't change the expansion ratio, only the compression ratio, so with an expansion ratio 10.5:1 versus a hybrid's 13:1, they are not able to operate as efficiently.

    Hope you liked this technical post!

    telmo744 and mr88cet like this.
  3. bwilson4web

    bwilson4web i3 and Prime

    Joined:
    Nov 25, 2005
    22,651
    12,531
    0
    Location:
    Huntsville AL with 2014 BMW i3-REx
    Vehicle:
    2017 Prius Prime
    Model:
    Prime Plus
    It is a good start:
    Let me offer some suggestions:
    • Prius hybrids blend electric, Atkinson engine, and control laws to achieve superior efficiency.
    • Below the hybrid critical speed, ~42 mph:
      • The Prius switches between engine OFF/ON and maintains speed in electric mode during engine OFF states.
      • The engine runs at higher, more efficient power levels, to bank the excess power as battery charge, target 60% SOC.
    • Above the hybrid critical speed:
      • Engine runs all the time with high power demand like climbing a hill comes from the electric motors
      • Descending hills the car banks the excess regeneration into the traction battery
    Your description of the Atkinson cycle is good. My suggestion is the control laws blend the ICE and traction battery to keep the Prius engine at the sweet spot of peak efficiency. The battery power either adds enough to keep the engine in the sweet spot or draws power at peak efficiency to bank for later use.

    Bob Wilson

    breakfast likes this.
  4. mr88cet

    mr88cet Senior Member

    Joined:
    Sep 9, 2008
    1,811
    1,051
    0
    Location:
    Austin, TX
    Vehicle:
    2017 Prius Prime
    Model:
    Prime Advanced
    Do you know off the top of your head what the difference between the Atkinson and Miller Cycles are? I thought I heard, many years ago, the Miller Cycle being described the same (intake valve opened longer to give a lengthened power stroke.

  5. bwilson4web

    bwilson4web i3 and Prime

    Joined:
    Nov 25, 2005
    22,651
    12,531
    0
    Location:
    Huntsville AL with 2014 BMW i3-REx
    Vehicle:
    2017 Prius Prime
    Model:
    Prime Plus
    My understanding is a Miller cycle is just an Atkinson cycle with a turbo or super charger. It does have to be done carefully as boosting a low compression stroke ratio can result in needing a higher octane fuel to avoid detonation.

    In theory, a Miller cycle could support a 6-to-1 or even lower compression stroke ratio and with the supercharger run up to higher power levels without having to open the throttle plate. One of significant energy losses are running with the throttle plate partially closed. So the Miller cycle allows a larger range of wide-open throttle operation with the supercharger adding the additional power ... carefully.

    Bob Wilson

    mr88cet likes this.
  6. Kevin_Denver

    Kevin_Denver Active Member

    Joined:
    Mar 18, 2016
    580
    401
    1
    Location:
    Denver, CO
    Vehicle:
    2009 Prius
    Model:
    N/A
    Agreed, my post above does not get into engine efficiency optimization via the ECU choosing when to use electric power versus engine power or using the CVT/HSD to control engine/electric motor speeds, which obviously can help keep the engine in the "efficiency sweet spot." My point is that the fundamental reason for greater fuel economy of the majority of hybrid vehicles is not the addition of the electric drivetrain, but the greater efficiency of the Atkinson cycle.

    telmo744 and breakfast like this.
  7. mr88cet

    mr88cet Senior Member

    Joined:
    Sep 9, 2008
    1,811
    1,051
    0
    Location:
    Austin, TX
    Vehicle:
    2017 Prius Prime
    Model:
    Prime Advanced
    Another important way that hybrids improve MPG is by keeping the engine off entirely until the car gets up to speed where it can run in high efficiency and “high gear.”

    In other words, if the ICE is on, then its hard to get any appreciable number of MPG except at a fair number of MPH. It can get high MPG at low MPH only if it’s consuming very few gallons per hour, but an ICE can’t burn little enough fuel to get 55MPG at low speeds *and still be on*; it has to shut off.

    Now, granted, a traditional Prius does fire up the ICE to accelerate, whereas ideally it would not turn on until you get to, say 45MPH. However, that’s just simply because MG2 alone is not powerful enough accelerate the car much, so it has no choice.

  8. CraftyCoder

    CraftyCoder Member

    Joined:
    Mar 24, 2018
    48
    64
    0
    Location:
    Washougal, WA
    Vehicle:
    2018 Prius Prime
    Model:
    Prime Premium
    telmo744 and mr88cet like this.
  9. mr88cet

    mr88cet Senior Member

    Joined:
    Sep 9, 2008
    1,811
    1,051
    0
    Location:
    Austin, TX
    Vehicle:
    2017 Prius Prime
    Model:
    Prime Advanced
    Wow, I hadn’t seen those P-V charts since ... I think it was second-year high-school Physics (1979), or maybe it was freshman Physics back at University of Texas (1980). Probably both, actually...

    What’s odd though, is that I remembered them as V-P charts rather than P-V charts, if you catch my drift: that is, I remember them turned sideways: with pressure on the horizontal axis and volume on the vertical. I’m probably just remembering them backward. Old geezer! Plus of course, I was an *Electrical*-Engineering major...

    That doesn’t ultimately matter, of course; the area inside the “loop” ideally tells you how much power you can get out of each “bang,” so it’s really obvious then why higher compression gives higher efficiency. Diesels run at on the order of 20-some-odd to 1 (the VW diesels I had said 24:1), whereas classic Otto-Cycle engines are typically only on the order of 8:1, so the area inside the curve is far larger. (That’s gone up over the years though.)

    However, diesels ignite the fuel by injecting it at to-dead-center, which takes time. So the piston (volume) is on its way down as the fuel is injected and ignited. So, it‘s effectively adiabatic ignition: the already-high pressure doesn’t increase much during ignition.

    HCCI is ideal in that it can operate at high compression, but already has the charge, homogeneous, in the cylinder. The pressure therefore rises upon ignition, giving you and even bigger loop area still.

  10. Kevin_Denver

    Kevin_Denver Active Member

    Joined:
    Mar 18, 2016
    580
    401
    1
    Location:
    Denver, CO
    Vehicle:
    2009 Prius
    Model:
    N/A
    Seriously getting my engine geek on in this thread. I also love this concept, though I doubt your average consumer would ever want a car with two gas tanks and have to fill up each every visit to the gas station:


  11. bhtooefr

    bhtooefr Senior Member

    Joined:
    Apr 4, 2016
    1,363
    1,447
    0
    Location:
    Newark, OH, USA
    Vehicle:
    2016 Prius
    Model:
    Three
    Although I've seen different definitions.

    The "true" Atkinson cycle uses a linkage to mechanically change the length of the intake/compression strokes relative to the power/exhaust strokes. AFAIK, the only true Atkinson cycle engine in production today is the Honda EXlink engine used in some Japanese home generator applications.

    The original Miller engine used a variably actuated valve for bleeding off compression. Some consider the supercharger (whether belt or exhaust-driven) to be the important feature of the Miller engine (which is why most automakers use "Atkinson cycle" to describe late intake valve closing), some consider the LIVC nature to be the important feature (which is why Mazda calls their LIVC engines "Miller cycle" regardless of whether they're supercharged).

    Although, the engine is most efficient somewhere in the ballpark of 2000ish RPM, and as all energy in the car ultimately comes from the engine (edit: I didn't catch that I was in the Prime subforum, so not all of the energy comes from the engine, but I was replying to a comment about a traditional Prius, where it does - and if you're forced to operate in charge sustaining (HV) mode, it still holds true on a Prime), if you're running the engine at 2000 RPM and the high voltage current coming from the battery is either zero or positive, the powertrain is operating efficiently. If you're in urban or suburban traffic, it's better IME to accelerate on the ICE and then cruise on electric, than it is to burn up electricity accelerating, and then have to fire the ICE at light load to recharge the battery.

    I always find it hilarious when my Prius shames me for using too much accelerator, when I get ludicrously good mileage scores for that trip - a couple weekends ago the thing actually shamed me for getting 84.1 claimed MPG:

    [​IMG]

    #51 bhtooefr, Jun 4, 2018
    Last edited: Jun 4, 2018
    breakfast and farmecologist like this.
  12. Oniki

    Oniki Active Member

    Joined:
    Jun 10, 2017
    652
    493
    0
    Location:
    Colorado
    Vehicle:
    2017 Prius Prime
    Model:
    Prime Plus
    Yep

    I also get flunking grades during some of my best fuel economy runs ;-)

    breakfast likes this.
  13. breakfast

    breakfast Active Member

    Joined:
    Feb 18, 2015
    262
    196
    0
    Vehicle:
    2017 Prius Prime
    Model:
    Prime Plus
    All great points in this thread...

    1- Roy2001 on the energy calculation proving the 40% engine efficiency on the Gen 4,
    2- Kevin_Denver on the benefit of the Atkinson Cycle, and bwilson4web, Oniki, and bhtooefr on the ability of the Prius to keep the engine in its sweet spot on the highway, and
    3 - the driving style of bhtooefr (the same style I use) to keep the engine (in HV mode on our Prime, or anytime on our Gen 3) in its sweet spot at lower speeds.

    I found the quote in my signature (from ItsNotAboutThe Money another PriusChatter) summarizes all three points very nicely...

    "The motors allow the engine to be at efficient loads on an Atkinson cycle.
    It's the secret of the Hybrid Grail: the engine and the motor are one."
    -ItsNotAboutTheMoney

    Kevin_Denver likes this.
  14. karthik1107

    karthik1107 New Member

    Joined:
    Apr 13, 2018
    22
    25
    3
    Location:
    Oregon
    Vehicle:
    2017 Prius Prime
    Model:
    Prime Premium

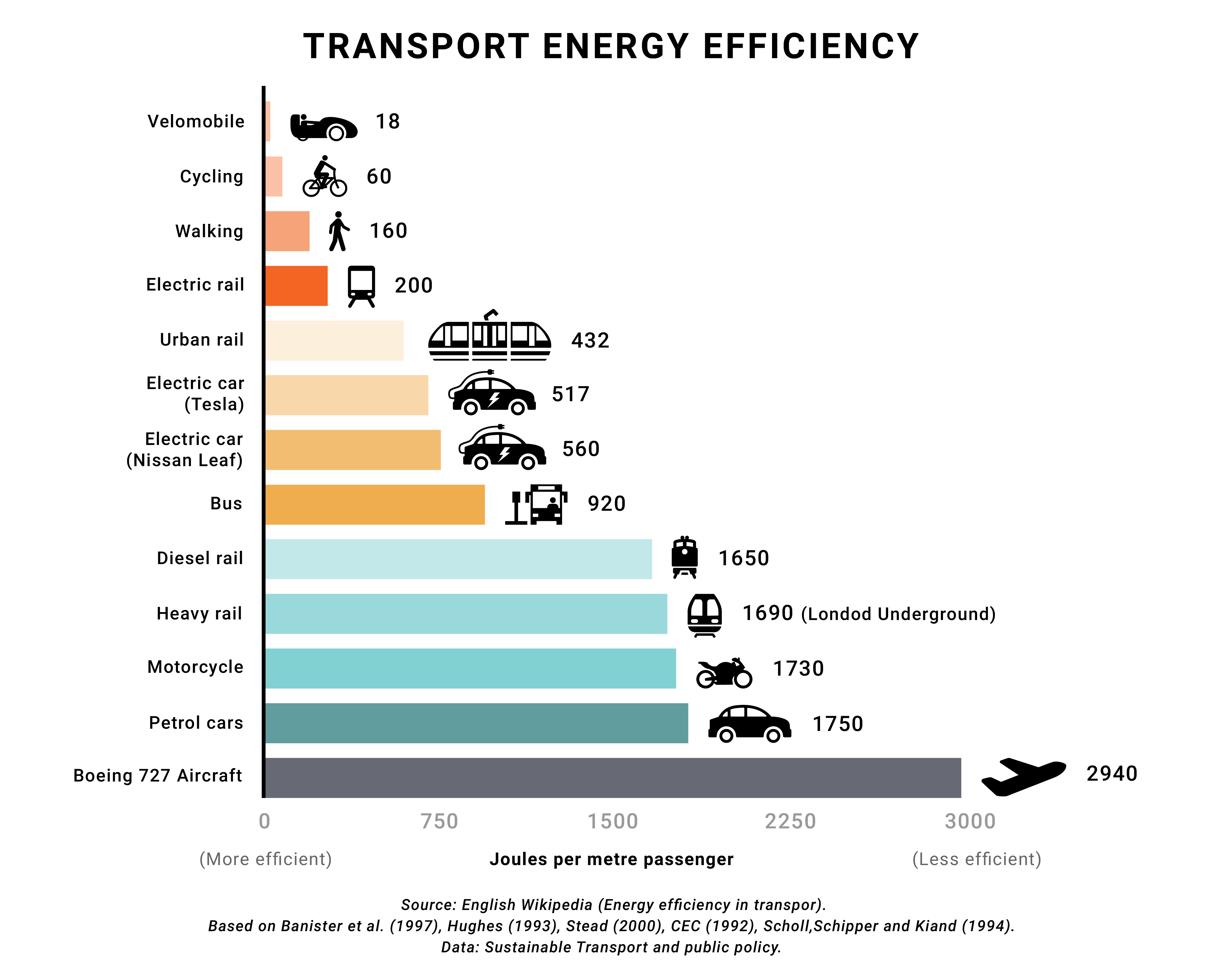

    Velomobile, Cycling & Walking seems to the most enery efficient. :p
    [​IMG]

    telmo744 likes this.
  15. fuzzy1

    fuzzy1 Senior Member

    Joined:
    Feb 26, 2009
    12,471
    6,039
    90
    Location:
    Western Washington
    Vehicle:
    2012 Prius
    Model:
    Three
    {Chart snipped}
    Seems a bit odd that a chart including Tesla and Leaf, represents commercial airliners by choosing a Boeing 727, which went out of production in 1984, and was retired from all U.S. fleets by 2003 due in large part to its expensive taste for fuel.

    The only airline still flying them -- just three units -- is in Iran. And probably only because of economic sanctions making it difficult to upgrade to modern models.
