4th Gen DIY heat exchanger bypass solution

Discussion in 'Gen 4 Prius Main Forum' started by texasdiver, Jul 28, 2022.

  1. GasperG

    GasperG Senior Member

    Joined:
    May 13, 2011
    1,168
    597
    1
    Location:
    Slovenia
    Vehicle:
    2018 Prius
    Model:
    N/A
    Here is even more simple way how to do the bypass (in the engine area):


  2. vvillovv

    vvillovv Senior Member

    Joined:
    Mar 19, 2013
    3,492
    1,231
    1
    Location:
    NY
    Vehicle:
    2017 Prius Prime
    Model:
    Prime Plus
    a pic from ebay used part - looks like one of the old (part #s depending on your model) 17410-37852, 17410-37850, 17410-37AD0
    selling for the same price as the new (superseded) part # listed in the TSB 17410-37D40 from toyotapartsdeal at $826 + ship.




    those guys at GM are incredible. gurgling muffler bomb - love it ....

    #22 vvillovv, Jan 24, 2023
    Last edited: Jan 24, 2023
  3. ChapmanF

    ChapmanF Senior Member

    Joined:
    Mar 30, 2008
    23,064
    14,970
    0
    Location:
    Indiana, USA
    Vehicle:
    2010 Prius
    Model:
    IV
    It's funny though, not 30 seconds in, he says the "problem is the catalytic converter", when the thing that leaks is the EHRS exchanger, which comes after both catalytic converters.

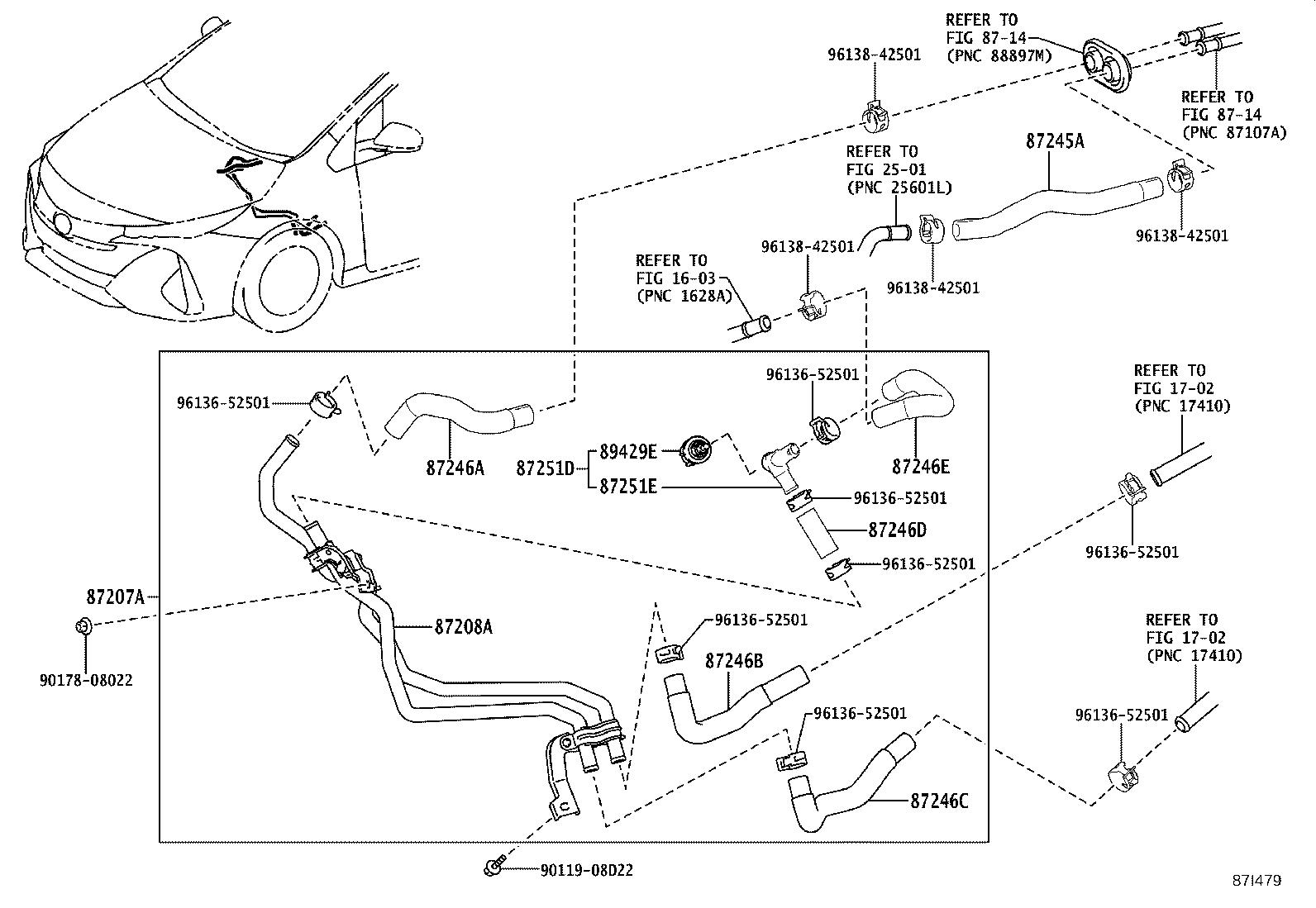

    Then right after the muffler bong comment, he goes under the car and says "so here you have the catalytic converter" while pointing to the sub muffler ... which comes after the EHRS exchanger, which comes after both catalytic converters. And describes the coolant path after leaving the exchanger as going "back to the heater core" when in fact it's the other way around: the coolant fresh from the heater core is what gets sent down to the EHRS. That ensures it's as cool as possible when it gets down there (having given up heat to the heater core), so that it will pick up as much heat as possible from the exhaust. It then returns to the engine water inlet.

    [​IMG]

    I suppose Gasket Masters specializes in head gasket jobs, so they'd have a better grasp of the anatomy that goes with that job.

    The thing about the explanation he offers for why it starts leaking (cold coolant going in a hot [he says "catalytic converter" again], causing metal fatigue and cracks and leaks) is that the same explanation would completely apply to the EHRS in Gen 3, which has never turned out to be a common leakage area, even in really old Gen 3s.

    There has to be some explanation for why it only became a problem in Gen 4.

    As for bypassing it, because of the way the heater core/EHRS path is in parallel to the EGR cooler/EGR valve/throttle body path, doing a plain bypass as shown may steal some cooling from the EGR cooler and valve (and some deicing from the throttle body).

    A person might think about doing the bypass in such a way as to have about the same flow resistance as a good EHRS exchanger.

    #23 ChapmanF, Jan 24, 2023
    Last edited: Jan 24, 2023
    amos and dacoobob like this.
  4. Mendel Leisk

    Mendel Leisk Senior Member

    Joined:
    Oct 17, 2010
    54,467
    38,101
    80
    Location:
    Greater Vancouver, British Columbia, Canada
    Vehicle:
    2010 Prius
    Model:
    Touring
    His rerouting makes sense though?

  5. ChapmanF

    ChapmanF Senior Member

    Joined:
    Mar 30, 2008
    23,064
    14,970
    0
    Location:
    Indiana, USA
    Vehicle:
    2010 Prius
    Model:
    IV
    If it were me, I'd want to include in the bypass a bit of restriction, for the reason given in #23 (which I was editing, maybe while you were posting).

    Mendel Leisk likes this.
  6. vvillovv

    vvillovv Senior Member

    Joined:
    Mar 19, 2013
    3,492
    1,231
    1
    Location:
    NY
    Vehicle:
    2017 Prius Prime
    Model:
    Prime Plus
    check out @GasperG post #10 ( the last post on page 1 of this thread ).
    Even if GM workaround is not as well thought out as perhaps it could have been, it's a far cry from getting the work done on ones own dime from a dealer, especially if GasperG s quote for the price of the parts ( 3 of them the pipe (all inclusive resonator, heat pump and cat ) and 2 gaskets according to the TSB ) which would you choose in a pinch?

  7. Jburner

    Jburner Member

    Joined:
    Feb 21, 2022
    68
    40
    0
    Location:
    Wisconsin
    Vehicle:
    2016 Prius
    Model:
    Four
    His solution is easy enough to do on the side of the road. Almost need no tools at all to accomplish this. I'll be doing this, if/when mine goes.

    kc5dlo, amos and Mambo Dave like this.
  8. ChapmanF

    ChapmanF Senior Member

    Joined:
    Mar 30, 2008
    23,064
    14,970
    0
    Location:
    Indiana, USA
    Vehicle:
    2010 Prius
    Model:
    IV
    FWIW, if anybody with a Gen 3 happens to read this, the same approach would not be good in Gen 3. In Gen 3, the parallel path through the EGR cooler comes off a tee in the side of that pipe going down toward the EHRS. So doing the bypass up at the top like that, in Gen 3, would mean no flow to the EGR cooler.

    The slightly different Gen 4 plumbing allows this to work, though I'd still want some resistance added. Bypassing up at the top of those pipes creates an even lower-resistance bypass path than you'd get with a hose down at the bottom ends.

    GasperG, Mendel Leisk and vvillovv like this.
  9. GasperG

    GasperG Senior Member

    Joined:
    May 13, 2011
    1,168
    597
    1
    Location:
    Slovenia
    Vehicle:
    2018 Prius
    Model:
    N/A
    I was thinking about this a little. Basicly there are three things in parallel:
    - Cylinder heads/blocks
    - EGR valve
    - Exhaust heat exchanger

    Basicly you could disable the last one by just pinching the hose and everything else should be circulating with no problems. Am I correct?

    #29 GasperG, Jan 25, 2023
    Last edited: Jan 25, 2023
    amos likes this.
  10. ChapmanF

    ChapmanF Senior Member

    Joined:
    Mar 30, 2008
    23,064
    14,970
    0
    Location:
    Indiana, USA
    Vehicle:
    2010 Prius
    Model:
    IV
    It looks like, in Gen 4, the same parallel path that includes the EHRS exchanger includes the heater core also.

    If there can be cold weather where you are, you might not want that path completely pinched off.

  11. vvillovv

    vvillovv Senior Member

    Joined:
    Mar 19, 2013
    3,492
    1,231
    1
    Location:
    NY
    Vehicle:
    2017 Prius Prime
    Model:
    Prime Plus
    Should be able to find out really soon if the heater core and the heat exchanger are in the same line, if you live where it gets below freezing. I've already been thinking about duplicating the GM workaround, just in case it ever happens to my car, I just don't want to stress the exchangers by doing it, so maybe not while it's below freezing out and there is a backorder mentioned besides .....

  12. ChapmanF

    ChapmanF Senior Member

    Joined:
    Mar 30, 2008
    23,064
    14,970
    0
    Location:
    Indiana, USA
    Vehicle:
    2010 Prius
    Model:
    IV
    How soon you wanna know?

    [​IMG]

    amos likes this.
  13. vvillovv

    vvillovv Senior Member

    Joined:
    Mar 19, 2013
    3,492
    1,231
    1
    Location:
    NY
    Vehicle:
    2017 Prius Prime
    Model:
    Prime Plus
    Yesterday ?
    I'm going to look through what I have of the repair manual, to see if I have one or both cooling lines already.
    Hopefully I'll also get a chance to organized all the things I've accumulated so far. :notworthy:

  14. GasperG

    GasperG Senior Member

    Joined:
    May 13, 2011
    1,168
    597
    1
    Location:
    Slovenia
    Vehicle:
    2018 Prius
    Model:
    N/A
    Just got a word from the service guy, it will be changed under waranty. :D

    Interstingly, I've checked also if Corolla and Camry hybrid have this system and generaly they don't, but some versions do, don't exactly know where.

    bryanpenn likes this.
  15. vvillovv

    vvillovv Senior Member

    Joined:
    Mar 19, 2013
    3,492
    1,231
    1
    Location:
    NY
    Vehicle:
    2017 Prius Prime
    Model:
    Prime Plus
    they may have different types of heat exchange systems, I think the Prime heat pump a more advanced type exchange system.

    How were you driving the car before the smoke and coolant loss, mostly highway? using heat in EV or HV or both? typical temps for A/C and winter heat? Any clues why the exchanger cracked?

    Glad to hear Toyota is fixing it for ya.....

  16. GasperG

    GasperG Senior Member

    Joined:
    May 13, 2011
    1,168
    597
    1
    Location:
    Slovenia
    Vehicle:
    2018 Prius
    Model:
    N/A
    Very little highway, but some hills and more or less 20 km trips in one way.

    vvillovv likes this.
  17. Jburner

    Jburner Member

    Joined:
    Feb 21, 2022
    68
    40
    0
    Location:
    Wisconsin
    Vehicle:
    2016 Prius
    Model:
    Four
    how many miles were on your vehicle? I'm wondering the mileage on the warranty or if there is some kind of TSB that extends it past the usual 60K or even 100k. I'm at almost 110k, so I'm sure no warranty will be available if something happens.

  18. vvillovv

    vvillovv Senior Member

    Joined:
    Mar 19, 2013
    3,492
    1,231
    1
    Location:
    NY
    Vehicle:
    2017 Prius Prime
    Model:
    Prime Plus
  19. Harters

    Harters Active Member

    Joined:
    Dec 28, 2016
    335
    423
    0
    Location:
    UK
    Vehicle:
    2017 Prius
    Model:
    Excel
    Someone commented on the above video and said they have just had theirs done under warranty.

    Initially they were told it was a head gasket failure, but when they mentioned the TSB they replied to a comment and said "... had mine fixed for free at dealer. Covered under federal emissions warrantee 96 months or 80k. I had 79,500!"

    Hope this helps.

    #39 Harters, Jan 28, 2023
    Last edited: Jan 28, 2023
    Mambo Dave likes this.
  20. Mambo Dave

    Mambo Dave Active Member

    Joined:
    Jul 5, 2019
    640
    305
    0
    Location:
    33312
    Vehicle:
    2019 Prius
    Model:
    L Eco
    Jesus, that's tight. Ideally it should be 100k miles. Wonder what limited it to 80k miles?
