Aftermarket "Earthing" (Grounding) Kits?

Discussion in 'Gen 2 Prius Accessories & Modifications' started by Justdidit, Nov 19, 2012.

  1. Justdidit

    Justdidit LVNPZEV

    Joined:
    Jun 12, 2012
    1,880
    710
    75
    Location:
    Carrollton, Texas
    Vehicle:
    2007 Prius
    Model:
    Four Touring
    Again... Looking to see if anyone has had experience either doing a DIY grounding kit or purchasing one designed for Prii. What their results were... if "improved fuel efficiency, smoother idle, better throttle response, brighter headlights and cleaner audio" are possibilities of this upgrade?

    HKS CIRCLE EARTH SYSTEM - $205 Shipped to USA
    Part #48004-AK001
    HKS - Circle Earth System - Nengun Performance
    [​IMG]
    or
    Lightningmotorsports.com has the same kit for $150

    HKS Circle Earth System - Lightning Motorsports - Made with bits of real lightning, so you know it's good !

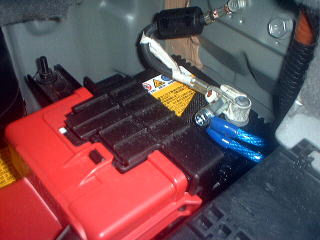

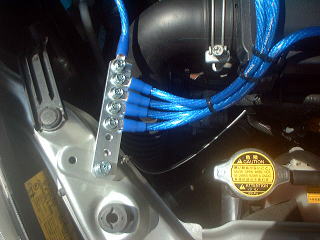

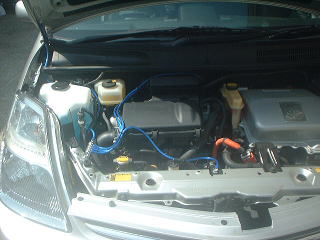

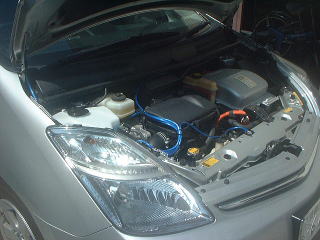

    Kai Power has a kit for $65:
    http://kaipower.web.fc2.com/earth/nhw-001/nhw-001.html

    [​IMG] [​IMG][​IMG] [​IMG]

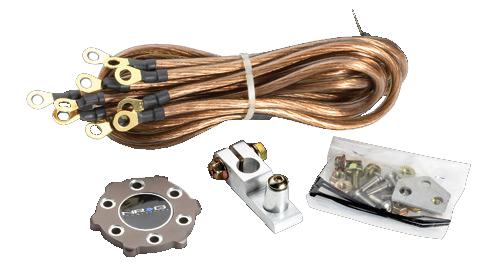

    Here is NRG's kit: GK-100BL - Retail $50

    NRG Ground Wire System - 2NRPARTS.COM - Discount Performance Parts, Wholesale Prices, Free Shipping, Coupon Codes & Fast Shipping
    -$28.05 + Tax + shipping
    [​IMG]

    The NRG kit was used on the Prius Limo project.

    A DIY plus review from:
    Ground Wire Kit Install (Homemade) - Scionlife.com

    ...what do ya'll think?

    Daves09prius likes this.
  2. fuzzy1

    fuzzy1 Senior Member

    Joined:
    Feb 26, 2009
    17,522
    10,300
    90
    Location:
    Western Washington
    Vehicle:
    Other Hybrid
    Model:
    N/A
    Do you have any particular reason to suspect inadequate grounding in your car?

  3. Justdidit

    Justdidit LVNPZEV

    Joined:
    Jun 12, 2012
    1,880
    710
    75
    Location:
    Carrollton, Texas
    Vehicle:
    2007 Prius
    Model:
    Four Touring
    Not necessarily, but other Prii, scion and many other car owners have done the upgrade that are of relevant comparison and "proclaim" there is a positive performance difference. Again, w/o proper analysis, this can't be verified. Same as listening to other Prii owners and talking their results of who have or haven't seen the benefits is nearly the same as scouring other car forums and seeing what their results are.

    Grounding kits have, in some cars, assisted in improving performance. I'd like to hear of some Local USA testimonies...

    The idea of "if the wheel an't broke, why fix it?" - comes to mind..If we all took the approach that, the cars come stock at the best of their abilities, where would we be today?! The idea "you can't improve millions of $$$s of R&D" is just ridiculous. Not saying every 'upgrade' is worth it or a great 'ROI', but I'd definitely like to learn of others experience w/ this particular 'Grounding upgrade.'

    Sezy likes this.
  4. Britprius

    Britprius Senior Member

    Joined:
    Jun 14, 2010
    5,194
    1,917
    0
    Location:
    Herefordshire England
    Vehicle:
    2008 Prius
    As far as brighter headlights go, the wiring to these on the Prius is very to say the leased "light weight" giving on my own vehicle a voltage drop on the passengers side (drivers side for the US) of 1.7 volts at the bulb, and on the drivers side (passengers side US) a drop of 2.1 volts.

    These readings were take compared with the voltage at the jump point and a suspension mount bolt above the fuse box with the car in ready.

    I have rewired the lights taking a fused supply from the jump point and switched this with relays below each headlamp controlled by the existing wiring and replacing the ground wire to each light with larger cable. The results show less than 0.1 volt drop even at both lights, and noticeably brighter lights.

    Justdidit likes this.
  5. Justdidit

    Justdidit LVNPZEV

    Joined:
    Jun 12, 2012
    1,880
    710
    75
    Location:
    Carrollton, Texas
    Vehicle:
    2007 Prius
    Model:
    Four Touring
    Awesome! Thanks for the feedback...

    on a different note: any luck with the caliper pix?

  6. Britprius

    Britprius Senior Member

    Joined:
    Jun 14, 2010
    5,194
    1,917
    0
    Location:
    Herefordshire England
    Vehicle:
    2008 Prius
    Sorry the weather over the weekend was too bad to do wheel rotation "I have to work outside" but will post ASAP. You will not believe the rust on the rear discs fitted less than four months ago in the summer compared to the fronts fitted at the same time.

    Justdidit likes this.
  7. maestro8

    maestro8 Nouveau Member

    Joined:
    Feb 19, 2012
    471
    109
    0
    Location:
    nor cal
    Vehicle:
    2008 Prius
    Model:
    N/A
    I could see the need for this in a car wired by Lucas... esp a 20+ year old car with corroded grounding points and such. But if your car is only 4 years old and you already have corroded wiring / connectors, I think your problems are worse than bad grounds.

    Keep in mind the ground is a small part of every circuit... there are many harnesses and connectors in each circuit as well. Voltage drops can occur at corroded connectors, esp. if they're not gold plated.

    I did the Britprius headlight fix on a 24 year old car of mine, saw great improvement in headlight brightness. The issue wasn't grounding, it was voltage drop between the fuse box and the headlight.

    I think Monster Cable has expanded into the automotive market. Save your money and use bulk wire from your favorite hardware store.

    The write-up you copy-pasted is fishy. The table shows zero improvement (0.5 mv to 0.5 mv) in two rows. Heck of a sales job there.

    "Some even say the ground wires help prevent static shock when getting out of the car."
    This demonstrates a total lack of understanding of basic physics.

    Man, I really should be making mod kits for the Prius, if folks are buying this stuff. I could sell a jar of salt and instruct users to pour it into the windshield washer tank for "improved throttle response", and I'd make a few thousand overnight...

    fuzzy1 likes this.
  8. Justdidit

    Justdidit LVNPZEV

    Joined:
    Jun 12, 2012
    1,880
    710
    75
    Location:
    Carrollton, Texas
    Vehicle:
    2007 Prius
    Model:
    Four Touring
    Oh boy, looks like Maestro the skeptic is an expert in this area also...

    I agree that buying your own kit is probably the best option, as long as the cabling is heat resistant. Not sure where you say a Monster Cable product. Home | NRG Innovations and Monster® Products | High-Definition HDMI, Premium Home Theater Cables, Headphones and more! Far as I know neither company is owned by the other or under a the same parent company.

    Maybe you didn't read it correctly, that was a DIY... not a sales pitch, but more of personal experience and results.

    Overall, brilliant deduction again, but I wonder then if this is such a "cup o' salt in the ol windshield washer tank for improved throttle response hogwash" - why not only a few people are getting performance improvements anywhere in their cars that are NOT over 20 yrs old and not just on a Prii. Seems to me your skepticism and negative outlook is getting the best of you again Maestro8. :) But, please do a write-up on it as you conduct these test on your own car. I'd like to see the results. :) In the mean time, it seems like a inexpensive mod to try...

    Daves09prius likes this.
  9. Britprius

    Britprius Senior Member

    Joined:
    Jun 14, 2010
    5,194
    1,917
    0
    Location:
    Herefordshire England
    Vehicle:
    2008 Prius
    The headlamp fix in my case was a mixture of bad grounding (high resistance wiring not corrosion of terminals) and wiring loom resistance. The wiring on the Prius while safe is far from the ideal electrically with runs of small gauge wire running unnecessary long runs, (the right hand headlamp is grounded on the left hand side of the car).

    Justdidit likes this.
  10. Daves09prius

    Daves09prius Active Member

    Joined:
    Nov 20, 2010
    680
    161
    0
    Location:
    Gettysburg, PA
    Vehicle:
    2009 Prius
    Model:
    One
    I put a self-made ground wire kit on my specV and noticed smoother idle, my engine didn't hick-up when the AC kicked on, and the headlights were brighter. -- improving the grounds on the Prius couldn't hurt. If you don't want to make your own get the NRG kit, for $28 why not!?

  11. maestro8

    maestro8 Nouveau Member

    Joined:
    Feb 19, 2012
    471
    109
    0
    Location:
    nor cal
    Vehicle:
    2008 Prius
    Model:
    N/A
    I keep seeing this phrase, but it makes no sense to me. Is the engine lurching at idle before the mod? Or does it idle at a higher RPM?

    "Improved throttle response" and "smoother idle" are so subjective, I bet one could drink a few cups of coffee and see the same effect...

  12. Daves09prius

    Daves09prius Active Member

    Joined:
    Nov 20, 2010
    680
    161
    0
    Location:
    Gettysburg, PA
    Vehicle:
    2009 Prius
    Model:
    One
    rrrrrrrrRRRrrrrrrRRRrrrrrrrRRRrrrrrrrRRRrrrrrrr (bouncy idle like at 900 and randomly jumps to 1200 then back to 900) becomes one steady smooth 900 rpm rrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrr after the mod.

    So not higher rpm idle - just one constant lower rpm speed at idle.

    I don't know if it'll do anything for monster V8's but I know it helps In-Line 4's

    Will it hurt the Prius to add some grounding cables? - no, I have to ask, why do the headlights and bulbs burn out so frequently on the Pruis? I have a feeling that it's spikes in the voltage. An improved ground may or may not help, but it's worth a try...

    Justdidit likes this.
  13. kenmce

    kenmce High Voltage Member

    Joined:
    May 4, 2004
    1,538
    511
    0
    Location:
    NY
    Vehicle:
    Other Hybrid
    Model:
    Limited
    The 12 volt battery is your chief defender against voltage spikes. Better grounds will just pass spikes more effectively... 8-(

  14. JimboPalmer

    JimboPalmer Tsar of all the Rushers

    Joined:
    Apr 14, 2009
    12,470
    6,871
    2
    Location:
    Greenwood MS USA
    Vehicle:
    2012 Prius v wagon
    Model:
    Three
    Lets assume extra grounding helps some cars, I have no evidence it does but if it does not, this whole thread is useless.

    The reasons I am extremely dubious that this will help a Prius:
    Alternator is not using the engine ground as it's ground. MG/1 is 3 phase AC, the Inverter makes 12v DC.
    Alternator does not change speed with engine RPM. The Inverter makes a steady voltage.
    Battery Ground strap is not out in the weather. There should be less corrosion.

    If I knew where 'ground' was on the inverter, that would be the place to add a heavy duty strap to the frame ground.
    The long run of 12 volts from the Inverter to the positive terminal on the battery might be a weak point, but since there is no starter, I am not sure it is important.

    The safety implications of trying to 'beef up' any of the HV lines rules out any consideration of those cables.

  15. Sezy

    Sezy Active Member

    Joined:
    Oct 19, 2013
    428
    225
    37
    Location:
    Saint Charles, Missouri
    Vehicle:
    2020 Prius Prime
    Model:
    Limited
    On my second car 06 Acura TL 3.2L V6 I went to Autozone,got a few battery replacement cables that are pretty thick and connected them to grounding points then to my negative on the battery. Before this mod I did a "Hypervoltage" kit like a capacitor directly hooked in line with the battery. Combined this fixed my interior lights from flickering. As far as smoother idle and better performance I can't says it's made a big difference,could just be the placebo effect. Either way I am happy that I did the ground wire kit in general on my TL and would love to try it on my Prius but have so many other things to do to it first.

  16. JimboPalmer

    JimboPalmer Tsar of all the Rushers

    Joined:
    Apr 14, 2009
    12,470
    6,871
    2
    Location:
    Greenwood MS USA
    Vehicle:
    2012 Prius v wagon
    Model:
    Three
    Two comments Sezy, in your TL the 12 volt battery starts the engine, and the alternator speed affects the car's voltage.
    Neither of these are true in a Prius.

    Be sure you understand how the Prius's low voltage system works before you 'fix' it.

    Should you still convince yourself that you need a thicker ground cable, you have JIS battery posts in the Prius, not the much more common SAE posts.

  17. Sezy

    Sezy Active Member

    Joined:
    Oct 19, 2013
    428
    225
    37
    Location:
    Saint Charles, Missouri
    Vehicle:
    2020 Prius Prime
    Model:
    Limited
    Good call,that's why it's at the bottom of my list :sleep: . Was hoping to find a DIY or some sort of directions from somebody who has done it first with results.

  18. JimboPalmer

    JimboPalmer Tsar of all the Rushers

    Joined:
    Apr 14, 2009
    12,470
    6,871
    2
    Location:
    Greenwood MS USA
    Vehicle:
    2012 Prius v wagon
    Model:
    Three
    I do not doubt that someone has gone first, I just doubt that they have any 'results'.

    Sadly, the most obvious cable to 'beef up' is the Positive cable from the battery in the passenger rear to the jump point under the hood on the driver's side, then on to the inverter. That will be expensive and a lot of work under the car.

    Without an alternator, all those cables going to the engine are pointless,

  19. NortTexSalv04Prius

    NortTexSalv04Prius Active Member

    Joined:
    Nov 14, 2009
    915
    115
    0
    Location:
    Texas
    Vehicle:
    2004 Prius
    Model:
    N/A
    I have notice some use this for custom audio applications. But , I agree with my friend here. I am unsure whether the grounding kits and voltage stabilizer sold on ebay live up to the claims that are made...............

  20. NortTexSalv04Prius

    NortTexSalv04Prius Active Member

    Joined:
    Nov 14, 2009
    915
    115
    0
    Location:
    Texas
    Vehicle:
    2004 Prius
    Model:
    N/A
    Replacement of OEM filament bulbs (almost all of vehicle) changed/replace with LED is a fairly easy and better money spent ................

    Sezy likes this.
