Any idea what this is?

Discussion in 'Prius c Main Forum' started by Joss, May 28, 2014.

  1. Joss

    Joss Junior Member

    Joined:
    Apr 24, 2013
    20
    3
    0
    Location:
    Melbourne, Australia
    Vehicle:
    2013 Prius c
    Model:
    N/A

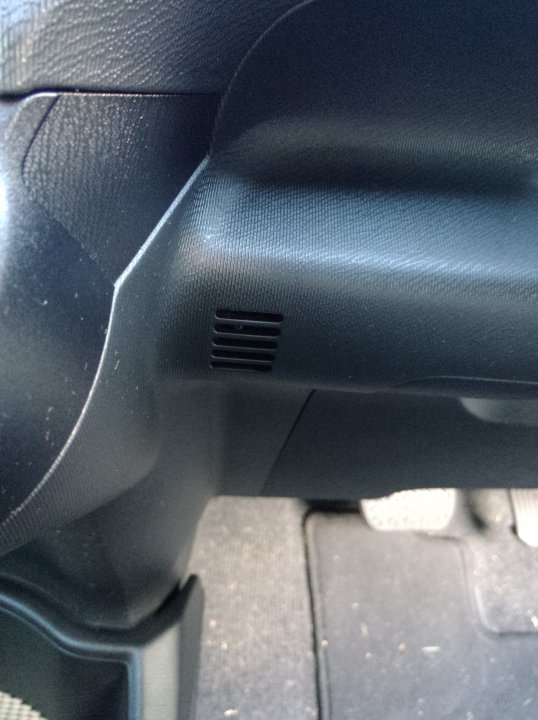

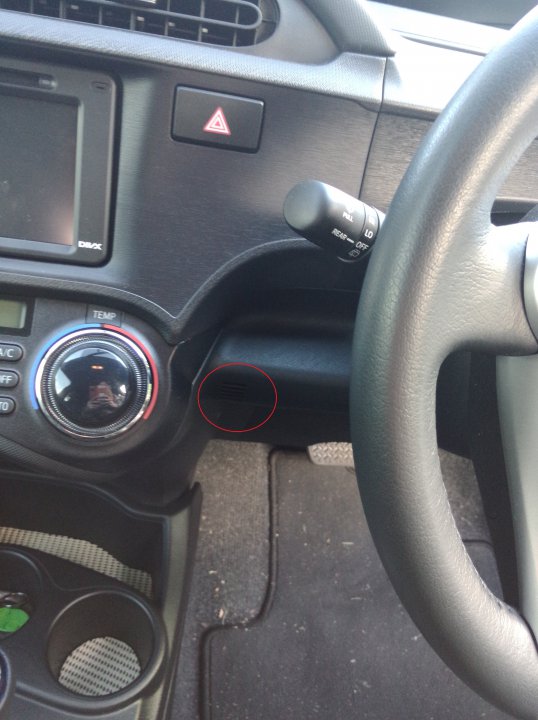

    Anyone figured out what this little cover is for?
    The dealer couldn't tell me and it doesn't appear to be referenced in the manual.
    IMG_20140523_140600.jpg IMG_20140523_140552.jpg

  2. robertmaria

    robertmaria Member

    Joined:
    Mar 28, 2014
    202
    41
    0
    Location:
    please DELETE this account
    Vehicle:
    2014 Prius c
    Model:
    One
    my previous answer is corrected as discussed by others following

    #2 robertmaria, May 28, 2014
    Last edited: May 31, 2014
  3. erkkiamerikka

    erkkiamerikka New Member

    Joined:
    May 28, 2014
    1
    0
    0
    Location:
    USA when not in Finland
    Vehicle:
    2013 Prius c
    Model:
    Four
    I have seen that in many different cars (of all Makes) that have automatic climate control, I have always assumed that it is a temperature sensor.

  4. orenji

    orenji Senior Member

    Joined:
    Aug 17, 2013
    5,865
    3,461
    0
    Vehicle:
    2010 Prius
    Model:
    Three
    I believe it is the speaker to the door/key signal.

  5. KYBlue

    KYBlue Member

    Joined:
    Jun 28, 2013
    202
    92
    0
    Vehicle:
    2013 Prius c
    Model:
    Two
    Should be a small tube that runs up to a sensor that detects ambient air for the auto HVAC function....

  6. vincent1449p

    vincent1449p Active Member

    Joined:
    May 24, 2004
    894
    331
    0
    Location:
    Singapore
    Vehicle:
    2012 Prius c
    Hi Joss,

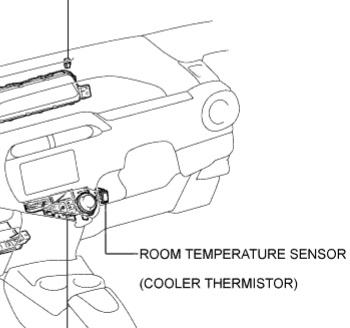

    Room Temperature Sensor.jpg

    The room temperature sensor (cooler thermistor) detects the cabin temperature based on changes in the resistance of its built-in thermistor and sends a signal to the air conditioning amplifier assembly.

    Vincent

  7. mmmodem

    mmmodem Taste Tester

    Joined:
    Nov 17, 2011
    2,626
    1,579
    0
    Location:
    Milpitas, CA
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    It's for the HVAC. You only find that vent on vehicles with auto climate control.

  8. PriusInParadise

    Joined:
    May 24, 2012
    180
    91
    0
    Location:
    Hawaii
    Vehicle:
    2011 Prius
    Model:
    Two

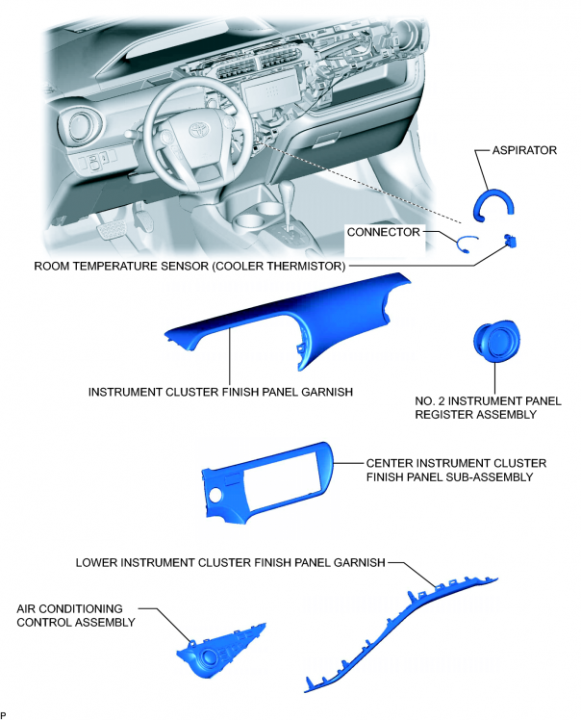

    It is the in-car temp sensor for the HVAC system. There is a 2 wire connector and an aspirator tube connected to the back of the sensor.
    Sorry, I only have a LHD view.


    Attached Files:

  9. Joss

    Joss Junior Member

    Joined:
    Apr 24, 2013
    20
    3
    0
    Location:
    Melbourne, Australia
    Vehicle:
    2013 Prius c
    Model:
    N/A
    Wow, thank you all for your answers - very helpful.

    Funny thing, when I asked the dealer, and he said it was the microphone for the bluetooth connection.
    I pointed to the grill on the roof which did that and he said, "no, that one blows a burst of cool air every now and then to keep you awake on long trips".
    Silly dealer.

  10. sfv41901

    sfv41901 Masta S

    Joined:
    May 5, 2010
    4,591
    5,277
    0
    Location:
    Palmdale, Ca
    Vehicle:
    2015 Prius
    Model:
    Four
    When I went to buy my gen3 Prius, I was already knowledgeable in all of the features. I need up going to 3 different dealers & put the sales man through the all of t he technical questions. The 1st 2 dealers I ended up asking for the sales manager. I explained to him that it was pretty sad to hear his salesman come up with some really outrageous answers & because of his lack of knowledge about the features of a Prius they were losing the sale.
