Anyone install the Morimoto Retro-Quik? Mine Doesn't look right..

Discussion in 'Gen 3 Prius Accessories and Modifications' started by mrstop, Mar 15, 2013.

  1. ataylor2

    ataylor2 Member

    Joined:
    May 30, 2013
    122
    54
    0
    Location:
    East San Francisco Bay Area, CA
    Vehicle:
    2010 Prius
    Model:
    III
    I also installed these Side Emitting Audi Style LED strips - Accessories from The Retrofit Source Inc
    Again nice but missing that extra little step to make them great. Issue here is that the power leads are all on the same side, so you cant make the exit point symmetrical. They would be better if there was a left and right so the holes could be in the same place for both lights. This would also make the power lead routing and length out of the headlight the same.

  2. mrstop

    mrstop PWR Mode

    Joined:
    Jun 22, 2012
    742
    329
    109
    Location:
    Cincinnati, OH
    Vehicle:
    2012 Prius
    Model:
    Two
  3. ataylor2

    ataylor2 Member

    Joined:
    May 30, 2013
    122
    54
    0
    Location:
    East San Francisco Bay Area, CA
    Vehicle:
    2010 Prius
    Model:
    III

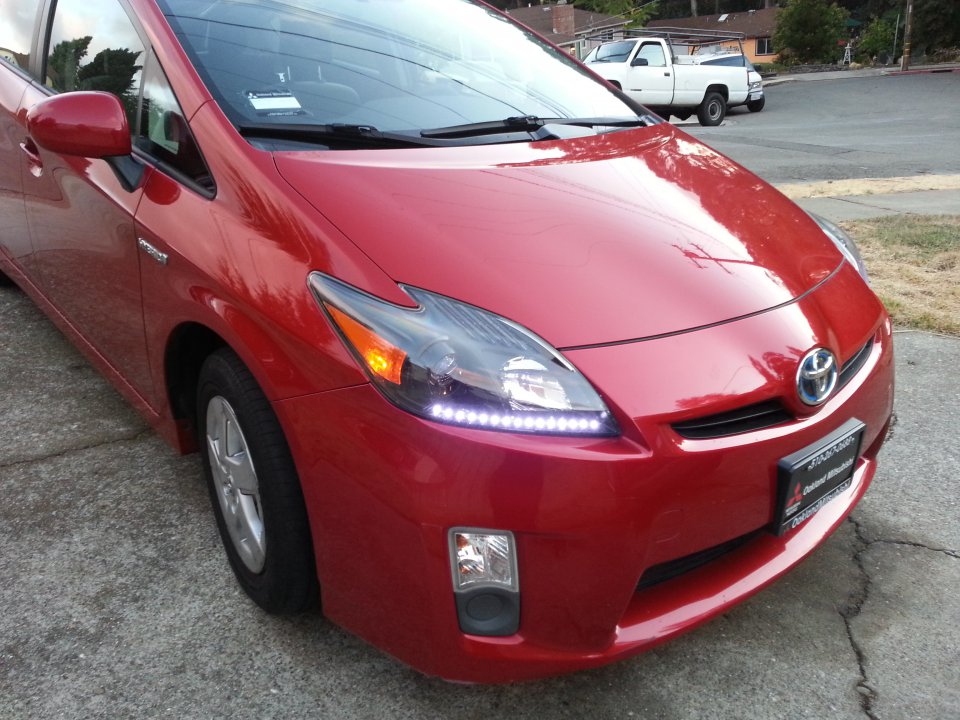

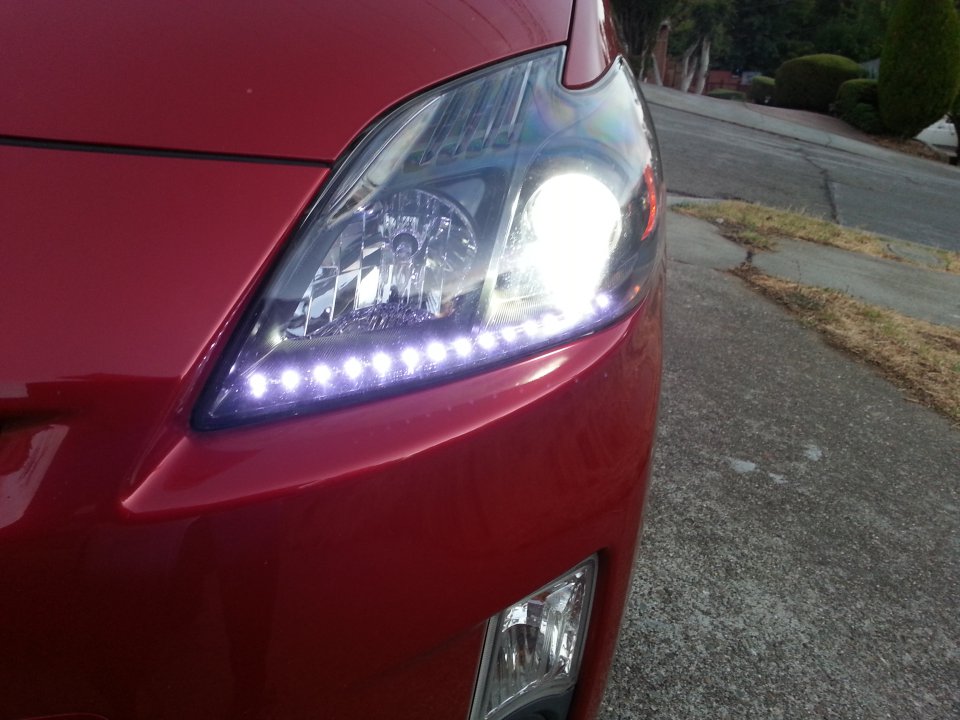

    Here are a couple.

    20130921_190500[1].jpg 20130921_190344[1].jpg

    mrstop likes this.
  4. ataylor2

    ataylor2 Member

    Joined:
    May 30, 2013
    122
    54
    0
    Location:
    East San Francisco Bay Area, CA
    Vehicle:
    2010 Prius
    Model:
    III

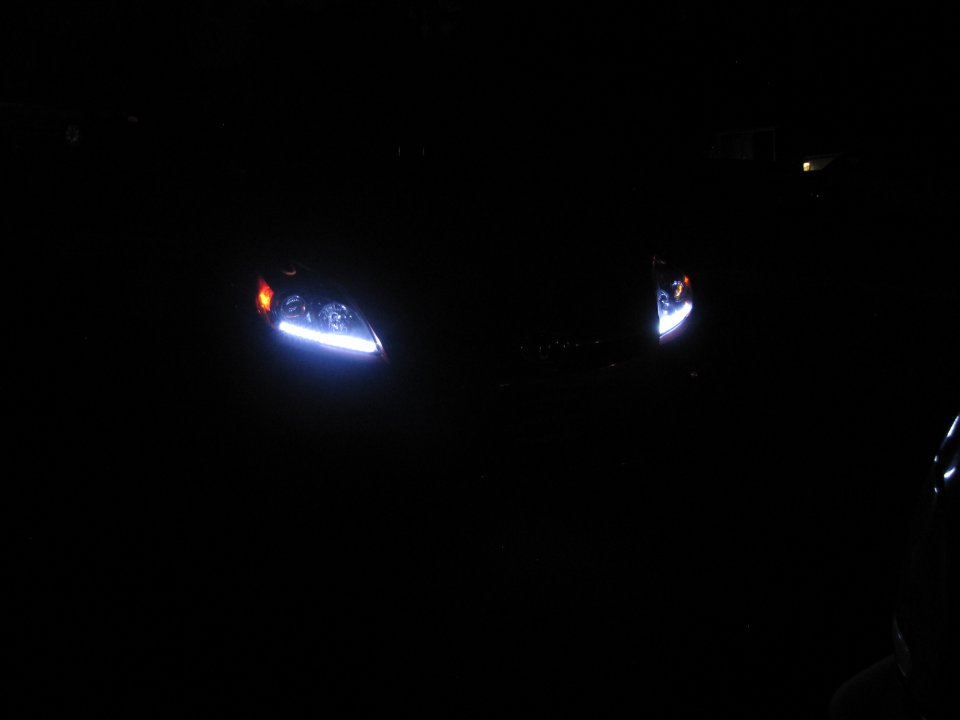

    Night shot.


    mrstop likes this.
  5. swaggingprius

    swaggingprius Member

    Joined:
    Nov 7, 2011
    88
    29
    21
    Location:
    East Coast
    Vehicle:
    2010 Prius
    Model:
    III

    ataylor2 likes this.
  6. ataylor2

    ataylor2 Member

    Joined:
    May 30, 2013
    122
    54
    0
    Location:
    East San Francisco Bay Area, CA
    Vehicle:
    2010 Prius
    Model:
    III
    This was the answer I got when I told them I needed the plugs.

    "Sorry for the confusion. Neither projector had a connector in the bag inside the box?
    These projectors are packed completely separately, so it's very odd that they both at random don't have these connectors."
    They are also sending a set to me at no charge.

  7. swaggingprius

    swaggingprius Member

    Joined:
    Nov 7, 2011
    88
    29
    21
    Location:
    East Coast
    Vehicle:
    2010 Prius
    Model:
    III
    teaser, since I have not finished this build. But it all is Retrofit Source lights.


    Joele3, rrg, sfv41901 and 2 others like this.
  8. rrg

    rrg Active Member

    Joined:
    May 18, 2010
    458
    120
    41
    Location:
    East coast - NJ
    Vehicle:
    2011 Prius
    Model:
    Two
    With pinky finger tip in mouth.
    "Those look like frickin laser beams"

    Well done.

  9. swaggingprius

    swaggingprius Member

    Joined:
    Nov 7, 2011
    88
    29
    21
    Location:
    East Coast
    Vehicle:
    2010 Prius
    Model:
    III
    Tah dah!

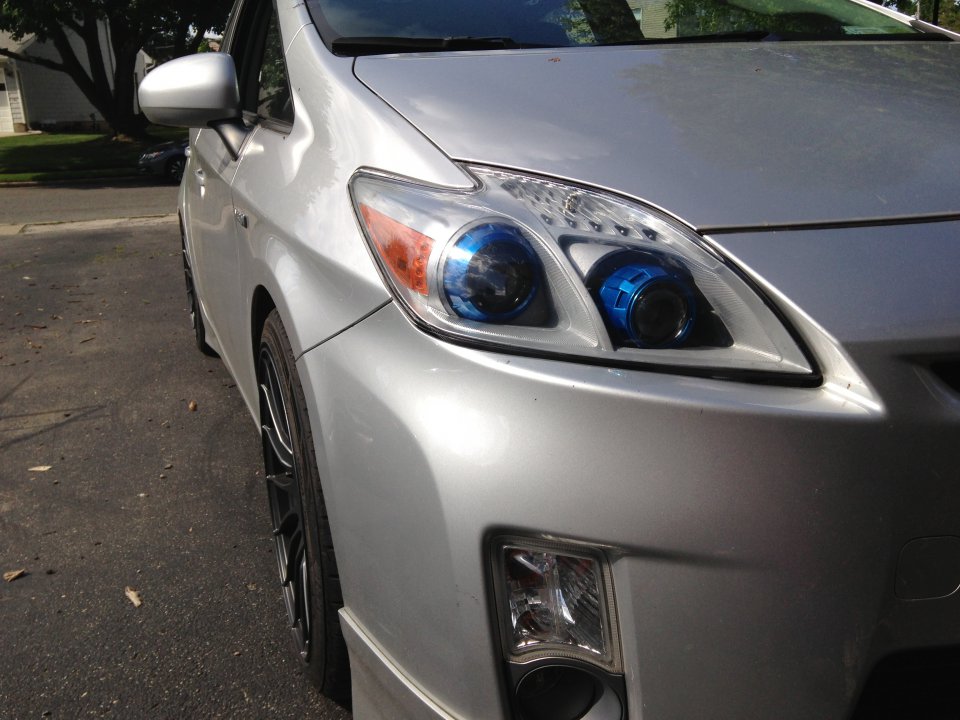

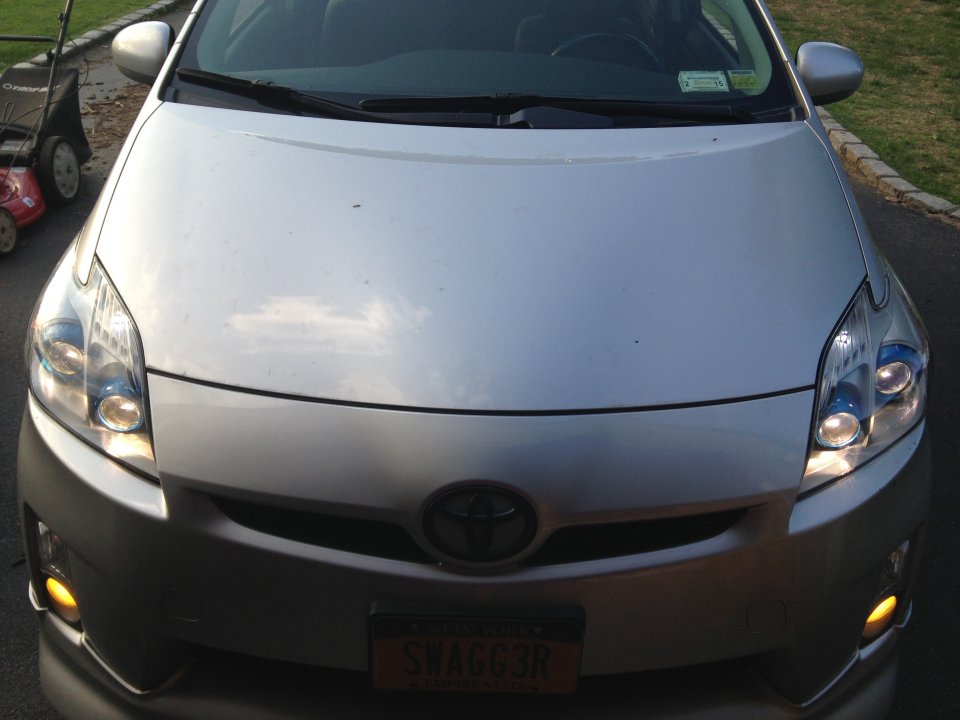

    Finally done. And I hesitate a bit, since I am not 100% happy with my final outcome. Little things here and there that maybe a pro would be able to address, such as a better paint job, cutting, and adjusting. But overall this is what I had envisioned.

    Cheers!
    IMG_3341.JPG IMG_3348.JPG

    sfv41901, mrstop and xliderider like this.
  10. mrstop

    mrstop PWR Mode

    Joined:
    Jun 22, 2012
    742
    329
    109
    Location:
    Cincinnati, OH
    Vehicle:
    2012 Prius
    Model:
    Two
    Very unique. Good work!

  11. itommytang

    itommytang Junior Member

    Joined:
    Jan 22, 2014
    20
    11
    0
    Location:
    Roseville, California
    Vehicle:
    2010 Prius
    Model:
    N/A
    I think it's too late because your headlights are assembled, but would you know the circumference of the low beam shroud? I was thinking of adding angel eyes and need to know what size to get.

  12. sfv41901

    sfv41901 Masta S

    Joined:
    May 5, 2010
    4,591
    5,291
    0
    Location:
    Palmdale, Ca
    Vehicle:
    2015 Prius
    Model:
    Four
    Looks great......ur just missing ur output shots.



    iPad ?

  13. swaggingprius

    swaggingprius Member

    Joined:
    Nov 7, 2011
    88
    29
    21
    Location:
    East Coast
    Vehicle:
    2010 Prius
    Model:
    III
    Ok, so hopefully this answers some of the questions regarding my headlight build.

    For the main (original) headlights, I used the Prius Quick Retro kit
    Retro-Quik: Toyota Prius (10+)

    For the Quad projectors installed in the high beam housing, I used the stage 3
    Bi-xenon Morimoto Mini Stage III Kit (H1)

    Since the there is limited space in the high beam housing, I had to use the mini gatling gun shroud
    Mini Gatling Gun - Projector Shrouds from The Retrofit Source Inc

    Both sets of projectors, from quick kit and the stage 3 are identical. The main difference between both sets is that the quick kit comes with the install plate that goes directly into the headlight, while the stage 3 kit comes with a shroud.

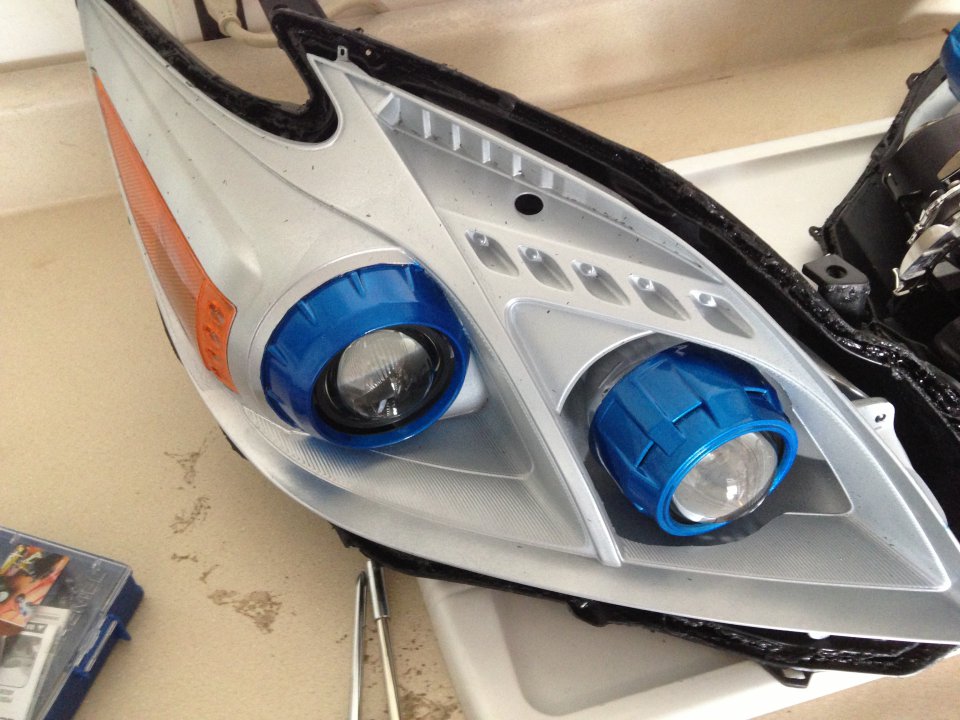

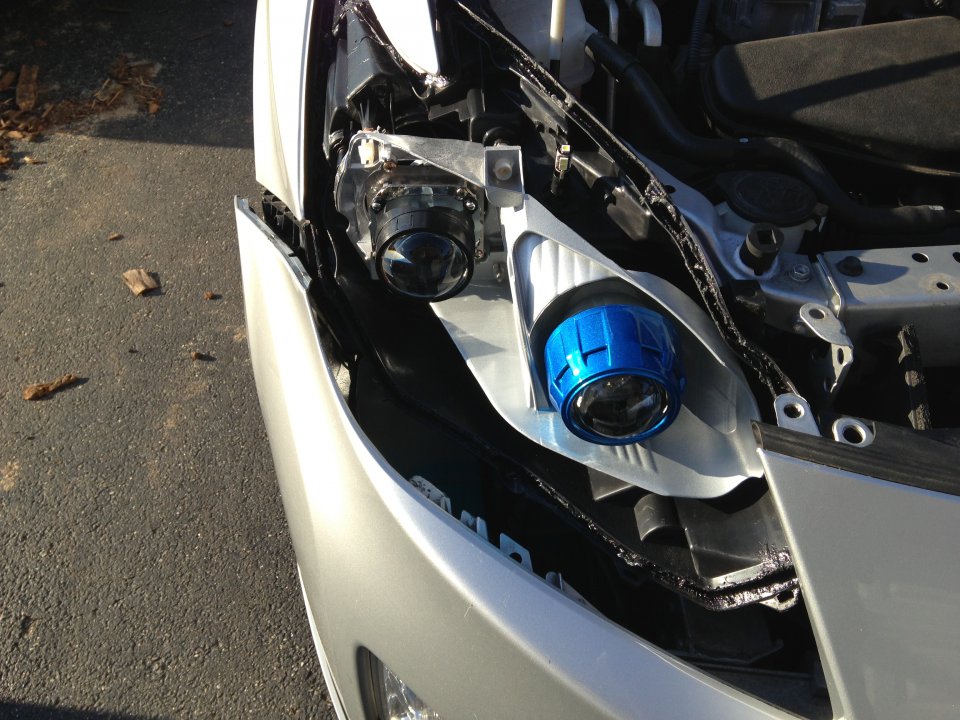

    In my previous posts I alluded that if I were to do this all over again, I would probably do a few things differently. The stage 3 projector installed in the high beam housing is too big; therefore I had to do some cutting in the front of the headlight. If you pay attention to the pic below, you will see how I had to shave/sand the housing down. (Becoming a Dremmel expert)

    I am thinking that an alternative to sanding in the front, there could have been one of two alternatives:

    1. Use a smaller projector, maybe a fog sized projector (which not sure if that would look a little silly)
    or
    2. Cut a lot more in the back of the high beam, so that the projector is pushed as far back that the front does not need any cutting (that could push the projector too much to the back). This level of cutting and then trying to glue the projector to the housing would require a lot of work.

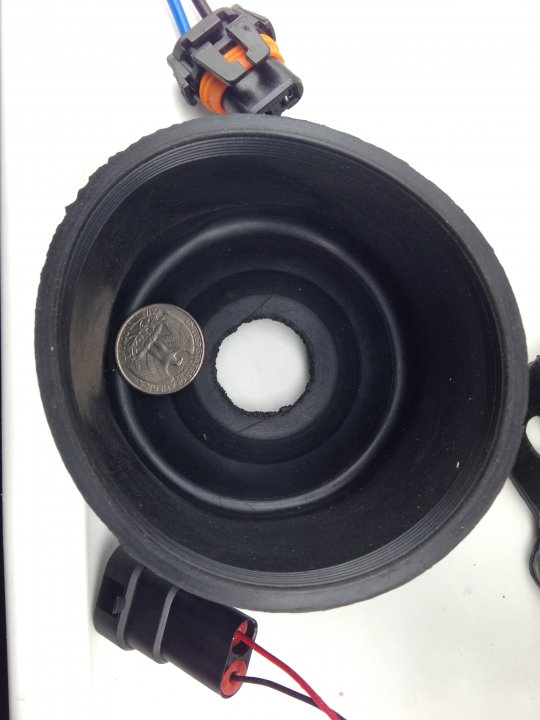

    Also, very important to not forget the back of the headlight. Needed 4 rubber housings. All four are 80mm in diameter.
    Rubber Housing Caps - Accessories
    To keep things as tight as possible, I had to cut a hole as closely as possible to match the rubber disk the lightbulb comes with. It is essentially the size of a quarter.

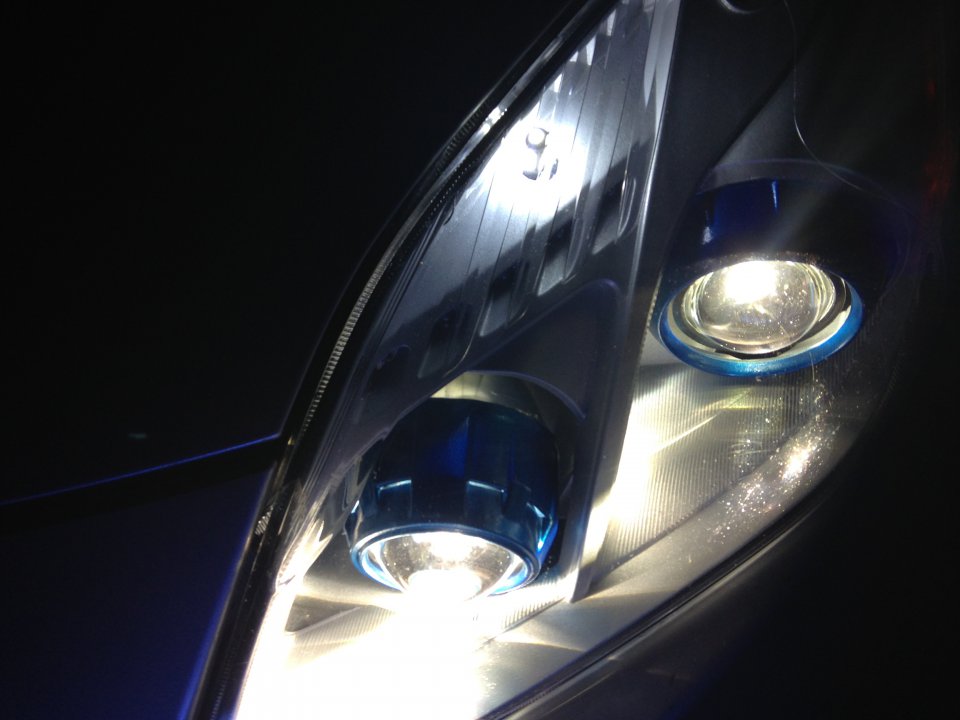

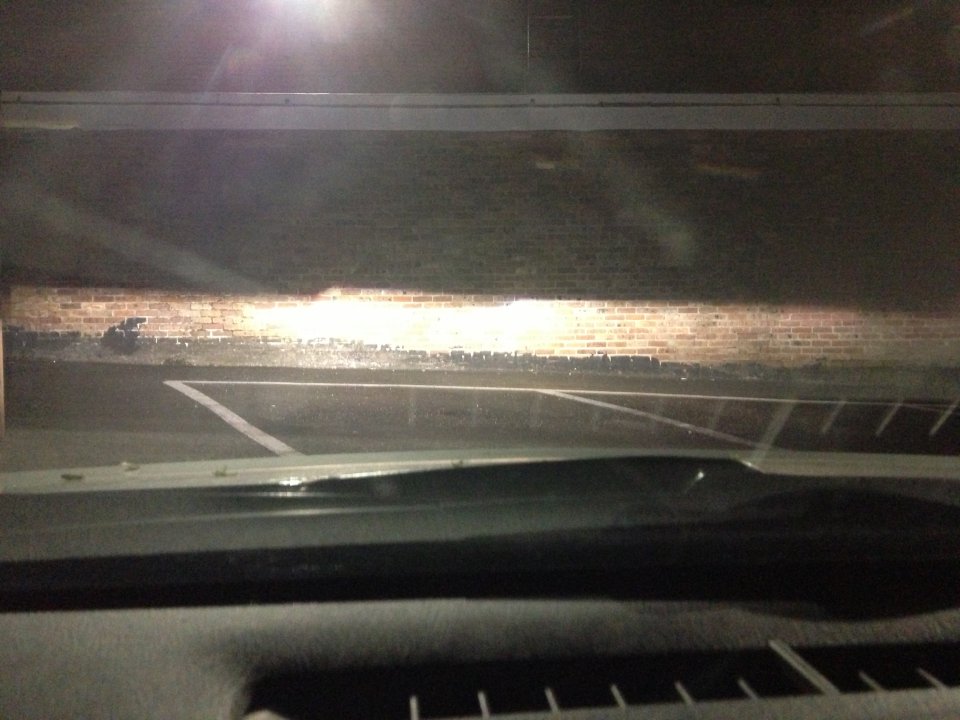

    For those asking about an output pic. Here you go!

    For those that pay attention, the driver side is slightly dimmer than the passenger side. One of my lamps is dimmer than the other three. Not sure why is that, but I have brought it to the attention of the TRS and hopefully there is a way to troubleshoot.

    Can you see how one is brighter than the other? The other headlight, both lamps are just as bright.

    #73 swaggingprius, Jun 6, 2014
    Last edited: Jun 6, 2014
    Starbrand, sfv41901 and mrbigh like this.
