Automatic Coolant Temp Hack for Better MPGs

Discussion in 'Gen 2 Prius Accessories & Modifications' started by TheForce, Dec 11, 2009.

Page 3 of 3
  1. TheForce

    TheForce Stop War! Lets Rave! Make Love!

    Joined:
    May 30, 2005
    3,461
    537
    0
    Location:
    Wheelersburg, Ohio
    Vehicle:
    2006 Prius
    Model:
    N/A
    I'm no longer selling these because I ran out of parts. So if you want one your going to have to build your own.

    If you have any questions about the ACTH or its use just ask.

    #41 TheForce, Jun 4, 2010
  2. TheForce

    TheForce Stop War! Lets Rave! Make Love!

    Joined:
    May 30, 2005
    3,461
    537
    0
    Location:
    Wheelersburg, Ohio
    Vehicle:
    2006 Prius
    Model:
    N/A
    JeffreyDV has confirmed that this design works for the 2004 Prius.

    #42 TheForce, Oct 26, 2010
  3. mrbigh

    mrbigh Prius Absolutum Dominium

    Joined:
    Sep 6, 2005
    3,686
    699
    2
    Location:
    Long Island, NY
    Vehicle:
    Other Electric Vehicle
    Hurray !!!:cheer2:
    One more in the road.

    #43 mrbigh, Oct 26, 2010
  4. NoMoShocks

    NoMoShocks Electrical Engineer

    Joined:
    Jan 21, 2007
    1,292
    81
    11
    Location:
    Camas, WA
    Vehicle:
    2010 Prius
    Model:
    IV
    This is probably a dumb question and I may be crazy, but why couldn't someone just locate the coolant temperature sensor and measure its cold resistance and resistance when the ICE comes up to temp of say 180 degrees. Then rig a switch in the coolant temperature sensor circuit to swap the sensor out for the calibrated 180 degree resistor for ICE temperature spoof. Maybe the coolant temperature sensor is not a variable resistance type sensor?

    #44 NoMoShocks, Dec 3, 2010
  5. TheForce

    TheForce Stop War! Lets Rave! Make Love!

    Joined:
    May 30, 2005
    3,461
    537
    0
    Location:
    Wheelersburg, Ohio
    Vehicle:
    2006 Prius
    Model:
    N/A

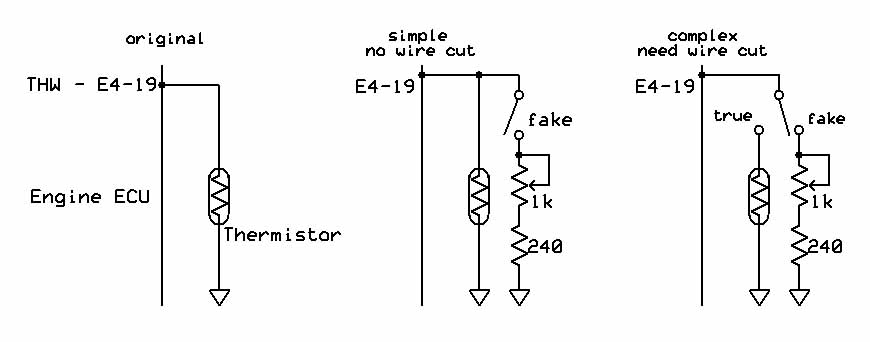

    I think what you describe has been done.

    The one on the right.
    [​IMG]

    The problem with that is that you cant monitor the real temp at the same time. The reason you want to monitor the real temp while faking is so you dont have overheat condition or a too cold condition. If the real temp is below 100F and your faking at 170F and the engine wants to start it will stutter and possibly give you some error lights and codes. Also with switching over the fake temp like the pic on the right you might get codes just by the switching process.


    I have been working with Bob Wilson on his micro controller controlled hack that has hot and cold protection. I have not been successful yet because I dont understand the MSP430 micro controller and how he is using it to figure out why its not working for me.

    I am however working on an Arduino version based on Bob's version. I hope to duplicate what Bob has done but also to include a real time adjustable settings so you can set your start and fake temps.

    I will post about my Arduino temp hack as soon as I get it working.

    #45 TheForce, Dec 3, 2010
  6. donalmilligan089

    donalmilligan089 Member

    Joined:
    May 16, 2008
    239
    22
    0
    Location:
    virginia usa
    Vehicle:
    2006 Prius
    Though I am a welder I am not worth a d**mn at soldering nor would I know what to buy in order to build my own .I have read all the conflicting ideas to your mod., but I want one .Please don't give up on such a good Idea What can I do or say to get you to build another?

    #46 donalmilligan089, Dec 3, 2010
  7. TheForce

    TheForce Stop War! Lets Rave! Make Love!

    Joined:
    May 30, 2005
    3,461
    537
    0
    Location:
    Wheelersburg, Ohio
    Vehicle:
    2006 Prius
    Model:
    N/A
    Sorry but I'm no longer building the ACTH because I don't have any more parts.

    #47 TheForce, Dec 3, 2010
  8. nerfer

    nerfer A young senior member

    Joined:
    Mar 1, 2006
    2,505
    233
    28
    Location:
    Chicagoland, IL, USA, Earth
    Vehicle:
    Other Non-Hybrid
    Model:
    N/A
    That's too bad. This looks like something I could use for my very short commute in cold weather. Many times I it seems to stay in the low 150's 'F and it may not get to 157'F until I'm already at work. To be always in S3 for the one nice downhill on my commute would be great.

    I could buy the parts and do it myself since you have the whole schematic shown, but I don't trust my soldering skills. If plugging in my EBH longer doesn't solve the temperature problem, I'll have to rethink that.

    #48 nerfer, Dec 3, 2010
  9. TheForce

    TheForce Stop War! Lets Rave! Make Love!

    Joined:
    May 30, 2005
    3,461
    537
    0
    Location:
    Wheelersburg, Ohio
    Vehicle:
    2006 Prius
    Model:
    N/A
    To anyone wanting to build this I would wait until in get the Arduino version working as it will have more features. Or at least I hope it will have features. One thing the Arduino version will do is have cold protection as well as hot protection. Plus the Arduino version will be much simpler in design.

    #49 TheForce, Dec 3, 2010
  10. Nortnarg

    Nortnarg Prius~To go before

    Joined:
    Feb 22, 2009
    83
    8
    0
    Location:
    Blue Springs, Missouri
    Vehicle:
    2009 Prius
    Model:
    Touring
    This is an interesting hack. The intent of the OP is to save fuel.
    Thinking on this the other day, I was starting out on a cold day with a cold car and a short trip.
    I started playing with the Auto A/C. If I turn the Auto off when I am at a stop light or gliding, the engine did shut down to 0 rpm even when cold. When I started moving again, just flipped the Auto back on for heat. Im sure I was past S1, but not even sure where the stages are after that. It did seem to help on the consumption overall.

    Kind of does the same thing as the hack, allowing fuel saving when cold and the engine is not needed for power or charging.

    Just wanted to toss this in. Seems to to a similar job, with a manual flick of my left thumb.

    #50 Nortnarg, Dec 7, 2010
  11. Mr.Toty

    Mr.Toty Junior Member

    Joined:
    Dec 8, 2010
    7
    0
    0
    Location:
    Italy
    Vehicle:
    2010 Prius
    Model:
    N/A
    ACTH can be used to hack Prius Gen3?

    If you where I can connect the pin 18.

    Thanks

    #51 Mr.Toty, Mar 29, 2011
  12. TheForce

    TheForce Stop War! Lets Rave! Make Love!

    Joined:
    May 30, 2005
    3,461
    537
    0
    Location:
    Wheelersburg, Ohio
    Vehicle:
    2006 Prius
    Model:
    N/A
    #52 TheForce, Mar 29, 2011
  13. Mr.Toty

    Mr.Toty Junior Member

    Joined:
    Dec 8, 2010
    7
    0
    0
    Location:
    Italy
    Vehicle:
    2010 Prius
    Model:
    N/A
    I do not know how to program Arduino.
    I wanted to build this thermistor hack because it has protection for warm ice.
    In pin18 I think there is 5V DC?

    #53 Mr.Toty, Mar 30, 2011
  14. TheForce

    TheForce Stop War! Lets Rave! Make Love!

    Joined:
    May 30, 2005
    3,461
    537
    0
    Location:
    Wheelersburg, Ohio
    Vehicle:
    2006 Prius
    Model:
    N/A
    I dont know where there is 5v for the Gen3. You will have to look at a wiring diagram to find that.

    If you can build this you could build the Arduino version. You dont have to program anything. I have the source code posted for it. Just use the Arduino software to upload the source code to the Arduino board. Its that easy.

    But if you dont need cold protection then building this version would be cheaper. But the start temp and fake temp are effected by the ambient temp. This is because the transistors are temperature sensitive.

    #54 TheForce, Mar 30, 2011
  15. Mr.Toty

    Mr.Toty Junior Member

    Joined:
    Dec 8, 2010
    7
    0
    0
    Location:
    Italy
    Vehicle:
    2010 Prius
    Model:
    N/A
    I am interested in fixing the temperature to 70C for make full use of the EV mode.
    If I use a voltage regulator for the 5V, is ok?

    #55 Mr.Toty, Mar 30, 2011
  16. TheForce

    TheForce Stop War! Lets Rave! Make Love!

    Joined:
    May 30, 2005
    3,461
    537
    0
    Location:
    Wheelersburg, Ohio
    Vehicle:
    2006 Prius
    Model:
    N/A
    I'm no electrical engineer but I think it should work.

    #56 TheForce, Mar 30, 2011
  17. Melthias

    Melthias Junior Member

    Joined:
    Jan 28, 2023
    57
    22
    0
    Location:
    Southern Maine
    Vehicle:
    2012 Prius
    Model:
    Three
    12 years later, this is still great info. Thank you! Through some trials and tribulations I built this and it is installed in my 2008 Prius. I would have considered the Arduino version, but that is a bit out of my league.

    #57 Melthias, Mar 11, 2023
