BACK UP CAMERA FOR 2012 PRIUS two TOUCH SCREEN- NON NAV

Discussion in 'Gen 3 Prius Accessories and Modifications' started by man2ing, Jul 4, 2012.

  1. man2ing

    man2ing man2wing

    Joined:
    May 13, 2012
    10
    4
    0
    Location:
    Lake Arrowhead Ca
    Vehicle:
    2012 Prius
    Model:
    ----USA----
    Any update on this?

  2. ls1z01

    ls1z01 Junior Member

    Joined:
    Jun 22, 2012
    17
    2
    0
    Location:
    Monterey Park, CA
    Vehicle:
    2012 Prius
    Model:
    Two
    Bump...

  3. ray6088

    ray6088 Junior Member

    Joined:
    Jun 22, 2012
    70
    23
    2
    Vehicle:
    2012 Prius
    Model:
    Two
    I give up on it. I'm planing to install 7" rear mirror with 09 Camry camera for now. I may replace HU unit coming years. Personally I hate gps on HU.... can't type address during driving. Outdated map. $$$ update from Toyota.

  4. ls1z01

    ls1z01 Junior Member

    Joined:
    Jun 22, 2012
    17
    2
    0
    Location:
    Monterey Park, CA
    Vehicle:
    2012 Prius
    Model:
    Two
    I'm planning on installing a rear view camera monitor with GPS. I'll it's on order and will post pics once I get it installed. But once someone figures out the backup hookup on the oem head unit, I preferred on there instead of the rear view mirror location.

  5. ray6088

    ray6088 Junior Member

    Joined:
    Jun 22, 2012
    70
    23
    2
    Vehicle:
    2012 Prius
    Model:
    Two
    Dream on. Who will spend that much time to hack software!!!

  6. IMkenNY

    IMkenNY Im just being nosy

    Joined:
    Mar 10, 2012
    477
    302
    6
    Location:
    Tropical Buffalo NY
    Vehicle:
    2012 Prius
    Model:
    Four Touring
    I just finished installing a back camera for my 2012 base 6.1" display audio head unit.

    All that is required for the instal lis four wires for the camera and one wire for the reverse signal.

    The 2012 base UASA head unit instantly displays the back up video upon shifting to reverse (no software change necessary)

    My install is probably a bit unique since I installed this 2012 radio in my 2011 liftback.

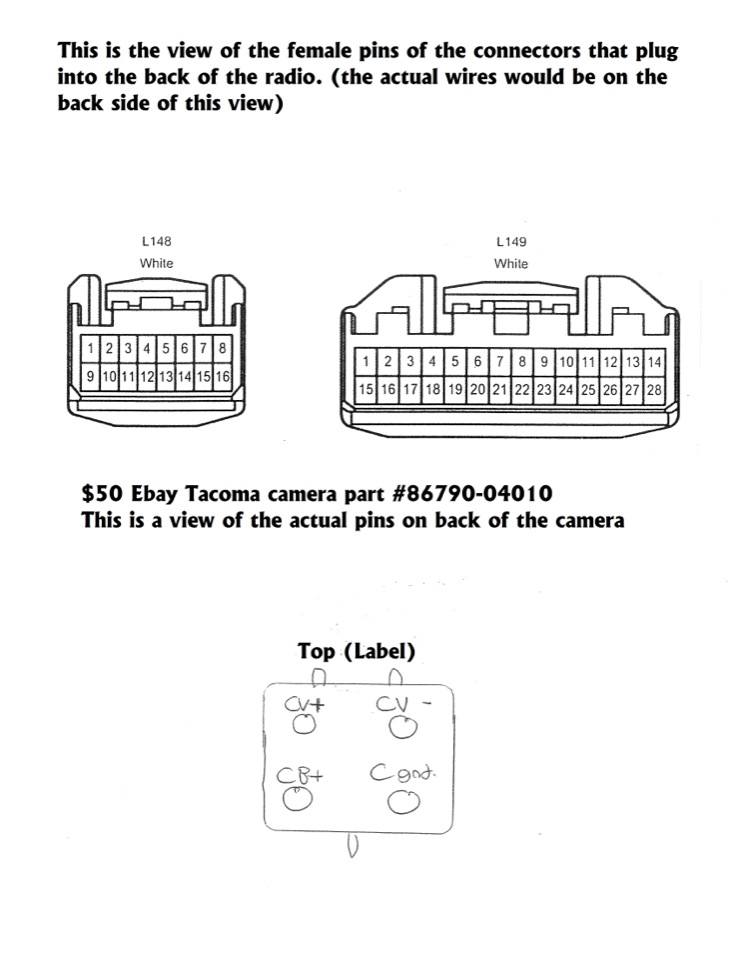

    The four camera wires go into the 16 pin connector (L148)

    Camera B+ to pin 7

    Camera V+ to pin 8

    Camera V- to pin 16

    camera ground to pin 15



    The reverse signal (+12V when in reverse) goes into pin #2 of the 28 pin connector L149 (The steering wheel controls and microphone also use this connector)



    I picked up 25 ft of shielded 22 guage 4 conductor + ground cable @ home depot (34 cents / foot). This is a nice thin cable for running back to the hatch. since it had an extra conductor, I just grabed the 12 volt reverse signal at the reverse bulb (red wire)



    I used this $50 OEM toyota camera

    http://www.ebay.com/itm/270894897176?ssPageName=STRK:MEWNX:IT&_trksid=p3984.m1439.l2649

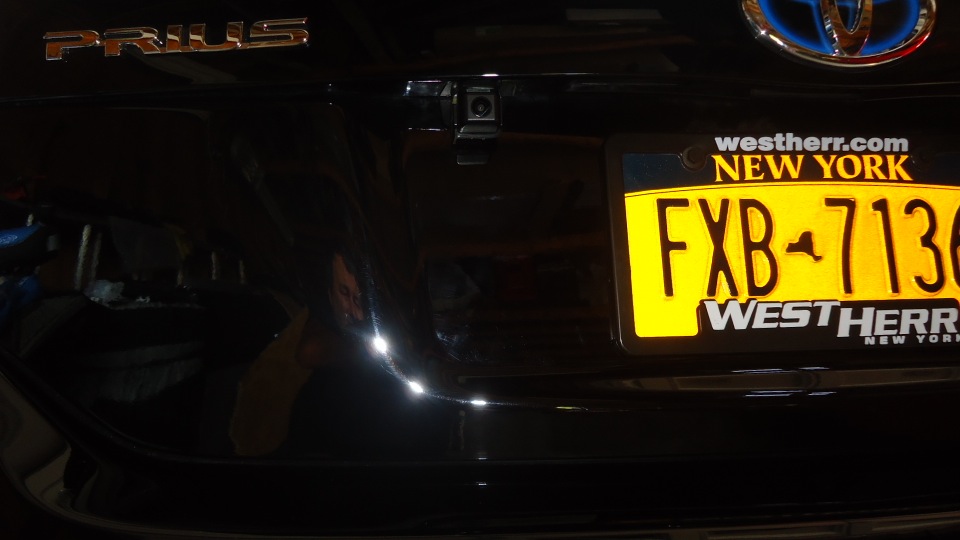

    (It ouputs beautiful video and its the correct voltage (6 volts). It took a bit of creative mounting to get it into the perfect position. ( I ground off the mounting tabs off the ebay camera and secured the remaining mount to the existing camera blank on my hatch)

    I cut off camera plug socket plastic for ease of soldering onto the four terminals and for additional clearence.

    My exposed solder connecttions were secured and waterproofed with devcon plastic weld..

    The 2012 Prius radio will have the 28 pin connector plug for hooking up the reverse signal but I doubt it has the 16 pin connector plug or the camera connections.

    I believe this is the correct connector and pins (I had a complete set of connectors from a salvage yard but I found this info on a camry forum) available @ www.mouser.com

    The 16 pin connector is 1318386-1 (natural color) change the 1 to a 2 for black, the pin is 1123343-1
    [​IMG]
    [​IMG]

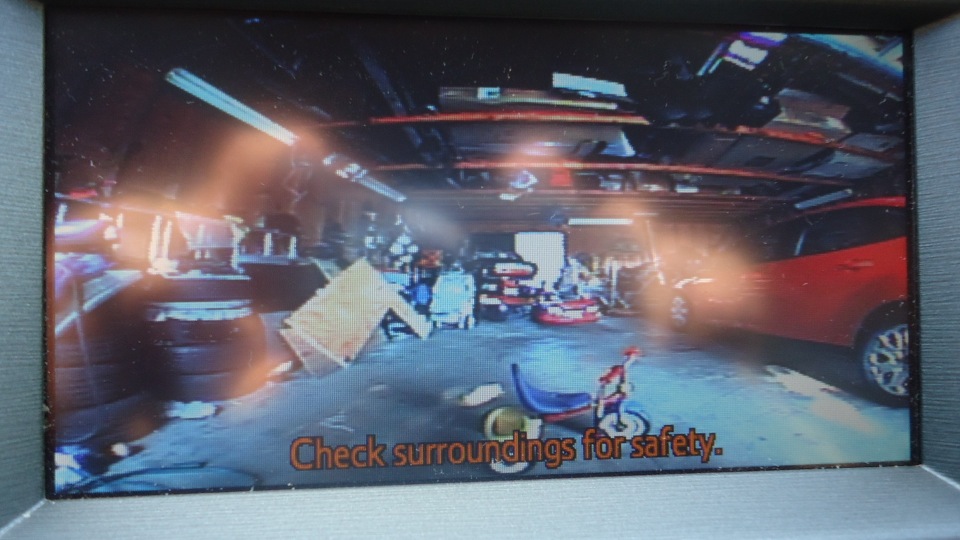

    Tricycle below is 30 inches from bumper
    [​IMG]

    Teacake and idbug like this.
  7. Hank101

    Hank101 Member

    Joined:
    Feb 14, 2012
    108
    13
    0
    Location:
    SC
    Vehicle:
    2012 Prius
    Model:
    Two
    any photo's?
    Is there a "perfect fit" camera, no grinding required?

  8. ray6088

    ray6088 Junior Member

    Joined:
    Jun 22, 2012
    70
    23
    2
    Vehicle:
    2012 Prius
    Model:
    Two
    Thanks for head up. Waiting for camera come in! The only thing it is missing that the distance guide line. The worst is found the chuck of rubber as gasket between camera and body and cut it to the right angle! How's angle degree you offset?

  9. Jonny Zero

    Jonny Zero Giggidy

    Joined:
    Jun 22, 2012
    1,388
    351
    0
    Location:
    Austin, TX
    Vehicle:
    2012 Prius
    Model:
    Five
    There aint no distance lines even with a factory setup.

  10. ray6088

    ray6088 Junior Member

    Joined:
    Jun 22, 2012
    70
    23
    2
    Vehicle:
    2012 Prius
    Model:
    Two
    It depends what's model of camera!! Most "cheap" aftermarket camera requires 12V. The tacoma camera uses 6.5V which is same as Prius HU voltage!

  11. PaJa

    PaJa Senior member

    Joined:
    Sep 3, 2009
    678
    113
    92
    Location:
    Czech republic
    Vehicle:
    2017 Prius
    Model:
    N/A
  12. IMkenNY

    IMkenNY Im just being nosy

    Joined:
    Mar 10, 2012
    477
    302
    6
    Location:
    Tropical Buffalo NY
    Vehicle:
    2012 Prius
    Model:
    Four Touring
    The factory 2011 /2012 camera part # is 86790-47040. This camera is $700 at the dealer and the best price i found it for used was $250 (Ebay). I was hesitant to spend that kind of money not knowing if the radio was set up to accomadate a camera.
    For the extra hour of labor in mounting Im very happy with the $50 OEM toyota camera.
    Ill get some pictures of the camera as well as connector pin out diagrams as so as I can.

    As mentioned earlier the big plus for a oem camera is the high quality build and its the correct voltage.

  13. ray6088

    ray6088 Junior Member

    Joined:
    Jun 22, 2012
    70
    23
    2
    Vehicle:
    2012 Prius
    Model:
    Two
  14. Hank101

    Hank101 Member

    Joined:
    Feb 14, 2012
    108
    13
    0
    Location:
    SC
    Vehicle:
    2012 Prius
    Model:
    Two
  15. ray6088

    ray6088 Junior Member

    Joined:
    Jun 22, 2012
    70
    23
    2
    Vehicle:
    2012 Prius
    Model:
    Two
    If you are willing to solder 2 diodes.

  16. PaJa

    PaJa Senior member

    Joined:
    Sep 3, 2009
    678
    113
    92
    Location:
    Czech republic
    Vehicle:
    2017 Prius
    Model:
    N/A
    Oh, sorry. I overlooked the low HU voltage. There is always possibility to use an external power from the reverse lamp.

  17. PaJa

    PaJa Senior member

    Joined:
    Sep 3, 2009
    678
    113
    92
    Location:
    Czech republic
    Vehicle:
    2017 Prius
    Model:
    N/A
    ??? How to get 12V from 6V by 2 diodes ???

  18. ray6088

    ray6088 Junior Member

    Joined:
    Jun 22, 2012
    70
    23
    2
    Vehicle:
    2012 Prius
    Model:
    Two
    Stop the wrong info!!

  19. ray6088

    ray6088 Junior Member

    Joined:
    Jun 22, 2012
    70
    23
    2
    Vehicle:
    2012 Prius
    Model:
    Two
    The camera came I have no idea the pins layout! Anyone can help!?
    CV+ video in ---- pin #??
    CV- video ground ---- pin #??
    C+ camera power(6.5v) ---- pin#??
    C- ground ---- pin#??

  20. IMkenNY

    IMkenNY Im just being nosy

    Joined:
    Mar 10, 2012
    477
    302
    6
    Location:
    Tropical Buffalo NY
    Vehicle:
    2012 Prius
    Model:
    Four Touring
    With your view of the camera: upper left is: CV+, upper right is: CV-, lower left is CB+ and lower right is C gnd

    My original post has been updated with photos and connector/camera pin outs.
