brake actuator resistor

Discussion in 'Gen 2 Prius Care, Maintenance and Troubleshooting' started by Jo_Vincent, Nov 2, 2013.

  1. Jo_Vincent

    Jo_Vincent Junior Member

    Joined:
    Dec 15, 2007
    33
    7
    2
    Location:
    Globe, Arizona
    Vehicle:
    2006 Prius
    Model:
    II
    The brake actuator on our 2006 Prius (95K miles) was activating (pump turned on) every 20 seconds or so. I used AutoEnginuity (AE) software to monitor the pressure of PACC (accumulator pressure sensor) and the pressure dropped rapidly once the sensor voltage got up to around 3.1 volts; therefore, the pump would activate again and this cycle would keep repeating as long as the Prius was turned on. Therefore I decided to replace the brake accumulator and its associated resistor. I purchased a new brake actuator and its associated resistor from Toyota. The brake accumulator replacement went well but when I tried to locate the resistor to replace it, I was dismayed to see that the old resistor is very hard to access (even though I took most of the dash apart to find it). In my 2006 Prius, the resistor is on the driver's side near the body and high up under the dash. I think I understand the reason for matching the resistor value with the resistance of the pump windings but I am going to use the old resistor and see how noisy the pump is. BTW I referenced Toyota website (TIS) for how to do the replacement procedure and now I am going to see how good AE software (latest version) is at bleeding the various components. This is FYI for anyone replacing the brake actuator and wanting to know where this resistor is located and how difficult it is to access. If anyone knows a fairly simple way to access this resistor, I would be interested. Thank you.

  2. Patrick Wong

    Patrick Wong DIY Enthusiast

    Joined:
    Mar 8, 2008
    18,186
    6,322
    0
    Location:
    Green Valley, AZ
    Vehicle:
    2015 Prius
    Model:
    Two
    Thanks for the info, pls post photos of the brake actuator and the resistor.

  3. Jo_Vincent

    Jo_Vincent Junior Member

    Joined:
    Dec 15, 2007
    33
    7
    2
    Location:
    Globe, Arizona
    Vehicle:
    2006 Prius
    Model:
    II

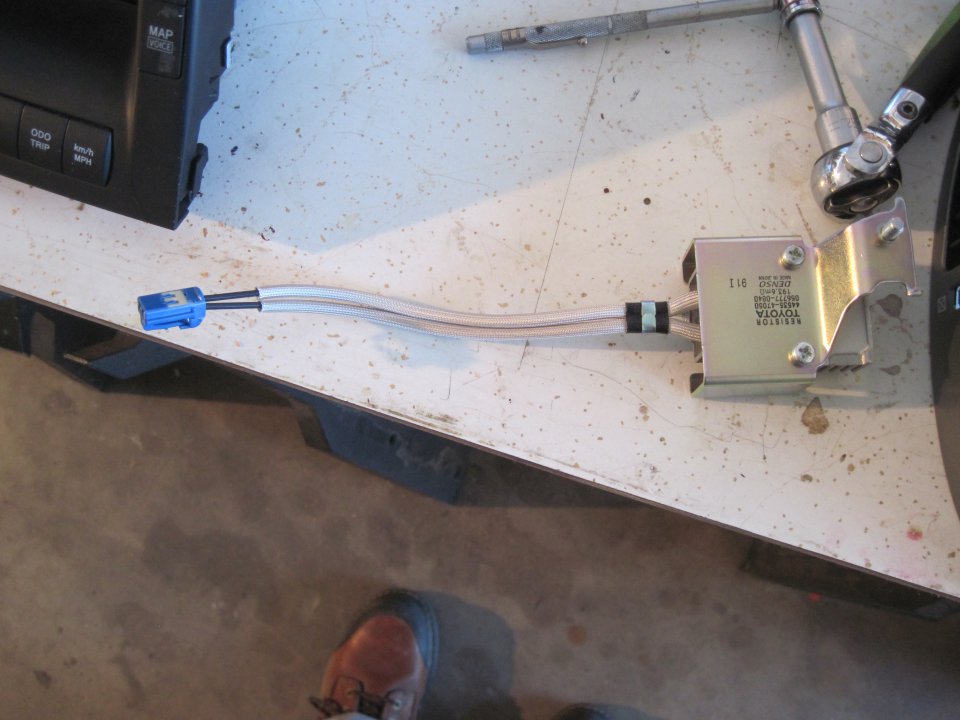

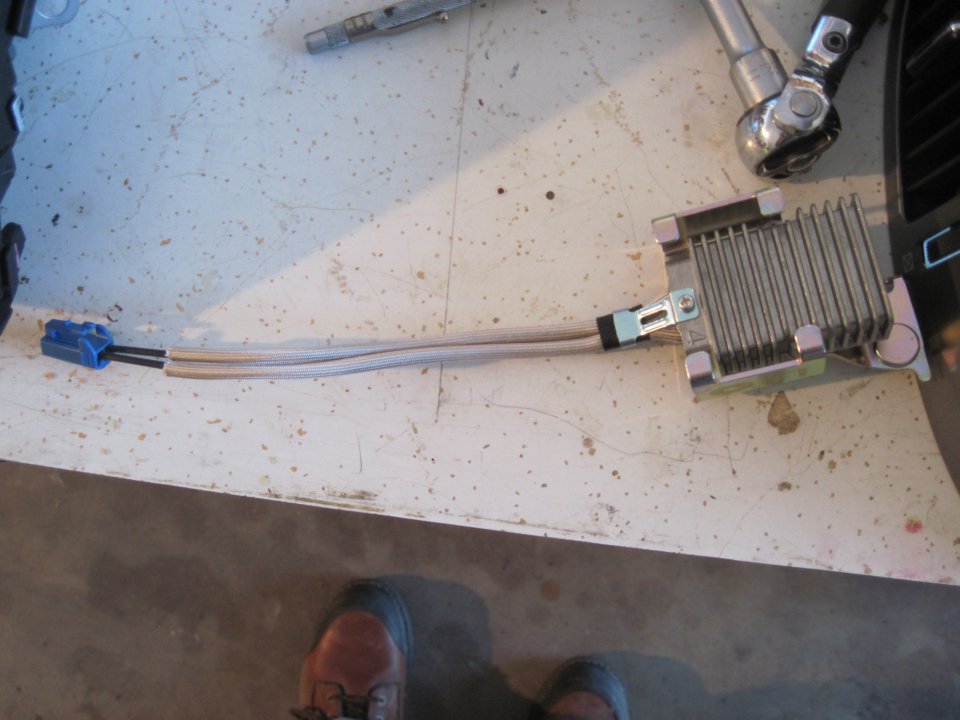

    Pictures attached. removing actuator 011.jpg resistor1.jpg resistor.jpg

    Patrick Wong likes this.
  4. Patrick Wong

    Patrick Wong DIY Enthusiast

    Joined:
    Mar 8, 2008
    18,186
    6,322
    0
    Location:
    Green Valley, AZ
    Vehicle:
    2015 Prius
    Model:
    Two
    Thanks, if you can also post a photo showing the resistor as it sits installed in the dash, that would be great!

  5. Jo_Vincent

    Jo_Vincent Junior Member

    Joined:
    Dec 15, 2007
    33
    7
    2
    Location:
    Globe, Arizona
    Vehicle:
    2006 Prius
    Model:
    II
    I can't get a picture of the resistor that would show it or provide a meaningful representation of where it is without taking off the "top" section of the dash and if I do that I might as well replace the resistor.
    FYI: The resistor that came with the actuator is 193.6m ohms which I believe is .1936 ohms. My understanding is that this resistor is in series with the pump motor and is probably "tuned" to this pump motor. This resistor will change the voltage drop across the pump motor, the rpm of the pump motor, the total current flow and; therefore, probably optimize the rpm/noise from the motor. This is a low resistance circuit and will pass significant current so this resistor has a heat sink (the current to the motor is the same as the current to the resistor). BTW the picture of the brake actuator is of the old one. Thank you. (I had the resistor value wrong so I updated this post).

  6. Britprius

    Britprius Senior Member

    Joined:
    Jun 14, 2010
    5,194
    1,889
    0
    Location:
    Herefordshire England
    Vehicle:
    2008 Prius
    It is difficult to explain the the requirement for this resistor other than as a current limiter if wired in series. This would give a more gentle acceleration to the motor and limit stall current to about 12 amps ignoring motor resistance. If the motor resistance is the same as the resistor stall current would be limited to around 6 + amps
    It is also difficult to explain why such an accurate figure of resistance is used as the wiring and connectors to the motor could add significant figures to the quoted resistance.

    John (Britprius)

  7. nh7o

    nh7o Off grid since 1980

    Joined:
    Dec 10, 2011
    1,686
    332
    0
    Location:
    Hawaii
    Vehicle:
    2009 Prius
    Model:
    II
    I agree that this resistance is certainly not a critical value. The pump windings are not going to change value from unit to unit in manufacture to any degree, so the need for matching to the resistor is IMHO questionable. If the speed of operation of the motor was so critical, it would be of a servo type, rather than just current limited. But maybe engineers get overly paranoid when designing brake systems for deployment to the public.

  8. Patrick Wong

    Patrick Wong DIY Enthusiast

    Joined:
    Mar 8, 2008
    18,186
    6,322
    0
    Location:
    Green Valley, AZ
    Vehicle:
    2015 Prius
    Model:
    Two
    Does this mean that the voltage applied to the motor is ~2.4V? (12A x 0.2 ohms)

    I'm wondering where you determined the motor voltage. It seems that it would make more sense for a higher voltage and lower current to be applied to the motor, thus reducing resistance losses.

  9. goldfinger

    goldfinger Active Member

    Joined:
    Mar 12, 2012
    535
    401
    0
    Location:
    Buffalo
    Vehicle:
    2016 Prius
    Model:
    Three
    Can you measure the old resistor and compare to the new? My guess is there are different vendors for the actuator, each with its own resistor. Your new resistor says Denso so presumable the actuator is Denso as well. I can't see any manufacturer on the old actuator.

    Also, if the resistance is in mOhms you really need a 4 wire ohm meter to get an accurate read.

    If neccessary could you mount the new resistor somewhere else?

    I don't know anything about brakes, so please weigh that in.

  10. Britprius

    Britprius Senior Member

    Joined:
    Jun 14, 2010
    5,194
    1,889
    0
    Location:
    Herefordshire England
    Vehicle:
    2008 Prius
    Sorry Patrick you are correct I miss read the figures in the post, took it as .93 instead of .193 ohms. Assuming 12 volt supply and motor has the same resistance puts the stall current at around 30 amps (much more realistic).
    The rest of my post still stands.

    John (Britprius)

  11. Jo_Vincent

    Jo_Vincent Junior Member

    Joined:
    Dec 15, 2007
    33
    7
    2
    Location:
    Globe, Arizona
    Vehicle:
    2006 Prius
    Model:
    II
    It isn't feasible to mount the resistor elsewhere and I can't get to the existing resistor (won't pull the top dash...yet) so reading the resistance value on the resistor can't be done.
    Both the old and new actuator and resistor are Denso.

  12. Jo_Vincent

    Jo_Vincent Junior Member

    Joined:
    Dec 15, 2007
    33
    7
    2
    Location:
    Globe, Arizona
    Vehicle:
    2006 Prius
    Model:
    II

    I started the process for bleeding the actuator, wheels, etc. and the pump motor doesn't sound noisy; it isn't as quiet as the old one but it sure works better. The output of the PACC sensor (accumulator pressure sensor) is 3.61 volts and more importantly it holds steady until the brakes are applied. When I get more ambitious I will replace the resistor, compare values and report on noise levels.

  13. Britprius

    Britprius Senior Member

    Joined:
    Jun 14, 2010
    5,194
    1,889
    0
    Location:
    Herefordshire England
    Vehicle:
    2008 Prius
    Will you be doing a linear solenoid calibration after completing the process.

    John (Britprius)

  14. Jo_Vincent

    Jo_Vincent Junior Member

    Joined:
    Dec 15, 2007
    33
    7
    2
    Location:
    Globe, Arizona
    Vehicle:
    2006 Prius
    Model:
    II
    Yes. I plan to do every step specified in the Toyota procedure for replacing the brake actuator. I am using Autoenginuity (AE) so this should be interesting. So far the procedures in AE don't accurately line up with the steps in the Toyota procedure so I must understand what each step does and how I know it is done properly.

  15. Jo_Vincent

    Jo_Vincent Junior Member

    Joined:
    Dec 15, 2007
    33
    7
    2
    Location:
    Globe, Arizona
    Vehicle:
    2006 Prius
    Model:
    II

    Did the brake bleeding and discovered some of the AE instructions were wrong (you can't have the pump relays (#1 and #2 installed when bleeding the back brakes). The real problem has surfaced when I tried the initialization of the linear solenoid valve and the calibration. The reset went okay but the signal check failed with DTC 1203 and 1345. The 1345 (solenoid valve was reset) makes sense but ;the 1203 indicates a mismatch or communications failure. Will investigate what is going on and why DTC 1203.

  16. Jo_Vincent

    Jo_Vincent Junior Member

    Joined:
    Dec 15, 2007
    33
    7
    2
    Location:
    Globe, Arizona
    Vehicle:
    2006 Prius
    Model:
    II

    Ops, my bad. AE works fine; the initialization of the linear solenoid valves worked fine once I understood which option to select within AE. Prius is braking fine and actuator is working fine. I bleed the wheels many times to try to ensure no air was in the line(s).

    goitalone and FreydNot like this.
  17. johnjohnchu

    johnjohnchu Active Member

    Joined:
    Jan 12, 2008
    211
    102
    0
    Location:
    Los Angeles, CA
    Vehicle:
    2006 Prius
    Model:
    N/A
    My 2006 Prius has a little over 200K miles. Its brake actuator is also activating every couple minutes or so for about 5 sec. This can even happen for a while after the car is completely turned off. The pumping sound is only audible if the environment is quiet (no radio). There is no braking problem. Is there any potential issue that I should be concerned? Why did you decide to replace actuator? All comments are welcome.

  18. Jo_Vincent

    Jo_Vincent Junior Member

    Joined:
    Dec 15, 2007
    33
    7
    2
    Location:
    Globe, Arizona
    Vehicle:
    2006 Prius
    Model:
    II
    The motor in the brake actuator is "turning" on to bring the braking pressure up to provide adequate braking. If the motor is turning on frequently, then the actuator has a leak or brake fluid is leaking somewhere in the braking system. In my case there weren't any external leaks; the leak was internal to the brake actuator. This is an unacceptable safety issue for me. The actuator leak will not get better; the worst case scenario is bleak and I always want my brakes in very good working condition. Good luck.

  19. johnjohnchu

    johnjohnchu Active Member

    Joined:
    Jan 12, 2008
    211
    102
    0
    Location:
    Los Angeles, CA
    Vehicle:
    2006 Prius
    Model:
    N/A
    Thanks for your rationale. In my case, I have never added any brake fluid ever. The fluid level has never decreased.

  20. Patrick Wong

    Patrick Wong DIY Enthusiast

    Joined:
    Mar 8, 2008
    18,186
    6,322
    0
    Location:
    Green Valley, AZ
    Vehicle:
    2015 Prius
    Model:
    Two
    So that means that the brake actuator is losing pressure. When it gets to the point where you start to see warning lights associated with the brake system (such as BRAKE, ((!)), ABS and VSC) then you 'll need to take action.
