Cargo capacity all seats down 2017 Prius vs 2017 Prius v

Discussion in 'Gen 4 Prius Main Forum' started by Tim Flick, Nov 13, 2016.

  1. Tim Flick

    Tim Flick New Member

    Joined:
    Nov 13, 2016
    2
    0
    0
    Location:
    Texas
    Vehicle:
    Other Non-Hybrid
    Model:
    N/A
    Newbie considering purchase of 2017 Prius hatchback or 2017 Prius v. Would like to know total cargo capacity of both with seats down

  2. wjtracy

    wjtracy Senior Member

    Joined:
    Sep 19, 2006
    10,745
    3,227
    1
    Location:
    Northern VA (NoVA)
    Vehicle:
    2006 Prius
    Hi Tim-

    Here are some numbers below.

    Here's the way I look at it, but some may take issue:
    There is a big problem with Cargo Space specs in America, as it is hard to get a good comparative quotes between vehicles, because U.S. auto makers are allowed to be creative with space figures. This spec issue especially impacts Liftbacks (cars/trucks without a trunk).

    I have not focused much on v but my feeling is quite a lot more rear hatch space. Probably you should discount the Gen4's 27.4-ft3 and think it's really 17.7-ft3 for Gen4 vs. 34.3 for v (which may be closer to the truth)...and then a little more in the rear seat area for v. And the Gen4 case (17.7ft3) is without rear tire, subtract 2-ft3 for Level 3 with spare.

    Best approach is to compare the EPA total volume for both cars. Assume same front space say 40-ft3 and the balance is rear space differential.

    Gen4
    Cargo Volume Behind Second Row
    Cargo Volume Behind First Row
    2016 Toyota Prius 27.4 cubic feet 65.5 cubic feet

    Prius v
    Luggage capacity behind the rear seats is a generous 34.3 cubic feet. Total cargo capacity is also excellent. With 67.3 cubic feet available with the rear seats down, the Prius v rivals most small crossover SUVs.

    #2 wjtracy, Nov 13, 2016
    Last edited: Nov 13, 2016
  3. Tim Flick

    Tim Flick New Member

    Joined:
    Nov 13, 2016
    2
    0
    0
    Location:
    Texas
    Vehicle:
    Other Non-Hybrid
    Model:
    N/A
    thanks great explanation. on the face of it doesn't look like much difference. 65.5 vs 67.3

  4. wjtracy

    wjtracy Senior Member

    Joined:
    Sep 19, 2006
    10,745
    3,227
    1
    Location:
    Northern VA (NoVA)
    Vehicle:
    2006 Prius
    Not true, I don't think.
    Go to Toyota.com and get the total specs:

    Gen4 (no spare) = 93.1 + 27.4 = 120.5 ft3 total (subtract about 2 or 3 -ft3 for Gen4 with spare).

    Prius v 2017 = 97.2 + 34.3 = 131.5 ft3 total (this is with spare and extra under-floor space is not counted)

    Question- Does v have underfloor space like a Gen3? If so, that is additional to above.
    Weakness of Gen4 (2017) is less cargo space vs. Gen3 due to slim down sedan-look rear, so v has gotta be "huge" as we say now, and you get a spare tire+ semi-huge cargo space + under floor (if any) in the v.

    #4 wjtracy, Nov 13, 2016
    Last edited: Nov 13, 2016
  5. stephane

    stephane Prius v owner

    Joined:
    Nov 27, 2015
    120
    63
    0
    Location:
    Quebec Canada
    Vehicle:
    2013 Prius v wagon
    I dont know were they get those number but in real world dont even compare the v have way much more cargo space

    kithmo likes this.
  6. Tideland Prius

    Tideland Prius Moderator of the North
    Staff Member

    Joined:
    Oct 2, 2004
    40,085
    11,597
    41
    Location:
    Canada
    Vehicle:
    2018 Prius Prime
    Model:
    Technology
    I seem to recall that the Prius v does have underfloor storage.

  7. Prodigyplace

    Prodigyplace Senior Member

    Joined:
    Nov 1, 2016
    10,468
    10,003
    0
    Location:
    Central Virginia
    Vehicle:
    2017 Prius
    Model:
    Two
    I have a 2017 Prius & my son has a 2015 Prius v. Is that close enough for comparison?
    When is the Prius v (lowercase v for the Prius v wagon as only 2010 Prius used uppercase roman numerals for model designation) due for the TNGA redesign?

    What trim lines are you considering? My 2017 Prius Two has a little less cargo capacity than the ones without the spare tire.

    #7 Prodigyplace, Nov 14, 2016
    Last edited: Nov 14, 2016
  8. Tideland Prius

    Tideland Prius Moderator of the North
    Staff Member

    Joined:
    Oct 2, 2004
    40,085
    11,597
    41
    Location:
    Canada
    Vehicle:
    2018 Prius Prime
    Model:
    Technology
    IF (and it's a big if) the v makes it to the 2nd generation, it should be out by fall or winter next year as a 2018 model. (6 year life cycle)

  9. wjtracy

    wjtracy Senior Member

    Joined:
    Sep 19, 2006
    10,745
    3,227
    1
    Location:
    Northern VA (NoVA)
    Vehicle:
    2006 Prius
    Do we need to move this thread over to Gen4 or Prius v?

  10. Tideland Prius

    Tideland Prius Moderator of the North
    Staff Member

    Joined:
    Oct 2, 2004
    40,085
    11,597
    41
    Location:
    Canada
    Vehicle:
    2018 Prius Prime
    Model:
    Technology
    Done. Moved to Gen 4.

    RCO likes this.
  11. Sooner Al

    Sooner Al Active Member

    Joined:
    Jun 1, 2016
    384
    336
    0
    Location:
    Oklahoma, USA
    Vehicle:
    2016 Prius v wagon
    Model:
    Three
    FWIW we recently packed our 2016 Prius v Three for our annual trip south for the winter. Here are a few photos taken before and after we arrived. I folded the back seats down and removed the head rests prior to loading up. We put two large plastic storage bins, three smaller plastic storage bins, two soft side roll on suit cases, a large soft side roll on duffle bag, a soft side overnight bag, a hard case cosmetics bag, two foam coolers, our pillows, assorted folded coats/jackets (for my wife) and a whole bunch of various odds and ends for our stay. I kept the high stuff behind the drivers side seat for visibility out the back window which was very good by the way. It was a lot of stuff. She cut down her stuff a bit but all in all it came very close to what we carried in our old Dodge minivan. We were quite amazed and happy about that.

    Anyway these photos might give you some idea about the cargo space for a Prius v...


    Attached Files:

    Tideland Prius and RCO like this.
  12. JimboPalmer

    JimboPalmer Tsar of all the Rushers

    Joined:
    Apr 14, 2009
    11,854
    6,071
    0
    Location:
    Greenwood MS USA
    Vehicle:
    2012 Prius v wagon
    Model:
    Three
    96 cheesecakes (don't judge me) below the window sight lines in a 2012 v three.
    [​IMG]

  13. wjtracy

    wjtracy Senior Member

    Joined:
    Sep 19, 2006
    10,745
    3,227
    1
    Location:
    Northern VA (NoVA)
    Vehicle:
    2006 Prius
    Nice, but where's the 100 bottles of beer?
    Looks huge space gotta get me a v maybe.

    Sooner Al likes this.
  14. kithmo

    kithmo Couch Potato

    Joined:
    Apr 25, 2010
    2,145
    2,405
    45
    Location:
    South Yorkshire, UK
    Vehicle:
    2016 Prius
    The v has a bit of underfloor storage, but more relevant is that it's taller and the rear end is more perpendicular, so larger objects will go in there with the hatch closed. The downsides to the v are it's heavier, so not as nippy and not as economical as the Gen 4.

    RCO likes this.
  15. stephane

    stephane Prius v owner

    Joined:
    Nov 27, 2015
    120
    63
    0
    Location:
    Quebec Canada
    Vehicle:
    2013 Prius v wagon
    This kind of comparison is where the problem begin you can't compare them they are completely different car for completely different need. would you compare a corvette to a prius? Compare a mazda 5 to a prius v but NOT to regular prius! I think Toyota did a very bad job in promoting and this forum dont help either. they badly classify it in the wrong category. v is not a small car it is bigger than a wagon and more close to a SUV or minivan, crossover. Yes the v is more heavy and less economic than a compact car but way more economic than a SUV and same size please look at this side by side comparisons Masda 5 vs Prius v



    RCO likes this.
  16. alanclarkeau

    alanclarkeau Senior Member

    Joined:
    Feb 24, 2016
    5,539
    6,159
    0
    Location:
    near Brisbane, Australia
    Vehicle:
    2016 Prius
    Model:
    N/A
    I think it's very relevant. I seriously compared the 2 - there were advantages of the v (which here is a 7 seater) over the Gen 4, and advantages the other way round.

    I then had to make MY CHOICE as to which suited me best. I went with the Gen 4. But at this stage, I've not had many passengers, nor tried a bigger trip - in which case I hope I don't regret not getting a "v".

    RCO likes this.
  17. JimboPalmer

    JimboPalmer Tsar of all the Rushers

    Joined:
    Apr 14, 2009
    11,854
    6,071
    0
    Location:
    Greenwood MS USA
    Vehicle:
    2012 Prius v wagon
    Model:
    Three

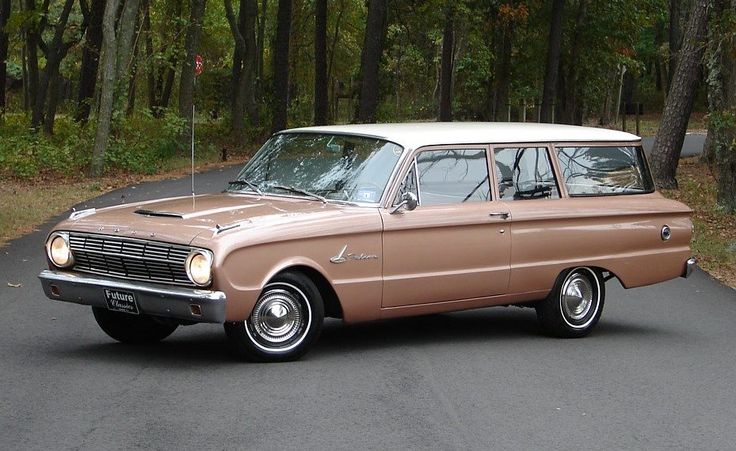

    My 2012 Prius v is no larger than my first station wagon, a 1963 Ford Falcon.
    [​IMG]
    Wheelbase109.5 in (2,781 mm)
    Length 181 in (4,597 mm)
    Width 70.1 in (1,781 mm)

    And is smaller than my second station wagon, a 1970 Ford Torino.
    [​IMG]
    Wheelbase 114.0 in (2,896 mm)
    Length 209.0 in (5,309 mm)
    Width 75.4 in (1,915 mm)

    By comparison the v is
    Wheelbase 2,780 mm (109.4 in)
    Length 4,615 mm (181.7 in)
    Width 1,775 mm (69.9 in)

    So I have no trouble claiming it is a station wagon.

    RCO likes this.
  18. wjtracy

    wjtracy Senior Member

    Joined:
    Sep 19, 2006
    10,745
    3,227
    1
    Location:
    Northern VA (NoVA)
    Vehicle:
    2006 Prius
    Mine was a FORD Fairmont, but I'd have to find my Kodachrome slides and convert them.

    RCO likes this.
  19. stephane

    stephane Prius v owner

    Joined:
    Nov 27, 2015
    120
    63
    0
    Location:
    Quebec Canada
    Vehicle:
    2013 Prius v wagon
    Toyota have a wagon hybrid only available in Europe, IMO wagon have the length but are lower than bthe v,lowercase v again it is not an uppercase v for the Prius v wagon.

    RCO likes this.
  20. JimboPalmer

    JimboPalmer Tsar of all the Rushers

    Joined:
    Apr 14, 2009
    11,854
    6,071
    0
    Location:
    Greenwood MS USA
    Vehicle:
    2012 Prius v wagon
    Model:
    Three
    v: Height‎: ‎1,575–1,600 mm (62.0–63.0 in)
    Falcon: Height 54.4 in (1,382 mm)
    Torino:Height 55 in (1,397 mm)

    So the v is taller than my first two wagons, and indeed all my wagons except the last, a 2001 Subaru Forester: Height 1,650 mm (65.0 in)

    1976: Mazda 808 Miser: Height 1,375 mm (54.1 in)
    1982 Ford Escort: Height 53.7 in (1,364 mm)
    1989 Toyota Corolla All-Trac: Height 1,415 mm (55.7 in)
    (from 1987 to 2002, I lived in Elko, NV, where it snowed 10 months of the year, so I had taller AWD wagons)
