Center console storage LED lighting

Discussion in 'Gen 3 Prius Accessories and Modifications' started by AZGeek, Jul 22, 2012.

Page 2 of 3
  1. Tideland Prius

    Tideland Prius Moderator of the North
    Staff Member

    Joined:
    Oct 2, 2004
    44,849
    16,081
    41
    Location:
    Canada
    Vehicle:
    Other Non-Hybrid
    Model:
    N/A
    Ahh thanks! I wish I was better at circuitry. I would definitely appreciate a bit more illumination in the tray.

    #21 Tideland Prius, Nov 20, 2012
  2. ucsmfu

    ucsmfu Senior Member

    Joined:
    Sep 21, 2011
    1,498
    420
    0
    Location:
    canada
    Vehicle:
    2010 Prius
    Model:
    V
    How will the wiring work? Thnx

    #22 ucsmfu, Nov 20, 2012
  3. AZGeek

    AZGeek Semi-informed Member

    Joined:
    Feb 5, 2012
    627
    144
    63
    Location:
    Arizona
    Vehicle:
    2012 Prius
    Model:
    Five
    Lol. Not anytime soon --- definitely out of my comfort level from a skill perspective. Way too many surface mount LEDs that I will most certainly fry with my soldering skill level. But I still think that is a cool mod to make.


    iPad ?

    #23 AZGeek, Nov 20, 2012
  4. AZGeek

    AZGeek Semi-informed Member

    Joined:
    Feb 5, 2012
    627
    144
    63
    Location:
    Arizona
    Vehicle:
    2012 Prius
    Model:
    Five
    No need to remove any front dash trim, but you do have to remove the trim from around the shifter to gain access to the space below. There is actually a small hole below the shifter that was a perfect fit for the 4mm size NEOx instrument cluster LED.

    Removing the OEM footwell LEDs is also pretty easy. If I remember correctly, the driver's side has a couple of screws that need to be removed in additional to releasing a plastic tab holding the panel in place. I wound up taking the OEM LED fixture apart and then using the housing as the holder for the NEO5-Bs. Again, a very good fit and you are able to snap the housing back in place to securely hold the led just as it was in the OEM installation.

    Here's a pic of the disassembled OEM led showing the LED assembly removed from the housing:
    Misc | PriusChat

    I just shoved the NEO5-B into the housing and ran the wires out the other end. Very clean install. Getting the OEM assembly out of the housing was a small PITA but doable.

    #24 AZGeek, Nov 20, 2012
  5. ucsmfu

    ucsmfu Senior Member

    Joined:
    Sep 21, 2011
    1,498
    420
    0
    Location:
    canada
    Vehicle:
    2010 Prius
    Model:
    V
    #25 ucsmfu, Nov 20, 2012
  6. AZGeek

    AZGeek Semi-informed Member

    Joined:
    Feb 5, 2012
    627
    144
    63
    Location:
    Arizona
    Vehicle:
    2012 Prius
    Model:
    Five
    Since I wanted the mod lighting to fade on/off like the OEM footwells I ran my power from the existing connectors for the footwell lighting. I'm not sure where you would tap into that for your 2010.

    #26 AZGeek, Nov 21, 2012
  7. Steve Robinson

    Steve Robinson Junior Member

    Joined:
    Aug 21, 2012
    36
    44
    0
    Location:
    Mississauga, ON, Canada
    Vehicle:
    2012 Prius
    Model:
    N/A
    I used these on my 2012 Canadian Base hatch:
    Oznium Surface Mount LED
    I put 1 in each footwell and 2 under the "flying buttress" (one would have done). Just stick them to the upper footwell panels and run the wires above the panels through any small opening.
    They are very easy to install since they have flat wiring and 3M adhesive on the back already.

    The Base model does not come with footwell lighting or wiring for courtesy and park lighting so I also got an exLEDusa footwell control module. I'm still playing with dimmers and correct series / parallel LEDs configurations to keep the current under that of the LEDs that actually come with the module.

    #27 Steve Robinson, Dec 2, 2012
    a1rjumpman23, sfv41901, WE0H and 1 other person like this.
  8. sfv41901

    sfv41901 Masta S

    Joined:
    May 5, 2010
    4,591
    5,292
    0
    Location:
    Palmdale, Ca
    Vehicle:
    2015 Prius
    Model:
    Four
    That foot well light module is a good find

    #28 sfv41901, Dec 9, 2012
  9. ph43drus

    ph43drus Junior Member

    Joined:
    Jan 9, 2008
    45
    8
    0
    Location:
    Left of Center
    Vehicle:
    2012 Prius
    Model:
    Three

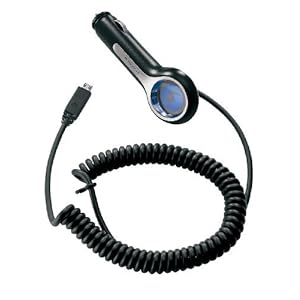

    I accidentally installed a blue LED light for the center console storage area. Plugged in my cellphone usb charger, and it emits an almost perfect level of illumination under there. Wiring was simple, too. :)

    [​IMG]

    #29 ph43drus, Dec 13, 2012
    pichner and striker308 like this.
  10. Steve Robinson

    Steve Robinson Junior Member

    Joined:
    Aug 21, 2012
    36
    44
    0
    Location:
    Mississauga, ON, Canada
    Vehicle:
    2012 Prius
    Model:
    N/A
    Well, I am going to take back everything I said about the footwell control module. I managed to smoke the first one and indeed probably was putting too much current through it. I changed the output wiring to put 2 LEDs in series and lower the current, but now I have noticed they are never turning off (and I bench-tested the module before installation). As I was thinking about the problem I realized that with LEDs this size, price and easy to install, it is much cheaper to install 3 on the courtesy (door) lamp circuit and 3 on the Park/Tail circuit (with more resistance to dim them). Six LEDs @ $3.29 and even add 2 10k pots for dimmer control @ about $1 each, is way cheaper than the control module alone!

    I've decided I am going to try an EL strip for footwell and lower console tray lighting at night and I have another idea for courtesy lights. If these work, I will post pictures...

    #30 Steve Robinson, Dec 16, 2012
  11. jmrmotorhead

    jmrmotorhead Junior Member

    Joined:
    Nov 13, 2012
    85
    44
    0
    Location:
    New Hampshire
    Vehicle:
    2010 Prius
    Model:
    III
    Too bad, but I like your other ideas too! I think I'll order some LED's soon. I would go EL, but the slight audible buzz of the inverters kind of bothers me.

    Matt

    #31 jmrmotorhead, Dec 16, 2012
  12. Steve Robinson

    Steve Robinson Junior Member

    Joined:
    Aug 21, 2012
    36
    44
    0
    Location:
    Mississauga, ON, Canada
    Vehicle:
    2012 Prius
    Model:
    N/A
    I'm old and the permanent ringing in my ears masks a lot!
    I've seen similar LEDs on superbrightleds as well. The Oznium ones drew something like 63mA.

    #32 Steve Robinson, Dec 16, 2012
    jmrmotorhead likes this.
  13. arek

    arek Junior Member

    Joined:
    Dec 1, 2012
    97
    11
    0
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Advanced
    Does the rear footwell already have foot lighting down there? Or does it require total custom installation/mounting?

    #33 arek, Dec 23, 2012
  14. ucsmfu

    ucsmfu Senior Member

    Joined:
    Sep 21, 2011
    1,498
    420
    0
    Location:
    canada
    Vehicle:
    2010 Prius
    Model:
    V
    It requires custom mounting

    #34 ucsmfu, Dec 23, 2012
  15. AZGeek

    AZGeek Semi-informed Member

    Joined:
    Feb 5, 2012
    627
    144
    63
    Location:
    Arizona
    Vehicle:
    2012 Prius
    Model:
    Five
    #35 AZGeek, Dec 24, 2012
  16. AZGeek

    AZGeek Semi-informed Member

    Joined:
    Feb 5, 2012
    627
    144
    63
    Location:
    Arizona
    Vehicle:
    2012 Prius
    Model:
    Five
    Added blue LEDs to the rear hatch LED modules. Basically, I modded a mod. Now the hatch area matches the lighting in the footwells and center console. Right now the blue LEDs are wired into the license plate lights, but I will change that to connect to the rear footwells so they are controlled the same way.

    Hatch open:


    Hatch closed:


    #36 AZGeek, Apr 13, 2013
    sfv41901, spiderman and Tideland Prius like this.
  17. Tideland Prius

    Tideland Prius Moderator of the North
    Staff Member

    Joined:
    Oct 2, 2004
    44,849
    16,081
    41
    Location:
    Canada
    Vehicle:
    Other Non-Hybrid
    Model:
    N/A
    Nice!

    #37 Tideland Prius, Apr 13, 2013
  18. spiderman

    spiderman wretched

    Joined:
    Jul 5, 2009
    7,543
    1,558
    0
    Location:
    Alaska
    Vehicle:
    2010 Prius
    Model:
    II
    AZ, I must of missed where you mentioned the rear hatch lights... where did you get em?

    #38 spiderman, Apr 13, 2013
  19. AZGeek

    AZGeek Semi-informed Member

    Joined:
    Feb 5, 2012
    627
    144
    63
    Location:
    Arizona
    Vehicle:
    2012 Prius
    Model:
    Five
    Fram a Japanese outfit called Rakuten. The link can be found here:

    http://priuschat.com/threads/what-did-you-do-to-ur-prius-today.112616/page-64#post-1731095

    or the link directly to Rakuten's product page:

    Rakuten: LED lamp set (attached to entering two pieces, the Japanese installation manual) in the prius (PRIUS) first half year of Toyota 30 origin for ラゲッジ enlargement for exclusive use of the last part of /- Shopping Japanese products from Japan

    Shipping was fast even with the confusion of most of the correspondence being Japanese for them and English for me. The only thing I don't like about them is that the light cover / lens is clear and not frosted like the rest of the interior light covers.

    Danny should consider adding these to the Shop.

    #39 AZGeek, Apr 13, 2013
    spiderman likes this.
  20. sfv41901

    sfv41901 Masta S

    Joined:
    May 5, 2010
    4,591
    5,292
    0
    Location:
    Palmdale, Ca
    Vehicle:
    2015 Prius
    Model:
    Four
    I thought the same thing but might get the JDM clear covers for all of the interior lights so that they all match.

    #40 sfv41901, Apr 14, 2013
