Cheap DIY plug in system? decide to go with e-trailer

Discussion in 'Prius c Accessories and Modifications' started by formula, Oct 17, 2014.

  1. formula

    formula Member

    Joined:
    Mar 7, 2012
    320
    32
    0
    Location:
    CA
    Vehicle:
    2012 Prius c
    Model:
    Three
    I did some search and found out the Pirus C has 144 V DC battery.

    is any one know more detail of the battery? the max Volt and Min Volt?

    I have couple deep cycle battery. I want to do some tests to see if adding the battery to the HV system will help.

    I am thinking to buy a low volt DC 12V-48V to High volt DC 144 inverter. is anyone has a good place I can find a high watt good inverter?

    the output of the inverter will connect to the HV battery and I will make a manual switch somewhere on the dash. when the HV battery start to drop, I will turn the switch ON, and it should charge the battery up from the 12V battery pack instead of running the engine or regen brake to charge the battery.


    will this method work?

  2. IMkenNY

    IMkenNY Im just being nosy

    Joined:
    Mar 10, 2012
    470
    286
    6
    Location:
    Tropical Buffalo NY
    Vehicle:
    2012 Prius
    Model:
    Four Touring
    short answer: no it wont
    Its possible someone may come up with a add on battery/ EV kit for the C but there's a good deal of engineering involved and with the tax credits/ incentives on plug in vehicles like the plugin Prius I wouldn't expect the interest as there was for the 2nd generation Prius

    #2 IMkenNY, Oct 17, 2014
    Last edited: Oct 17, 2014
  3. miscrms

    miscrms Plug Envious Member

    Joined:
    Aug 21, 2007
    2,076
    519
    5
    Location:
    Phoenix, AZ
    Vehicle:
    2005 Prius
    In general adding a plug-in battery to the Prius is pretty complex. A lot of work was done on this by DIYers back in the '05-'7ish time frame. It can be done, but its not cheap and takes pretty sophisticated engineering.

    I assume the new ones are similar, but on the Gen 2 there were two main methods.

    The first was used by the projects that grew out of the original Cal-Cars open source project. They injected the extra current on the battery side of the pack's current sensors, to avoid the DTCs and system shutdown that occurs when there is a significant imbalance measured between battery output current and inverter input current. The problem then is, that since the battery controller can't see the extra current coming into the battery it assumes all the current is coming from the original battery. When the few hundred Wh that the original battery can provide have gone out, it assumes the battery is "empty" and recharges it by running the ICE. A further complication is the hybrid controller is only really inclined to use significant amounts of electric drive when it believes the original battery is completely full. Originally this was gotten around by using an external pack that was a bit higher in voltage than it should be, which caused the battery controller to regularly think the original battery was overcharging so it would use the electric motors as much as possible. For this to work well, and to avoid really overcharging the original battery, a sophisticated controller had to be developed to connect and disconnect the extra battery under a variety of conditions by monitoring the CAN traffic. Later an even more complex controller was developed that allowed the use of a more well matched battery voltage as it tricked the controller into this higher electric drive mode by modifying messages on the CAN bus rather than yanking the battery voltage around. From there some of these projects went commercial, and continued to develop controllers that could completely replace the original controller and battery.

    The other main method was the one used by Enginer. They injected the current on the inverter side of the battery current sensor, and so didn't require any complicated controller to play tricks on the battery management system. In order to do this, they used a dc:dc converter with a fairly complicated programming to provide specific amounts of current into the system based on voltage observed. Doing this, they were able to avoid tripping the DTC/shutdown condition while still providing useful amounts of supplemental current. This was a pretty touchy adjustment, and took a lot of development work. Its main downside is it could not really provide enough current for sustained electric drive. And while this approach did give decent results at a relatively inexpensive price, they were plagued by reliability problems. There is a reason why their Chinese dc:dc converters costed ~$500 while a similarly spec'd Manzanita Micro charger with an excellent reliability reputation costs $2-3k.

    The early cal-cars conversions used big stacks of lead acid UPS batteries to keep development costs down. In general these performed poorly, weighed about 400lbs, and ended up only lasting about 3-6 months under these use conditions.

    So yes, you can turn a regular Prius into a PHEV, but a set of deep cycle batteries and a cheap inverter are not going to cut it.

    Rob

    3ric, ftl and SageBrush like this.
  4. SageBrush

    SageBrush Senior Member

    Joined:
    Jun 4, 2008
    11,627
    2,515
    8
    Location:
    Southwest Colorado
    Vehicle:
    2012 Prius v wagon
    Model:
    Two
    Great summary Rob.
    Hobbit does not like the CalCars approach, to say the least.

  5. GregP507

    GregP507 Senior Member

    Joined:
    Apr 5, 2014
    3,002
    474
    0
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    I'd rather save my money for an i8.

  6. bisco

    bisco cookie crumbler

    Joined:
    May 11, 2005
    86,361
    38,263
    0
    Location:
    boston
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    one thought i had was to add motors to the rear wheels with a separate battery. then you don't have to fool around with the toyota computers.

    koipond likes this.
  7. miscrms

    miscrms Plug Envious Member

    Joined:
    Aug 21, 2007
    2,076
    519
    5
    Location:
    Phoenix, AZ
    Vehicle:
    2005 Prius
    Its pretty barbaric by today's standards, but it was amazing to watch it all happening at the time.

  8. formula

    formula Member

    Joined:
    Mar 7, 2012
    320
    32
    0
    Location:
    CA
    Vehicle:
    2012 Prius c
    Model:
    Three
    yes, that is what I am thinking after check out many of the plug in conversion.

    using hub motor or just EV motor on the back to make it 4WD Prius C.

    hub motor is only $500 a piece and it is powerful enough. need two . one on each side $1000 total.

    when the 12V battery need charge, it will draw the power from the HV battery. what is the Max converting power of the OEM converter?
    Anyone know how the Prius C converter work?

    if the OEM converter is powerful enough, I can add ten 12V golf cart battery in the truck and it will be the power source of the hub motor.
    hub motor usally 48 - 96 V. I will need a extra converter to convert 12V to 48-96V.

    will it work?

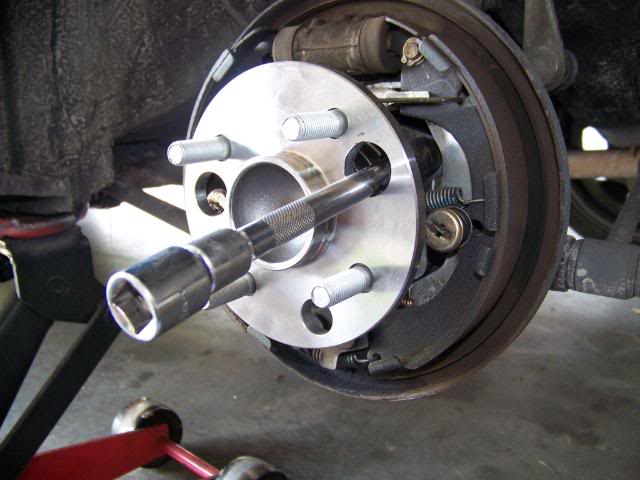

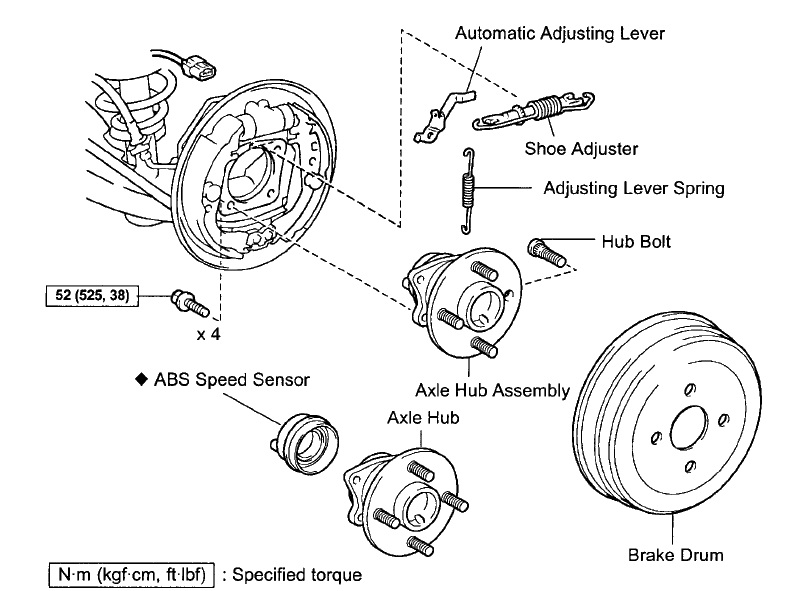

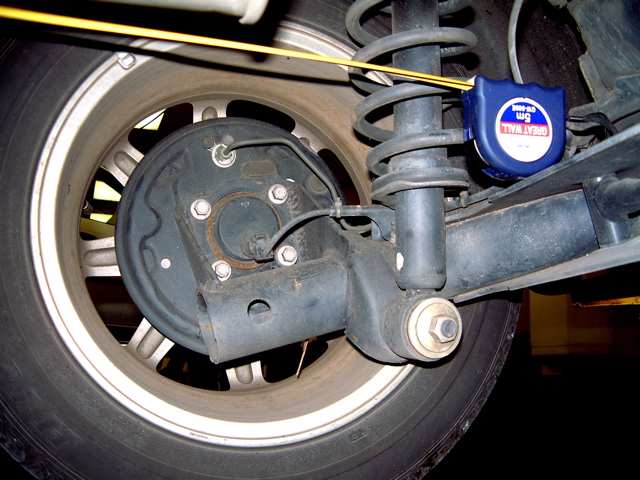

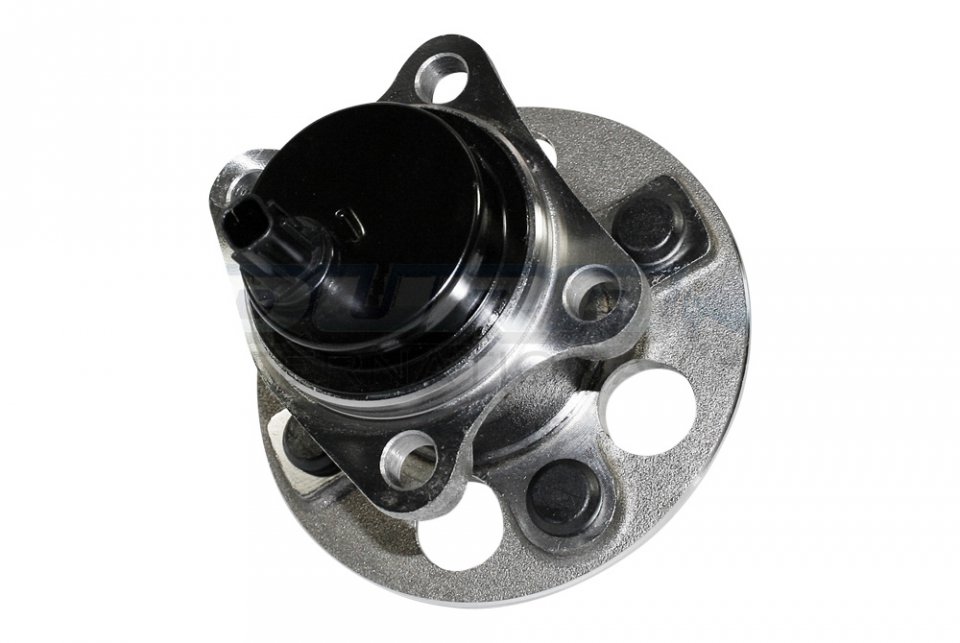

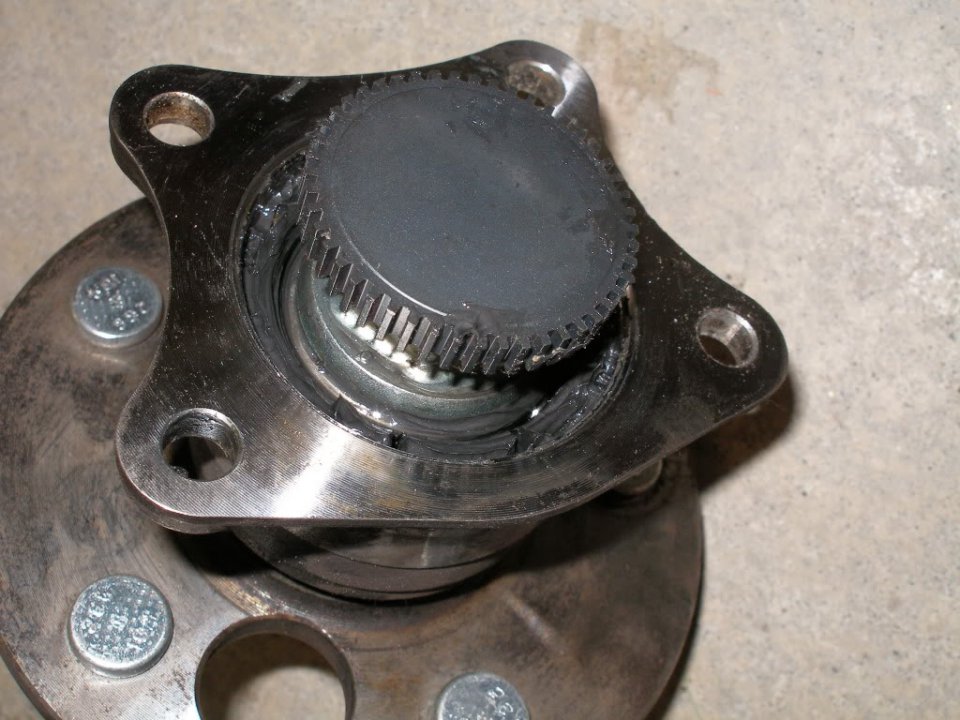

    I want to do it a easier way by adding the motor to the existing hub, but there is a ABS sensor on the back of the hub. anyone know if I relocated the ABS sensor. will it work?

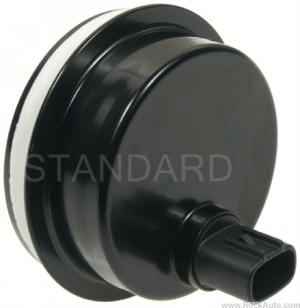

    I am thinking to relocate the ABS to the motor shaft.


    Attached Files:

    • 1.jpg
      File size:
      115.7 KB
      Views:
      550
    • 3.jpg
      File size:
      120.2 KB
      Views:
      2,645
    • 4.jpg
      File size:
      46.3 KB
      Views:
      523
    • 11.jpg
      File size:
      65.5 KB
      Views:
      455
    • 13.jpg
      File size:
      41.2 KB
      Views:
      533
    • 14.jpg
      File size:
      10.5 KB
      Views:
      457
  9. bisco

    bisco cookie crumbler

    Joined:
    May 11, 2005
    86,361
    38,263
    0
    Location:
    boston
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    i think it will work. i have seen various and sundry setups like this, all working well. do some searching, you'll find them with all the technical info and pictures you want. it takes some ambition and tenacity, but it sounds like you have it.(y)

  10. formula

    formula Member

    Joined:
    Mar 7, 2012
    320
    32
    0
    Location:
    CA
    Vehicle:
    2012 Prius c
    Model:
    Three
    do you have any links? :)

    I also contact PluginSupply for more detail about their kit. I am thinking using all they equipment but I build my own battery. need to know what battery they use.

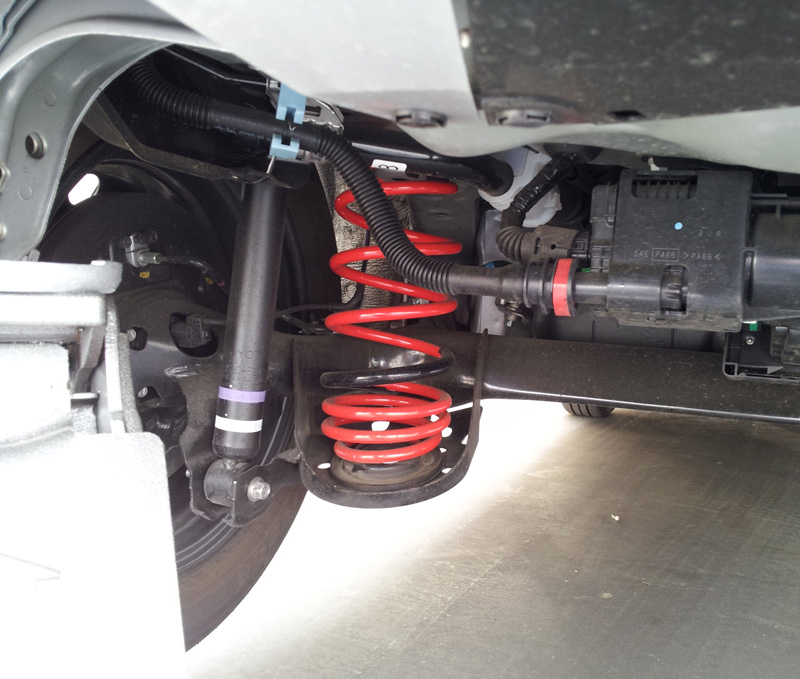

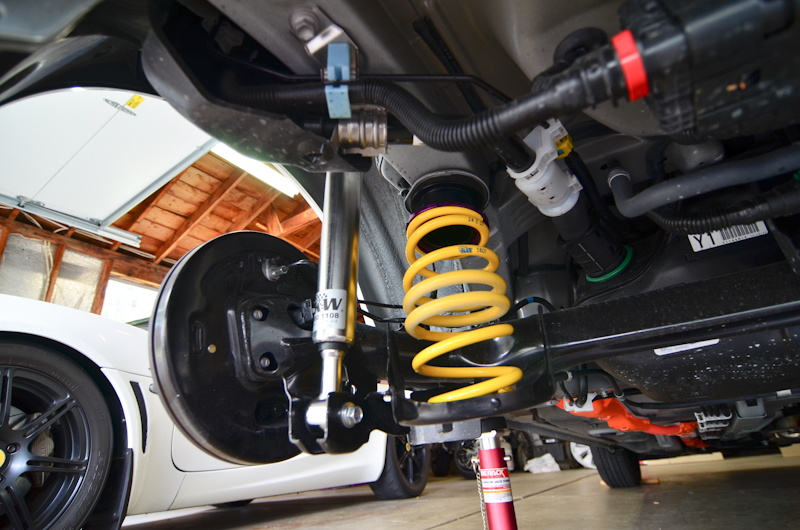

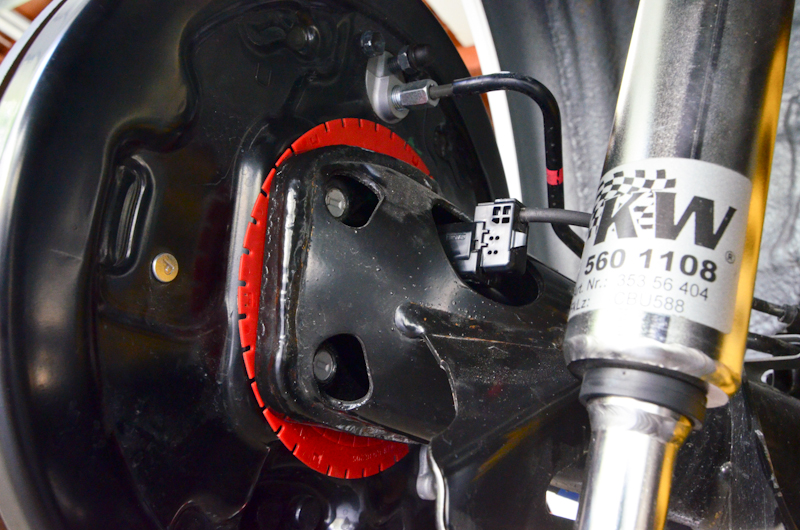

    adding motor to the back is different after checking the rear hub area on the prius C. the strut is blocking the rear of the hub where I want to mount a small motor in there.


    Attached Files:

    • 15.jpg
      File size:
      152 KB
      Views:
      452
    • 18.jpg
      File size:
      309.5 KB
      Views:
      602
    • 19.jpg
      File size:
      369.7 KB
      Views:
      506
  11. bisco

    bisco cookie crumbler

    Joined:
    May 11, 2005
    86,361
    38,263
    0
    Location:
    boston
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    no, sorry, just stuff i've stumbled across over the years. too bad about that strut. sorry to see you go with a kit, i was hoping something new might be on the horizon. the kits are just too expensive for most of us.

  12. formula

    formula Member

    Joined:
    Mar 7, 2012
    320
    32
    0
    Location:
    CA
    Vehicle:
    2012 Prius c
    Model:
    Three

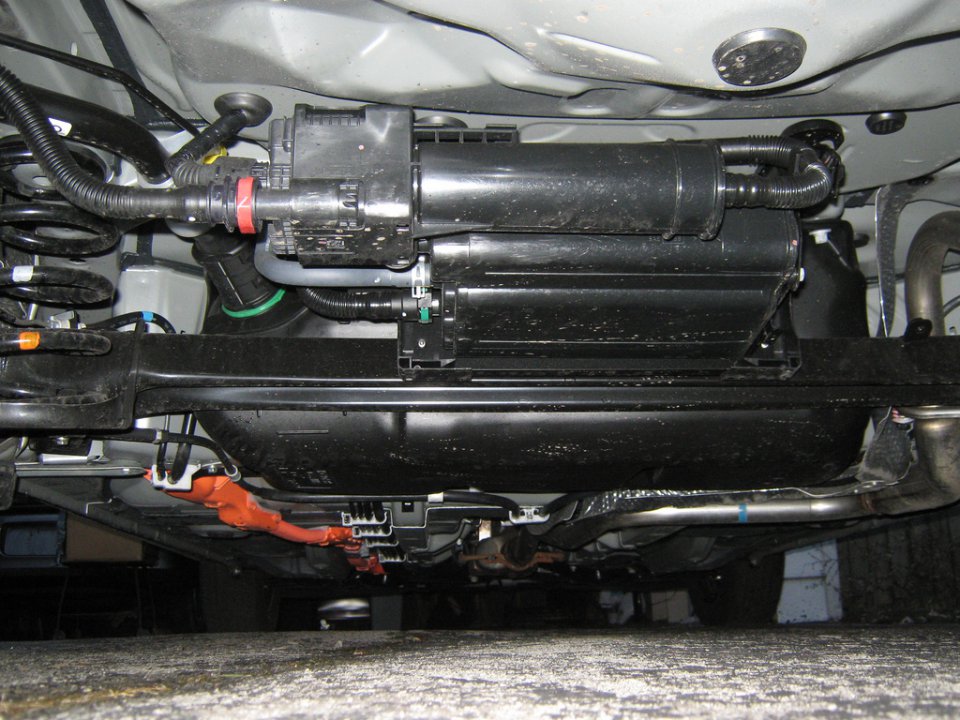

    anyone know what this big black box device is?


    Attached Files:

    • 16.jpg
      File size:
      145.5 KB
      Views:
      493
  13. formula

    formula Member

    Joined:
    Mar 7, 2012
    320
    32
    0
    Location:
    CA
    Vehicle:
    2012 Prius c
    Model:
    Three
    I did more search and found some info.

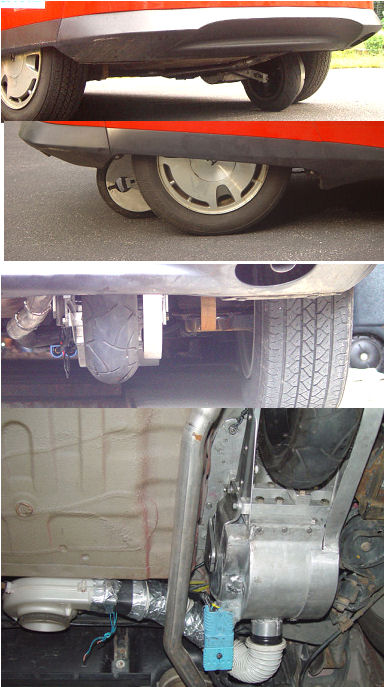

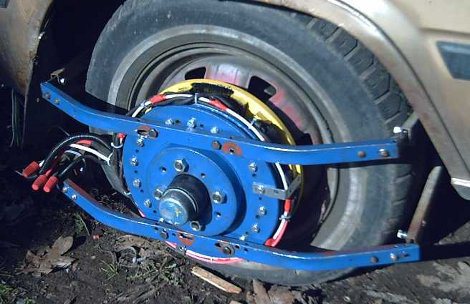

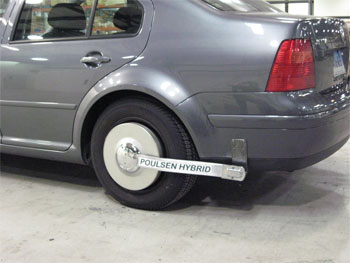

    E-Trailer (EV pusher) or 5th E wheel. I think that will be cheaper way to have high MPG than using plug in kit.

    checked the price of plug in kit. it will cost $6500 for 3.3kW kit.

    I think the fifth wheel will work better than towing a trailer on the back. I am planing on building a 5th wheel on a tow hitch, so it will be a plug and play system.

    I think the E trailer will work better with non-hybrid car. may build one for my CX-9 which got only 20 MPG combine.



    this is the good site .

    http://99mpg.com/ProjectCars/ewheelforanyvehicl

    E-Trailer (I.C.E.) Pusher - an album on Flickr


    Attached Files:

    • 26.jpg
      File size:
      41 KB
      Views:
      1,142
    • 22.jpg
      File size:
      19.6 KB
      Views:
      548
    • 24.jpg
      File size:
      64 KB
      Views:
      541
    koipond likes this.
  14. formula

    formula Member

    Joined:
    Mar 7, 2012
    320
    32
    0
    Location:
    CA
    Vehicle:
    2012 Prius c
    Model:
    Three
    decide to go with e-trailer instead of other design. the e-trailer is better way because I can also use it for my CX-9.
    only use for short trip and low speed. it is not really a trailer, but more like a set of extra wheel on the back push the vehicle.
    will use heavy cheap golf car battery not couple time expensive li-ion battery. battery will be mounted on the trailer. may be half and half.

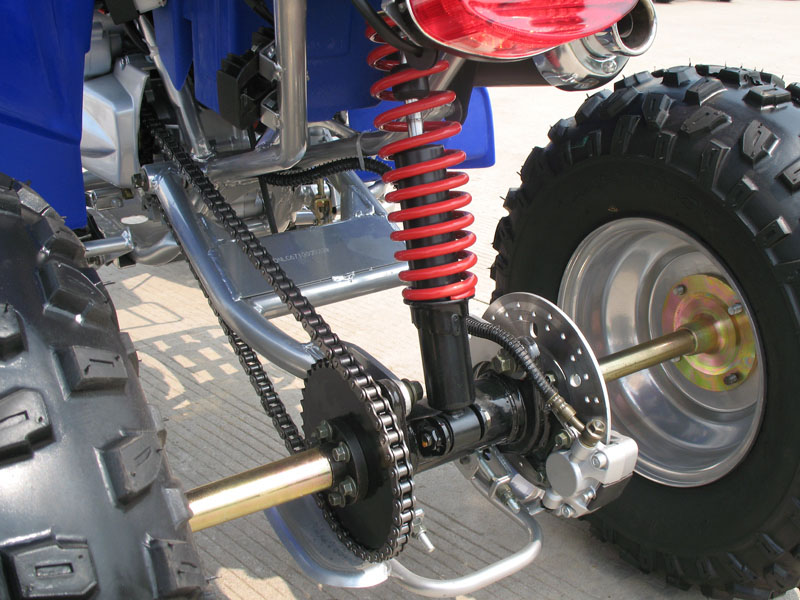

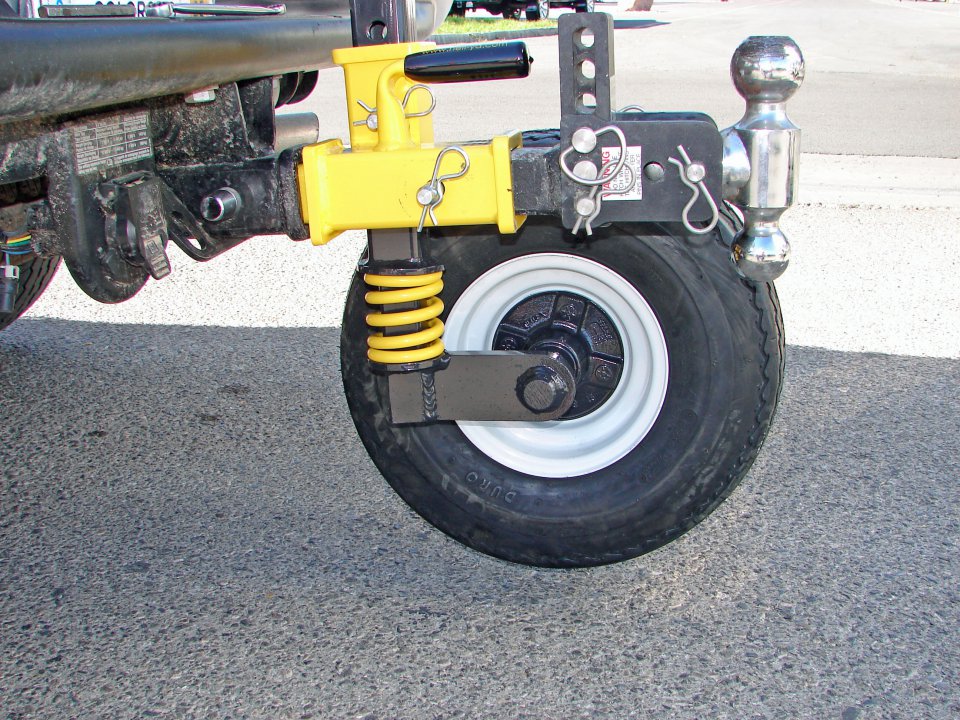

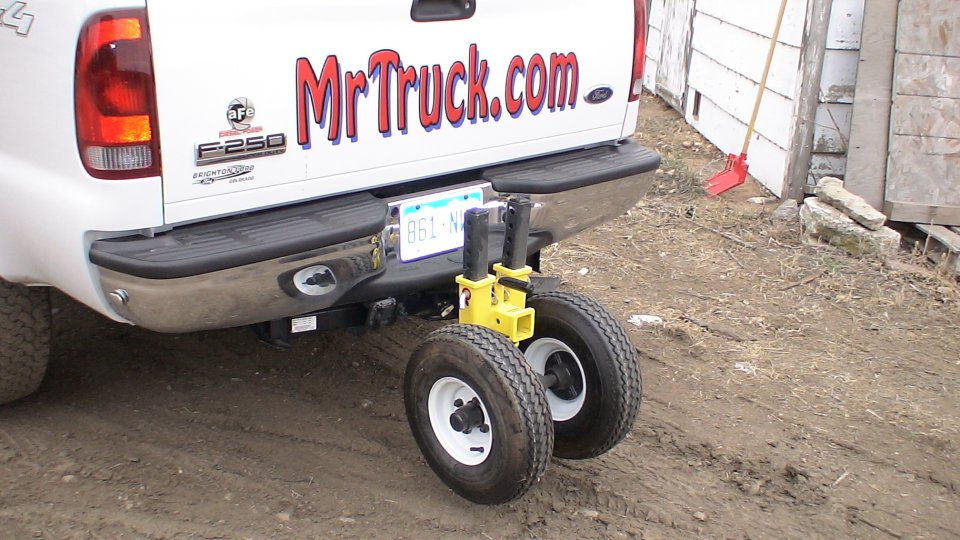

    it will look close to this trailer helper but wider. will use ATV rear axle as live axle. using car solid rear axle will make the trailer too wide. ATV rear axle as live axle is about 30 inch long . will use two wheels instead of one wheel because the trailer need to carry the battery.

    when you going longer trip, you can easier take off the e-trailer. will see how it goes. still looking for parts.


    Attached Files:

    • 75.jpg
      File size:
      148.8 KB
      Views:
      3,310
    • 60.JPG
      File size:
      123.1 KB
      Views:
      392
    • 42.jpg
      File size:
      209.5 KB
      Views:
      407
  15. bisco

    bisco cookie crumbler

    Joined:
    May 11, 2005
    86,361
    38,263
    0
    Location:
    boston
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    this is exciting! i can't wait to get started.(y)

  16. miscrms

    miscrms Plug Envious Member

    Joined:
    Aug 21, 2007
    2,076
    519
    5
    Location:
    Phoenix, AZ
    Vehicle:
    2005 Prius
    I wish you luck, but fear you are headed down a path that will be both expensive and disappointing.

    Pusher trailers are intriguing, but have a nasty habit of becoming unstable and jack-knifing when the rear end of the tow vehicle breaks traction. The more wheels on the ground, the more rolling resistance as well. The more you disrupt the airflow off the rear of the vehicle, the more your aerodynamics will suffer as well.

    You also need to consider carefully the amount power required to do the job your trying to do. A Prius requires about 9 HP to cruise at 40mph, and 19 HP to cruise at 60mph (with no wind, hills, or mechanical drag from the ICE drivetrain). The CX-9 will require about 16 HP at 40mph, and 36 HP at 60mph. HP required for acceleration is much higher, and is often what dominates intown mileage.

    The cheapest way to get enough power just to cover cruising is likely going to be a basic DC brushed series wound 6.7 - 8" fork lift type motor. These run ~$1k to $2k, plus another $500- $1000 for the controller.

    Lead acid is also pretty much a non-starter, given the dramatic rise in the cost of raw lead over the past decade or so. To get 10 miles of assist, you're going to need about 3.3kWh of battery. Between maintaining a reasonable DOD, and losses due to Peukert Effect, you'll be doing well to get about half the advertised AH capacity. That may still be generous.

    The "cheapest" option would be something like the Trojan 12V 100Ah flooded, 6 of which would give you 72V which is probably the min acceptable. 6 * 12V * 100Ah * 50% derating = 3.6kWh which is about right if you're ok with ~ 10 miles assist. This will cost about $1200 and weigh 300 lbs. Double both if you want 20 miles of assist. If you are fairly meticulous with watering and balancing, these should last you a year or two. 12 AGMs will require less maintenance, perform better, and probably last longer but at ~1.5-2X the cost.

    So for lead, you're looking at $1200-1800 for floodies or AGMs that will probably last 1-2 years.

    By comparison, something like GBS Li-ion would be about $2200 for 6 * 12.8V * 60Ah * 80% derate = 3.7kWh. With regular manual maintenance you should be able to get away without a BMS at 72V. For another $144 you can add cell balancers that will help reduce maintenance. These should last 3-5 years, 1000s rather than 100s of cycles. Weight is 120 lbs.

    A good wag at wiring and other incidentals is probably going to be $500-1000. Just the copper to wire for 100s of amps will be a few hundred dollars, then there's contactors, cutoffs, and control to think about.

    When all is said and done, this could easily cost just as much as a PHEV conversion and will likely yield much poorer performance.

    Rob

  17. bisco

    bisco cookie crumbler

    Joined:
    May 11, 2005
    86,361
    38,263
    0
    Location:
    boston
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    how goes the project?

  18. formula

    formula Member

    Joined:
    Mar 7, 2012
    320
    32
    0
    Location:
    CA
    Vehicle:
    2012 Prius c
    Model:
    Three
    Thank you so much for the information. miscrms
    still looking for parts that is cheap enough to make the project payback by itself.

    at first I was thinking to do a plug in kit for the C. I checked the price with Plug in supply. they are helpful and give me many info.
    I can DIY the kit and only need 2 or 3 parts.

    front controller, rear controller , they are $350 each. may also need the double contactor $800. but I may build one for $300.
    they told me I will need a 205V battery pack to charge the HV battery on the C.

    the reason I want to do the E-Wheel is I can build one and use for two vehicles and it will save the cost.

    I am thinking of using Brushed DC motor without contorller. it will save the cost of the controller. the E-Wheel will not power the vehicle along or dead stop. it will mainly use for cruising flat road.

    Motor ME1003 MotEnergy Permanent Magnet DC Pancake Brushed Double Magnet
    the motor cost $575.00
    12-72V VDC, 200 amps Continuous, 400 amps Peak 1 Minute
    6.4 hp Cont, 12.8 hp Peak @ 24 Volts
    12.7 hp Cont, 25.7 hp Peak @ 48 Volts
    19.3 hp Cont, 38.6 hp Peak @ 72 Volts


    not sure how long will the brushes last. the brushes set will cost about $100 to replace. if using this method, it will have no regen for the CX-9 and I will DIY the i-eloop system for the CX-9. all you need is a switch to activate the alternator in full power to slow the engine and the extra electricity will be stored in Supercapacitor pack. if any one interested in Supercapacitor, search Supercapacitor battery. should find some videos show how to make at 13V Supercapacitor to start a V6 engine.

    cost list(for now)

    $575 motor
    $100 trailer high speed wheel with tire (northtool) 8" rim with tire $50 each
    $100-150 live axle 1" with bearing total length is about 18 inch long.
    $1200 battery pack for lead-acid 72V system (12V six 150ah battery each is about 1800W )10800 W
    if use 50% it is about 5400Watt. I think it is not enough. may use higher ah battery.

    total cost is about $2200 $3000 if put more battery.

    Trojan or US battery golf battery is the best choose. if use 50%, should last about 800 cycle or more. if use only 80% will last 2000 more. use 100% will only last 500 or less.

    AGM is more convenience, but they will not last. the flooded battery will last 30 to 40 % more.

    #18 formula, Nov 11, 2014
    Last edited: Nov 11, 2014
  19. cproaudio

    cproaudio Speedlock Overrider

    Joined:
    Jul 7, 2010
    2,397
    735
    0
    Location:
    CA
    Vehicle:
    2010 Prius
    Model:
    V
    looks like the gas tank but i could be wrong.

  20. miscrms

    miscrms Plug Envious Member

    Joined:
    Aug 21, 2007
    2,076
    519
    5
    Location:
    Phoenix, AZ
    Vehicle:
    2005 Prius
    The main problem with floodies is they tend to have a very poor Peukert exponent. This results in greatly diminished capacity at high current draw. The stated capacity is the 20Hr Rate, which is much lower current than a typical EV application.

    Here's an example of the calculation for the Trojan T-1275 12V using the numbers from their spec sheet (manufacturer numbers in bold):
    20 Hr Capacity: 150Ah (7.5A for 1200 minutes)
    Runtime @25A: 280 minutes (117 Ah effective capacity)
    Runtime @75A: 70 minutes (87.5Ah effective capacity)
    Estimated Np: 1.262
    Estimated Cp: 271 Ah
    Estimated Runtime at 200A: 20.3 min
    Effective Capacity @200A: 67.7 Ah

    So right off the bat, the high current effects reduce the pack's effective 100% DOD capacity from 12V*150Ah*6 = 10800Wh to 12V*67.7Ah*6 = 4874Wh. At 50% DOD (which should keep cycle life up in the 500-1000 range) you are down to 2.44kWh. At $1200 this is $491/kWh, plus the batteries will weigh 492 lbs, which will have some negative impact on mileage.

    This is already getting close to the ~$633/kWh for the GBS Li-ion with balancers above, without even taking the longer expected cycle life and 4:1 weight advantage of the Li-ion. There are likely cheaper Li-ion options that would probably be fine for this application as well.

    The ME1003 is a good motor, but its basically a big scooter motor. How much mileage improvement would you expect from strapping a vespa to your back bumper?

    Running without a controller can be done, but you'll have to be pretty cautious how you use it to avoid blowing up your motor or welding your contactors. At low RPMs the motor will want to draw far more Amps than it can handle, and you'll always be switching your contactor in and out in an energized state which means it needs to be substantially oversized to have a decent life expectancy.

    Rob

    #20 miscrms, Nov 11, 2014
    Last edited: Nov 11, 2014
