1. Attachments are working again! Check out this thread for more details and to report any other bugs.

Cleaning Battery Fan

Discussion in 'Gen 4 Prius Technical Discussion' started by Deogratias, Apr 26, 2017.

  1. Deogratias

    Deogratias Member

    Joined:
    Dec 17, 2016
    37
    42
    0
    Location:
    USA
    Vehicle:
    2016 Prius
    Model:
    Three
    I have a dog, who is adorable, but is now banned from riding in my Prius, because she sheds profusely. I recently took said dog on vacation with me, and spent most of today cleaning dog hair out of the rear seat and floorboard area as a result.

    The battery vents under the rear seat were fairly well clogged with dog hair. I managed to clean them to the point where they look clear from the outside, but I'm pretty sure if I was able to disassemble the seat/take the vent covers off I would find more dog hair in the vents. Is there a video or instruction anywhere about how to go about the disassembly process?

    #1 Deogratias, Apr 26, 2017
  2. Prodigyplace

    Prodigyplace Senior Member

    Joined:
    Nov 1, 2016
    11,696
    11,317
    0
    Location:
    Central Virginia
    Vehicle:
    2017 Prius
    Model:
    Two
    I have not heard of anyone doing this on a Gen 4.

    #2 Prodigyplace, Apr 27, 2017
  3. Mendel Leisk

    Mendel Leisk Senior Member

    Joined:
    Oct 17, 2010
    54,661
    38,205
    80
    Location:
    Greater Vancouver, British Columbia, Canada
    Vehicle:
    2010 Prius
    Model:
    Touring
    I would just follow your nose, to get to the fan. It's likely rear seat bottom needs to be pulled off? Also, what are the fan inlet grills like, any screen in them? If not you could add something, like window screen material.

    We occasionally transport our Shiba Inu, who sheds fine fur about 4~5 months of the year. Digging down to the fan every 2 years or so is enough to keep on top of it. And so far on our 3rd gen it seems like fine dust only on the fan blades. We've only had the Shiba about 2 years though, so time will tell.

    #3 Mendel Leisk, Apr 27, 2017
    That_Prius_Car, RCO and Deogratias like this.
  4. Prodigyplace

    Prodigyplace Senior Member

    Joined:
    Nov 1, 2016
    11,696
    11,317
    0
    Location:
    Central Virginia
    Vehicle:
    2017 Prius
    Model:
    Two
    Manual is not too helpful... See the dealer to clean or replace a filter??

    #4 Prodigyplace, Apr 27, 2017
    RCO likes this.
  5. alanclarkeau

    alanclarkeau Senior Member

    Joined:
    Feb 24, 2016
    7,041
    7,580
    0
    Location:
    near Brisbane, Australia
    Vehicle:
    2016 Prius
    Model:
    N/A
    And there is a second grill in the middle of the seat, but not shown in the Manual - it must do something, but previous discussion couldn't work out what - (it even seemed that some cars were missing it).

    #5 alanclarkeau, Apr 27, 2017
    RCO likes this.
  6. bisco

    bisco cookie crumbler

    Joined:
    May 11, 2005
    107,688
    48,943
    0
    Location:
    boston
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    it might be advisable to purchase the service manual for a day. $15. it would have complete disassembly cleaning and assembly instructions.
    a clogged fan can have serious ramifications on battery health. it does sound like you get a warning if flow is impeded, but i wouldn't risk it.

    #6 bisco, Apr 27, 2017
    RCO and Prodigyplace like this.
  7. Prodigyplace

    Prodigyplace Senior Member

    Joined:
    Nov 1, 2016
    11,696
    11,317
    0
    Location:
    Central Virginia
    Vehicle:
    2017 Prius
    Model:
    Two
    Perhaps this is why... :LOL:

    [​IMG]

    From Hybrid Funnies | PriusChat

    #7 Prodigyplace, Apr 27, 2017
  8. Mendel Leisk

    Mendel Leisk Senior Member

    Joined:
    Oct 17, 2010
    54,661
    38,205
    80
    Location:
    Greater Vancouver, British Columbia, Canada
    Vehicle:
    2010 Prius
    Model:
    Touring
    Maybe...

    Sometimes the car is your best "service manual". Just look at the fan inlet, what it's part of, how that fastens. Then start removing fasteners, gently yoinking things, following the ductwork, you get there.

    #8 Mendel Leisk, Apr 27, 2017
    bisco likes this.
  9. bisco

    bisco cookie crumbler

    Joined:
    May 11, 2005
    107,688
    48,943
    0
    Location:
    boston
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    easy for you to say, i would end up with parts all over the driveway, and after getting it all back together, i'd find one more part, and no idea where it goes.:cool:

    #9 bisco, Apr 27, 2017
    RCO, Deogratias, alanclarkeau and 2 others like this.
  10. Mendel Leisk

    Mendel Leisk Senior Member

    Joined:
    Oct 17, 2010
    54,661
    38,205
    80
    Location:
    Greater Vancouver, British Columbia, Canada
    Vehicle:
    2010 Prius
    Model:
    Touring
    I've been there.

    #10 Mendel Leisk, Apr 27, 2017
    RCO and bisco like this.
  11. Deogratias

    Deogratias Member

    Joined:
    Dec 17, 2016
    37
    42
    0
    Location:
    USA
    Vehicle:
    2016 Prius
    Model:
    Three
    Mine doesn't have the vent in the middle, just one on each side under the back seat.

    I tried following my nose and gently prying the rear seat up. It wants to "give" but it doesn't. Not sure if I need to use more force or if I'm setting myself up to cause damage if I do that.

    #11 Deogratias, Apr 27, 2017
    bisco likes this.
  12. Prodigyplace

    Prodigyplace Senior Member

    Joined:
    Nov 1, 2016
    11,696
    11,317
    0
    Location:
    Central Virginia
    Vehicle:
    2017 Prius
    Model:
    Two
    Curious. Mine has the same 2 ventsd as @alanclarkeau . I borrowed his picture. The area I circled in yellow appears to take a Phillips screwdriver, possibly to remove a cover for the right vent.


    #12 Prodigyplace, Apr 27, 2017
  13. WilDavis

    WilDavis Senior Member

    Joined:
    Feb 4, 2014
    2,489
    2,153
    49
    Location:
    Top RH Corner of RH Coast on L side of The Pond
    Vehicle:
    2009 Prius
    Model:
    II
    ...just one more reason most phones now have built-in cameras!;)

    #13 WilDavis, Apr 27, 2017
    RCO and bisco like this.
  14. alanclarkeau

    alanclarkeau Senior Member

    Joined:
    Feb 24, 2016
    7,041
    7,580
    0
    Location:
    near Brisbane, Australia
    Vehicle:
    2016 Prius
    Model:
    N/A
    The conjecture at the time was that maybe Li-ION had different venting - mine is Ni-MH.

    #14 alanclarkeau, Apr 27, 2017
  15. Prodigyplace

    Prodigyplace Senior Member

    Joined:
    Nov 1, 2016
    11,696
    11,317
    0
    Location:
    Central Virginia
    Vehicle:
    2017 Prius
    Model:
    Two
    Good point. So is mine.

    #15 Prodigyplace, Apr 27, 2017
    alanclarkeau likes this.
  16. Mendel Leisk

    Mendel Leisk Senior Member

    Joined:
    Oct 17, 2010
    54,661
    38,205
    80
    Location:
    Greater Vancouver, British Columbia, Canada
    Vehicle:
    2010 Prius
    Model:
    Touring
    At the 2016 Prius reveal in Las Vegas, Team PriusChat (@Tideland Prius specifically?) did a surreptitious rear seat lift up, for inspection of the battery. IIRC that exposed the battery fan. Accordingly, I think it can be done with bare hands, hopefully doesn't damage anything.

    I believe there's two u-shaped tabs at the front edge of the seat, and if you run your fingers along and find them, yank up right there, it should pop off. Maybe Tideland will weigh in, regarding how to do it, what's visible once the seat's off, if the fan's then accessible, if there's any damage, etcetera.

    I suspect your fan's still going to be quite clean, but worth checking.

    #16 Mendel Leisk, Apr 27, 2017
    RCO and alanclarkeau like this.
  17. Tideland Prius

    Tideland Prius Moderator of the North
    Staff Member

    Joined:
    Oct 2, 2004
    44,824
    16,063
    41
    Location:
    Canada
    Vehicle:
    Other Non-Hybrid
    Model:
    N/A
    #17 Tideland Prius, Apr 27, 2017
    RCO, Mendel Leisk and alanclarkeau like this.
  18. Mendel Leisk

    Mendel Leisk Senior Member

    Joined:
    Oct 17, 2010
    54,661
    38,205
    80
    Location:
    Greater Vancouver, British Columbia, Canada
    Vehicle:
    2010 Prius
    Model:
    Touring

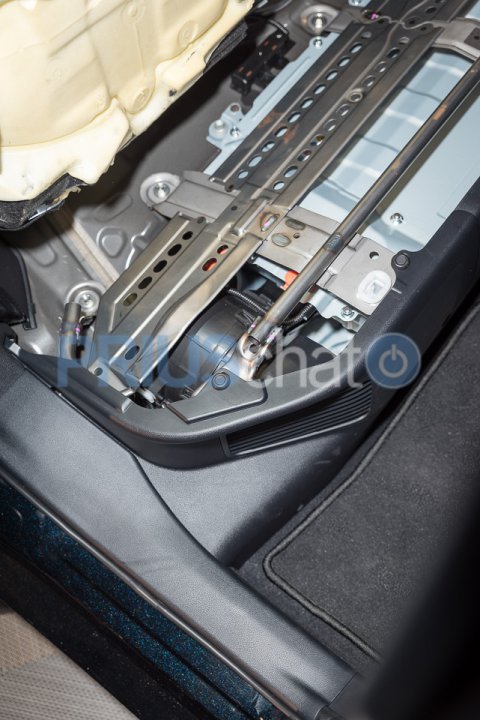

    Looks like a nylon pocket there, and maybe corresponding pin on the seat above?


    #18 Mendel Leisk, Apr 27, 2017
(You must log in or sign up to post here.)
