Cold weather operation is a little different

Discussion in 'Prius v Main Forum' started by Ronald Doles, Jan 9, 2020.

  1. Ronald Doles

    Ronald Doles Active Member

    Joined:
    Apr 21, 2019
    230
    280
    0
    Location:
    Columbus, OH
    Vehicle:
    2015 Prius v wagon
    Model:
    Two
    This is our first year with the Prius. I have a Scan Gauge connected to our car and one of the displayed parameters is coolant temperature. These observations are probably not interesting to the majority of users here but the operation of this car fascinates me and I want to know exactly what it is doing.

    I have read and agree with the 5 stages of operation as listed on other threads here as long as the car is driven in warmer weather. The Five Stages of Prius Hybrid Operation | PriusChat
    This description may not be for a Gen 3 Prius but it is close.

    As described, there is a transition to Step 2 at 104 degrees F. where the ICE would shut off when pulling up to a stop sign or traffic light.

    Now that the temperature in Ohio is in the 30's, the car behaves differently. There must be some ambient temperature or cabin temperature component that must figure into the equation that is not described in the 5 stages of operation.

    With cold weather, when I pull up to a stop sign or traffic light, the ICE keeps running even with the water temperature well above 104 F.

    At some temperature higher than the 104 F, the system does transition to S2 and the ICE eventually does shut down at a stop sign or traffic light.

    I have noticed that as the coolant temperature reaches 160 F for example, the ICE shuts down at a traffic light. The water pump must continue to run to provide cabin heat because, the coolant temperature quickly drops about 10 degrees or more and then as soon as the ICE restarts, it begins to increase again.

    Another unknown is that I don't know when the auxilliary electric cabin heater kicks in and shuts down. Maybe the coolant temperature or cabin temperature has to have reached some target to satisfy that heater.

    Nothing earth shattering here just some discrepancies with the posted description.

    #1 Ronald Doles, Jan 9, 2020
    Last edited: Jan 9, 2020
  2. Air_Boss

    Air_Boss Senior Member

    Joined:
    Jun 2, 2012
    3,902
    1,064
    0
    Location:
    New Yawk
    Vehicle:
    2012 Prius v wagon
    Model:
    Five
    You nailed it with your observation that:

    "The water pump must continue to run to provide cabin heat because, the coolant temperature quickly drops about 10 degrees or more and then as soon as the ICE restarts, it begins to increase again."

    If the ICE shut off at 104 degrees in the cold, even with the cabin up to desired temperature, the coolant temperature would quickly drop, the ICE would quickly cycle on again, and you would get into a perpetual short-cycling mode.

  3. JimboPalmer

    JimboPalmer Tsar of all the Rushers

    Joined:
    Apr 14, 2009
    12,470
    6,862
    2
    Location:
    Greenwood MS USA
    Vehicle:
    2012 Prius v wagon
    Model:
    Three
    And yes, the software does know you are running the heat. It is plotting to keep the engine warm even with the constant drain of passenger cabin heating.

    Air_Boss likes this.
  4. john1701a

    john1701a Prius Guru

    Joined:
    Jan 6, 2004
    12,747
    5,243
    57
    Location:
    Minnesota
    Vehicle:
    2017 Prius Prime
    Model:
    Prime Advanced
    This video of my commute shows that engine on & off cycling for heat...



    The behavior has been that way for many generations. Here's some old ScanGauge footage..


  5. Mendel Leisk

    Mendel Leisk Senior Member

    Joined:
    Oct 17, 2010
    54,469
    38,103
    80
    Location:
    Greater Vancouver, British Columbia, Canada
    Vehicle:
    2010 Prius
    Model:
    Touring
    When partially warmed I can turn the engine off/on, by setting cabin temp lower/higher, and/or by turning the cabin vent system completely off/on.

    (I think used my slash quota for today...)

  6. jerrymildred

    jerrymildred Senior Member

    Joined:
    Oct 28, 2016
    11,490
    14,095
    0
    Location:
    Tampa, FL
    Vehicle:
    2017 Prius
    Model:
    Two
    The Prius v has an electric cabin heater?? I didn't know that.

  7. Ronald Doles

    Ronald Doles Active Member

    Joined:
    Apr 21, 2019
    230
    280
    0
    Location:
    Columbus, OH
    Vehicle:
    2015 Prius v wagon
    Model:
    Two

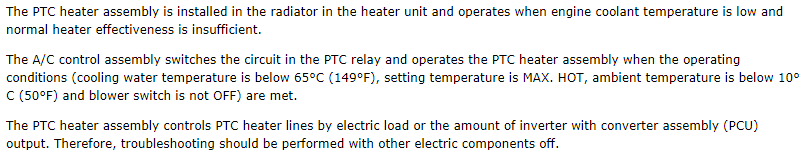

    This explanation came from another thread. It claimed that it was cut from the repair manual. Not sure which generation. I assumed that it applies to the Prius V as well.

    [​IMG]

    jerrymildred and dig4dirt like this.
  8. dig4dirt

    dig4dirt MoonGlow

    Joined:
    Apr 6, 2012
    1,150
    741
    0
    Location:
    Lancaster Co PA
    Vehicle:
    2014 Prius c
    Model:
    Two
    Very interesting.
    Unsure if that is true (or just for "v"), but I will def be testing on Gen3 liftback and Prius "c" tomorrow. :sneaky:

    jerrymildred likes this.
  9. jerrymildred

    jerrymildred Senior Member

    Joined:
    Oct 28, 2016
    11,490
    14,095
    0
    Location:
    Tampa, FL
    Vehicle:
    2017 Prius
    Model:
    Two
    Interesting indeed! It'll be good to get your comparison results from the other two "Gen 3" models.

  10. dig4dirt

    dig4dirt MoonGlow

    Joined:
    Apr 6, 2012
    1,150
    741
    0
    Location:
    Lancaster Co PA
    Vehicle:
    2014 Prius c
    Model:
    Two
    jerrymildred likes this.
  11. Ronald Doles

    Ronald Doles Active Member

    Joined:
    Apr 21, 2019
    230
    280
    0
    Location:
    Columbus, OH
    Vehicle:
    2015 Prius v wagon
    Model:
    Two
    I did a search of Toyota parts and arrived at this part number for a 2015 Prius V "Quick heater".

    87710-12020

    quick heater.JPG


    So it confirms that a Prius V does have the PTC heater.

    Note: PTC - positive temperature coefficient means that this is a resistive heating element probably made of ceramic. It would heat up quickly and as it gets hotter, it's resistance would increase which reduces the power and subsequently the heat output. This makes it self regulating.

    A cold PTC would draw more current and provide more heat so on initial startup in 20 deg F ambient, it could provide an instant boost to the defroster air temperature early in the coolant warm-up cycle. As the coolant temperature increases, the air flowing through the PTC also warms causing the PTC output to decrease. The dropoff of PTC heat to the cabin would be replaced by the warming coolant.

    So my best guess as to when and how it works:
    Above 50 deg F ambient or in ECO mode or the blower is not on, the quick heater is disabled.
    Below 50 deg F ambient, while not in ECO mode, with the blower on and coolant temperature of less than 150 deg F, the quick heater is enabled.


    Attached Files:

    #11 Ronald Doles, Jan 10, 2020
    Last edited: Jan 11, 2020
    dig4dirt likes this.
