Compass on the mirror retrofit

Discussion in 'Gen 2 Prius Accessories & Modifications' started by Georgios, May 1, 2020.

  1. Georgios

    Georgios Member

    Joined:
    Feb 6, 2018
    126
    84
    0
    Location:
    Chicago
    Vehicle:
    2008 Prius
    Model:
    ----USA----
    This mod was done by me and it was one of the easiest mods on the Gen2. Never seen anyone in this forum doing it but it might be already old news. When i searched in here a lot of comments for aftermarket stuff, rewiring, a lot of money and nothing as simple as this. If your car has no home link at all it will requre extra rewiring but only 3 wires. My car was factory equipped with the Homelink.
    I was looking at some mirrors at a parts yard and figured out the mirrors on so many cars are similar or identical and made by the same manufacturer - Gentex.
    This mirror came from 2008 Hyundai Sonata (not 100% sure) and I like it because it has green light digits and they totally match the green dashboard and green display of the Gen2.
    It took about 1 minute to take the mirror off and another 1 minute to put the new one off. I mean it doesn't get any easier than that. Only tool needed was T20 Torx. It also could be
    done with very small hex but it may strip the screw.

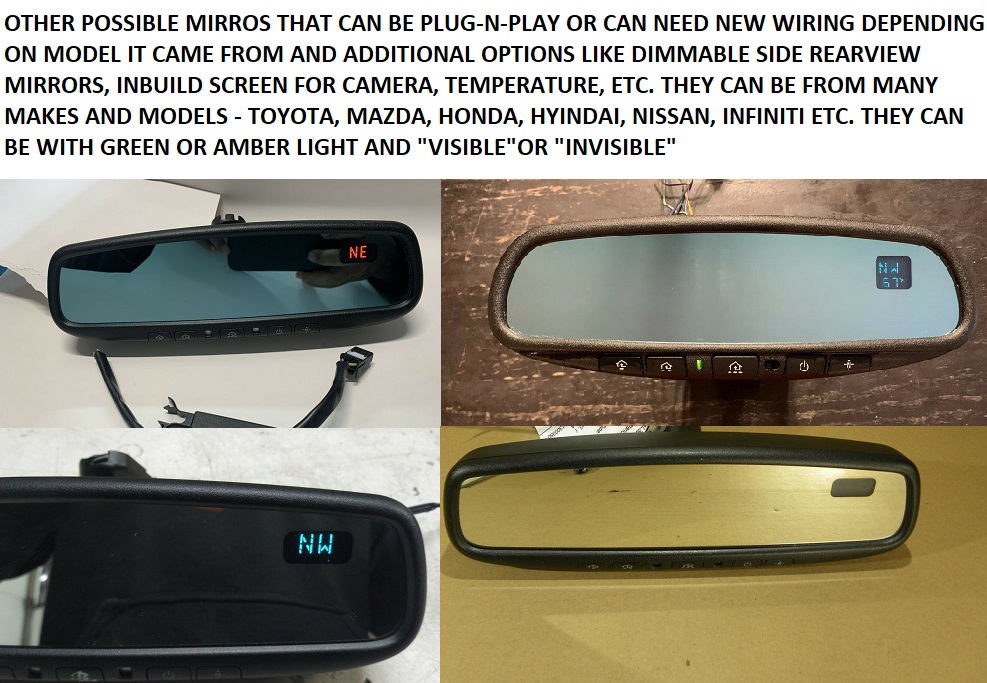

    These mirrors are all over the internet. You can buy new, old, used, any kind of mirror. They cost anywhere from $5 to $50 or more in some cases. This mirror cost $5+tax at my parts yard

    Installation was done the following way:
    Hardest part is to find this mirror.

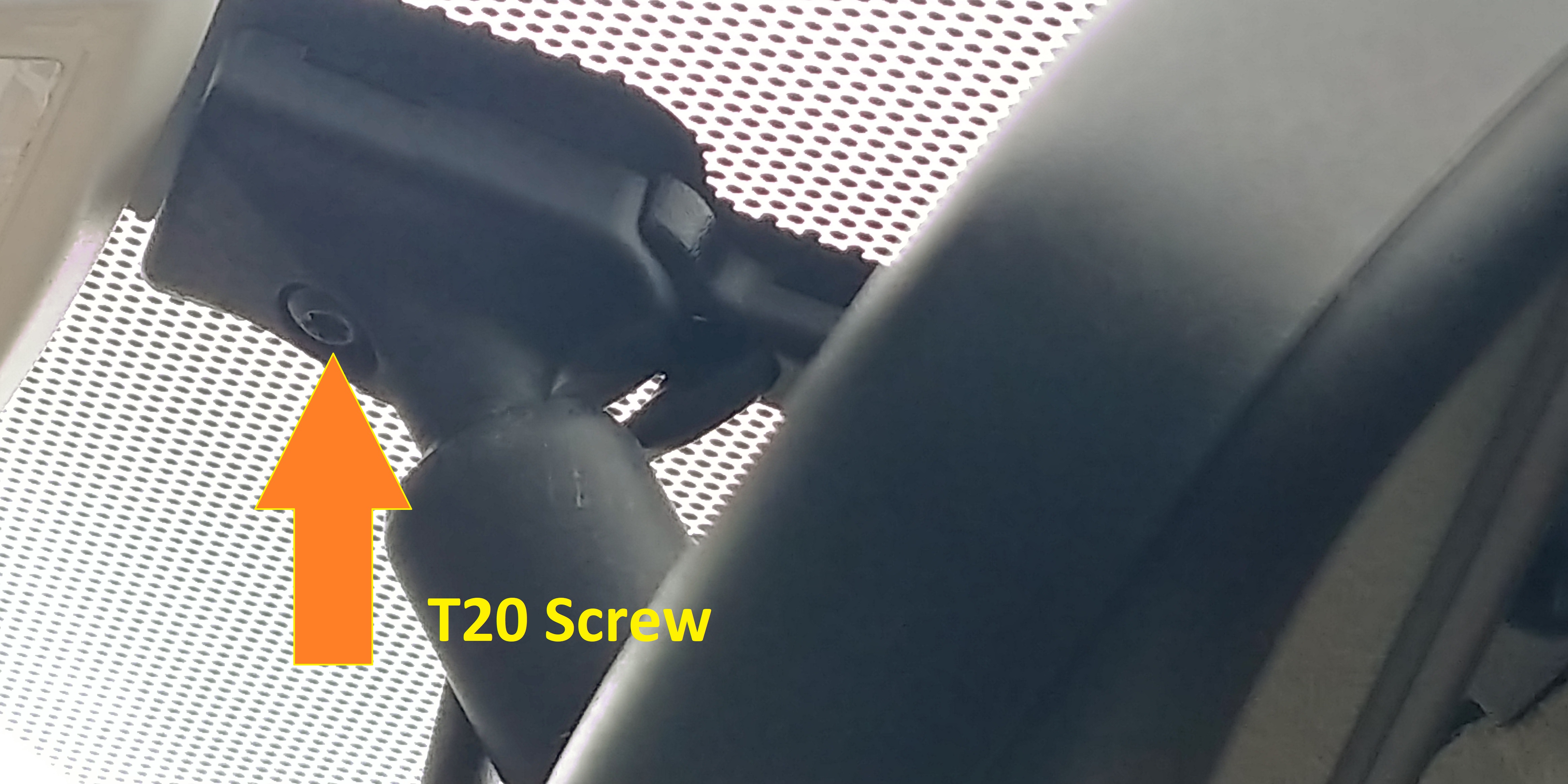

    1.Locate the T20 Torx screw behind the mirror. Take it out and slide the mirror up and remove the small plastic cover. Then un clip the plug connector
    [​IMG]

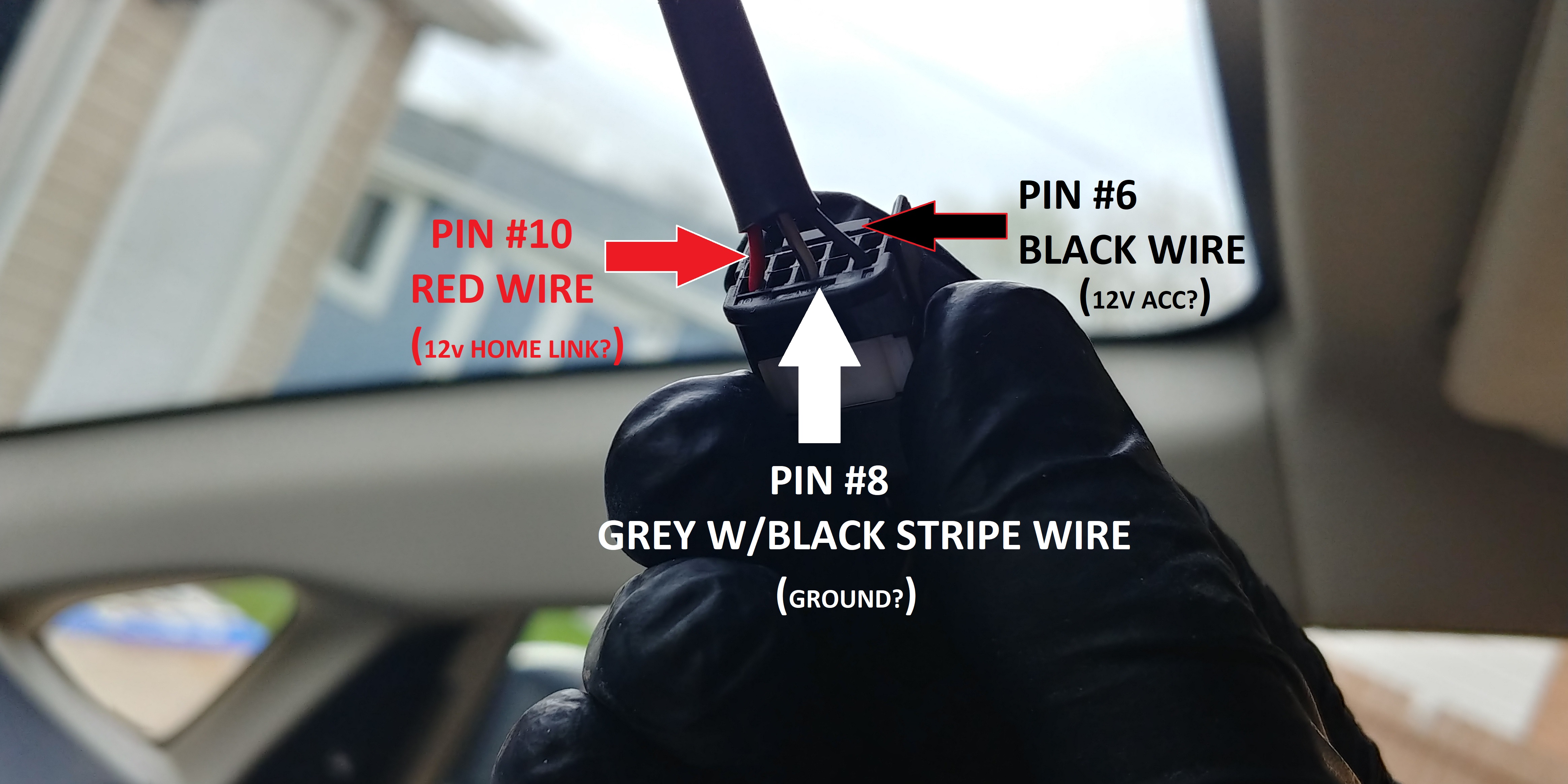

    2. The connector on a factory equipped with Homelink and automatic dimming mirror should look like this. 3 wires only on the bottom row
    [​IMG]

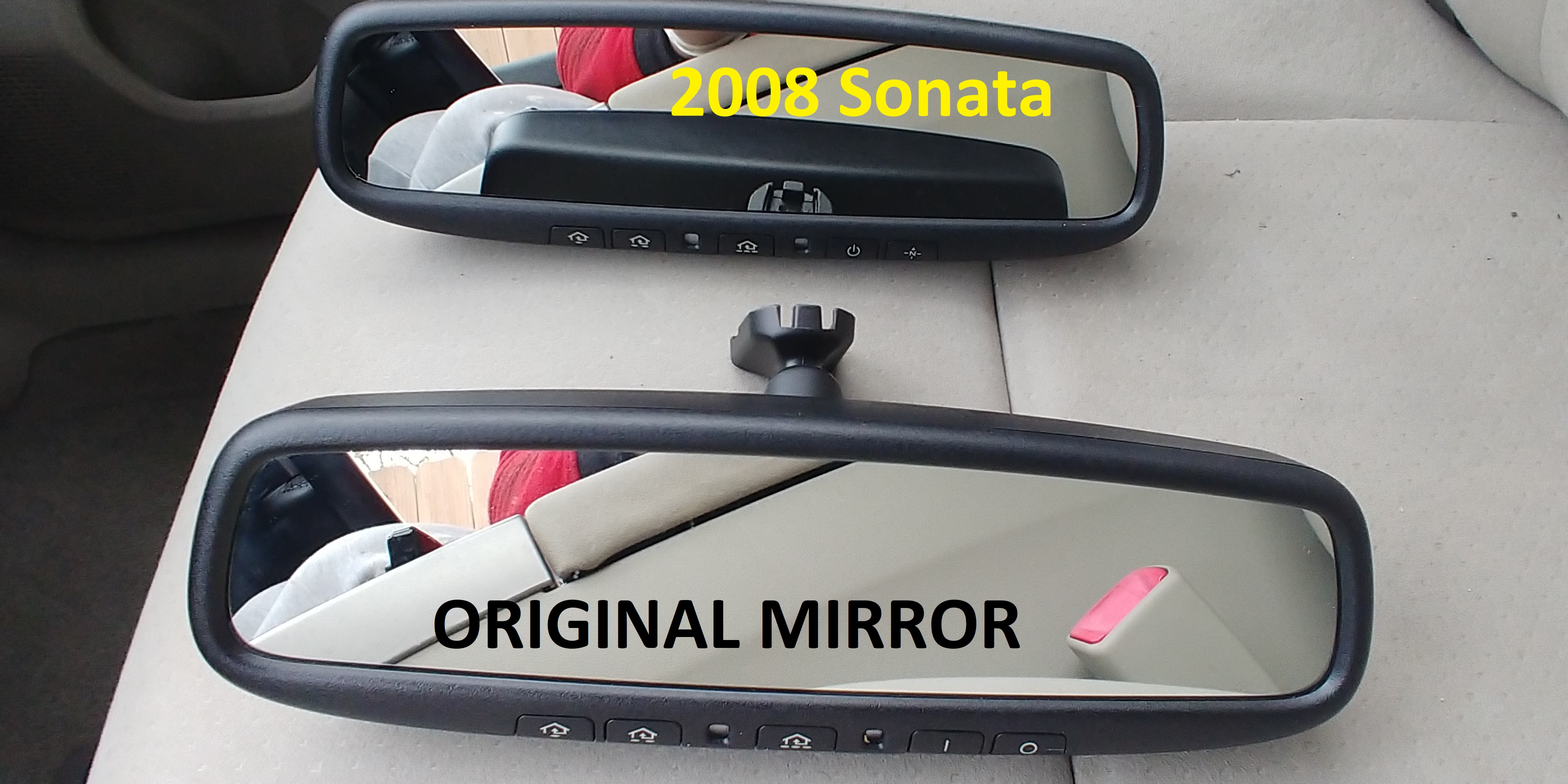

    3.This is the way my new and old mirror compare. Shape and shade is 1:1. Only one button is different - the compass. OEM mirror has 1 button for on and one for off. New one has 1 button that does both those
    [​IMG]

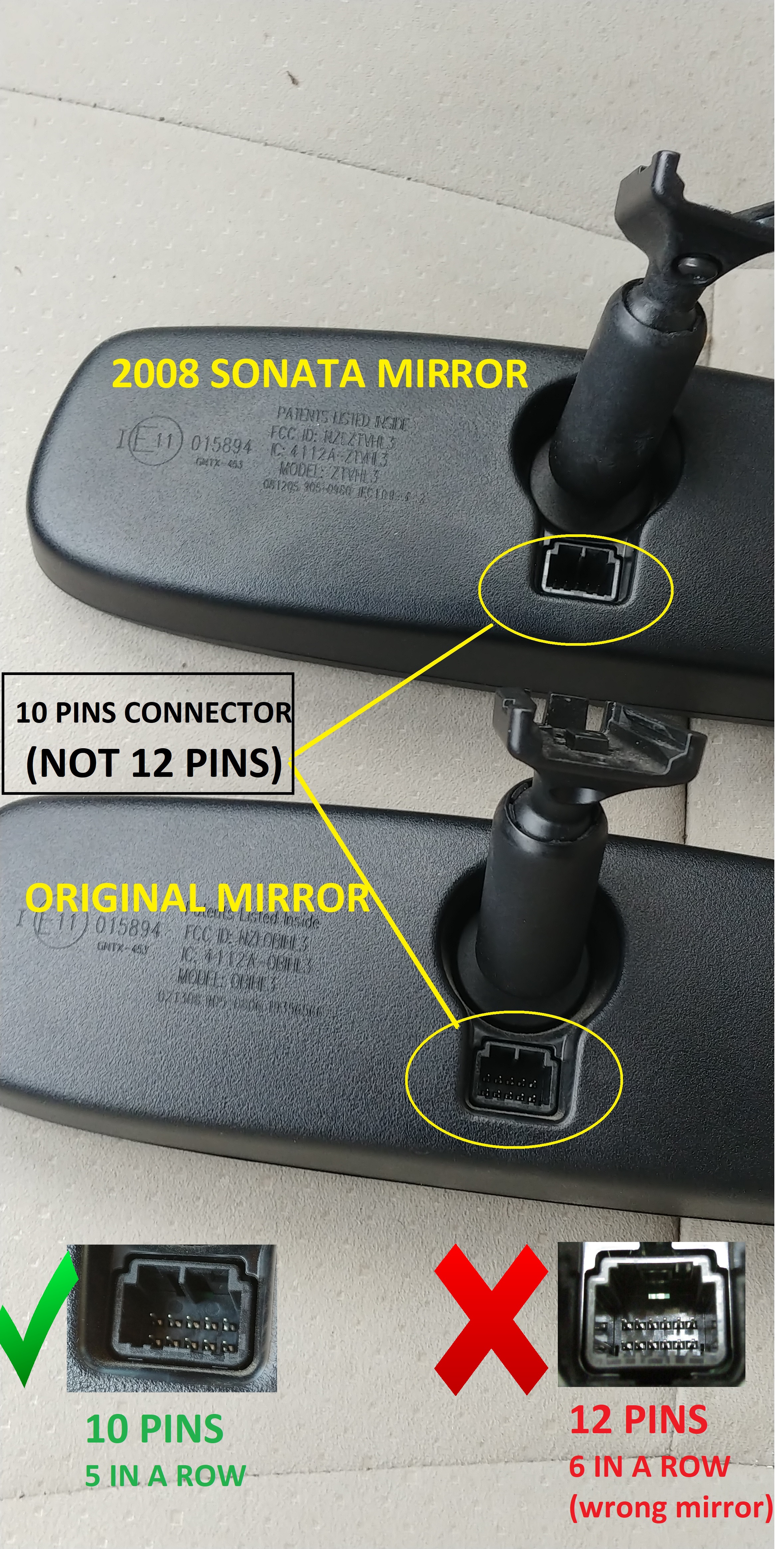

    4. Make sure your new mirror has 10 pins connector. Other ones can require rewiring
    [​IMG]

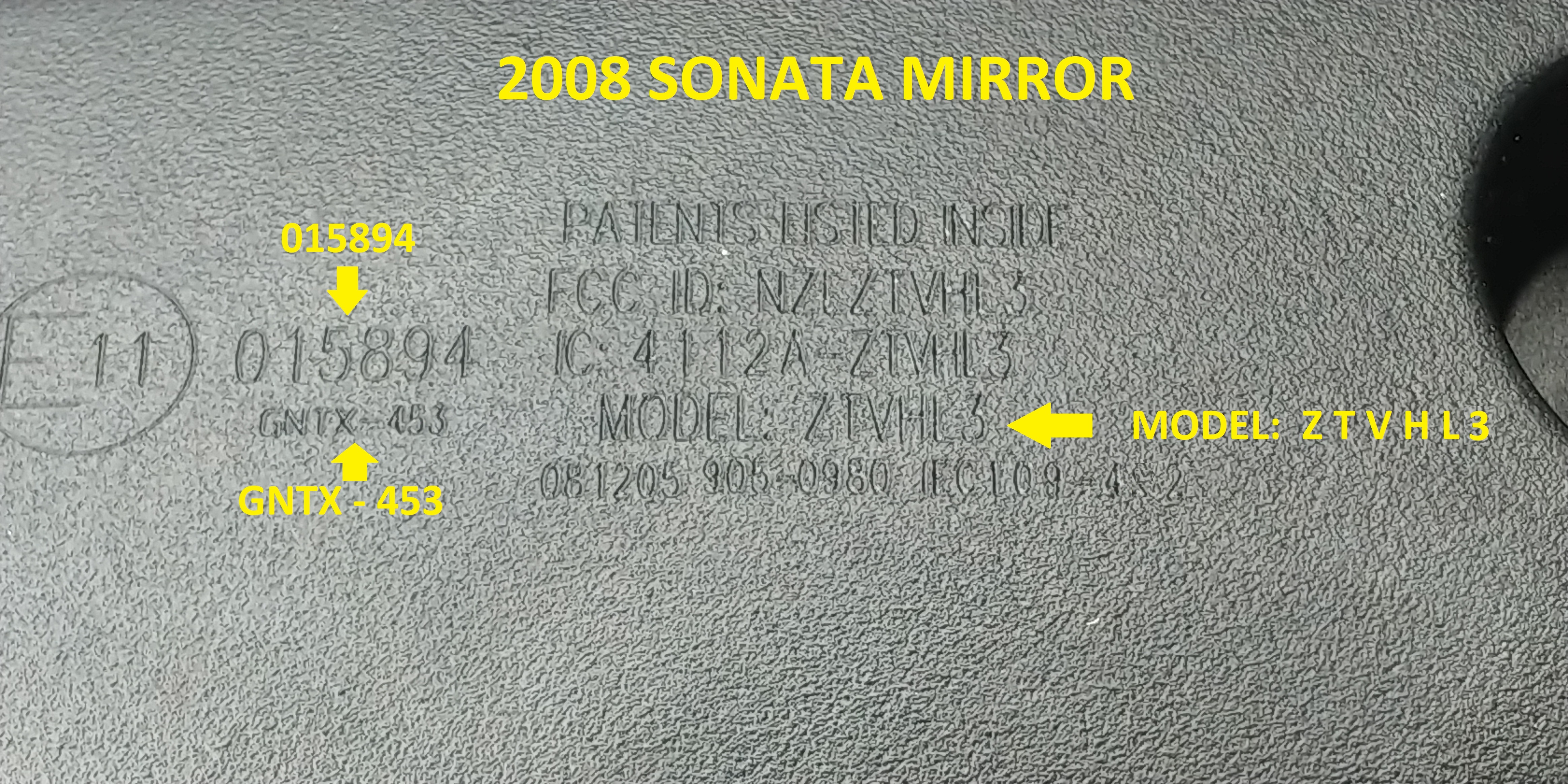

    5. This is the part numbers of the new mirror
    [​IMG]


    6. Install the new mirror and insert the connector. Screw back the T20 Torx.
    [​IMG]

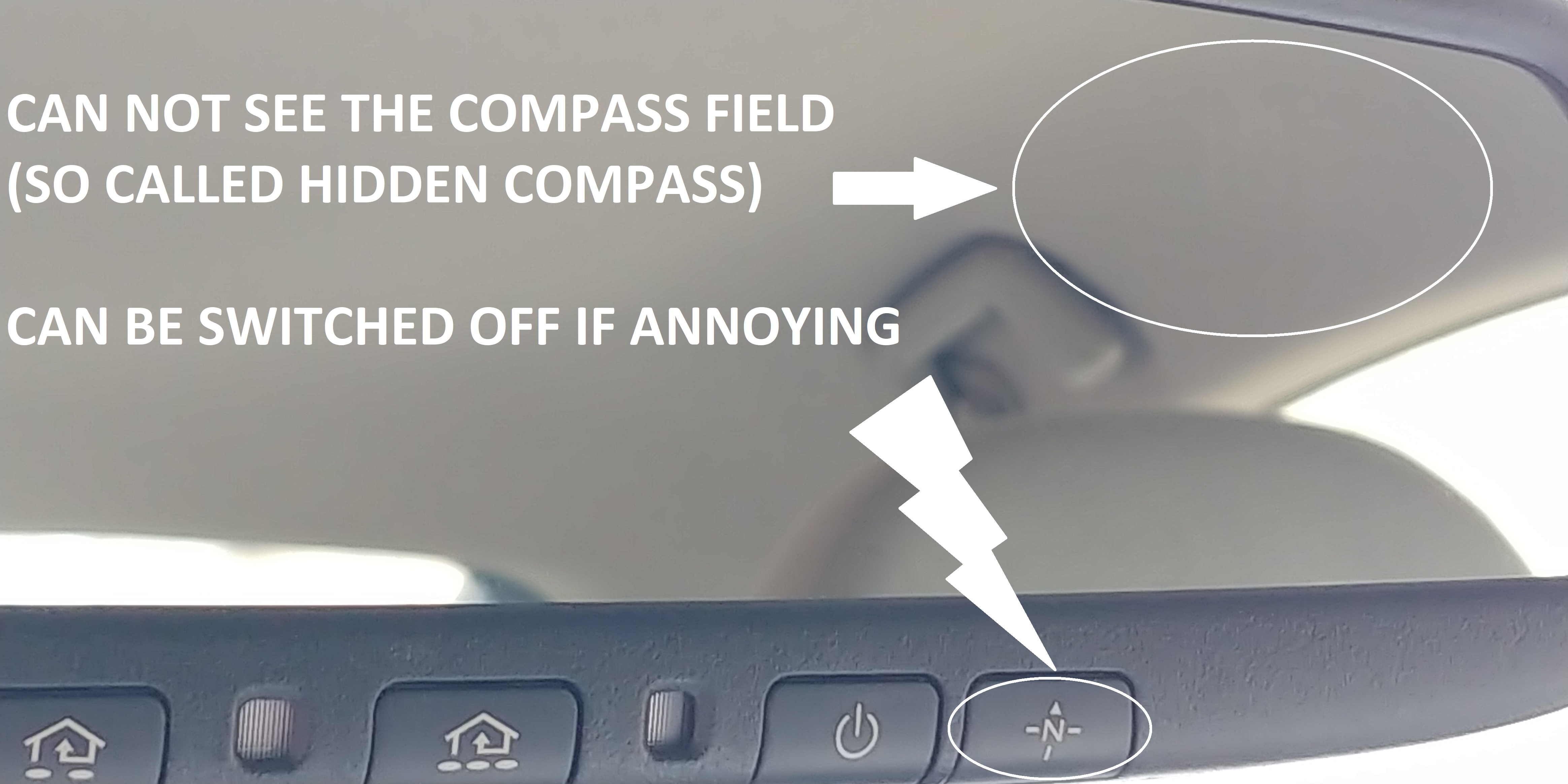

    7. Your new mirror should look like this before you start the car. After you start it the compass may need re calibration. In my case it did not for some reason. Some manuals say that you may have to do a 360 O-turn. After that it should re calibrate. And after you can reprogram the Homelink for a garage door.
    [​IMG]

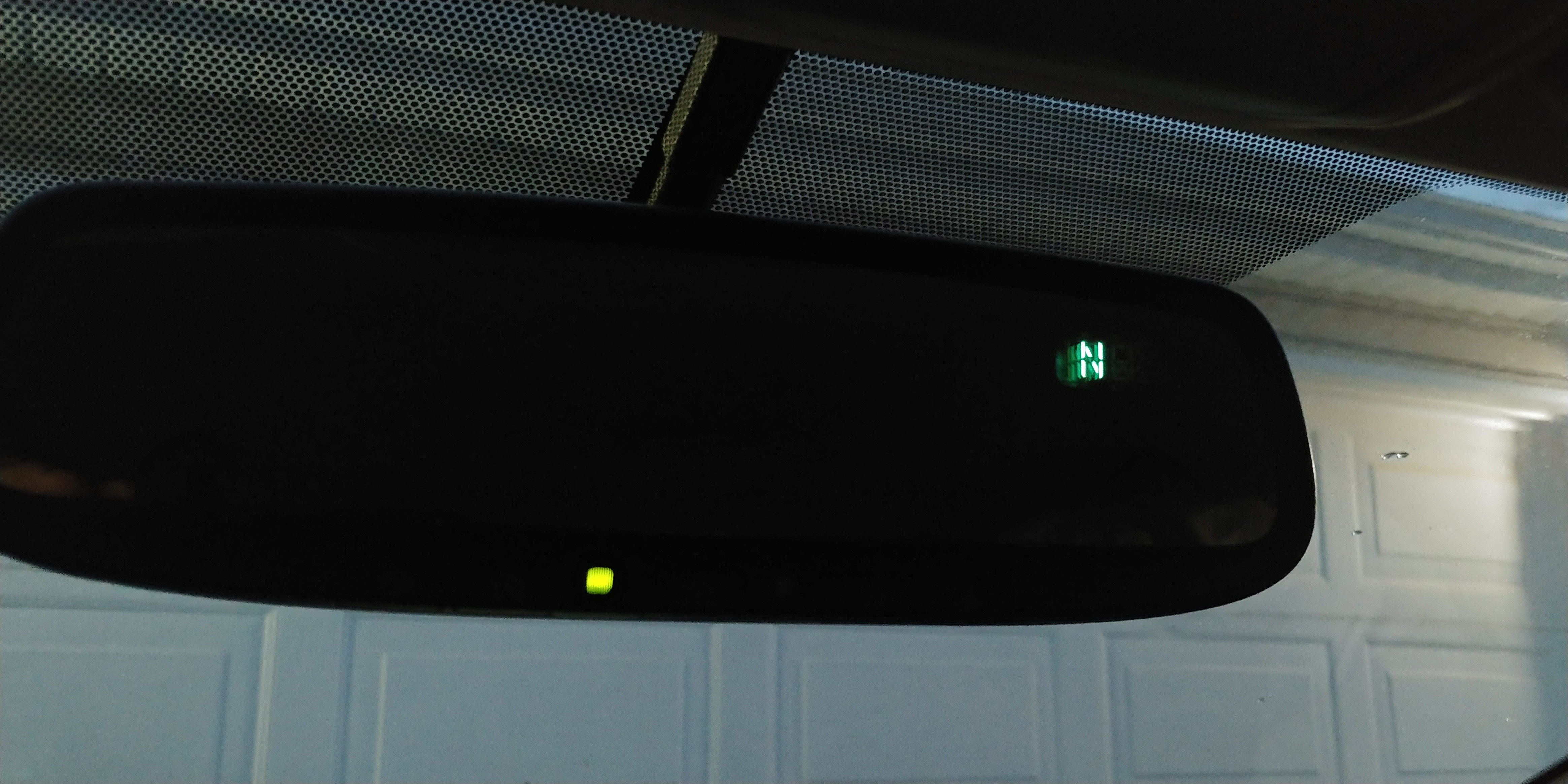

    8. After the car is on this is how it looks
    [​IMG]

    [​IMG]



    [​IMG]
