Connect charging cable to 240V outlet?

Discussion in 'Prime Main Forum (2017-Current)' started by EVnovice, Sep 1, 2019.

  1. GKL

    GKL Junior Member

    Joined:
    Aug 1, 2019
    45
    16
    0
    Location:
    South Carolina
    Vehicle:
    2020 Prius Prime
    Model:
    XLE
    Thanks, that is interesting to know, so Toyota including that reason also for having a charge timer would indicate too long on a full charge could have an effect if done on a regular basis. I wonder if Toyota actually specifies a recommended time limit for having a full charge while just sitting unused.

    I had heard another reason was some people get cheaper electric rates during certain times, so you would have to hope the time you get cheaper electric rates is close enough to the time you will next drive your car that would car would not sit long after finishing charging, and since some people work 2nd or 3rd shifts and might need to charge during the day I wonder how that works out for people with unusual schedules.

  2. fuzzy1

    fuzzy1 Senior Member

    Joined:
    Feb 26, 2009
    12,471
    6,039
    90
    Location:
    Western Washington
    Vehicle:
    2012 Prius
    Model:
    Three
    Occasional instances are not an issue. If they were, the car makers simply could not put a warranty on the battery.

    But absent warnings and guidelines, numerous customers would immediately top off the battery after every single use, for the full life of the battery. Numerous commuters with free charging at work would have it fully topped up 163 hours a week, year-round. The accelerated aging would then be quite noticeable.
    Unlike home recharging, most braking and coasting isn't prolonged enough to be amount to a full charge. There is a difference between deep and shallow charging.

    On the few long downhills that do produce full charges, the car is getting back 'free' energy that has real value. If properly controlled, this value received should exceed the cost of accelerated battery aging. Home charging is not free, it costs real money, so the value tradeoff is different.

    And if the battery is too hot, the car does reduce the regenerative recharge rate.

    mveras1972 likes this.
  3. bisco

    bisco cookie crumbler

    Joined:
    May 11, 2005
    81,487
    35,212
    0
    Location:
    boston
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    unfortunately, toyota does not recommend anything specific. likely, the vague instructions are legalese to keep them out of the 'the manual said to do this and that's what i did' lawsuits

    GKL likes this.
  4. mveras1972

    mveras1972 Member

    Joined:
    May 23, 2019
    123
    41
    3
    Location:
    New Philachussetts
    Vehicle:
    2017 Prius Prime
    Model:
    Prime Advanced
    I would think that if 240V promotes premature battery aging, then it would void the traction battery's warranty.

  5. Gokhan

    Gokhan Active Member

    Joined:
    Oct 5, 2008
    365
    114
    0
    Location:
    Los Angeles CA
    Vehicle:
    2020 Prius Prime
    Model:
    XLE
    Level 2 charges cost $150, not $350. I wouldn't mess with homemade adapters.

    https://www.ebay.com/itm/EVSE-Electric-Vehicle-Charger-EV-Level-2-220Volt-16A-for-Leaf-Volt-Prius/263387254095

  6. Rob43

    Rob43 Active Member

    Joined:
    Sep 24, 2014
    709
    444
    0
    Location:
    VA, BMW Race Car, BMW R1200R, BMW 330Ci, Ford F350
    Vehicle:
    2013 Prius v wagon
    Model:
    Prime Advanced
    I owned that exact Chinese junk, it fail the first day I had it...

    Knowing what I know, I wouldn't plug my lawnmower into it.

    The American Toyota OE 120v EVSE is the EXACT same unit as the European model, the only difference is the 240v country plug. Once the American version gets 240v it operates just like it's in Europe.

    I build one of the finest adapters available today, right here in the USA.


    Rob43

    mveras1972, jb in NE and Gokhan like this.
  7. Gokhan

    Gokhan Active Member

    Joined:
    Oct 5, 2008
    365
    114
    0
    Location:
    Los Angeles CA
    Vehicle:
    2020 Prius Prime
    Model:
    XLE
    Thanks for the info!

  8. CharlesH

    CharlesH CA HOV Decal #5 on former PiP

    Joined:
    Nov 27, 2005
    2,461
    939
    0
    Location:
    Roseville, CA
    Vehicle:
    2017 Prius Prime
    Model:
    Prime Advanced
    The US OEM EVSE is limited to 12 Amps. Is that also true in Europe? That is why using a third-party EVSE (like a public charging station), which can provide the 16 Amps that the car's internal charger will accept, will deliver a full charge in 2 hours, whereas pushing 240 V into a US OEM EVSE takes about 2 and a half hours for a full charge.

  9. Rob43

    Rob43 Active Member

    Joined:
    Sep 24, 2014
    709
    444
    0
    Location:
    VA, BMW Race Car, BMW R1200R, BMW 330Ci, Ford F350
    Vehicle:
    2013 Prius v wagon
    Model:
    Prime Advanced
    That's correct, the OE EVSE is limited to 12 amps.

    If you need to charge up a bit faster than 2:27 minutes when at home, you will need to spend the $$ to buy a chinese built EVSE or spend the $$$$ for a better built (ClipperCreek LCS-20) EVSE unit.


    Rob43

  10. mveras1972

    mveras1972 Member

    Joined:
    May 23, 2019
    123
    41
    3
    Location:
    New Philachussetts
    Vehicle:
    2017 Prius Prime
    Model:
    Prime Advanced
    Just curious, why would that “Chinese junk” linked in the earlier post uses a 14-50 plug if it only uses 16 A?


    iPhone ?

  11. JimboPalmer

    JimboPalmer Tsar of all the Rushers

    Joined:
    Apr 14, 2009
    11,688
    5,898
    0
    Location:
    Greenwood MS USA
    Vehicle:
    2012 Prius v wagon
    Model:
    Three
    NEMA 14-50 is a common receptacle. Very common in RV Parks, where you could park next to one away from home.

    Ideally you want an adapter that fits what you encounter while traveling.

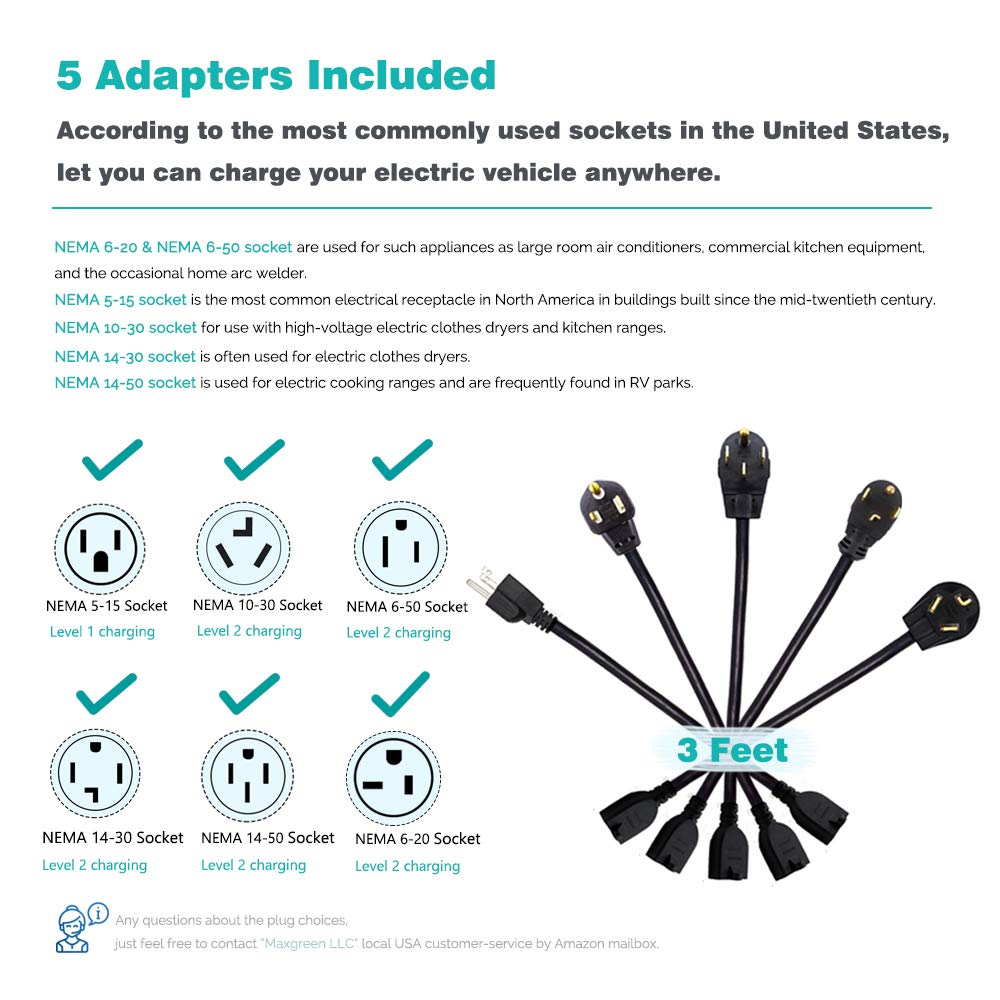

    One of the 'Chinese junk' has 5 plugs
    [​IMG]

    #31 JimboPalmer, Sep 12, 2019
    Last edited: Sep 12, 2019
  12. Salamander_King

    Salamander_King Senior Member

    Joined:
    Nov 8, 2015
    3,913
    2,996
    0
    Location:
    New England
    Vehicle:
    2017 Prius Prime
    Model:
    Prime Premium
    Right now, installing a 240V outlet just for my PRIME is cost-prohibitive, and not needing multiple charges in a day, faster charging time is not something I need. However, if I am to install a 240V outlet in the future, I want L2 EVSE with a smartphone app that I can record and control charging session. That functionality alone is worth $$$$ for me.
