Debadged

Discussion in 'Gen 3 Prius Accessories and Modifications' started by Ajwatuc, Jun 8, 2014.

  1. Ajwatuc

    Ajwatuc Junior Member

    Joined:
    May 14, 2013
    75
    12
    0
    Vehicle:
    2010 Prius
    Model:
    II

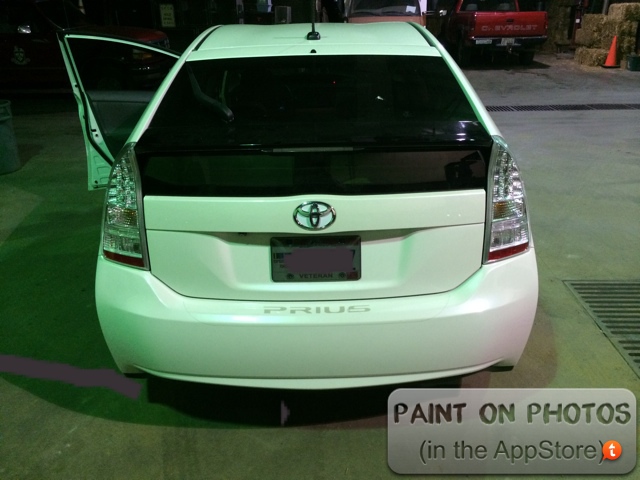

    Well im not totally done but im fairly happy with it so far[​IMG]
    So I started by removing the badges using floss then removed all the sticky stuff behind the badges.
    Next i pulled the whole piece off the car which is fairly easy only four bolts hold it on.
    With the part off i used some 60grit sandpaper to scratch up the back of the panel where the holes are[​IMG]

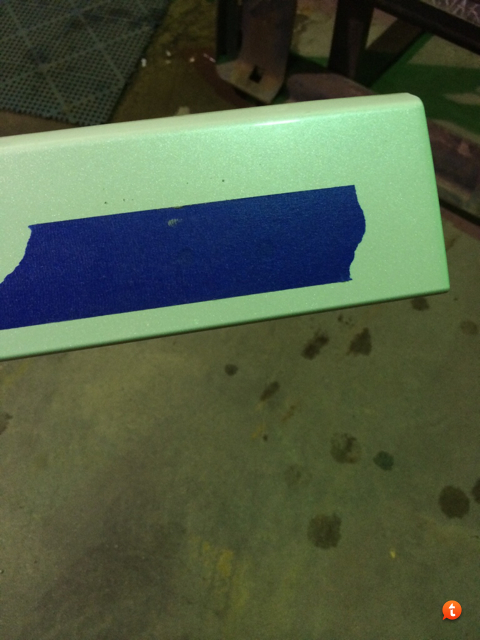

    Then i taped the painted side of the panel with some painters tape[​IMG]

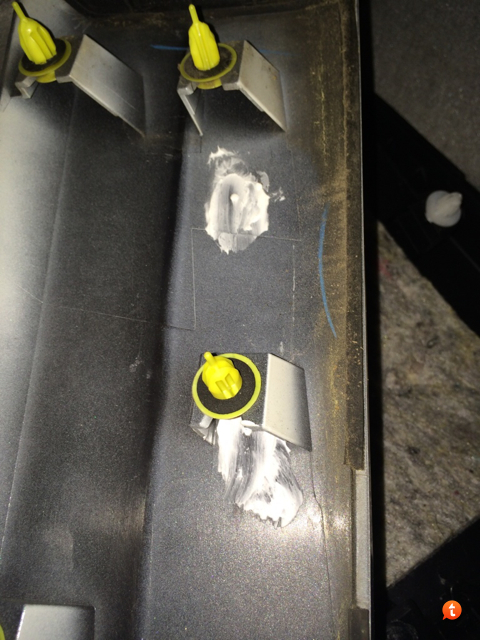

    Then i used some caulk to fill in the holes[​IMG][​IMG]
    I used caulk instead of plastic epoxy because i wanted to make be able to put the emblems back on down the road.
    Once the caulk cures i'll put a little more on top of whats there and let it dry.
    Then i tape off the area and use touch up paint to have match better.


    2010 Prius
    1973 cb500

    #1 Ajwatuc, Jun 8, 2014
  2. gaffman

    gaffman New Member

    Joined:
    May 27, 2014
    12
    0
    0
    Vehicle:
    2012 Prius
    Model:
    Three

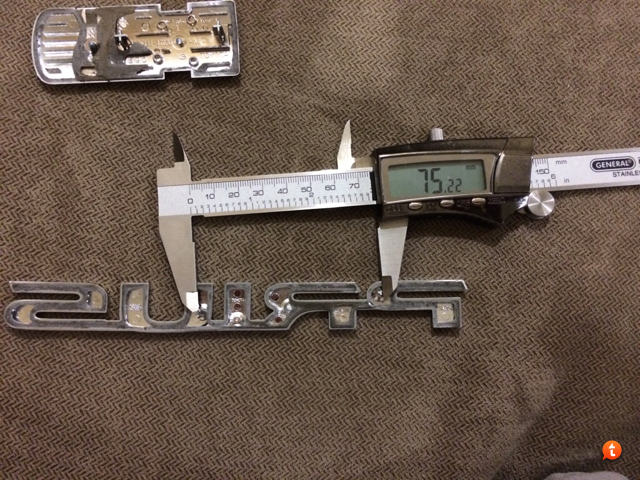

    Can you post a pic of the back side of the PRIUS emblem you removed? What is the distance between the locating pins?
    Thx

    #2 gaffman, Jun 10, 2014
  3. Ajwatuc

    Ajwatuc Junior Member

    Joined:
    May 14, 2013
    75
    12
    0
    Vehicle:
    2010 Prius
    Model:
    II
    Two emblems were removed. I'll post a pic when i have time


    2010 Prius
    1973 cb500

    #3 Ajwatuc, Jun 10, 2014
  4. Ajwatuc

    Ajwatuc Junior Member

    Joined:
    May 14, 2013
    75
    12
    0
    Vehicle:
    2010 Prius
    Model:
    II

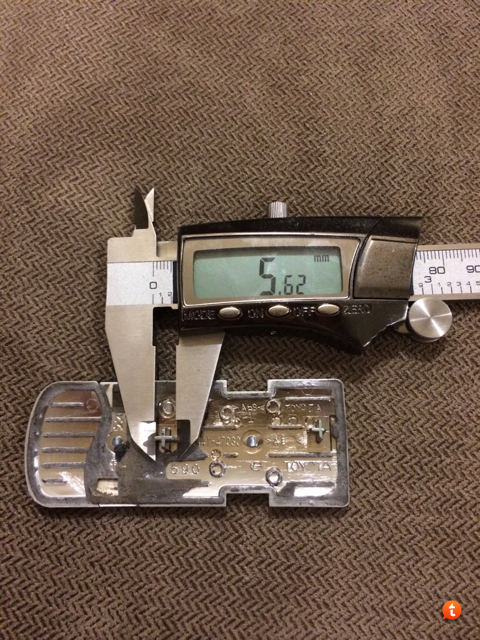

    [​IMG][​IMG][​IMG][​IMG]
    Hope that helps


    2010 Prius
    1973 cb500

    #4 Ajwatuc, Jun 10, 2014
    gaffman likes this.
  5. Ajwatuc

    Ajwatuc Junior Member

    Joined:
    May 14, 2013
    75
    12
    0
    Vehicle:
    2010 Prius
    Model:
    II

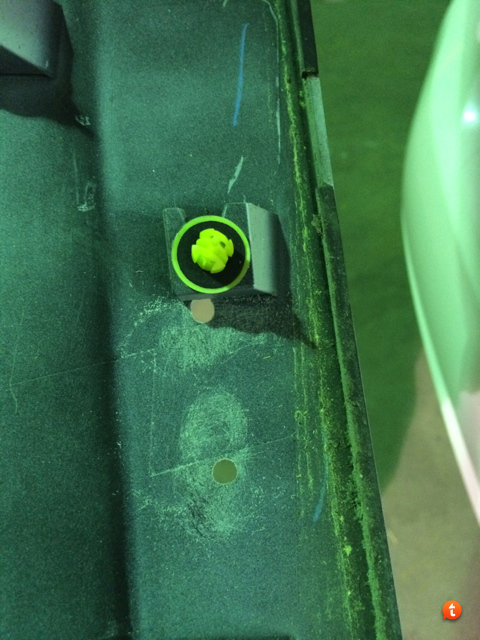

    Oh also wanted to show this which gives you an idea of how large the holes are for the hybrid emblem. [​IMG]


    2010 Prius
    1973 cb500

    #5 Ajwatuc, Jun 10, 2014
    gaffman likes this.
  6. kmkremer

    kmkremer Member

    Joined:
    Jul 13, 2009
    227
    30
    0
    Location:
    San Diego
    Vehicle:
    2010 Prius
    Model:
    V
    Are you going to do this for the side "Hybrid" badges as well?

    #6 kmkremer, Jun 11, 2014
    gaffman likes this.
  7. gaffman

    gaffman New Member

    Joined:
    May 27, 2014
    12
    0
    0
    Vehicle:
    2012 Prius
    Model:
    Three
    Thanks! Big help!!


    #7 gaffman, Jun 11, 2014
  8. Ajwatuc

    Ajwatuc Junior Member

    Joined:
    May 14, 2013
    75
    12
    0
    Vehicle:
    2010 Prius
    Model:
    II
    Im thinking about it


    2010 Prius
    1973 cb500

    #8 Ajwatuc, Jun 12, 2014
  9. SubPrius

    SubPrius Junior Member

    Joined:
    Jul 7, 2013
    31
    2
    0
    Vehicle:
    2005 Prius
    Model:
    II
    For a 2017 Prime, are the badges on the sides and the rear simply glued on?
    Or do they have pins?

    #9 SubPrius, Mar 5, 2017
