Diagnostic Trouble Codes - HV Battery?

Discussion in 'Gen 2 Prius Care, Maintenance and Troubleshooting' started by Adam Russell, May 30, 2014.

  1. Adam Russell

    Adam Russell New Member

    Joined:
    May 30, 2014
    9
    1
    0
    Vehicle:
    2006 Prius
    Model:
    N/A
    2006 Prius 128K miles - second owner

    The dreaded triangle lit up on my way to work yesterday, with check engine light and VSC light. I immediately took to my dealer. They told me it was probably just a loose gas cap, and to try and drive the car a few more days. Today the car began experiencing trouble accelerating and we took it back. They ran the diagnostics with the below listed codes:

    P0A80
    P3018
    P0571
    P0607
    P3000

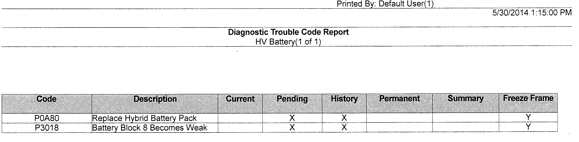

    The dealer told us they were "history" codes which meant it was not a current problem and could have just been a "burp" in the system. Told us it was "really weird" and they weren't sure what the problem was, but may be the battery - really couldn't tell us anything. Told us they could either replace the Hybrid Battery ($3,048.67) or we could keep driving it and see what happens. I picked it up today and the red triangle, VSC, and check engine lights remain on. I have attached scans of the codes. I am wondering what alternatives I have. Reading through these posts it appears I should maybe try the 12V first? Thanks in advance for any advice!


    Attached Files:

    #1 Adam Russell, May 30, 2014
  2. jadziasman

    jadziasman Prius owner emeritus

    Joined:
    Jan 17, 2011
    1,355
    487
    0
    Location:
    District 6
    Vehicle:
    Other Non-Hybrid
    Model:
    N/A
    The first two DTCs indicate the HV traction battery has a problem. If it has, you should be hearing the battery cooling fan running at its highest speed. It's located kitty corner from the drivers seat. Another indicator is the HV battery charge level on the MFD. It should be fluctuating fairly rapidly from purple bars to all green bars if the HV battery has an issue.

    #2 jadziasman, May 30, 2014
    uart likes this.
  3. bisco

    bisco cookie crumbler

    Joined:
    May 11, 2005
    107,933
    49,062
    0
    Location:
    boston
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    unfortunately, a loose gas cap does not release the dreaded 'triangle of death.'

    #3 bisco, May 30, 2014
  4. Adam Russell

    Adam Russell New Member

    Joined:
    May 30, 2014
    9
    1
    0
    Vehicle:
    2006 Prius
    Model:
    N/A
    jadziasman - that is exactly what it is doing. It had one purple bar upon start today and I was able to get it up to green in no time. My wife said the rear blower fan in the back seat is blowing very hard.....

    #4 Adam Russell, May 30, 2014
  5. jadziasman

    jadziasman Prius owner emeritus

    Joined:
    Jan 17, 2011
    1,355
    487
    0
    Location:
    District 6
    Vehicle:
    Other Non-Hybrid
    Model:
    N/A
    Then it seems the HV battery in your Prius needs to be replaced. You have many options: new, rebuilt, salvage, or DIY cell replacement. I have not needed to replace the one in my 05 Prius yet - luckily.

    #5 jadziasman, May 30, 2014
  6. Paul Schenck

    Paul Schenck Active Member

    Joined:
    Jun 15, 2013
    522
    306
    0
    Location:
    Fresno, California
    Vehicle:
    2005 Prius
    Model:
    II
    I researched it when mine did nearly the same after 250k, found the best value was brand new from the dealer upgrade. I had my independent certified mechanic at Lexology do the work. battery $2500 exchange and I paid 700 for install and tune up and detail.


    iPhone ?

    #6 Paul Schenck, May 31, 2014
  7. jeff652

    jeff652 Senior Member

    Joined:
    Feb 6, 2014
    599
    623
    0
    Location:
    Idaho
    Vehicle:
    2005 Prius
    Model:
    II
    A potentially cost effective alternative would be to rebalance the hybrid battery cells with our grid charger. It's the best preventative maintenance possible for a Prius Hybrid battery. The sooner one is used on the pack, the better the odds or preventing a full cell failure. If cells have not yet failed completely, and are displaying symptoms due to the NiMh cells being imbalanced, than our sub-$400 grid charger will resolve the issue. However, if a cell/module has already failed, then the grid charger will not be able to recover it.

    #7 jeff652, May 31, 2014
  8. JC91006

    JC91006 Senior Member

    Joined:
    Nov 10, 2013
    16,470
    8,384
    0
    Location:
    Los Angeles, CA
    Vehicle:
    2008 Prius
    Model:
    II
    If you are in a carb state, the dealer should replace it for free. The codes indicate 100% bad hv battery. Why would dealer say "maybe"? What state are you in?

    SM-N900P ?

    #8 JC91006, May 31, 2014
  9. Adam Russell

    Adam Russell New Member

    Joined:
    May 30, 2014
    9
    1
    0
    Vehicle:
    2006 Prius
    Model:
    N/A
    I am in Kentucky. Not sure why the dealer cannot say for certain. They said "history" codes, and not current code.

    #9 Adam Russell, Jun 2, 2014
  10. JC91006

    JC91006 Senior Member

    Joined:
    Nov 10, 2013
    16,470
    8,384
    0
    Location:
    Los Angeles, CA
    Vehicle:
    2008 Prius
    Model:
    II
    You are not in a CARB state, no warranty applies to your car now. You can probably try and have someone rebalance the battery pack (as described in post #7 above), that will prolong the life of the battery a little longer. I would not travel too far away from home with this battery pack, it can fail you when you least expect it.

    #10 JC91006, Jun 2, 2014
