Enginer Charger NTC inrush current limiter

Discussion in 'Prius PHEV Plug-In Modifications' started by pbui, Aug 6, 2014.

  1. pbui

    pbui Member

    Joined:
    Dec 9, 2009
    190
    13
    1
    Location:
    Los Gatos, northern CA
    Vehicle:
    2004 Prius
    Model:
    N/A
    I have a bad Enginer charger with burned NTC current limiter. I can't see the marking enough to order some replacement. Does anybody know the part number ? or if you have a charger lying around, please open it up and post the part#. The red wire goes directly to the AC input plug.

    Thanks

    [​IMG]

  2. mrbigh

    mrbigh Prius Absolutum Dominium

    Joined:
    Sep 6, 2005
    3,686
    698
    2
    Location:
    Long Island, NY
    Vehicle:
    Other Electric Vehicle
    contact ericbecky, he's the man................

    NortTexSalv04Prius likes this.
  3. bisco

    bisco cookie crumbler

    Joined:
    May 11, 2005
    99,168
    44,926
    0
    Location:
    boston
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    if he can't do it, no one can.:p

  4. ericbecky

    ericbecky Hybrid Battery Hero

    Joined:
    Mar 12, 2004
    4,364
    3,192
    1
    Location:
    Madison, Wisconsin
    Vehicle:
    2005 Prius
    Model:
    Two
    ok, ok... I'll go open up one and take a peek.

  5. ericbecky

    ericbecky Hybrid Battery Hero

    Joined:
    Mar 12, 2004
    4,364
    3,192
    1
    Location:
    Madison, Wisconsin
    Vehicle:
    2005 Prius
    Model:
    Two

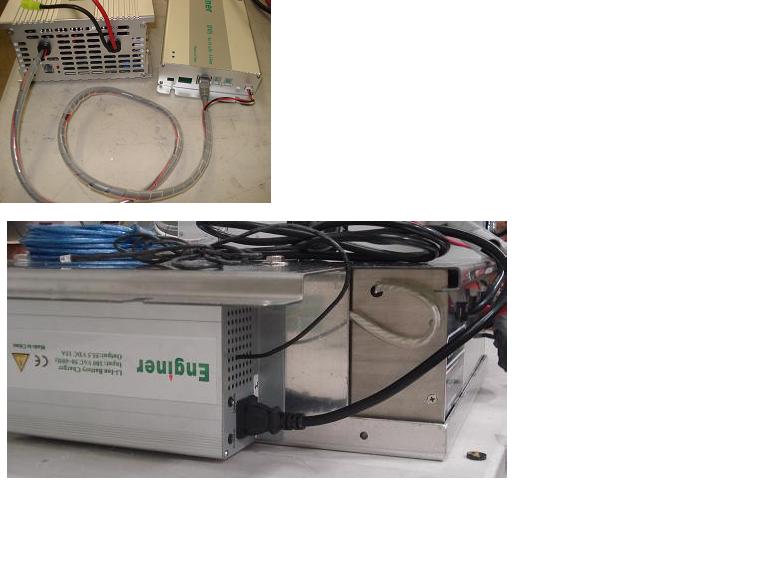

    Looks like I do not have an Enginer charger here similar to that one. Take a pics of the exterior of the charger. Top, ends, connectors.

  6. pbui

    pbui Member

    Joined:
    Dec 9, 2009
    190
    13
    1
    Location:
    Los Gatos, northern CA
    Vehicle:
    2004 Prius
    Model:
    N/A
    It's from Enginer V6 kit. I am thinking of jut selecting an NTC capable of 12-15A. I think the problem may have been that there were two NTC in parallel, probably to share the total load. But of course both are not identical and at time one must have carried the full load and thus started to burn up.


  7. hkgngplugin

    hkgngplugin Junior Member

    Joined:
    Nov 7, 2013
    46
    13
    0
    Location:
    Hong Kong
    Vehicle:
    2008 Prius
    Model:
    II
    Why don’t you open up yours and show us what’s burnt?

  8. pbui

    pbui Member

    Joined:
    Dec 9, 2009
    190
    13
    1
    Location:
    Los Gatos, northern CA
    Vehicle:
    2004 Prius
    Model:
    N/A
    here the picture again. The red wire is the AC wire from the AC plug.

  9. pbui

    pbui Member

    Joined:
    Dec 9, 2009
    190
    13
    1
    Location:
    Los Gatos, northern CA
    Vehicle:
    2004 Prius
    Model:
    N/A
    sorry, am having problem inserting image, try again:
    [​IMG]

    #9 pbui, Aug 19, 2014
    Last edited: Aug 19, 2014
  10. pbui

    pbui Member

    Joined:
    Dec 9, 2009
    190
    13
    1
    Location:
    Los Gatos, northern CA
    Vehicle:
    2004 Prius
    Model:
    N/A
    quick update: i purchased a couple of NTC from Newark Electronics, just picked one for 20A, 5%, <$2 each. I went ahead and put two in parallel as there were two originally, though at 20A each, I think it's over the top.

    Slap them in and the charger seems to work again, yeah ! even got the pack charged to green LED.

Loading...
