English Prius C Manual Available

Discussion in 'Prius c Main Forum' started by NGNeer, Jan 18, 2012.

  1. NGNeer

    NGNeer Future Prius C Owner ;-)

    Joined:
    Jan 18, 2012
    10
    20
    0
    Location:
    Central NY
    Vehicle:
    Other Non-Hybrid
    Model:
    N/A
    PriusChatter NGNeer, a member so new he still has that new-registration smell, was perusing Toyota's owner site the other day and discovered that Toyota has accidentally posted the full 552-page Owner's Manual a bit early. I took a few minutes to read through the 500+ pages and with the help of our community members in the Prius c forum, here is what we can gather about the standard and optional features on the Prius c: Feature Standard Optional Smart Key; 3-door X Split Rear Seat X Power Locks X Power Mirrors X Power Windows X One-touch up/down window X Power Moonroof w/Tilt X Cruise Control X Daytime-Running Lights X Fog Lights X Rear Window Wiper X Basic Stereo X Display Audio X iPod/USB Integration X AUX Audio Port X Bluetooth - Phone & Stereo Audio X Seat Heaters X Coat Hooks X Rear Luggage Cover X 15 " Wheels X 16" Wheels X Center Console Box X A few notes on the Prius c equipment:
    • 9.5 Gallon Gas Tank.
      • 437 mile range on the highway
      • 503 mile range in the city
    • No Power (PWR) mode available in the c like there is in the Prius liftback and v.
    • The c offers an ECO Score game to try to help the driver improve their driving techniques.
    [​IMG] [​IMG]
    • ECO Savings: "If the price of gasoline is input, the cost of the consumed fuel according to the driven distance is displayed. If the fuel consumption comparison is set, the difference between the input fuel consumption and your vehicle's actual fuel consumption is expressed as an amount of money that was possibly saved."
    [​IMG]

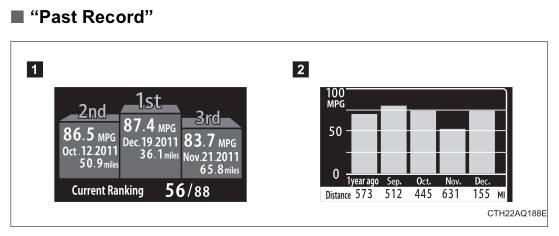

    • The MID keeps a past record of your tanks, including a screen comparing your best month's MPG.
    [​IMG]
    • No lumbar support
    • No reference to a navigation system at all.
    You can view the whole manual yourself in this PriusChat "Prius c" forum thread.


    Attached Files:

    17 people like this.
  2. seilerts

    seilerts Battery Curmudgeon

    Joined:
    Mar 7, 2010
    3,326
    1,475
    38
    Location:
    Santa Fe, NM
    Vehicle:
    2005 Prius
    The full factory service manuals are also available on TIS now.

  3. Cognato

    Cognato Junior Member

    Joined:
    Apr 3, 2007
    9
    0
    0
    So from what I see
    Smart Key is 3 door without a 1 door option. - Great new

    Vehicle Proximity Notification System with no option to disable - Bad news

    Hard cover for rear cargo area - I liked this on my old CRX

    Vehicle information system expanded - Still no option to show operation information such as engine RPM, Coolant Temp, System Voltages, tire air pressure, etc..

    I am guessing that in later models they may add a power mode. I do not see that as being something that could not have been added, even if it was just changing the throttle sensitivity.

  4. prius.v.three

    prius.v.three Junior Member

    Joined:
    Jan 10, 2012
    18
    4
    0
    Location:
    HI
    Vehicle:
    2012 Prius v wagon
    Model:
    Three
  5. austingreen

    austingreen Senior Member

    Joined:
    Nov 3, 2009
    12,638
    3,377
    0
    Location:
    Austin, TX, USA
    Vehicle:
    2010 Prius
    Model:
    II
    :)
    Same as gen III
    I liked it on my old lift back. Don't like the rolly thing in the gen III, but it's not bad.
    You would think they would do this. It is 2012.

    My guess is normal is power:D It only has 99 horses.

  6. Cognato

    Cognato Junior Member

    Joined:
    Apr 3, 2007
    9
    0
    0
    Quote:
    Vehicle Proximity Notification System with no option to disable - Bad news
    Same as gen III


    My Gen III 2010 does not have it.

  7. PriQ

    PriQ CT+iQ

    Joined:
    Feb 16, 2010
    377
    113
    0
    Location:
    Europe
    Vehicle:
    Other Hybrid
    Model:
    Two
    If you buy a new Gen III like you would a c, you would get this "feature". That is MY 2012.

  8. austingreen

    austingreen Senior Member

    Joined:
    Nov 3, 2009
    12,638
    3,377
    0
    Location:
    Austin, TX, USA
    Vehicle:
    2010 Prius
    Model:
    II
    Yep, my 2010 doesn't have it either, and I'm glad. I was commenting on the new ones. I'm sure bob wilson if he still was on this board would give a good rant, but I think this may be the new law.

  9. NGNeer

    NGNeer Future Prius C Owner ;-)

    Joined:
    Jan 18, 2012
    10
    20
    0
    Location:
    Central NY
    Vehicle:
    Other Non-Hybrid
    Model:
    N/A
    If you subscribe to TIS are the repair manuals downloadable or only accessible online?

    Thx

  10. seilerts

    seilerts Battery Curmudgeon

    Joined:
    Mar 7, 2010
    3,326
    1,475
    38
    Location:
    Santa Fe, NM
    Vehicle:
    2005 Prius
    There are about 1,000 pdf files.

  11. ItsNotAboutTheMoney

    ItsNotAboutTheMoney EditProfOptInfoCustomUser Title

    Joined:
    Jul 18, 2009
    2,287
    456
    0
    Location:
    Maine
    Vehicle:
    2010 Prius
    Model:
    II
    Based on the "Vehicles with ..." or "Vehicles without ..." and "if equipped" optional equipment includes:
    Column 1 Column 2 Column 3
    0 Option Need? Would miss?
    1 Cruise control Yes n/a
    2 Smart Key (3 door) No Yes (1 door)
    3 Heated mirrors No Yes
    4 Rear windshield wiper Maybe Yes
    5 One-touch driver's side window No Yes (4)
    6 Vertical seat height adjustment Maybe No
    7 Adjustable head restraints Maybe No
    8 Split rear seats No No
    9 Console box Maybe No
    10 Auxiliary boxes Maybe No
    11 Luggage cover No No
    12 Aluminum wheels No Mileage
    13 Display Audio No No
    14 Immobilizer No No

    Also:
    - Moon roof
    - Low profile tires
    - Fog lights
    - Heated seats

    EDIT: what the manual suggests isn't available that's in the Prius liftback:
    - Power Mode (Prius 2)
    - 1-door SKS (Prius 2)
    - 4-door one-touch windows (Prius 2)
    - Lumbar support (Prius 4) (see Hat Trick's note in post #13)
    - Advanced tech

  12. strongbad

    strongbad Member

    Joined:
    Oct 19, 2011
    170
    47
    0
    Location:
    Driggs, ID
    Vehicle:
    Other Non-Hybrid
    Model:
    N/A
    It's interesting that the DC/DC converter is in the hot engine compartment. I would expect this unit to be near the cooler batteries. That would not only allow it to run cooler, but those long power cables from the batteries to the motor wouldn't have to carry so much current.

  13. Hat Trick

    Hat Trick New Member

    Joined:
    Jan 20, 2012
    2
    0
    0
    Location:
    Kentucky
    Vehicle:
    Other Non-Hybrid
    Model:
    N/A
    Also, looks like the c doesn't come with the option of adjustable lumbar support. At least, it's not shown in the manual.

  14. cyclopathic

    cyclopathic Senior Member

    Joined:
    Apr 15, 2011
    3,281
    535
    0
    Location:
    2014 Prius c
    Vehicle:
    2010 Prius
    Model:
    II
    a-a-a-a-h

    Insight all over again! No cruise control on base model.

  15. ItsNotAboutTheMoney

    ItsNotAboutTheMoney EditProfOptInfoCustomUser Title

    Joined:
    Jul 18, 2009
    2,287
    456
    0
    Location:
    Maine
    Vehicle:
    2010 Prius
    Model:
    II
    If they do the same thing as Honda and turn it into part of an $1800 package.

    Given it seems to be 3-door SKS I'm hoping the "c 2" will forgo SKS and bundle the cruise in with more basic conveniences and comfort so it'll come in comfortably under $20,000 and the Insight LX. I hope I'm right because no cruise, no chance of buying.

    1 person likes this.
  16. Danny

    Danny Admin/Founder
    Staff Member

    Joined:
    Nov 24, 2003
    6,947
    1,802
    1,174
    Location:
    Charlotte, NC
    Vehicle:
    2013 Prius Plug-in
    Model:
    Plug-in Base
    First of all, thanks to NGNeer for his keen eyes! I've written a story about it for the front page of PriusChat and have added a list of optional and standard equipment, much of which ItsNotAboutTheMoney has already touched on. But I've added a few more details and images from the manual.

    2012 Prius c Owner's Manual leaks; Time to break it down | PriusChat

    1 person likes this.
  17. pakitt

    pakitt Senior Member

    Joined:
    Aug 10, 2009
    1,919
    1,136
    0
    Location:
    None
    Vehicle:
    Other Non-Hybrid
    Model:
    N/A
    Wow - with a set of standard features like that it would *really* sell well in EU.
    Come on, no standard split rear-seat? no one-touch up-down window lift? no rear-window wiper? rear luggage cover (you must be kidding me!)? no coat hooks (those 2 cents plastic thingys at the handles above the doors, right)??
    And no cruise control standard in the US - are they really kidding me?!?! I mean, you guys *really* need it!!!

    No way - really... and then they put standard this stuff:
    iPod/USB Integration, AUX Audio Port, Bluetooth - Phone & Stereo Audio

    Don't tell me the choices standard/option are to save cost, because these are really nonsense...
    oh well, it is not on sale in EU in any case... ;)

  18. usbseawolf2000

    usbseawolf2000 HSD PhD

    Joined:
    Sep 22, 2004
    14,487
    2,962
    0
    Location:
    Fort Lee, NJ
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    Center console box is optional?

    Split rear seat is optional? So the base model won't have 60/40 split seats?

    $19k base model is probably for the fleet. One trim above that should still be less than $20k.

  19. The Electric Me

    The Electric Me Go Speed Go!

    Joined:
    May 22, 2009
    8,423
    4,920
    0
    Location:
    Undisclosed Location
    Vehicle:
    Other Non-Hybrid
    Model:
    N/A
    Well, unfortunately, since I purchased a Honda Fit about a year and 1/2 ago? I can tell you many of those "options" that people are griping about that aren't standard? Weren't standard on The Fit either.

    I had chose to purchase the mostly cosmetic "sports" model to get cruise control, I had to buy not only the rear cover extra, but also a matt, each as paid for extra's..and in 2010? Even floormats were extra (even though they did "throw them in" ...wink, wink...) Also a decent center console was extra.

    Toyota generally in my opinion packages their extra's, whereas Honda makes you buy everything you want individually. I don't know what is better, but I was suprised at how much I had to decide to purchase separately, there were a lot of "Extra's" that I would define as basic to the vehicle.

    Actually? I think I kinda like bundled packages. At least then you don't end up sitting in a room creating a $1600 dollar list of "Extra's"...even though the end result might be the same.

    1 person likes this.
  20. usbseawolf2000

    usbseawolf2000 HSD PhD

    Joined:
    Sep 22, 2004
    14,487
    2,962
    0
    Location:
    Fort Lee, NJ
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    Anything interesting worth mentioning in there?

    Is it a beltless engine with electric water pump?

    Does it has the exhaust recovery system?

    Is it 500V or 650V system? I think it is 500V like GenII because it doesn't have the power mode like GenIII.
