ERDTT = Engine Running Due To Temperature

Discussion in 'Gen 1 Prius Plug-in 2012-2015' started by ny_rob, Mar 14, 2014.

  1. ny_rob

    ny_rob Senior Member

    Joined:
    Feb 28, 2012
    1,968
    812
    0
    Location:
    L.I.- NY
    Vehicle:
    Other Hybrid
    Model:
    N/A
    I’ve been reading up on the Volt forums and came across this and wonder if a similar fix would work with the PIP?

    ERDTT = Engine Running Due To Temperature (borrowed from the Chevy Volt vernacular).
    Seems the Chevy Volt owners experience the same phenomenon we PIP owners do- at low temperatures the Volt starts it’s ICE without the ability for the driver to intervene and keep it off. The Volt has a 38mi EV range- yet in cold temps- people have reported the ICE starting during trips of under a mile with full EV battery charge. They’re pretty annoyed about it too from what I’ve read.

    One clever fellow (somms) has found a low cost (under a dollar) simple (unplug one connector) way to stop the ICE from starting under certain low temp conditions. He’s removed the connector to the outside air temperature sensor (positioned in the front grill in the Volt just like it is in the PIP) and plugged in a common 15K Ohm resistor into the harness connector that makes the computer think the outside air temperature is 58deg F. Since the computer thinks it’s 58deg F outside- it doesn’t fire up the ICE!

    Now I’m not sure if 15K Ohms would work with the PIP- but it’s easy enough to find the right value that would return a 50 something degree reading on the PIP’s outside air temp display. The other thing is- it’s pretty much proved out that that one ambient air temp sensor is responsible for the data that fires up the Volt’s ICE at low temps- I have no idea if the PIP’s ambient air temp sensor is responsible for firing up the PIP’s ICE.. but I suspect it may be.

    What do you all think?

    Here’s the post on the Volt forum:
    Any way to stop the engine from running so much in the winter?

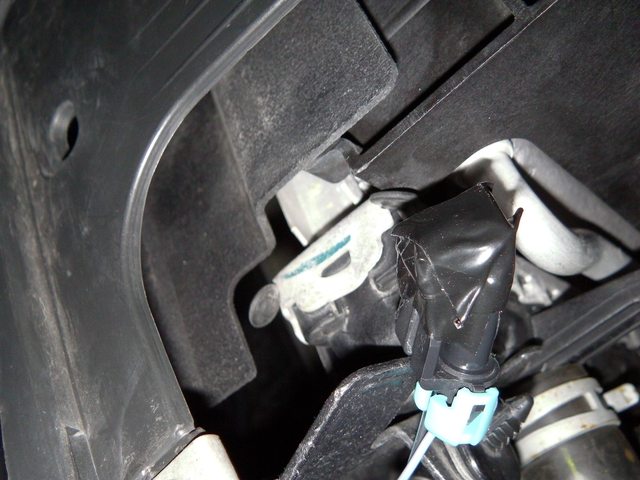

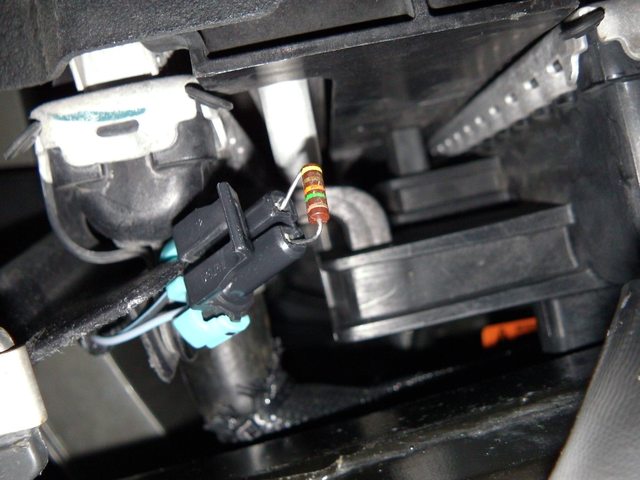

    And a photo from it: (all credit goes to member "somms" at the Volt forum)




  2. jdcollins5

    jdcollins5 Senior Member

    Joined:
    Aug 30, 2009
    5,131
    1,314
    0
    Location:
    Wilmington, NC
    Vehicle:
    2010 Prius
    Model:
    III

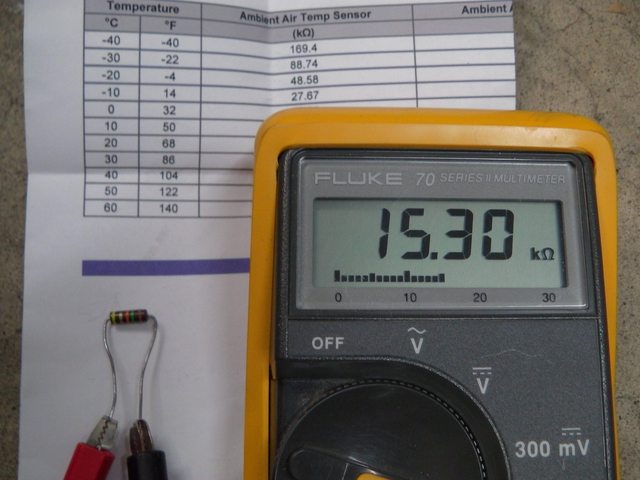

    Sounds reasonable. Here is the Ambient Temperature Sensor test graph from the 2010 Repair Manual:


    Attached Files:

    ny_rob likes this.
  3. ny_rob

    ny_rob Senior Member

    Joined:
    Feb 28, 2012
    1,968
    812
    0
    Location:
    L.I.- NY
    Vehicle:
    Other Hybrid
    Model:
    N/A
    Thanks for the chart JD!

    jdcollins5 likes this.
  4. usbseawolf2000

    usbseawolf2000 HSD PhD

    Joined:
    Sep 22, 2004
    14,487
    2,985
    0
    Location:
    Fort Lee, NJ
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    Tricking the computer to think the temp is higher than it is, could cause abuse to the battery pack. It would be allowed to charge/discharge higher than the "safe" parameter. There is a reason it was programmed to act this way.

    Having said that, it is good to have an option to mod it and use it wisely, if we know what we are doing. :)

    dbcassidy likes this.
  5. EVExtend

    EVExtend Junior Member

    Joined:
    Mar 11, 2014
    21
    5
    0
    Vehicle:
    2013 Chevy Volt
    In the Volt's case, there are many battery temperature sensors internally, and this single temperature sensor "only" controls the ERDTT and driver display temp. I say "only" in quotes because some people have suggested that may not entirely be the case.

    The particularly frustrating part about this for Volt owners, is that the "ERDTT" condition is ONLY to help heat the cabin, despite the fact that the resistive heater is capable of doing that sufficiently without the engine running.

    ERDTT is great for trips that exceed the battery range of the car: You're using waste engine heat to keep you warm instead of the battery's electrons, so you get more electric miles. However, on short trips, it just results in wasted gas.

    The Volt also has a mode where the engine needs to run while the battery warms up, but that's after the battery is at a temperature of something like -15F, which requires a 24 hour cold soak at that temperature or colder without being plugged in.

    In extremely cold temperatures, a "Battery Too Cold, Plug in To Warm" message is displayed on the Volt, but to date no person has ever seen it in "real world" conditions.

    Back to the Prius, does it do this to help assist with cabin heating, or to warm up the battery to an acceptable temperature? Does the PiP have a resistive heater to use when the engine is not running, like the Volt?

  6. CharlesH

    CharlesH CA HOV Decal #5 on former PiP

    Joined:
    Nov 27, 2005
    2,648
    1,075
    0
    Location:
    Roseville, CA
    Vehicle:
    2017 Prius Prime
    Model:
    Prime Advanced
    I'd worry about this too. The engine-start-when-cold behavior wasn't put in the Volt and PiP just to annoy users. I would think that particularly the Volt engineers, with their design goal of using the ICE only to extend range and not to use it unless absolutely necessary, wouldn't have put this in unless they felt there was a very compelling technical reason.

  7. CharlesH

    CharlesH CA HOV Decal #5 on former PiP

    Joined:
    Nov 27, 2005
    2,648
    1,075
    0
    Location:
    Roseville, CA
    Vehicle:
    2017 Prius Prime
    Model:
    Prime Advanced
    No. The prototype had a heat pump, but that was removed in the production model. The ICE is the only source of heat in the PiP.

  8. ny_rob

    ny_rob Senior Member

    Joined:
    Feb 28, 2012
    1,968
    812
    0
    Location:
    L.I.- NY
    Vehicle:
    Other Hybrid
    Model:
    N/A
    The PIP relies on engine heat for cabin heating.
    There's lots of theory's as to why the ICE comes on even with no call for heat by the driver- but the consensus seems to point to battery protection. There is no warming circuit for the PIP battery either.

  9. EVExtend

    EVExtend Junior Member

    Joined:
    Mar 11, 2014
    21
    5
    0
    Vehicle:
    2013 Chevy Volt
    Thanks for the clarification.

    It's possible that, when the battery is cold, the Prius engineers don't want to extract too much capacity from it. The ability for the battery to accept and provide current decreases with cold temperatures. Depending on the size of the battery, the power draw, and the temperature, there's likely situations where they decided running the engine to decrease the battery load was the best course of action.

    This is what happens in the Volt when the battery is below -15F or so, after not being plugged in for a long time in very cold weather. As a result, the battery is only used to turn the motor to start the engine, and then the engine provides the majority of propulsion while the battery is heated. In the case of the Volt, this is rarely seen, and was really only observed this year in the good old "Polar Vortex" days ;)

  10. bisco

    bisco cookie crumbler

    Joined:
    May 11, 2005
    91,694
    41,341
    0
    Location:
    boston
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    the pip doesn't always fire the ice at low temp, aswitnessed by member 'retired4999'. it's multifactorial, and we don't understand all the conditions or reasons. i would be careful not to abuse this. this also says something about used plug in hybrids, how is the buyer to know what abuse has taken place prior to owning?

  11. EVExtend

    EVExtend Junior Member

    Joined:
    Mar 11, 2014
    21
    5
    0
    Vehicle:
    2013 Chevy Volt
    I only know of one or two Volt owners that have done this. Many agree with you (including myself) about not unintentionally breaking something.

    I would expect that, if the PiP did fire at low temp, it would be due to the temp of the battery, not necessarily the outside temp. Not knowing what "retired" observed exactly, though, I can only speculate.

  12. bisco

    bisco cookie crumbler

    Joined:
    May 11, 2005
    91,694
    41,341
    0
    Location:
    boston
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    he routinely drives in 10-20 below weather, all ev. but he charges in a 45 degree garage. some members can't make it down there street at 25 mph and 30 degrees without the ice coming on. i can almost always drive all ev down to zero degrees, but i'm in an unheated garage. it's frustrating when it comes on for short trips, and i'm not sure how it helps the battery since it shuts down within minutes of startup if you have the heat off.

  13. drash

    drash Senior Member

    Joined:
    Jan 5, 2005
    1,625
    698
    0
    Location:
    Upstate NY
    Vehicle:
    2017 Prius Prime
    Model:
    Prime Advanced
    The Prius engineers are probably using a bit of self regulation inherent in their design. Since the PiP battery is air temperature regulated, the battery pack sees larger temperature swings. Cold causes internal resistance to rise in Li-Ion as do most batteries. Increased internal resistance is also seen by the electronics as a sign of increased discharge (decreased capacity) and with air cooling not all modules have the same cooling or heating effect. For instance modules on the outside see more extreme temperature drops and don't benefit from being sandwiched in between other warm battery cells/modules. So the entire battery pack will be judged by the lowest common denominator - the coldest cell/module. If the battery pack is allowed to heat up gradually during a discharge, say by extremely slow acceleration then the outside cells/modules will gradually get some of the heat being generated by the interior cells/modules. These outside modules may also get heated up if the Sun is shining and warms up the cabin slightly.

    Since the electronics see the increased internal resistance from the colder cells/modules their discharge/power trigger points are met fairly early and the ICE is fired up.

    EVExtend likes this.
  14. usbseawolf2000

    usbseawolf2000 HSD PhD

    Joined:
    Sep 22, 2004
    14,487
    2,985
    0
    Location:
    Fort Lee, NJ
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    Torque can log IR of each battery modules along with ICE rpm. We can test that theory.

    EVExtend likes this.
  15. somms

    somms New Member

    Joined:
    Mar 16, 2014
    4
    0
    0
    Location:
    SLC
    Vehicle:
    2013 Chevy Volt
    Model:
    N/A
    FWIW: Absolutely no worries since this single B9 sensor is used only for creature comfort in the Volt. The A4 Li-ion battery pack actually contains 16 temp sensors preventing any 'abuse' of the batter pack. I have had no issue using only the electric heat provided by K10 and have not had the need to manual select ICE-assisted heating by choosing either HOLD or MOUNTAIN mode this entire winter! Now that it is spring, I've already removed my fixed resistance 'fix' and returned the OEM B9 sensor in place. Will definitely be implementing this quick fix again next winter since I only had to remove a single screw on the Volt in order to access B9!:sneaky:

    Cheers!

  16. EVExtend

    EVExtend Junior Member

    Joined:
    Mar 11, 2014
    21
    5
    0
    Vehicle:
    2013 Chevy Volt

    Somms, that's not what this thread suggests:
    Battery heating DOES depend on ambient temperature/sensor

    I know you posted in here as well. Was the OP's observations de-bunked, or is the jury still out?

  17. usbseawolf2000

    usbseawolf2000 HSD PhD

    Joined:
    Sep 22, 2004
    14,487
    2,985
    0
    Location:
    Fort Lee, NJ
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    Are you guys using pre-conditioning?

  18. EVExtend

    EVExtend Junior Member

    Joined:
    Mar 11, 2014
    21
    5
    0
    Vehicle:
    2013 Chevy Volt

    I precondition whenever possible. Gotta love a warm car when it's freezing out. ;)

  19. usbseawolf2000

    usbseawolf2000 HSD PhD

    Joined:
    Sep 22, 2004
    14,487
    2,985
    0
    Location:
    Fort Lee, NJ
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    Doesn't that stop the ICE from starting? Oh, I guess not since the temp sensor is for outside temp.

  20. EVExtend

    EVExtend Junior Member

    Joined:
    Mar 11, 2014
    21
    5
    0
    Vehicle:
    2013 Chevy Volt

    Correct (and sorry for the late response). On the Volt the driver can configure the car to prevent the ICE from starting when it's plugged in though (2013 and newer), so you can remote start and come back to a toasty warm car with zero engine/gasoline use. But if it's below 15F outside, the engine still comes on. (GAH!) Seems like some further optimization could take place there via a small code rewrite! :)
