EVSE purchase & installation in 2017

Discussion in 'Prime Plug-in Charging' started by john1701a, May 28, 2017.

  1. john1701a

    john1701a Prius Guru

    Joined:
    Jan 6, 2004
    12,747
    5,243
    57
    Location:
    Minnesota
    Vehicle:
    2017 Prius Prime
    Model:
    Prime Advanced
    Doing a search, you'll find a lot of outdated information. Too much has changed since plug-in rollouts began. So... let's start a new thread with facts relevant to 2017.

    Since back in 2012, I have been recharging my Prius (originally a PHV, now a Prime) at home by plugging into a standard 120-volt outlet. In a few days, we will have 2 Primes in the household. That means capacity must be added to the garage so my wife and I can both recharge at the same time.

    Taking advantage of faster recharging from 240-volt service and discounts from Time-Of-Use meters requires purchasing EVSE (Electric Vehicle Supply Equipment) chargers and running new power lines. The following documents what I have done so far...

    We decided to get hardware as forward-compatible as possible. If we ever upgrade a vehicle in the future or a friend with an EV visit, we'll have a nice plug already available. We also get $500 per vehicle setup from our local electricity provider. So, why not?

    Prime has a maximum draw of 3.8 kW (as observed when plugging into a public station). The charger we found with a Wi-Fi interface is capable of delivering 10 kW. That's plenty good. With a 200-amp service-panel in the garage, feeding each 40-amp charger with the needed 125% capacity requirement wouldn't be too much of an effort for an electrician. #8 gauge wire and 3/4 inch conduit is more expensive though. Smaller chargers wouldn't need sizes that heavy or large.

    The cord for the outlet plug is only 12 inches. But having a line put in specifically for the charger shouldn't make that an issue. It won't be hardwired either. So if removable is ever needed, no big deal. The cord for the car plug is 24 feet, so that will reach anywhere in the garage and parked outside in the driveway.

    JuiceBox Pro 40 is the EVSE we purchased. $599 each. I now have them mounted on the wall to confirm cord placement and internet connection are well suited for both of us prior to getting an estimate from the electrician. I also got meter boxes for each of the lines.

    Progress updates & photos to follow.

    Anyone else have a recent purchase & installation experience to share ?

    ruby and priuscatprimeguy like this.
  2. Cave Arnold

    Cave Arnold Member

    Joined:
    Apr 20, 2014
    64
    60
    0
    Location:
    Lehigh Valley, PA
    Vehicle:
    2017 Prius Prime
    Model:
    Prime Advanced
  3. bisco

    bisco cookie crumbler

    Joined:
    May 11, 2005
    107,571
    48,862
    0
    Location:
    boston
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    i went with a 30 amp capable back in 2012 for future needs.

  4. john1701a

    john1701a Prius Guru

    Joined:
    Jan 6, 2004
    12,747
    5,243
    57
    Location:
    Minnesota
    Vehicle:
    2017 Prius Prime
    Model:
    Prime Advanced

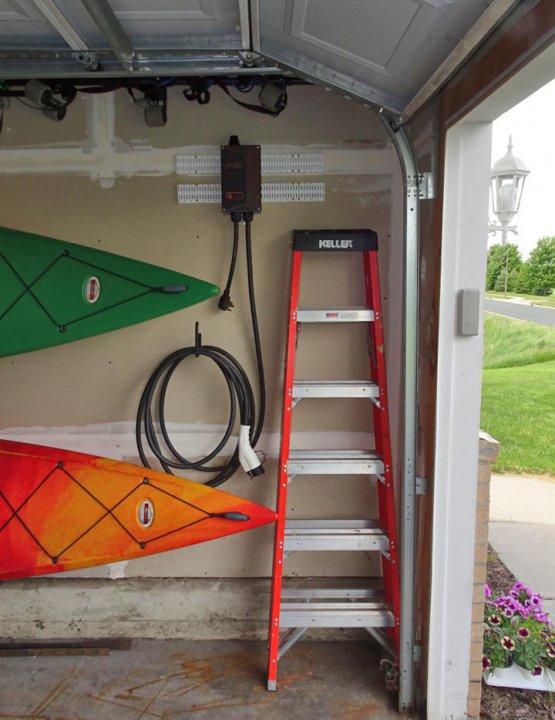

    240-volt charger setup, prior to having the wiring installed.

    [​IMG]

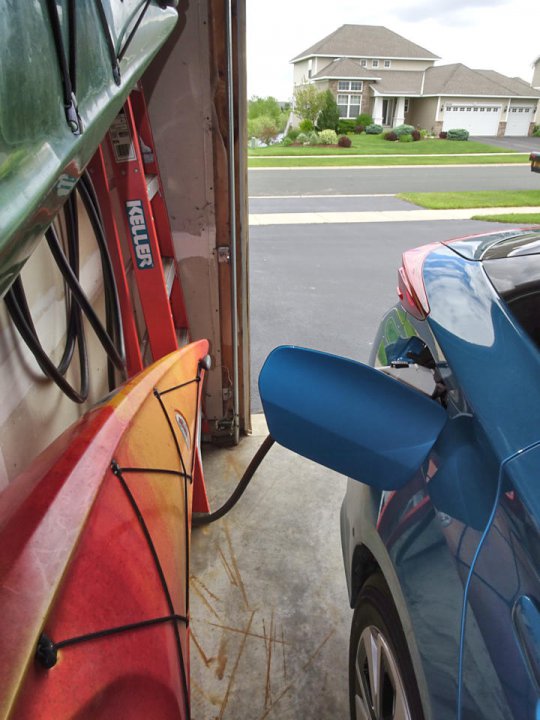

    Convenient location for avoiding the cord from getting in the way.

    [​IMG]

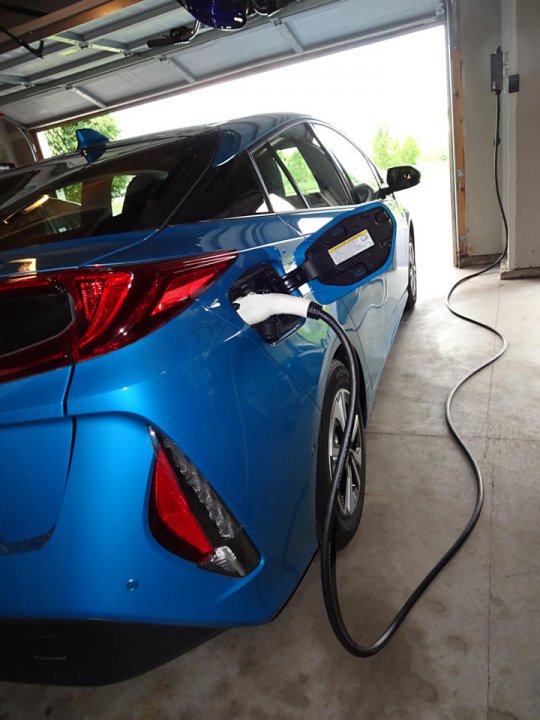

    Easy access having the charge-ort in back on the passenger side.
