Fog Lights

Discussion in 'Gen 4 Prius Accessories and Modifications' started by stanigu, Mar 27, 2017.

  1. stanigu

    stanigu Member

    Joined:
    Aug 30, 2016
    58
    62
    1
    Location:
    Blackhawk, CA
    Vehicle:
    2016 Prius
    Model:
    Three

    Finally installed. For me it took about 2 hours...mostly to get the top screw to go on. But somehow I managed, on both sides. On driver's side I got it from below, and on Pax side from the top (after relocating a few things temporarily).

    Southern_nj likes this.
  2. 4GP2ECOBP

    4GP2ECOBP Junior Member

    Joined:
    Jun 9, 2016
    21
    11
    0
    Location:
    Philip Ranch, California
    Vehicle:
    2016 Prius
    Model:
    Two
    Well ! It turns out the two separate yellow lines are the Fog lights ground.
    The A-1 is the white wire
    The switch harness are spread under to the dash board. (See pictures !)
    Still waiting for the relay to come and finish the installation this weekend.


    Attached Files:

    #22 4GP2ECOBP, Jun 7, 2017
    Last edited: Jun 7, 2017
  3. randomwalk101

    randomwalk101 DYI'er

    Joined:
    Feb 4, 2012
    531
    254
    0
    Location:
    texas
    Vehicle:
    2017 Prius Prime
    Model:
    Prime Advanced
    The switch sticks out like that when mounted?

  4. 4GP2ECOBP

    4GP2ECOBP Junior Member

    Joined:
    Jun 9, 2016
    21
    11
    0
    Location:
    Philip Ranch, California
    Vehicle:
    2016 Prius
    Model:
    Two
    Yea! That is the switch provided by Jomico_0, the eBay seller.
    It may look odd on the picture but its black color blend in with all other existing buttons.

    I tested it with my potable 12 volts battery and verified that the blue line of the switch harness
    is a positive trigger for fog relay 86.

  5. 4GP2ECOBP

    4GP2ECOBP Junior Member

    Joined:
    Jun 9, 2016
    21
    11
    0
    Location:
    Philip Ranch, California
    Vehicle:
    2016 Prius
    Model:
    Two
    Installation is completed with relay.
    (One relay control both the DRL and the Fog lights.)
    87a. DRL lights. (Normal Close)
    87 Fog lights (Normal Open)
    86 The Switch positive trigger (from switch harness)
    85 car body ground/12 Volts negative.
    30 12 Volts positive power from fuse box by using an Add-a-wire 10A fuse.


    Attached Files:

    #25 4GP2ECOBP, Jun 10, 2017
    Last edited: Jun 10, 2017
    dziadek1818 likes this.
  6. randomwalk101

    randomwalk101 DYI'er

    Joined:
    Feb 4, 2012
    531
    254
    0
    Location:
    texas
    Vehicle:
    2017 Prius Prime
    Model:
    Prime Advanced
    4GP2ECOBP likes this.
  7. 4GP2ECOBP

    4GP2ECOBP Junior Member

    Joined:
    Jun 9, 2016
    21
    11
    0
    Location:
    Philip Ranch, California
    Vehicle:
    2016 Prius
    Model:
    Two

  8. jamiec123

    jamiec123 Member

    Joined:
    May 17, 2017
    70
    61
    0
    Location:
    Ohio
    Vehicle:
    2017 Prius
    Model:
    Three Touring
    I wish I could have my factory fogs to be on rather than the headlights for dtrl

  9. stanigu

    stanigu Member

    Joined:
    Aug 30, 2016
    58
    62
    1
    Location:
    Blackhawk, CA
    Vehicle:
    2016 Prius
    Model:
    Three
    4GP2ECOBP likes this.
  10. randomwalk101

    randomwalk101 DYI'er

    Joined:
    Feb 4, 2012
    531
    254
    0
    Location:
    texas
    Vehicle:
    2017 Prius Prime
    Model:
    Prime Advanced
    It used to be $200 free shipping...the seller changed it. The other one used to be $249... Oh well..

    #30 randomwalk101, Jun 27, 2017
    Last edited: Jun 27, 2017
  11. DonD

    DonD Member

    Joined:
    Jul 4, 2009
    53
    41
    0
    Location:
    New York, NY
    Vehicle:
    2016 Prius
    Model:
    Four
    Finally got mine installed (no electrics yet). Key is to do the driver's side first because the windshield washer tube and tank is in the way on the right hand side and you have to work around and/or remove the tube. Took about 2 hours done by an in-law who is a professional mechanic and very familiar with the innards of Japanese cars--how to remove flaps and clips and the like. Also stuck on the chrome 'eyebrow' on each side to give a more complete look. Looks transformed especially the harmony with the indent line on the front fender and the headlights above. Well-worth the effort and cost IMHO (ebay supplier). Thanks very much to randomwalk101 and many others on this thread. Much appreciated!

    RCO likes this.
  12. stanigu

    stanigu Member

    Joined:
    Aug 30, 2016
    58
    62
    1
    Location:
    Blackhawk, CA
    Vehicle:
    2016 Prius
    Model:
    Three
    Got a PM from a member, so I thought I'd post here for posterity's sake:
    1. Did you have to buy the relay separately or did the eBay seller include the relay? Where did you end up mounting the relay?

    A: I did not use a relay. The fogs and the DRL are always on whenever the car is on.

    2. How do the fog lights work? Do you switch it between modes using the relay?

    A: I would imagine you would; but again I did not use a switch at all.

    3. Which fuse did you tap into or use when you added a fuse?

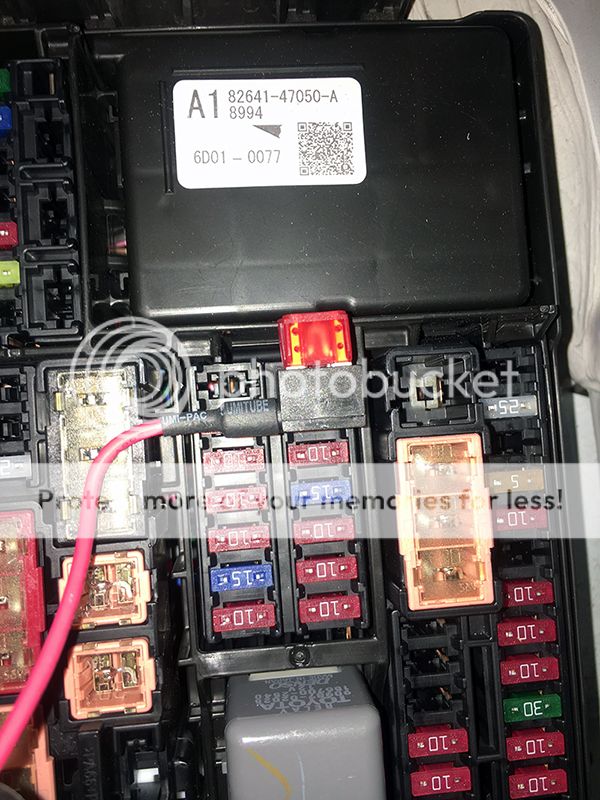

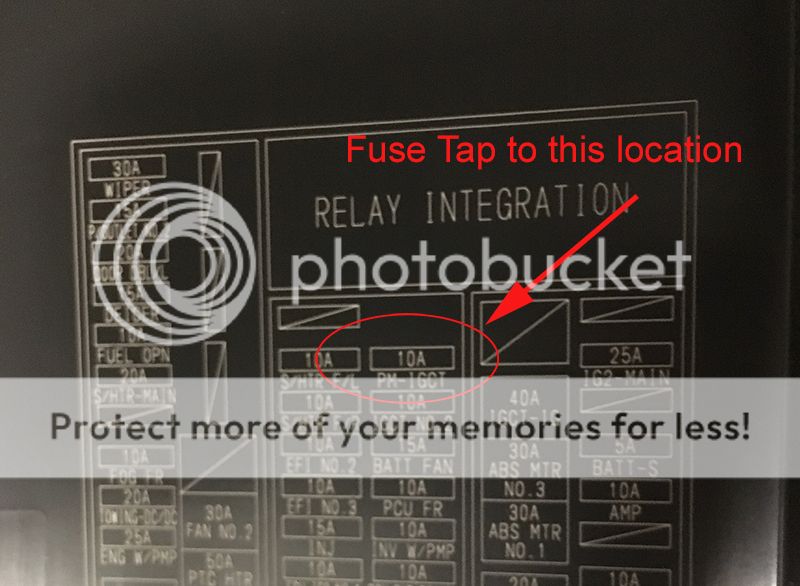

    A: Pictured below:

    [​IMG][/IMG] [​IMG][/IMG] [​IMG]

    [​IMG]

    4. Did you have to remove the bumper to install the fog lights? Also, where did you secure all of the wires?

    A: Nope. The bolt at the top is a bit hard to reach, but doable. I did the driver's side from the bottom, and passenger's side from top. you'll need to Jack up the car in the front to give you some space.

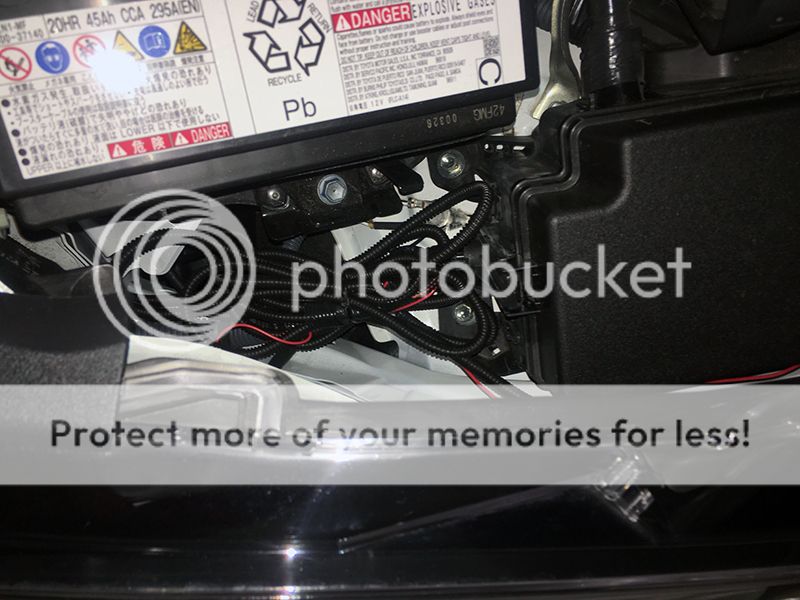

    Plenty of space to route the wires. Starting from the passenger's side:

    [​IMG]

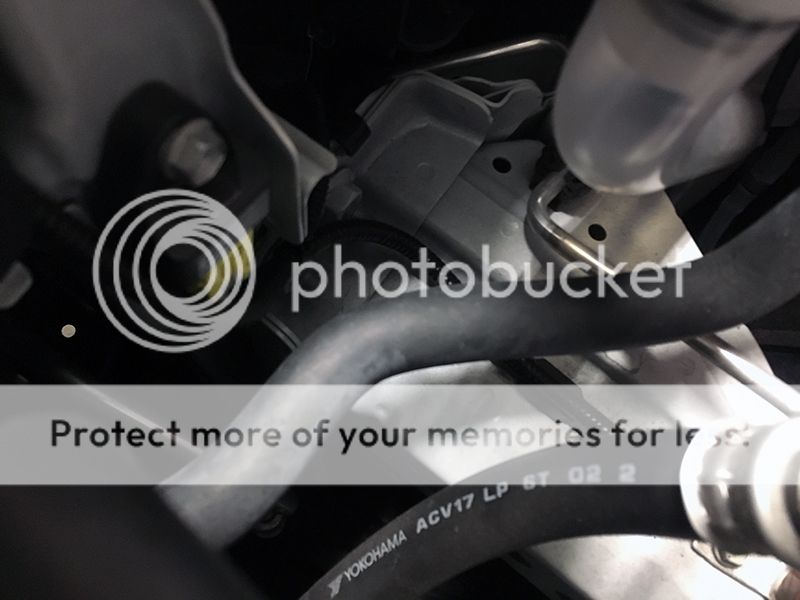

    I took off the cover at the front of the vehicle, and routed the wires behind the pegs holding the cover.

    [​IMG]

    On the driver's side, there's room to bundle up the wires. A little ghetto, but oh well.

    [​IMG]

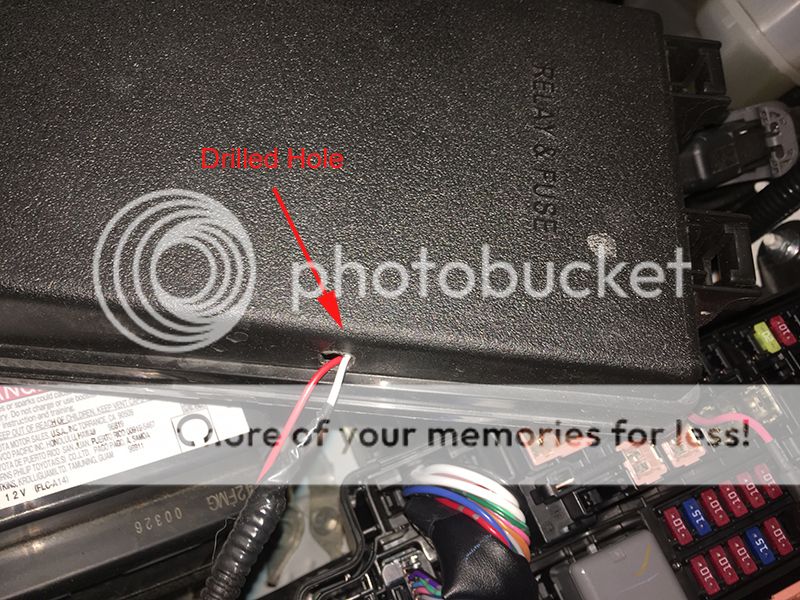

    Drilled a small hole to the side of the fuse cover to feed the wires:


    [​IMG]

    5. How hard was it to get the wires into the car? Are there specific wires you connect to the relay or the switch?

    A: No clue, since I didn't do it. But IMHO I like having it on all the time anyway. Looks pretty cool.

    RCO, DonD and Melton like this.
  13. Marley23

    Marley23 New Member

    Joined:
    Sep 2, 2017
    1
    1
    0
    Location:
    USA
    Vehicle:
    2017 Prius
    Model:
    Two
    Installed the eBay lights, red is DRL, white is Fogs, yellow was not used, black is ground.

    I installed it without the switch, I had too much trouble trying to pierce the grommet as I did get the coat hanger through one time but wasn't able to get it through the other times that I tried as the time I did get it through, the wire slid on the coat hanger so it didn't go through.

    I have both the white and the red wire hooked up right now so all lights come on when the car is on.

    dziadek1818 likes this.
  14. dziadek1818

    dziadek1818 Junior Member

    Joined:
    Sep 19, 2017
    24
    21
    0
    Location:
    poland
    Vehicle:
    2016 Prius
    Model:
    Two

    did you notice guys that fog lamps that are available have different parts nmber:
    There are two.
    OEM has: 81210-47030
    Ebay: 99226 - 91002


    Are they much different? want to install on my prius two. Wonder if I could change steering wheel shifters? get the ones with fog switch as two trim doesnt have such


    #34 dziadek1818, Dec 27, 2017
    Last edited: Dec 27, 2017
  15. randomwalk101

    randomwalk101 DYI'er

    Joined:
    Feb 4, 2012
    531
    254
    0
    Location:
    texas
    Vehicle:
    2017 Prius Prime
    Model:
    Prime Advanced
    Hey guys,

    I have an extra set of 2016 - present Prius fog lights for sale if someone is looking to add fog lights to theirs.
    I've been using a same set for over a year no without issue..I config it to be on constantly as long as the car is running.
    This extra set is brand new.

    For sale thread:
    For Sale - 2016 - 2018 Prius fog lights | PriusChat

  16. Southern_nj

    Southern_nj Junior Member

    Joined:
    Mar 4, 2017
    12
    11
    0
    Location:
    New jersey
    Vehicle:
    2017 Prius
    Model:
    Three
    Thank you the write up to the installation process. It was great to see it as my fog lights arrived yesterday. Thank you again!

    RCO likes this.
  17. DanielO

    DanielO New Member

    Joined:
    Apr 24, 2018
    4
    0
    0
    Location:
    Cambridge, MA
    Vehicle:
    2018 Prius
    Model:
    Two
    I just bought some fog lights for looks; I dislike the black inserts that my 2018 blue prius came with. They came with a wiring harness, and a switch for the dash, but I don't want to go through all the rigamarole to set them up this way.

    I can, of course, leave them as inoperable, but is there a second best which isn't so complicated as a full install?
    For example, can the fog lights be used as DRL lights, and go off when the headlights are put on? Or is it not suggested, or illegal, to have them on all the time?

  18. xliderider

    xliderider Senior Member

    Joined:
    Apr 19, 2012
    6,543
    2,320
    0
    Location:
    Honolulu, HI
    Vehicle:
    2011 Prius
    Model:
    Three
    Wire them up with a relay. If wired correctly, they can do what you want, come on when ignition On (Ready), and turn off when ignition Off or headlights turned On (lowbeam override).

    Posted via the PriusChat mobile app.

    krmcg likes this.
  19. DanielO

    DanielO New Member

    Joined:
    Apr 24, 2018
    4
    0
    0
    Location:
    Cambridge, MA
    Vehicle:
    2018 Prius
    Model:
    Two
    Thanks so much for your reply ... do you happen to have a wiring diagram for that, and what sort of relay should I purchase?

  20. cobraz

    cobraz Prius Pirate

    Joined:
    May 7, 2008
    81
    26
    0
    Location:
    Florida
    Vehicle:
    2018 Prius
    Model:
    III
    Hi I hope some of you see this.. as I bought the same set for my 2018 ... I need some help with their horrible wiring diagram.
    It is shown as the Black and white one same diagram. so I have 2 yellow wires - they are marked to directional. not sure where to tap in for that. Then 1 white wire, 1 red and 1 black wire - red positive black neg - white wire no idea (it does come from connector on both lights ? I did this on my 2015 it was much easier... could use some help on the 2018.
