Full Sized Spare Tire mod for Gen 3 Hatchback

Discussion in 'Gen 3 Prius Accessories and Modifications' started by Robert Holt, Mar 21, 2015.

  1. Robert Holt

    Robert Holt Senior Member

    Joined:
    Aug 3, 2013
    1,313
    888
    0
    Vehicle:
    2012 Prius
    Model:
    Three

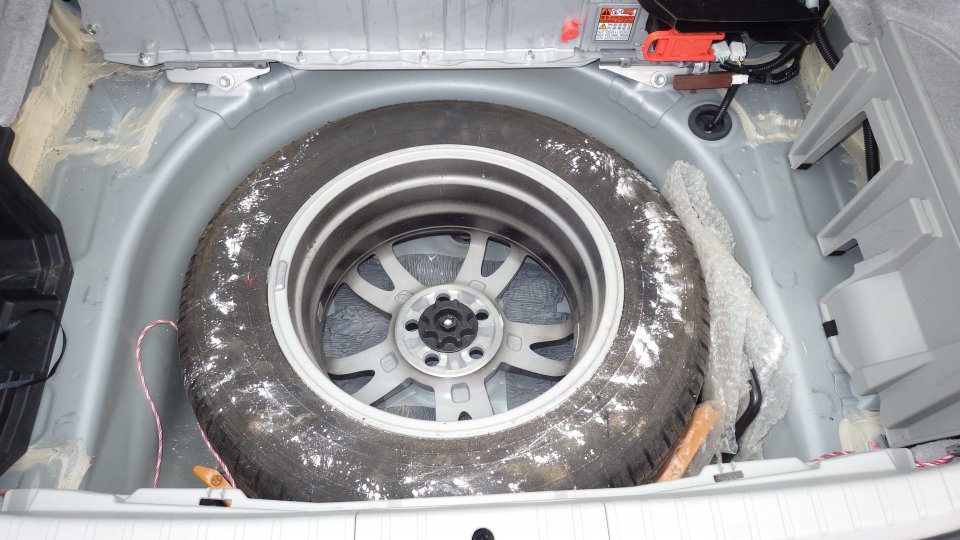

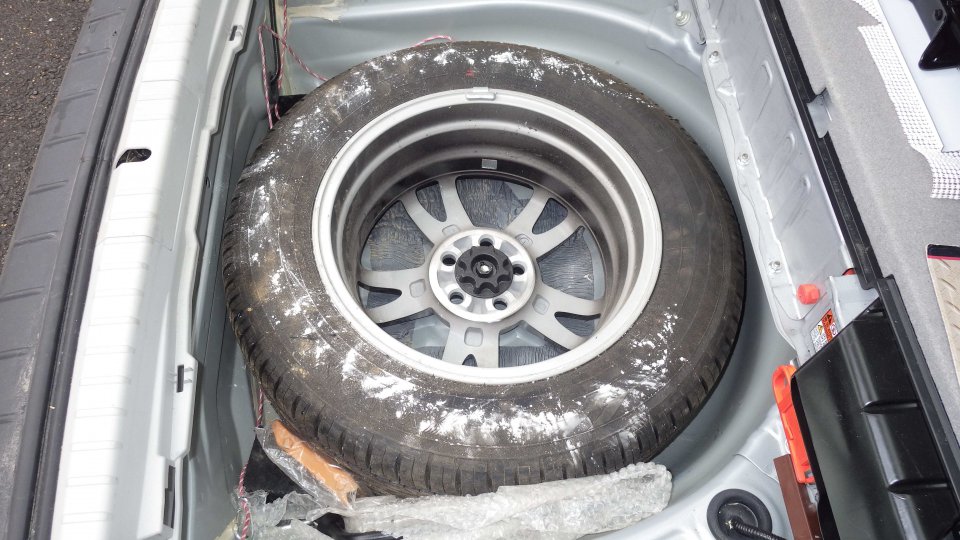

    After blowing a tire in the northern Yukon and using the doughnut on very rough roads, we decided to replace the doughnut with a full-sized spare. On ebay I purchased a full-sized OEM alloy rim and the black plastic tray or tub just above doughnut ($100 and $75, respectively), and had new, standard-size tire mounted on rim ($80-$90). After removing jack mounting, doughnut, and Styrofoam pad under doughnut, the new rim + tire fits perfectly in the spare tire area and can be secured with the same large plastic screw in the center:

    FSSpare_1.jpg FSSpare_2.jpg

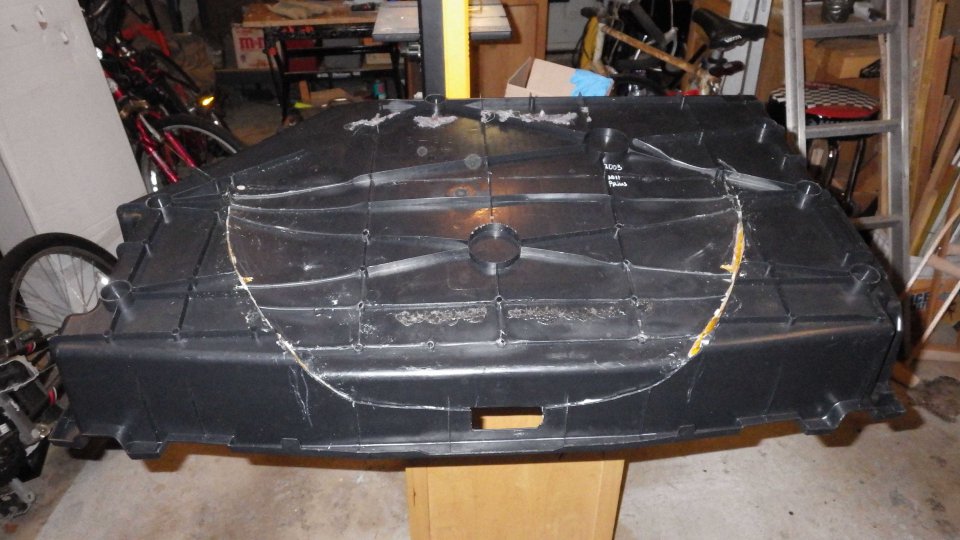

    The black plastic tray above the doughnut must be raised slightly (about 2 inches) in the rear to fit down properly over a full sized spare. I removed the padding on the bottom of the tray, cut a semi-circle to fit the circumference of the tire in the rear of the tray, cut and melted off some of the flashing on the bottom, and glued the resulting flap of plastic back to the bottom and rear off the tray. The tray is polypropylene, so you must use a glue like JB Weld Plastic BOND that is certified for polypropylene. This pic shows the rear underside of the tray (upside-down) after the final gluing step: (The yellow pieces are wedges of polypropylene plastic cut from a pill bottle, shaped to fit the necessary gap, and glued in place.)

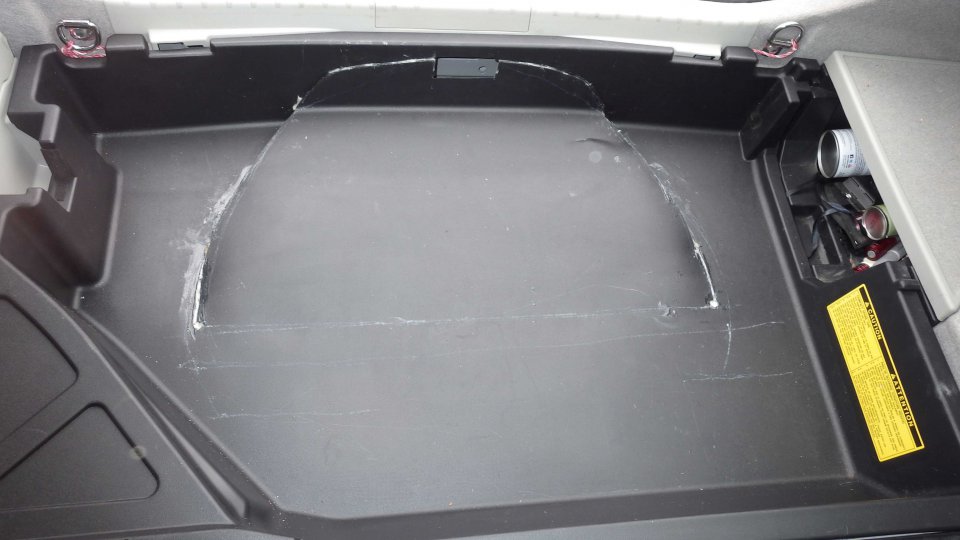

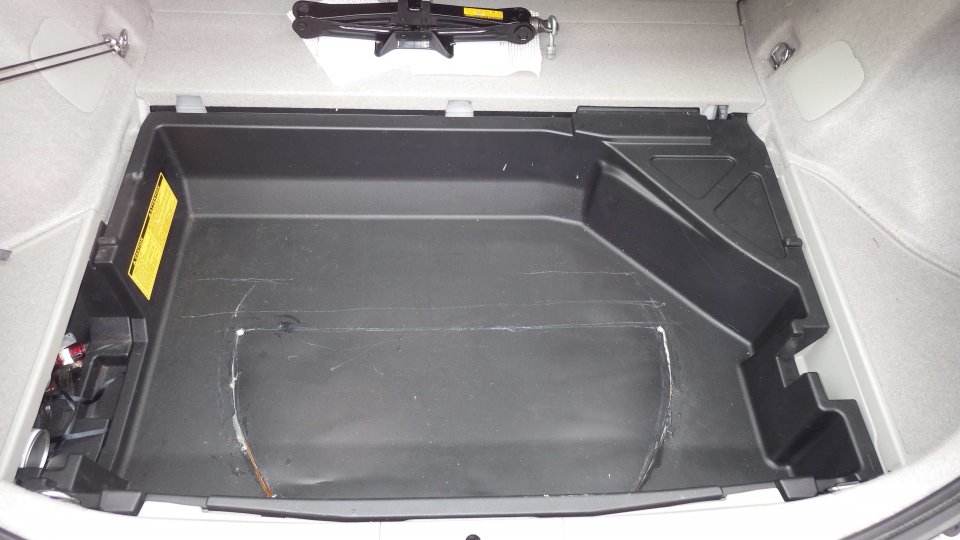

    The modified tray is then re-inserted above the full sized spare just as it was originally above the doughnut. I found that the scissors jack would not fit in the full sized spare, so I store other things like the air pumps, plug kit, and survival gear with the spare and put my modified jack (larger base and hexagonal crank handle) in the black plastic tray. The original floor and carpet fit just as they did originally over the tray.

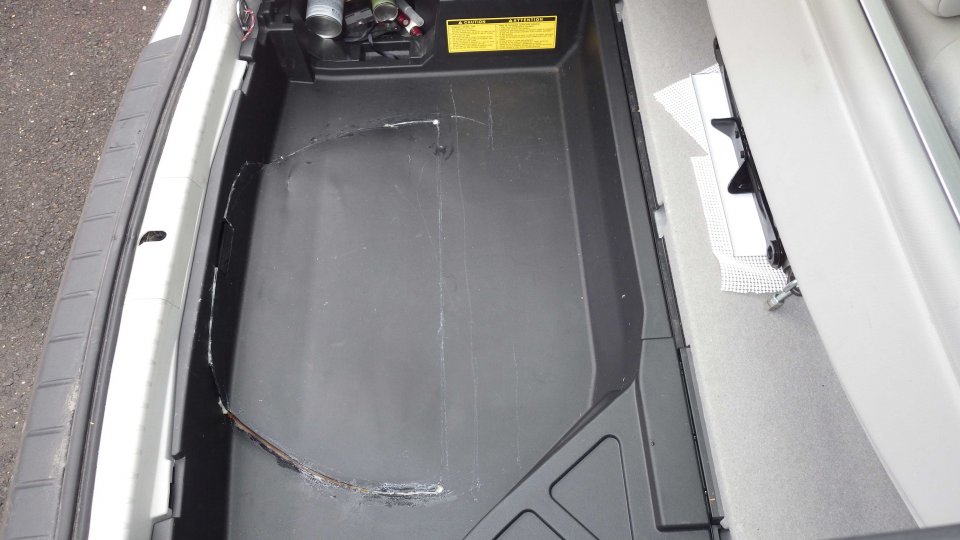

    . FSSpare_4.jpg

    So this is my solution to having a full sized spare. The advantage of this approach is not having any of the limits on speed, distance, and handling that installing the doughnut incurs, and not having to do a "double-tire-change" if a front tire blows out (rear to front, doughnut to rear). The airflow from the HV battery back to the 12-volt battery is also preserved (the triangular section in lower left of last pic directs that air flow). I think the air cooling of the HV battery will not be affected, but will monitor HV battery temp with my Scanguage to check on any effect of this mod on that critical parameter. Cheers!

    Dr Reid and Buzzhead like this.
  2. Eugene Hong

    Eugene Hong Member

    Joined:
    Nov 19, 2012
    114
    30
    0
    Location:
    Bay Area, CA
    Vehicle:
    2012 Prius
    Model:
    Two
    I have 17's but im thinking of buying a 15'' to throw in the trunk now. Might go with a thinner tire to avoid having to modify the tray.

    Robert Holt likes this.
  3. Robert Holt

    Robert Holt Senior Member

    Joined:
    Aug 3, 2013
    1,313
    888
    0
    Vehicle:
    2012 Prius
    Model:
    Three
    That would avoid quite a bit of "cut and paste"!
    Not sure what size would work given your approach, but you might consider still removing the pad glued to the bottom of the tray and possibly trimming off the reinforcing splines of plastic on the bottom of the tray at the rear to give yourself maximum space for the 15-inch spare you select. IMO as long as the tray fits right over the spare, the sidewall of the spare essentially supports the rear part of the floor of ,the tray.
    Do you plan on using an OEM alloy rim or aftermarket? The large plastic scew securing the donut fit the OEM rim's central hole perfectly, but not at all sure it would fit aftermarket rims in the same way.
    I carry an air pump and considered storing the spare in an uninflated state to effectively make it narrower but was not sure that would make enough of a difference in width to use an unmodified tray. Changing a tire would then involve the delay due to inflation, and I preferred to avoid that.
    Would be interested in pics of your approach if you decide to try this.

  4. bisco

    bisco cookie crumbler

    Joined:
    May 11, 2005
    107,571
    48,862
    0
    Location:
    boston
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    great job robert, i love it! eugene, if you have to use a smaller tyre in an emergency, be sure to put it on the back.

  5. frodoz737

    frodoz737 Top Wrench

    Joined:
    Aug 26, 2010
    4,297
    2,347
    33
    Location:
    Texas
    Vehicle:
    2015 Prius
    Model:
    Four
    Robert Holt, perhaps the well has changed since 2010, but my full size will not fit in the hole. I tried it after the first flat on my 2010, and again later to make sure as I considered to do the same. Does the tire you put on that ebay wheel have a lower profile?

  6. Robert Holt

    Robert Holt Senior Member

    Joined:
    Aug 3, 2013
    1,313
    888
    0
    Vehicle:
    2012 Prius
    Model:
    Three
    Ok, now I am totally puzzled.
    Here are the facts from measurements I just took:
    The spare is a Yokohama Avid Ascend P195/65 R15 with no tread wear and it measures 64cm or 25 1/4 inches in diameter from outer edge of tread on one side to outside edge on the other.
    The new Michelins fuel-savers I just had Costco put on last fall ALSO measure 64cm from edge of tread on one side to the other.
    Finally, I checked for clearance in the well around the edge of the Avid spare as it is now mounted and found at least 1/2 inch at the front (the HV battery side) and the sides, so even a slightly larger diameter tire by 1 or 2cm should fit!
    I have one of the last 2012 models made which we purchased as a "leftover model" in February 2013. Did the wheel well change from 2010 to 2012? Are there differences in models sold in US, Europe, or other areas in that wheel well?
    Frodoz could you possibly measure your wheel well?
    At the top of the well where it broadens out a bit, my measurements are 68.5cm from HV battery side to rear side, and 74cm from left side to right side at the widest point. What does yours measure?
    Wish we could put the cars side by side and get to the bottom of this!

  7. frodoz737

    frodoz737 Top Wrench

    Joined:
    Aug 26, 2010
    4,297
    2,347
    33
    Location:
    Texas
    Vehicle:
    2015 Prius
    Model:
    Four
    Work tonight but will try and make time this weekend. When I made the attempt/s it was with the factory Yoko's with "barely" legal tread and they would not go into the whole. I still have factory wheels but with these tires (factory size) now @ greater than half life tread. Would love for this to work (even with a cut-out) because I still consider this a cargo bin, but my memory on this is strong. Will let you know.

    http://www.discounttire.com/dtcs/findTireDetail.do?c=2&rcz=75048&ar=65&rf=true&rd=15&rc=TDEINT&cs=195&dVeh=dVeh&ra=filterTireProducts.do&fl=&tc=MMIHT1&yr=2010&pc=34302&vid=016484

    Robert Holt likes this.
  8. slewinson

    slewinson Junior Member

    Joined:
    Nov 1, 2016
    36
    30
    6
    Location:
    Australia
    Vehicle:
    2009 Prius
    Model:
    N/A
    I have just been through the saga of fitting a full sized spare to my newly acquired Gen 3 and did things slightly differently. Firstly I used a slightly smaller tyre (185/65R15) fitted to a Gen 2 alloy rim, only because I scored both of these free. I used a bolt and large washer to hold it in place until I can get the original Toyota part.
    I wrapped the jack in a piece of thick cloth and put it between the hybrid battery and the spare tyre. The inflator and tools were wrapped up and stored on the inside of the spare wheel. The storage box now sat about 25mm too high to reinstall the floor panel.
    To make the storage box fit, I peeled back the piece of sound deadening, trimmed off the stiffening webs where they fouled the spare tyre and then reglued the sound deadening.
    This allowed the storage box to sit about 15mm too high. Next I deployed the handy heat gun. I placed some padding about 10mm thick on top of the spare tyre where the storage box rested on it. I heated this area while pressing down on the rear edge of the storage box till it sat at the correct level. You will need to work around the area a number of times to get it to stretch slightly and move upwards. Keep the pressure on until the plastic cools and hardens. You can see the area that was heated and stretched because it is a bit shinier.
    Once this was complete the floor panel now sits about 3-4mm high and it latches into place easily.

    Cheers
    Simon

    #8 slewinson, Nov 1, 2016
    Last edited: Nov 1, 2016
    Robert Holt likes this.
  9. Robert Holt

    Robert Holt Senior Member

    Joined:
    Aug 3, 2013
    1,313
    888
    0
    Vehicle:
    2012 Prius
    Model:
    Three
    I also removed the reinforcing plastic underneath the tub right where it was contacting the spare tire, before doing the "cut and paste" method of altering the plastic tub to make it fit successfully over the full sized spare. I like your method of heating the plastic so that you can bend exactly that section around the rear of the spare to make the tub fit down correctly. I suspect that your "slumping" method will result in a stronger integrity of the tub than my "cut and paste" method, but there have been no signs of failure of the glue joints yet in my case, so I am satisfied so far.
    However , I chose a different place to relocate the Jack. I chose to move the jack up into the tub rather than wedge it up against the HV battery housing, as a hunk of metal right next to the HV battery makes me uneasy when I visualize rear-end collision scenarios. I was also concerned to try to keep the air flow that cools first the HV battery and then apparently circulates over to the 12-volt battery and cools it, as uninterrupted as possible to avoid overheating either one. I watch HV temperature with a Scangauge but do not monitor the temperature of the 12-volt battery.
    But I'm sure that either of us will feel better having a full sized spare the next time we have a flat or a blow out! Good job!

    slewinson likes this.
  10. slewinson

    slewinson Junior Member

    Joined:
    Nov 1, 2016
    36
    30
    6
    Location:
    Australia
    Vehicle:
    2009 Prius
    Model:
    N/A
    Thanks. I thought of putting stuff in the tub but prefer having it below as it will not rattle around as much. I am looking into a bracket like my CT200h has for holding the jack in place. If I come up with anything I will post it up here.

    Simon
