Gen 4 Staff Manual (In Japanese) =/ Specs/Design/Other Info

Discussion in 'Gen 4 Prius Main Forum' started by E46Prius, Sep 23, 2015.

Page 1 of 17
  1. E46Prius

    E46Prius Active Member

    Joined:
    Aug 3, 2015
    314
    215
    0
    Location:
    Costa Mesa
    Vehicle:
    2015 Prius
    Model:
    Three
    I wish I could read Japanese. Whats the fuel economy? I'm American and don't know what liters are... too lazy to break out a calculator. Looks like it's using the same engine as Gen 3? Maybe tweaked or same exact engine?? Maybe most, if not all, of the extra MPG comes from aero. Maybe software.

    2016 Toyota Prius details leak in manual, returns 40 km/L

    [​IMG]

    [​IMG]
    [​IMG]
    [​IMG]

    #1 E46Prius, Sep 23, 2015
    inferno, giora, iplug and 2 others like this.
  2. priusfan500

    priusfan500 Member

    Joined:
    Aug 1, 2015
    94
    110
    0
    Location:
    Canada
    Vehicle:
    Other Non-Hybrid
    Model:
    N/A
    It also included the first decent view of one in white. Screen Shot 2015-09-23 at 1.34.37 PM.png

    #2 priusfan500, Sep 23, 2015
  3. E46Prius

    E46Prius Active Member

    Joined:
    Aug 3, 2015
    314
    215
    0
    Location:
    Costa Mesa
    Vehicle:
    2015 Prius
    Model:
    Three
    It looks nice. I'm starting to like the rear end more than the front now... at first it was the opposite. The front looks a bit unfinished/rushed.

    #3 E46Prius, Sep 23, 2015
  4. priusfan500

    priusfan500 Member

    Joined:
    Aug 1, 2015
    94
    110
    0
    Location:
    Canada
    Vehicle:
    Other Non-Hybrid
    Model:
    N/A
    December 2015 Debut. I'm guessing that will be the on sale date in Japan, as it's sure to be shown at the Tokyo Auto Show next month.

    Screen Shot 2015-09-23 at 1.35.28 PM.png

    #4 priusfan500, Sep 23, 2015
  5. E46Prius

    E46Prius Active Member

    Joined:
    Aug 3, 2015
    314
    215
    0
    Location:
    Costa Mesa
    Vehicle:
    2015 Prius
    Model:
    Three
    Someone translate this please! I want to know what the above picture says. Anything on torsional rigidity? Or amount of high strength steel used (percentage) vs outgoing model?

    #5 E46Prius, Sep 23, 2015
  6. usbseawolf2000

    usbseawolf2000 HSD PhD

    Joined:
    Sep 22, 2004
    14,487
    2,987
    0
    Location:
    Fort Lee, NJ
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    Not sure if the illustration is exaggerated or not but Gen4 center of gravity is much lower.

    #6 usbseawolf2000, Sep 23, 2015
  7. inferno

    inferno Senior Member

    Joined:
    Jun 23, 2013
    1,070
    404
    0
    Vehicle:
    2010 Prius
    Model:
    III

    Can't be the same engine/system. Patents for the GIII expired so we should see very close MPG in the next 5 years.

    And I thought Toyota said it's a brand new Synergy Drive System!

    #7 inferno, Sep 23, 2015
  8. E46Prius

    E46Prius Active Member

    Joined:
    Aug 3, 2015
    314
    215
    0
    Location:
    Costa Mesa
    Vehicle:
    2015 Prius
    Model:
    Three
    The article is quoted as stating the same engine code designation as the gen 3

    #8 E46Prius, Sep 23, 2015
    KrPtNk likes this.
  9. usbseawolf2000

    usbseawolf2000 HSD PhD

    Joined:
    Sep 22, 2004
    14,487
    2,987
    0
    Location:
    Fort Lee, NJ
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    I think patents from Gen1 expired which includes how PSD combine and split power.

    #9 usbseawolf2000, Sep 23, 2015
  10. Tideland Prius

    Tideland Prius Moderator of the North
    Staff Member

    Joined:
    Oct 2, 2004
    43,102
    14,592
    41
    Location:
    Canada
    Vehicle:
    2018 Prius Prime
    Model:
    Technology
    [​IMG]

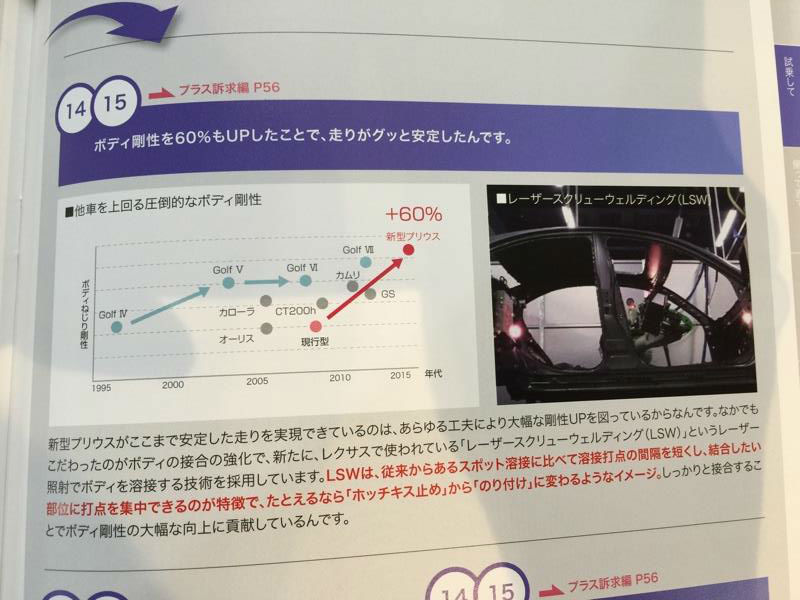

    60% increase in body rigidity over the previous gen Prius (red & pink dots). You can see the other cars listed. The Japanese names are as follows: 2005 at same body rigidity as previous gen Prius - Auris, 2005 at slightly higher rigidity than CT200h - Corolla and the one between GS and Golf Mark VII is the Camry.


    The description below and the picture describes the technique of "Laser Screw Welding" or LSW that's employed in Lexus vehicles.

    Here's an English description:

    Engineering innovations: laser screw welding - Lexus


    #10 Tideland Prius, Sep 24, 2015
    bisco likes this.
  11. usbseawolf2000

    usbseawolf2000 HSD PhD

    Joined:
    Sep 22, 2004
    14,487
    2,987
    0
    Location:
    Fort Lee, NJ
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    Wow, more rigid than the latest Golf. Gen4 is a huge upgrade not only in fuel economy.

    #11 usbseawolf2000, Sep 24, 2015
  12. spwolf

    spwolf Senior Member

    Joined:
    Sep 16, 2005
    3,156
    440
    0
    Location:
    Eastern Europe
    lots of interesting info there.. for instance white seats look great and much better design than anything in Prius (or most Toyotas) before.

    Also 2.9cm more headroom at the back, and a lot more trunk space too. All LED lighting, automatic parking, best safety sense system, trunk 11cm lower to the ground before. Weight is 10kg more than before. A lot of points of the car are significantly lower to the ground, including seating position.

    Still missing a lot of things too... like HUD details, AWD details, system output, etc, etc.

    [​IMG]

    #12 spwolf, Sep 24, 2015
    usbseawolf2000 likes this.
  13. PaJa

    PaJa Senior member

    Joined:
    Sep 3, 2009
    678
    113
    92
    Location:
    Czech republic
    Vehicle:
    2017 Prius
    Model:
    N/A
    The consumtion vary between 83-90 mpg according to car's spec and tyres.

    #13 PaJa, Sep 25, 2015
  14. spwolf

    spwolf Senior Member

    Joined:
    Sep 16, 2005
    3,156
    440
    0
    Location:
    Eastern Europe
    thats on unrealistic japanese cycle... it is going to be 10% better in the USA and 18% in unrealistic EU cycle.

    #14 spwolf, Sep 25, 2015
    pakitt likes this.
  15. David Beale

    David Beale Senior Member

    Joined:
    Jul 24, 2006
    5,963
    1,967
    0
    Location:
    Edmonton Alberta
    Vehicle:
    2012 Prius
    That would be 10% worse?

    #15 David Beale, Sep 25, 2015
  16. Trollbait

    Trollbait It's a D&D thing

    Joined:
    Feb 7, 2006
    17,665
    8,593
    0
    Location:
    eastern Pennsylvania
    Vehicle:
    Other Non-Hybrid
    Over EPA of old model, I believe.
    JC08 of the gen3 is roughly 40% better than the EPA.

    #16 Trollbait, Sep 25, 2015
  17. RRxing

    RRxing Senior Member

    Joined:
    Jul 7, 2009
    2,363
    1,628
    0
    Location:
    NEPA
    Vehicle:
    Other Hybrid
    Model:
    Limited
    It's amphibious!!!

    Screen Shot 2015-09-25 at 2.45.20 PM.png

    #17 RRxing, Sep 25, 2015
    roflwaffle and Cozynest like this.
  18. Trollbait

    Trollbait It's a D&D thing

    Joined:
    Feb 7, 2006
    17,665
    8,593
    0
    Location:
    eastern Pennsylvania
    Vehicle:
    Other Non-Hybrid
    #18 Trollbait, Sep 25, 2015
  19. TonyPSchaefer

    TonyPSchaefer Your Friendly Moderator
    Staff Member

    Joined:
    May 11, 2004
    14,814
    2,483
    66
    Location:
    Far-North Chicagoland
    Vehicle:
    2017 Prius Prime
    Model:
    Prime Advanced
    To facilitate forward-facing sonar, Toyota has embedded a live dolphin in each Prius. The horn is a little squeakish, though.

    #19 TonyPSchaefer, Sep 25, 2015
    cyclopathic likes this.
  20. DtEW

    DtEW Active Member

    Joined:
    Sep 6, 2013
    242
    137
    0
    Location:
    SF Bay Area, CA
    Vehicle:
    2013 Prius
    Model:
    Two
    All the cubbies that you thought were missing in the 4th-gen actually has been consolidated into a first-in-industry dedicated cetacean storage space for the ultimate in ecological awareness. No longer will you have to suffer the indignity of struggling with a loose porpoise in the cabin. Fully enclosed, your marine mammal will be kept moist and also be protected from both prying eyes and tempting thieves.

    Moist. So moist.

    #20 DtEW, Sep 25, 2015
    Last edited: Sep 25, 2015
