Gen 4 Staff Manual (In Japanese) =/ Specs/Design/Other Info

Discussion in 'Gen 4 Prius Main Forum' started by E46Prius, Sep 23, 2015.

  1. ken1784

    ken1784 SuperMID designer

    Joined:
    Dec 18, 2003
    2,940
    1,348
    67
    Location:
    Yokohama, JAPAN
    Vehicle:
    2010 Prius
    Model:
    N/A

    Attached Files:

  2. myPriusAcct

    myPriusAcct Junior Member

    Joined:
    Sep 29, 2013
    26
    16
    0
    Vehicle:
    2009 Prius
    Model:
    III
    Looks like the lithium Ion battery is only 745.92 Wh. 56 cells, 3.7v, 3.6 Ah

  3. bisco

    bisco cookie crumbler

    Joined:
    May 11, 2005
    95,321
    43,209
    0
    Location:
    boston
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    battery looks like a beast, should last forever. how can you tell it's lion?

  4. ken1784

    ken1784 SuperMID designer

    Joined:
    Dec 18, 2003
    2,940
    1,348
    67
    Location:
    Yokohama, JAPAN
    Vehicle:
    2010 Prius
    Model:
    N/A
    Following up to my post #56...

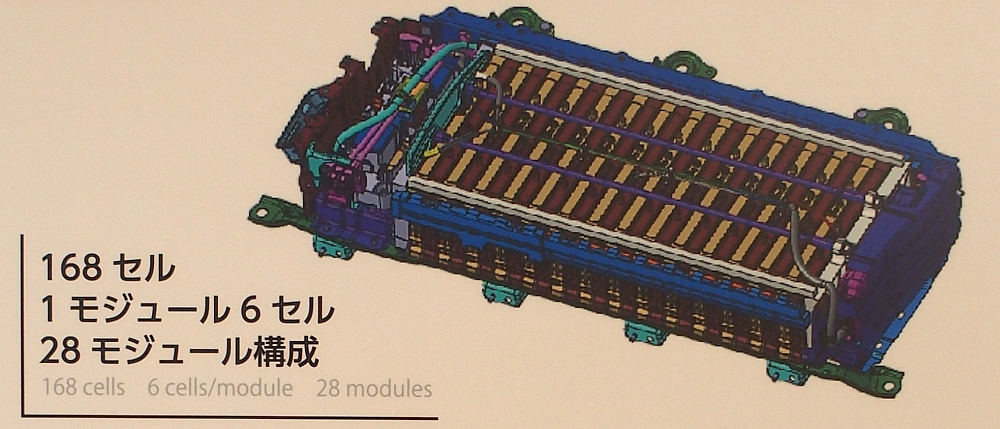

    The NiMH battery pack specification is as follows;
    168 cells : 1.2V
    6 cells/module : 7.2V
    28 modules/pack : 201.6V
    6.5 Ah
    total 1310.4 Wh
    these numbers are as same as Gen2 and Gen3, but they are all new design.

    edit:
    pack volume: Gen4 35.5 liter Gen3 39.4 liter
    pack weight: Gen4 40.3 kg Gen3 41.3 kg

    [email protected]

    [​IMG]

    #284 ken1784, Oct 15, 2015
    Last edited: Oct 15, 2015
  5. ken1784

    ken1784 SuperMID designer

    Joined:
    Dec 18, 2003
    2,940
    1,348
    67
    Location:
    Yokohama, JAPAN
    Vehicle:
    2010 Prius
    Model:
    N/A
    Nice find...

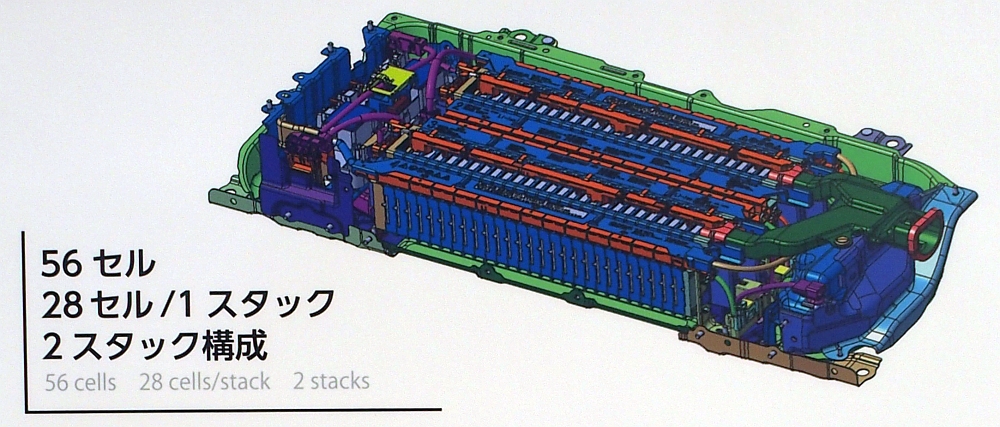

    The Li-ion battery pack specification is as follows;
    56 cells : 3.7V
    28 cells/stack : 103.6V
    2 stacks/pack : 207.2V
    3.6 Ah
    total 745.92 Wh

    edit:
    pack volume: 30.5 liter
    pack weight: 24.5 kg which is 15.8 kg lighter than NiMH pack

    By the way, the Li-ion in the 7 seat Prius α (JP) and Prius+ (EU), is ...
    56 cells : 3.7V
    28 cells/stack : 103.6V
    2 stacks/pack : 207.2V
    5.0 Ah
    total 1036 Wh

    [email protected]

    [​IMG]

    #285 ken1784, Oct 15, 2015
    Last edited: Oct 15, 2015
    bwilson4web and usbseawolf2000 like this.
  6. energyandair

    energyandair Active Member

    Joined:
    Jun 9, 2009
    905
    338
    0
    Location:
    Victoria BC Canada
    Vehicle:
    2010 Prius
    For me, 0-60 mph and 0 -1/4 mile are largely irrelevant. They are already OK and rarely limit what I want to do

    0-60 ft and instantaneous precise response to throttle changes are however a big deal. They affect me every time I drive the car.

    It sounds to me that Toyota are moving in the right direction.

    KrPtNk likes this.
  7. cyclopathic

    cyclopathic Senior Member

    Joined:
    Apr 15, 2011
    3,290
    546
    0
    Location:
    2014 Prius c
    Vehicle:
    2010 Prius
    Model:
    II
    Report: 2015 Toyota Prius To Use Lighter, More Efficient Platform
    they never said it

  8. Mendel Leisk

    Mendel Leisk Sand Pounder

    Joined:
    Oct 17, 2010
    46,017
    32,856
    80
    Location:
    Greater Vancouver, British Columbia, Canada
    Vehicle:
    2010 Prius
    Model:
    Touring
    Many years back, just coming off the second narrows south side, and heading up the hill on Hastings, my wife says to me: " How about we buy some CD's at A&B?". Of course I knew exactly what she meant, but it kinda cracked me up.

    Thanks for that, bookmarked, right next to PriusChat:



    With consulting engineering firms I've worked with, the standards typically included a list of acceptable abbreviations and acronyms, and their meanings. Good idea, kept everyone in the office, and the recipients of our drawings, in the know.

    #288 Mendel Leisk, Oct 15, 2015
    Last edited: Oct 15, 2015
    Tideland Prius likes this.
  9. farmecologist

    farmecologist Senior Member

    Joined:
    Jun 25, 2015
    1,666
    1,528
    0
    Location:
    Southern MN
    Vehicle:
    2012 Prius v wagon
    Model:
    II
    Does anyone know if there will be an automatic transmission fluid dipstick this time? I'm assuming not..but hoping there will be!

  10. Mendel Leisk

    Mendel Leisk Sand Pounder

    Joined:
    Oct 17, 2010
    46,017
    32,856
    80
    Location:
    Greater Vancouver, British Columbia, Canada
    Vehicle:
    2010 Prius
    Model:
    Touring

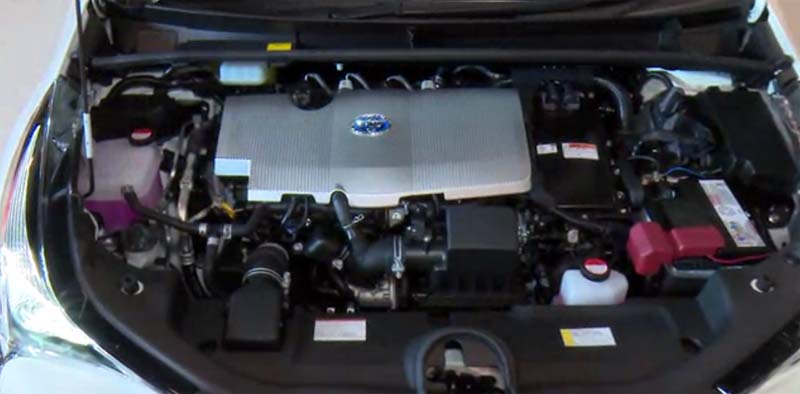

    Doesn't look like it. Some good engine/transmission pictures here:

    http://www.cleanmpg.com/forums/showthread.php?t=52498

    I'm ok with it. Our Honda's always had transmission dipsticks, but I now I'm ok with just a fill and drain bolt. As long as there's no leakage and you filled it correctly, you're good.

  11. farmecologist

    farmecologist Senior Member

    Joined:
    Jun 25, 2015
    1,666
    1,528
    0
    Location:
    Southern MN
    Vehicle:
    2012 Prius v wagon
    Model:
    II
    Nice link. Thanks!

    That is too bad...would have been nice to have it. I suppose they are going to claim 'lifetime' transmission fluid again. If so, that is unfortunate.

  12. usbseawolf2000

    usbseawolf2000 HSD PhD

    Joined:
    Sep 22, 2004
    14,487
    2,986
    0
    Location:
    Fort Lee, NJ
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    There was weight savings. They just spent it on better suspensions, noise isolation, seats, interior materials, etc.

    Do I see only one coolant?

  13. Mendel Leisk

    Mendel Leisk Sand Pounder

    Joined:
    Oct 17, 2010
    46,017
    32,856
    80
    Location:
    Greater Vancouver, British Columbia, Canada
    Vehicle:
    2010 Prius
    Model:
    Touring
    At least it's semi-easy to do. My nearby dealership always has the fluid and washers available, quite reasonable. Yeah, the main issue seems to be Toyota's adamant policy that it's "lifetime", leads to a lot of pushback from service departments.

  14. chinna

    chinna Member

    Joined:
    Apr 20, 2009
    162
    44
    15
    Location:
    Bellevue, WA USA
    Vehicle:
    2006 Prius
    I am seeing something new at Green car reports, it says new Car is shorter, not longer than Gen 3. (Which contradicts what we saw until now). Not sure, if this some kind of typo(vs 4550).

    "The 2016 Prius will have a length of 4,450 millimeters (175.1 inches), width of 1,760 mm (69.2), and height of 1,470 mm (57.8 inches, E-Four models will ride slightly higher), according to Toyota."

    That makes the new Prius slightly shorter, wider, and lower than the outgoing model.

    2016 Toyota Prius: Power Outputs, Dimensions, AWD Revealed As Info Trickles Out

    #294 chinna, Oct 15, 2015
    Last edited: Oct 15, 2015
  15. Trollbait

    Trollbait It's a D&D thing

    Joined:
    Feb 7, 2006
    17,226
    8,300
    0
    Location:
    eastern Pennsylvania
    Vehicle:
    Other Non-Hybrid
    The current HSD isn't like a traditional automatic in operation, but like a manual. For the fluid, that means it is only has to work as a lubricant and heat transfer medium, and doesn't have any hydraulic fluid duties as in an automatic. Unless the new HSD has a clutch in there somewhere. Traditionally, manual transmissions don't have a dipstick.

    Many true automatics don't seem to get a dipstick now either. With improved fluids and transmission controls, the service interval has been extended. The trannies are also sealed up tighter than before. There is simply less places, counting the missing dip stick) for the fluid to escape from than in the case of the motor oil. Changing the fluid on an automatic was once an annual thing, but now that it is once every 3 at soonest. So the ease of a dipstick check is no longer required, and more so with less people bothering to do such messy work themselves.

  16. Jan Treur

    Jan Treur Active Member

    Joined:
    Aug 31, 2014
    240
    168
    0
    Location:
    Heiloo, Netherlands
    Vehicle:
    Other Non-Hybrid
    Model:
    N/A
    bisco likes this.
  17. cyclopathic

    cyclopathic Senior Member

    Joined:
    Apr 15, 2011
    3,290
    546
    0
    Location:
    2014 Prius c
    Vehicle:
    2010 Prius
    Model:
    II
    yeah it is just a reprint from interview with Toyota executive.

  18. energyandair

    energyandair Active Member

    Joined:
    Jun 9, 2009
    905
    338
    0
    Location:
    Victoria BC Canada
    Vehicle:
    2010 Prius
    What I'm seeing appears to be a link to an article which in turn links to another article dated 25 Nov 2013 which says that a Toyota Exec spoke about the possible (future) effects of TNGA across their line including potential weight savings of up to 20%.

    Interesting but naturally no kind of statement or commitment about what the weight of a future Prius will be 2 years later following a complete redesign, the details of which could not even be known at that time.

    bisco likes this.
  19. royrose

    royrose Senior Member

    Joined:
    Mar 21, 2009
    1,310
    872
    4
    Location:
    Foot of Pikes Peak
    Vehicle:
    2010 Prius
    Model:
    IV
    Green car reports screwed up. They transposed numbers. The correct length is not 4,450 mm, it is 4,540 mm (178.74 inches)

    bisco likes this.
  20. usbseawolf2000

    usbseawolf2000 HSD PhD

    Joined:
    Sep 22, 2004
    14,487
    2,986
    0
    Location:
    Fort Lee, NJ
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    Does it use A/C to cool the intake air? Totally missed this.
