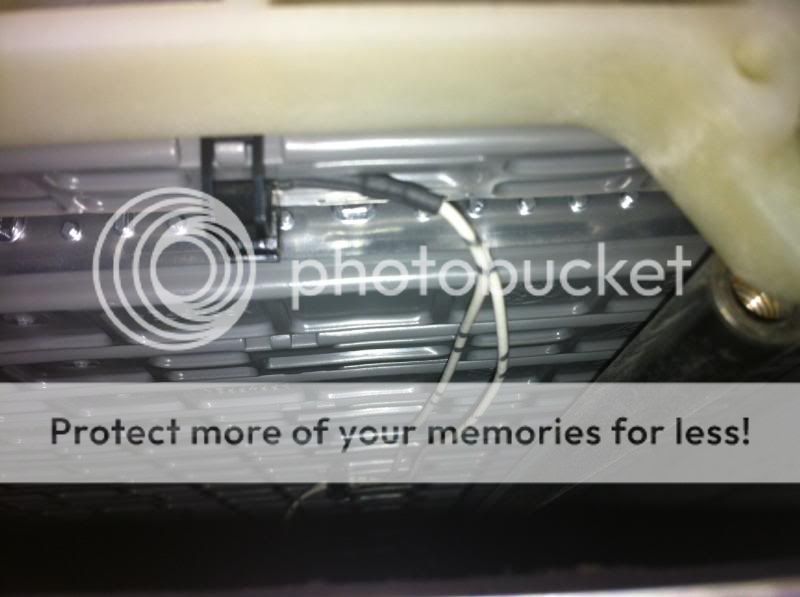

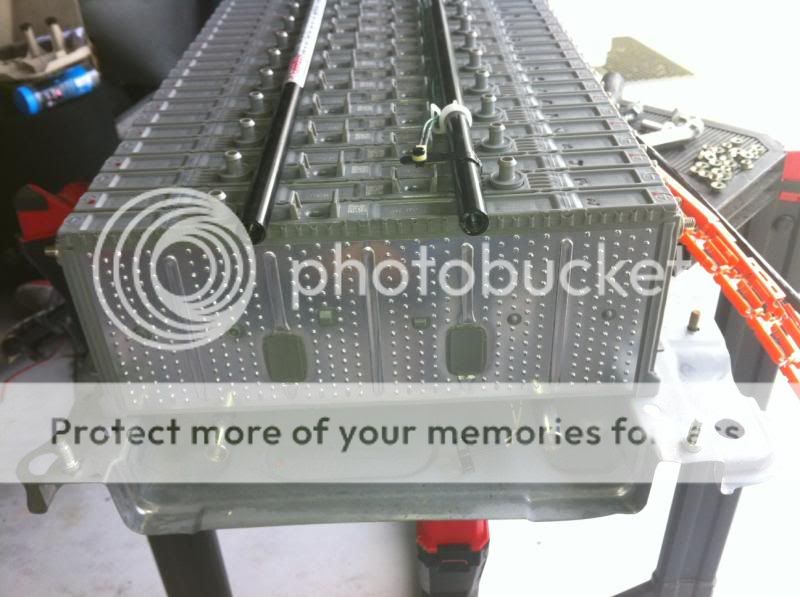

Gen II Prius Individual Battery Module Replacement

Discussion in 'Gen 2 Prius Technical Discussion' started by ryousideways, Apr 24, 2013.

  1. Cody26

    Cody26 Junior Member

    Joined:
    Aug 27, 2018
    86
    17
    0
    Location:
    Raleigh, North Carolina
    Vehicle:
    2007 Prius
    Model:
    ----USA----
    Are there some alternatives besides Prolong that does balance the voltages of modules in the pack?

    #2221 Cody26, Sep 13, 2018
    Last edited: Sep 13, 2018
  2. Britprius

    Britprius Senior Member

    Joined:
    Jun 14, 2010
    5,193
    1,816
    0
    Location:
    Herefordshire England
    Vehicle:
    2008 Prius
    You can wire all the modules in parallel and leave them for a few hours, and this will bring them all to the same level.

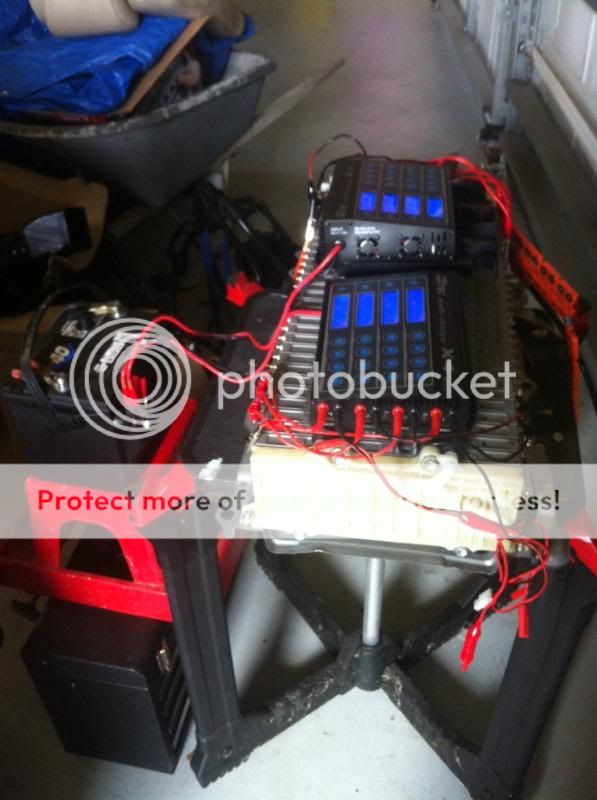

    The capacity of the modules is automatically measured by the DC6 or equivalent charger.
    John.

  3. jdenenberg

    jdenenberg EE Professor

    Joined:
    Nov 21, 2005
    3,172
    1,213
    1
    Location:
    Trumbull, CT
    Vehicle:
    2016 Prius
    Model:
    Three
    1. Make sure that the modules are all close in terminal voltage so that you don't get high currents flowing when you put them in parallel.

    2. It is the total discharge amp - hours that gives the capacity measure. Note that since the small charger - balancers are limited to low current, the reading will be artificially high compared to the specified 1C discharge rate of 6.5 amp - hours.

    JeffD

    Posted via the PriusChat mobile app.

  4. Cody26

    Cody26 Junior Member

    Joined:
    Aug 27, 2018
    86
    17
    0
    Location:
    Raleigh, North Carolina
    Vehicle:
    2007 Prius
    Model:
    ----USA----
    That looks hard to do practically.

  5. dolj

    dolj Senior Member

    Joined:
    May 14, 2012
    3,213
    1,576
    0
    Location:
    Wellington, New Zealand
    Vehicle:
    2006 Prius
    It has been established that this "equalisation" process does little and is of dubious benefit. You are better off, just using your load tester to discharge all modules to the same voltage which remain close after they have rested. But really, as long as each module is within 0.3 V, it will be close enough. Bear in mind that each module will also need to remain with that same 0.3 V when being charged or discharged in real life use, as well, so getting them all the close as possible in the first place is a better idea.

    The biggest problem you face is having modules that charge and discharge at different rates, in real life use, and then go outside the 0.3 V differential that the HV battery ECU is looking for. The only way to fix this is to ditch the errant modules and find replacement modules that more closely match the remaining ones.

    Cody26 likes this.
  6. Britprius

    Britprius Senior Member

    Joined:
    Jun 14, 2010
    5,193
    1,816
    0
    Location:
    Herefordshire England
    Vehicle:
    2008 Prius
    The current flow really is irrelevant when connecting them in parallel as the voltage difference will or should be minimal, and the modules are capable of withstanding much higher currents in use both in charge or discharge scenarios.

    John.

    Dxta likes this.
  7. Skibob

    Skibob Senior Member

    Joined:
    Sep 14, 2018
    1,141
    519
    0
    Location:
    Northern California
    Vehicle:
    2006 Prius
    Model:
    N/A
    Are you using the thin wires that came with the charger? I’m new here but I have read the wires that come with the chargers don’t work. You have to make heavy duty ones yourself.

  8. dubseven

    dubseven New Member

    Joined:
    Apr 29, 2018
    11
    2
    0
    Location:
    Denver, CO
    Vehicle:
    2007 Prius
    Model:
    Two

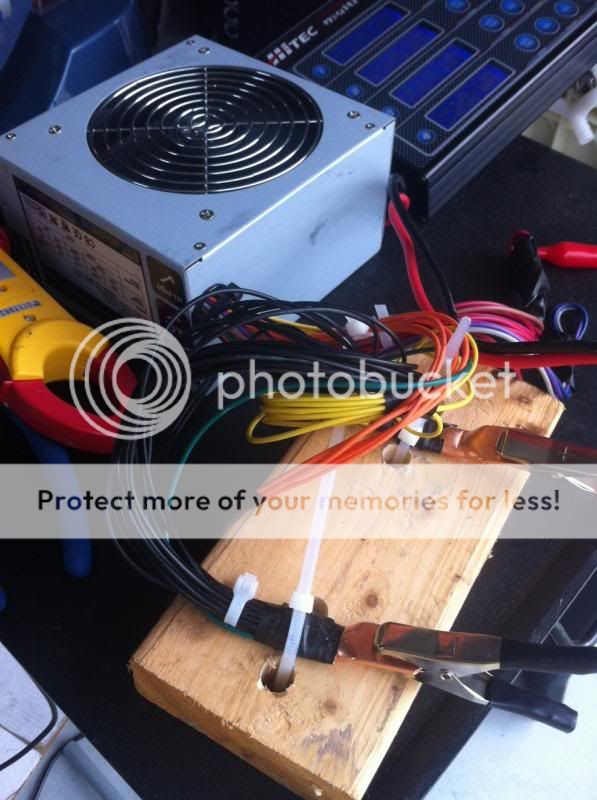

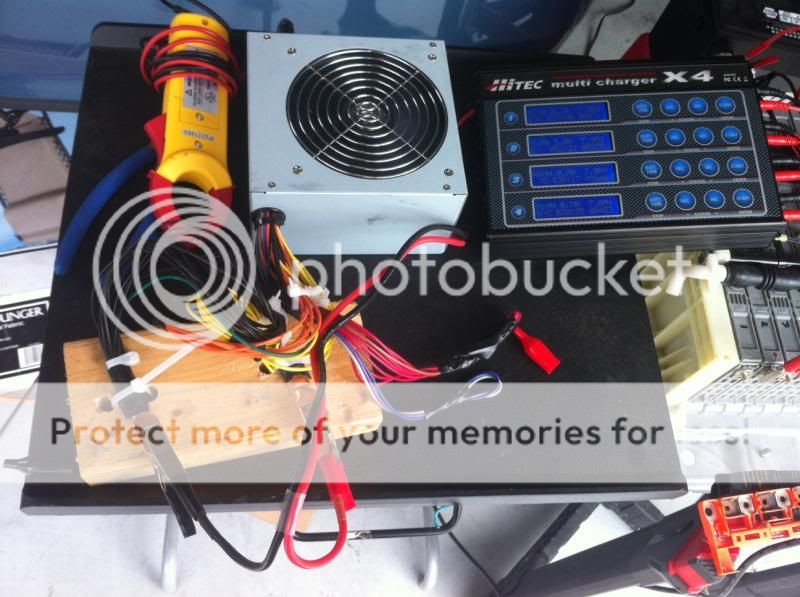

    No, I made that mistake the first go around. Made some custom 10ga wires with ring terminals and banana plugs.

    Skibob likes this.
  9. Cody26

    Cody26 Junior Member

    Joined:
    Aug 27, 2018
    86
    17
    0
    Location:
    Raleigh, North Carolina
    Vehicle:
    2007 Prius
    Model:
    ----USA----
    Sorry, maybe a silly question. How do you get mAh ? Will that be on the chargers?

  10. Cody26

    Cody26 Junior Member

    Joined:
    Aug 27, 2018
    86
    17
    0
    Location:
    Raleigh, North Carolina
    Vehicle:
    2007 Prius
    Model:
    ----USA----
    REally, what is the logic behind?

  11. Cody26

    Cody26 Junior Member

    Joined:
    Aug 27, 2018
    86
    17
    0
    Location:
    Raleigh, North Carolina
    Vehicle:
    2007 Prius
    Model:
    ----USA----
    When you charge everything to 7250 mAh, will you have different volts on modules?

  12. jdenenberg

    jdenenberg EE Professor

    Joined:
    Nov 21, 2005
    3,172
    1,213
    1
    Location:
    Trumbull, CT
    Vehicle:
    2016 Prius
    Model:
    Three
    Cody,

    The Prius battery has a limited cooling system using the cabin air and the modules in the center of the pack tend to be at a highed temperature which causes them to age faster than those at either end of the stack
    Each module has a capacity to store energy that slowly and unevenly goes down as the battery ages. Modules with a lower capacity will end up at a higher voltage than those with a higher capacity. So, no they will not all end up at the same voltage after charging all of them with 7250 mAh (note that some modules with lower capacity will cause the charger to shut down early and not reach 7250 mAh).

    JeffD

    #2232 jdenenberg, Oct 2, 2018
    Last edited: Oct 2, 2018
    Raytheeagle and Cody26 like this.
  13. Cody26

    Cody26 Junior Member

    Joined:
    Aug 27, 2018
    86
    17
    0
    Location:
    Raleigh, North Carolina
    Vehicle:
    2007 Prius
    Model:
    ----USA----
    I kind of understand the process. But why 6 volts ? Why not 4 volts for instance?

  14. jdenenberg

    jdenenberg EE Professor

    Joined:
    Nov 21, 2005
    3,172
    1,213
    1
    Location:
    Trumbull, CT
    Vehicle:
    2016 Prius
    Model:
    Three
    Cody,

    6 volts is one volt per cell (assuming all 6 cells are balanced, not always the case) and fully discharging a cell to 0 volts will destroy it.

    JeffD

  15. Cody26

    Cody26 Junior Member

    Joined:
    Aug 27, 2018
    86
    17
    0
    Location:
    Raleigh, North Carolina
    Vehicle:
    2007 Prius
    Model:
    ----USA----
    Ok. But why not do 0.7 volts per cell which totals 4.2 volts per cell. This is in comparison to 24 volts of discharge using hybridAutomotive dischargers. 24/168 = 0.14 volts per cell.

    I mean discharging modules individually, why we can go low as hybridautomotive guys recommend us for better reconditioning.

  16. Cody26

    Cody26 Junior Member

    Joined:
    Aug 27, 2018
    86
    17
    0
    Location:
    Raleigh, North Carolina
    Vehicle:
    2007 Prius
    Model:
    ----USA----


    I understand this. Is it ok to discharge a module to 4.8 volts or 3 volts after charging it fully?

  17. Fred_H

    Fred_H Misoversimplifier

    Joined:
    Apr 20, 2007
    436
    338
    20
    Location:
    Germany
    Vehicle:
    2007 Prius
    Model:
    Touring
    Yes, but more precisely, after thoroughly but carefully overcharging it. It is important that the cells are all at an equal state of charge. If one cell is at a lower state of charge, it might be discharged below 0 Volts during deep discharging, which might cause permanent damage.

    Also, the deep discharge itself can cause SOC variations among cells which have different degrees of crystallization. That's why it is often recommended to do the deep discharge in stages, bumping the discharge voltage lower in each cycle, and rebalancing SOC after each deep discharge until the lower end of the discharge curve is more uniform between cells.

    Cody26 likes this.
  18. Fred_H

    Fred_H Misoversimplifier

    Joined:
    Apr 20, 2007
    436
    338
    20
    Location:
    Germany
    Vehicle:
    2007 Prius
    Model:
    Touring
    This is a gray zone. There is a tradeoff between lower voltage being more effective and more likely to destroy a cell. There is also a point of diminishing returns, where the tiny bit of extra capacity gain is not worth the extra time of discharging to lower voltages. Also, every minute of cycling degrades the electrodes by a tiny amount, so that at some point you are doing more harm than good.

    Since it's impractical to analyze each and every cell beforehand, the exact optimum discharge voltage is unknown for a random module. So these different values are based on different peoples past experiences with different batteries and different equipment.

    So the answer to your question is that there is no definitive answer.

    Edit: Speculation: The Prolong system cycles all the modules simultaneously, but at a low discharge rate and with very good cooling. So it might be "gentler", even when it takes less time to do the whole battery pack to a lower voltage, than with one or two hobby chargers.

    #2238 Fred_H, Oct 7, 2018
    Last edited: Oct 7, 2018
  19. Cody26

    Cody26 Junior Member

    Joined:
    Aug 27, 2018
    86
    17
    0
    Location:
    Raleigh, North Carolina
    Vehicle:
    2007 Prius
    Model:
    ----USA----
    Right now, I am discharging individual modules to 4.8 volts with a rate of 0.9 amps.
    When I discharged a module at 0.7 amps, I got ~8000 mah when charged back.

    So, I can not make any inference for now.

  20. Hybrid Battery Exchange

    Joined:
    Nov 15, 2017
    66
    74
    0
    Location:
    Portland, OR
    Vehicle:
    2010 Prius
    Model:
    III
    Look at the table posted by @ryousideways , he is putting in 6750mah (rather than charging to delta v as you have done), and the modules that are good are putting back out 5500mah or more, weak modules are returning 4000mah or less. Weak cells can absorb a lot of energy (turning it into heat) but they can only put out so much because they didn't store it. By putting in a measured amount of energy and seeing how much of it you get back you expose the weak modules (or rather cells within those modules).

    strawbrad likes this.
