head unit wire question

Discussion in 'Prius c Audio and Electronics' started by jz13prius, Mar 1, 2014.

  1. jz13prius

    jz13prius Junior Member

    Joined:
    Feb 17, 2014
    28
    4
    0
    Vehicle:
    2013 Prius c
    Model:
    Two

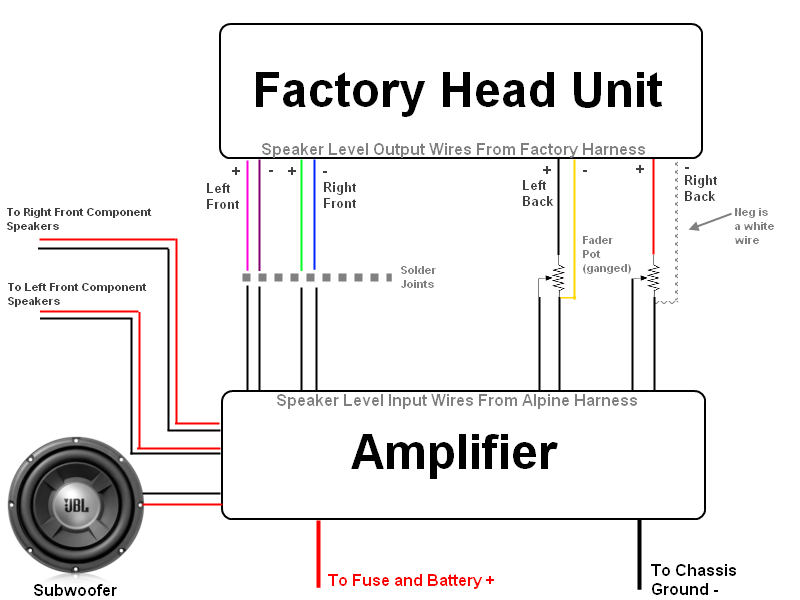

    Ok, so i bought a line level converter so I can use the stock HU with an amp. I pulled the HU out and found that the negative wires for the rear speakers aren't present for the rear. Fronts have the positive and negative but rears have just the positive wires. What do u do to connect to the negatives of the rear speakers? Any help would be appreciated. Here are some pix. In the diagram it shows a yellow and a white as the negative for the rear speakers. Where are these si u can finish the install?

    Anyone have a wire diagram that is more detailed of all the wires going into the stock HU?

    Thanks Prius C Wiring diagram.png IMG_00001637.jpg

  2. kingnba6

    kingnba6 Active Member

    Joined:
    Mar 17, 2013
    1,004
    239
    0
    Location:
    NY
    Vehicle:
    2013 Prius c
    Model:
    One

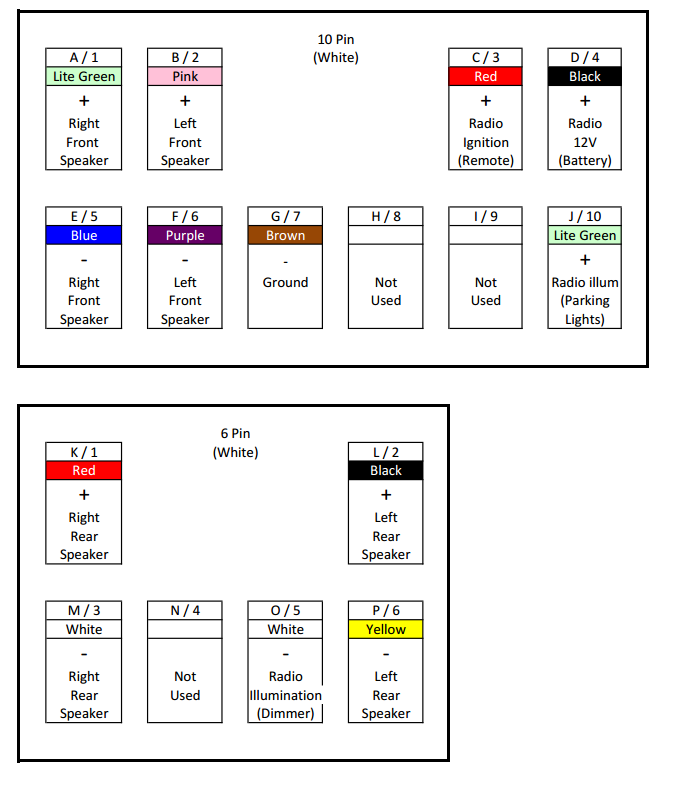

    on the smaller connector, the black wire is right rear +
    yellow is right rear negative
    red is left rear +
    white (under the red) is left rear negative.

    [​IMG]

    valuequest, SquallLHeart and ftl like this.
  3. jz13prius

    jz13prius Junior Member

    Joined:
    Feb 17, 2014
    28
    4
    0
    Vehicle:
    2013 Prius c
    Model:
    Two
    Ok thanks for the help.

  4. Legogo

    Legogo New Member

    Joined:
    Sep 1, 2019
    15
    0
    0
    Location:
    Azerbaijan
    Vehicle:
    2012 Prius c
    Model:
    N/A
    is it possible to use radio ignition (remote) C/3 wire as a remote for additional sub?

  5. Leadfoot J. McCoalroller

    Leadfoot J. McCoalroller Senior Member

    Joined:
    May 12, 2018
    3,355
    3,261
    1
    Location:
    Pennsylvania
    Vehicle:
    2018 Prius c
    Model:
    Two
    It would work- the amp would turn on any time you turn on the ignition whether the radio was on or not.

    Legogo likes this.
  6. Legogo

    Legogo New Member

    Joined:
    Sep 1, 2019
    15
    0
    0
    Location:
    Azerbaijan
    Vehicle:
    2012 Prius c
    Model:
    N/A
    perfect.just need to make the amp to turn on when HU is ON.
    I'll put an "on/off" button to the gap like additional control
    thank you for help

  7. Rondy Monnaie

    Rondy Monnaie New Member

    Joined:
    Jun 26, 2019
    11
    1
    0
    Location:
    Seychelles
    Vehicle:
    2017 Aqua
    Model:
    N/A
    Is it possible to get similar diagrams for the rest of the oem connectors that come with the prius as the one quoted below.

  8. Leadfoot J. McCoalroller

    Leadfoot J. McCoalroller Senior Member

    Joined:
    May 12, 2018
    3,355
    3,261
    1
    Location:
    Pennsylvania
    Vehicle:
    2018 Prius c
    Model:
    Two
    Yes. https://techinfo.toyota.com

    They have all that and more.

  9. Elektroingenieur

    Elektroingenieur Senior Member

    Joined:
    Jan 8, 2017
    1,636
    2,213
    9
    Location:
    California
    Vehicle:
    2016 Prius
    Model:
    Three Touring
    That’s true, of course, for Prius c cars built for sale in the U.S., Canada, and Mexico. As I mentioned in a previous thread, however, the Toyota Aqua is covered by a different series of manuals, and I wouldn’t assume that its wire harnesses are the same.

  10. Leadfoot J. McCoalroller

    Leadfoot J. McCoalroller Senior Member

    Joined:
    May 12, 2018
    3,355
    3,261
    1
    Location:
    Pennsylvania
    Vehicle:
    2018 Prius c
    Model:
    Two
    I’m guilty of assuming that the website in question was a gateway to all of Toyota’s published repair manuals- are you saying that techinfo.toyota.com is only good for US/CA/MX? Is there another site for others?

  11. Elektroingenieur

    Elektroingenieur Senior Member

    Joined:
    Jan 8, 2017
    1,636
    2,213
    9
    Location:
    California
    Vehicle:
    2016 Prius
    Model:
    Three Touring
    There are also websites for Europe and Australia, listed on the “Toyota Service Information and Where To Find It” page. The site for Japan (FAINES), however, doesn’t seem to be available to the public, even for a fee.
