Headlight Retrofit V2

Discussion in 'Gen 2 Prius Accessories & Modifications' started by ucsbwsr, Aug 5, 2015.

  1. ucsbwsr

    ucsbwsr Active Member

    Joined:
    May 28, 2014
    105
    145
    0
    Vehicle:
    2008 Prius
    Model:
    Plug-in Base
    Girlfriend was gone for the weekend so I took advantage.

    I had already retrofitted her headlights with some Mini H1 projectors and they were a huge improvement over stock but for a lighting nerd like myself, leave a lot to be desired.

    I kept the paint theme the same, MH1 projectors were replaced with modded and tuned Acura RLs, Morimoto xb LED strips were also added. Morimoto xb35 bulbs and DDM 50w ballasts round out the setup.

    After the headlights were done I addressed the fogs. I threw in some Rigid Industries Duallys (in flood optics), they are not terribly functional and I will replace them with bigger and brighter LEDs in optics which can be used as a high beam since the RLs are a low-beam only projector.

    There is a thread on HIDPlanet which goes into greater detail on the retrofit if you are inclined:
    Toyota Prius ReRetrofit

    Evan

    Prius looked like this about an hour after I dropped my girl off at the airport.
    [​IMG]
    The old headlights
    [​IMG]
    White demon eyes
    [​IMG]
    Mounting LEDs
    [​IMG]
    Testing LEDs
    [​IMG]
    Detail shot
    [​IMG]
    RLs before trimming
    [​IMG]
    After trimming
    [​IMG]
    I reinstalled the reflectors for a cleaner look, before.
    [​IMG]
    After
    [​IMG]
    Projectors mounted
    [​IMG]
    Assembled
    [​IMG]
    Testing
    [​IMG]
    Testing
    [​IMG]
    MH1 Output
    [​IMG]
    RL Output
    [​IMG]
    Warming up
    [​IMG]
    Ready for alignement
    [​IMG]
    My shop
    [​IMG]
    Getting rotation dialed
    [​IMG]
    Output at 25ft
    [​IMG]
    @ 25ft
    [​IMG]
    Yummy
    [​IMG]
    The cutoff on the RLs is so sharp
    [​IMG]
    Colorband
    [​IMG]
    Ze Blue!
    [​IMG]
    This is the look people try to copy when they throw blue HID bulbs into their headlights and blind oncoming traffic. Blue colorband and flicker created by a well tuned HID projector is VERY different from blue lights.
    [​IMG]
    More output
    [​IMG]
    MOAR!
    [​IMG]
    Love this photo
    [​IMG]
    @ distance
    [​IMG]
    Time for fogs
    [​IMG]
    Rigid left, oem right
    [​IMG]
    Square peg in a round hole
    [​IMG]
    12v power for the wiring harness
    [​IMG]
    Ground
    [​IMG]
    Everything soldered and protected
    [​IMG]
    All off
    [​IMG]
    + LEDs
    [​IMG]
    + LEDs + HIDs
    [​IMG]
    + LEDs + HIDs + more LEDs
    [​IMG]
    Boom
    [​IMG]
    All done
    [​IMG]
    The Prius received some rear spacers and a wash + clay bar, time for some photos
    [​IMG]

    [​IMG] [​IMG]

    [​IMG]

    #1 ucsbwsr, Aug 5, 2015
    HeadOfJarg, Dylan Doxey, orenji and 1 other person like this.
  2. Justdidit

    Justdidit LVNPZEV

    Joined:
    Jun 12, 2012
    1,880
    708
    75
    Location:
    Carrollton, Texas
    Vehicle:
    2007 Prius
    Model:
    Four Touring
    I must admit, I never thought about painting the Amber corner lights or the reflector...but it def does look more uniform. Nice!

    #2 Justdidit, Aug 5, 2015
  3. Lajon32

    Lajon32 New Member

    Joined:
    Aug 5, 2015
    1
    0
    0
    Location:
    Florida
    Vehicle:
    2006 Prius
    Model:
    II
    I love what you've done with the car, it inspires me to dig a little deeper. I had a question about the LED Strip as far as lumens is this visible in direct sunlight? I'm debating having to create a led using 5050 SMD Chips or 1W led bulbs. Thanks in advance.

    #3 Lajon32, Aug 6, 2015
  4. Justdidit

    Justdidit LVNPZEV

    Joined:
    Jun 12, 2012
    1,880
    708
    75
    Location:
    Carrollton, Texas
    Vehicle:
    2007 Prius
    Model:
    Four Touring
    Not trying to jack Evan's thread.. but If you do end up doing the 1W LEDs, be sure to look into retrofitting a heatsink. My first LED setup wasn't very bright -

    But weren't that bright in actual daylight - AND i had a couple burn out. Thinking it was my soldering I wanted to redo my setup, I went with BRIGHTER leds the 2nd time.

    BUT these starting burning out even faster...so after i wrecked my 2008, on my 2007 I installed the TRS Morimoto XB LED. I don't like the color temp but its been the only one that is actually more like a DRL and is visible in daytime.

    [​IMG]

    #4 Justdidit, Aug 6, 2015
    Last edited: Aug 6, 2015
  5. ucsbwsr

    ucsbwsr Active Member

    Joined:
    May 28, 2014
    105
    145
    0
    Vehicle:
    2008 Prius
    Model:
    Plug-in Base
    I would say yes but you can decide for yourself.
    [​IMG]
    [​IMG]

    #5 ucsbwsr, Aug 6, 2015
    orenji likes this.
  6. OGGIE50

    OGGIE50 Member

    Joined:
    Mar 9, 2014
    94
    42
    0
    Location:
    San Diego
    Vehicle:
    2008 Prius
    Model:
    N/A
    I have 2 sets of Rigid's, Flood & the NEW DOT Dually's tried to fit them in and was sticking out far past the light covers, Do you have pics of what you cut and how you mounted these bad boys? Let me know i wanna do the same. Thanks!!

    #6 OGGIE50, Aug 9, 2015
  7. ucsbwsr

    ucsbwsr Active Member

    Joined:
    May 28, 2014
    105
    145
    0
    Vehicle:
    2008 Prius
    Model:
    Plug-in Base
    The DOT Duallys would be the way to go, much more useable light and less blinding for oncoming traffic.

    Check out this thread, let me know if you have any further questions.
    Toyota Prius ReRetrofit

    Evan

    #7 ucsbwsr, Aug 9, 2015
  8. OGGIE50

    OGGIE50 Member

    Joined:
    Mar 9, 2014
    94
    42
    0
    Location:
    San Diego
    Vehicle:
    2008 Prius
    Model:
    N/A
    Thanks Evan, I registered on that site and still can't click on the IMG to pull up the pics. Very interested... I have BOTH lights, I like the DOT's but miss shinin' the lights to see the trees above and i never got bothered with my Rigid FLOODS on. Lol

    #8 OGGIE50, Aug 10, 2015
  9. Justdidit

    Justdidit LVNPZEV

    Joined:
    Jun 12, 2012
    1,880
    708
    75
    Location:
    Carrollton, Texas
    Vehicle:
    2007 Prius
    Model:
    Four Touring
    Not sure what happened... Think the links on HIDPlanet are broken.

    [​IMG]

    Maybe Evan can fix them when he's done modding his rear taillights on his BMW


    iPhone ?

    #9 Justdidit, Aug 10, 2015
  10. ucsbwsr

    ucsbwsr Active Member

    Joined:
    May 28, 2014
    105
    145
    0
    Vehicle:
    2008 Prius
    Model:
    Plug-in Base
    Let's try this again: Toyota Prius ReRetrofit

    If that doesn't work I can make my Picasa album public or send you in invite to view it.

    Evan

    #10 ucsbwsr, Aug 11, 2015
  11. Justdidit

    Justdidit LVNPZEV

    Joined:
    Jun 12, 2012
    1,880
    708
    75
    Location:
    Carrollton, Texas
    Vehicle:
    2007 Prius
    Model:
    Four Touring
    Showing me up for me.

    [​IMG]

    #11 Justdidit, Aug 11, 2015
  12. derBara

    derBara New Member

    Joined:
    Jun 12, 2015
    6
    2
    0
    Location:
    Cincinnati, OH
    Vehicle:
    2005 Prius
    Model:
    One
    This is very impressive! Id like to have projector headlights, but Im driving a base trim with halogen headlights. The projector ones would fit right in I guess... Couldnt find any on ebay tho...

    #12 derBara, Aug 23, 2015
  13. Justdidit

    Justdidit LVNPZEV

    Joined:
    Jun 12, 2012
    1,880
    708
    75
    Location:
    Carrollton, Texas
    Vehicle:
    2007 Prius
    Model:
    Four Touring
    I sure hope you don't expect anything but looks from the eBay ones: 04 05 06 07 08 09 Toyota Prius CCFL Halo Angel Eye Black Projector Headlights | eBay

    They may 'look' like an improvement but they will never compare to a true retrofit like Evan's or many others who have spent the time and effort ...and $$$ to do it the best way. Here is a thread about the quality and their install of the eBay projectors.. Projector Headlights from eBay for the Gen II | PriusChat

    Yuck.. very narrow beam
    [​IMG]

    YUMM!!

    [​IMG] [​IMG] [​IMG]
    [​IMG]

    #13 Justdidit, Aug 24, 2015
  14. Mokujon

    Mokujon New Member

    Joined:
    Oct 21, 2015
    1
    0
    0
    Location:
    Milwaukee WI
    Vehicle:
    2006 Prius
    Model:
    II
    Very nice. Car looks great. Looking to do a retrofit soon too.

    #14 Mokujon, Oct 21, 2015
  15. OGGIE50

    OGGIE50 Member

    Joined:
    Mar 9, 2014
    94
    42
    0
    Location:
    San Diego
    Vehicle:
    2008 Prius
    Model:
    N/A

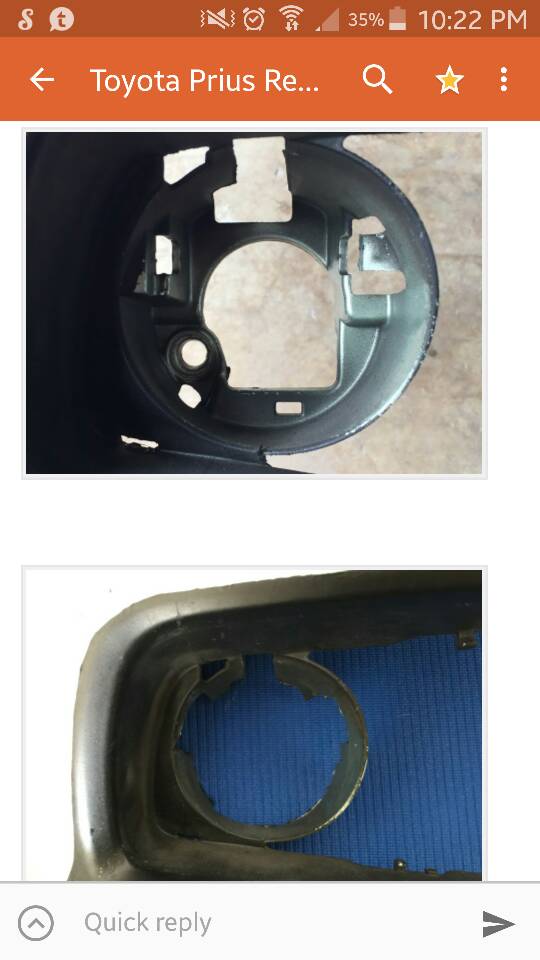

    i really want to see how you mounted the DOT lights cause, i have a set ready to GO IN!! Help a brother out!! Lol

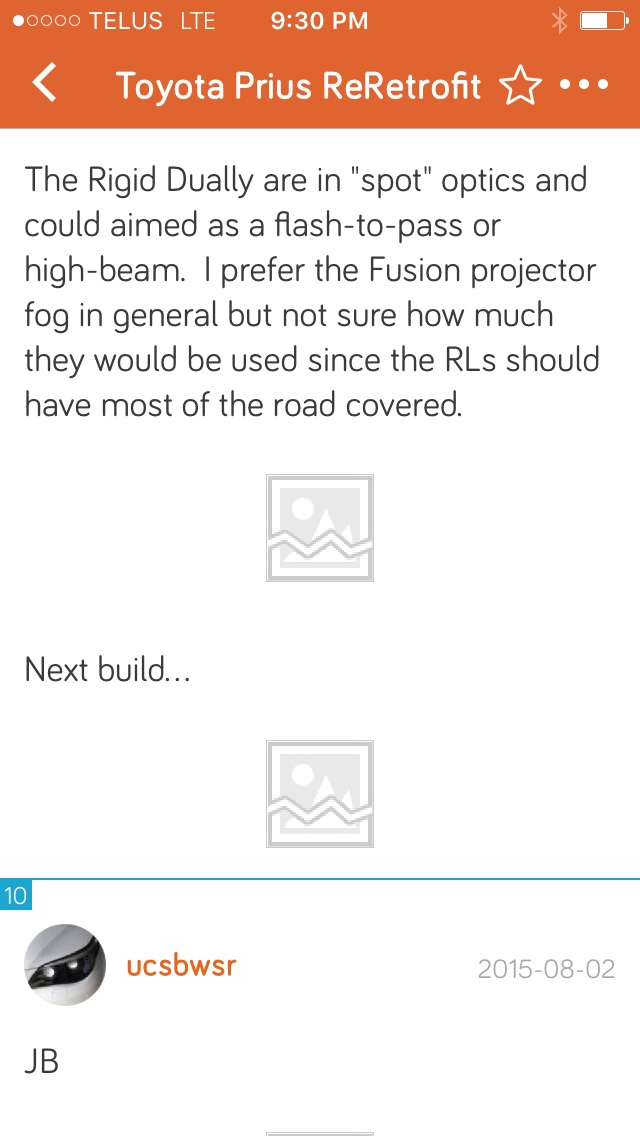

    None of the HID Planet links would work for me, even after i signed in.

    #15 OGGIE50, Nov 15, 2015
  16. ucsbwsr

    ucsbwsr Active Member

    Joined:
    May 28, 2014
    105
    145
    0
    Vehicle:
    2008 Prius
    Model:
    Plug-in Base
    If you are referring to my Rigid fogs, they are not the dot certified ones, just regular Duallys. Interesting that the photos don't work, what does it say?

    Evan

    #16 ucsbwsr, Nov 17, 2015
  17. OGGIE50

    OGGIE50 Member

    Joined:
    Mar 9, 2014
    94
    42
    0
    Location:
    San Diego
    Vehicle:
    2008 Prius
    Model:
    N/A
    I don't have enough posts to see your jpg on that page. Could you send me an invite to your picasa page?

    I have 2 sets of Rigid DOT's as we speak, Need to install in my Prius Lol

    PM me an invite to see your pics.

    PS: If you/anyone wants any Rigid Industries products i'm an authorized dealer and i can dropship.

    #17 OGGIE50, Nov 18, 2015
