Help connect OEM reverse camera to aftermarket radio

Discussion in 'Gen 3 Prius Audio and Electronics' started by Rob adame, Aug 9, 2021.

  1. Rob adame

    Rob adame New Member

    Joined:
    Aug 9, 2021
    2
    0
    0
    Location:
    Los Angeles
    Vehicle:
    2013 Prius
    Model:
    Two
    I just installed an aftermarket radio and have been having trouble figuring out how to retain my back up camera.I have been do a lot of research and they have been helpful on what I need but never give me enough confidence to snip wires.

    I have bought a 12v to 6v step down and a RCA cable.

    I located the camera harness (16 pins with 5 wires) but I can’t find any diagrams on what those wires are. I’ve also been trying to find the reverse trigger wire because most tutorials say I need it.

    I attached a pdf / photo with all the wire diagrams I have, can someone help me figure out how to do this?

    btw: I have a 2013 Prius not JBL with nav


    Attached Files:

  2. Rob adame

    Rob adame New Member

    Joined:
    Aug 9, 2021
    2
    0
    0
    Location:
    Los Angeles
    Vehicle:
    2013 Prius
    Model:
    Two
    Update: I have figured out how most of the process but I still cannot figure out what the wire colors in the camera harness are. There are two red wires, an orange, a white, and black wire. A total of 5 wires in a 16 pin connector, all the forms I see only talk about 4 wires.

  3. prius2010II

    prius2010II Member

    Joined:
    Aug 19, 2010
    269
    23
    0
    Location:
    us
    Vehicle:
    2010 Prius
    Model:
    III
    Metra sells a cable adapter which will let you use a factory camera with an aftermarket HU.

    Montgomery likes this.
  4. rickster26ter

    rickster26ter New Member

    Joined:
    May 21, 2023
    6
    0
    0
    Location:
    Greensboro, NC 27455
    Vehicle:
    2012 Prius
    Model:
    III
    @Rob adame - did you ever figure this out? My car is the same wiring, no yellow wire on that 16 pin connector.

  5. Montgomery

    Montgomery Senior Member

    Joined:
    Sep 11, 2015
    2,254
    2,238
    2
    Location:
    Orange County, CA
    Vehicle:
    2015 Prius
    Model:
    Two
    I would suggest to you both that you get an aftermarket harness. It eliminates the guess work.

  6. Montgomery

    Montgomery Senior Member

    Joined:
    Sep 11, 2015
    2,254
    2,238
    2
    Location:
    Orange County, CA
    Vehicle:
    2015 Prius
    Model:
    Two

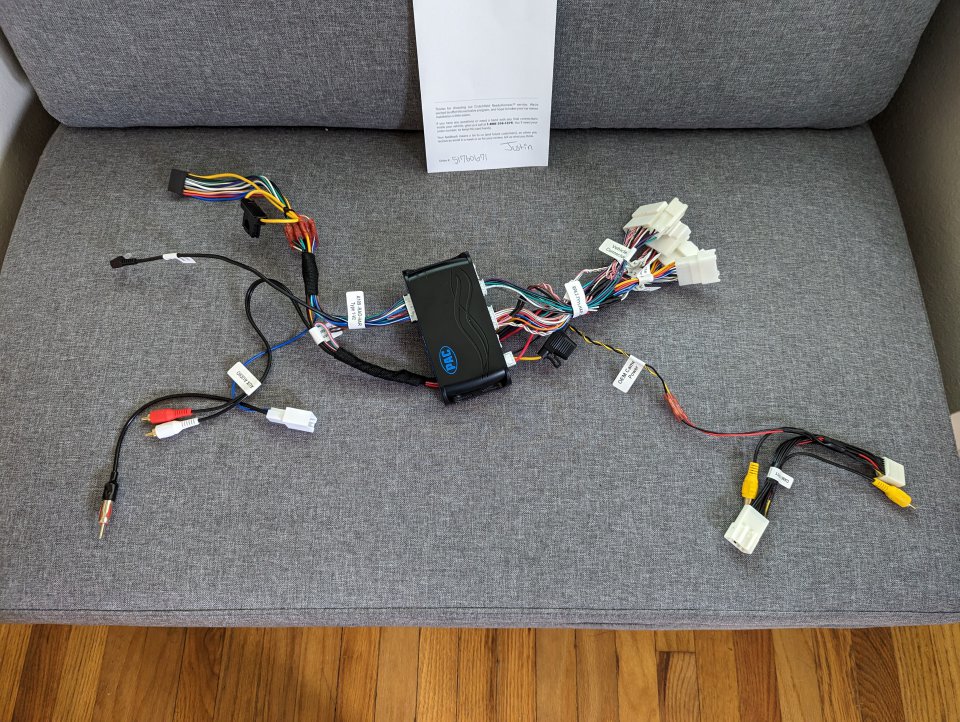

    Here is what I am talking about. One end plugs into the new Head Unit, the other into all the old wires. That was it. Everything worked. Steering wheel buttons and reverse camera.
    [​IMG]

  7. thelast1

    thelast1 New Member

    Joined:
    Jun 21, 2024
    1
    0
    0
    Location:
    Virginia
    Vehicle:
    2015 Prius
    Model:
    Persona
    Where did you buy this harness from?

  8. amarino

    amarino Member

    Joined:
    Mar 13, 2018
    99
    75
    87
    Location:
    California
    Vehicle:
    2015 Prius
    Model:
    Two
    The one in the picture looks like it is this from PAC:
    https://www.crutchfield.com/p_541RP4TY11/PAC-RP4-2-TY11-Wiring-Interface.html

    And you also need the camera adapter harness:
    https://www.crutchfield.com/p_541CAMTY11/PAC-CAM-TY11-Backup-Cam-Adapter.html

    Another brand to do the same thing is iDatalink:
    https://www.crutchfield.com/p_794ADSMRR/iDatalink-Maestro-RR-Interface-Module.html
    https://www.crutchfield.com/p_794HRRTO1C/iDatalink-HRN-HRR-TO1-Vehicle-specific-Harness-ADS-MRR-or-ADS-MRR2-module-also-required.html

    Please do your own research to confirm fitment for your exact car. Above is just an example.

    thelast1 likes this.
