hi 2007 prius here. fuse box

Discussion in 'Gen 2 Prius Care, Maintenance and Troubleshooting' started by daveyboy, Jul 5, 2018.

  1. daveyboy

    daveyboy Junior Member

    Joined:
    Jul 28, 2009
    56
    10
    0
    Location:
    nj
    Vehicle:
    2007 Prius
    Model:
    N/A
    could someone post a picture of their fuse box
    i am trouble shooting the cigarette lighter outlet
    in the passenger leg area

  2. JC91006

    JC91006 Senior Member

    Joined:
    Nov 10, 2013
    13,952
    6,635
    0
    Location:
    Los Angeles, CA
    Vehicle:
    2010 Prius
    Model:
    V
    there are 2 fuse boxes, one in the engine compartment by the driver's fender, one inside where you are already looking.

  3. ITBland

    ITBland Active Member

    Joined:
    Jun 22, 2017
    433
    254
    3
    Location:
    New Orleans, La area, US
    Vehicle:
    2011 Prius
    Model:
    Three
    Here is the picture from pg 435 of the Owner's Manual (Download the Owner's Manual from Toyota):
    Here is a better picture from the wiring diagram:
    AND...there is a relay for the front power outlet under the front, left corner of the dash.

    Raytheeagle and JC91006 like this.
  4. daveyboy

    daveyboy Junior Member

    Joined:
    Jul 28, 2009
    56
    10
    0
    Location:
    nj
    Vehicle:
    2007 Prius
    Model:
    N/A
    thanks for the replies checking box now....

    ITBland and Raytheeagle like this.
  5. daveyboy

    daveyboy Junior Member

    Joined:
    Jul 28, 2009
    56
    10
    0
    Location:
    nj
    Vehicle:
    2007 Prius
    Model:
    N/A
    embarrassed, i have been looking under the hood for 10 years under hood, where is other one?

  6. ITBland

    ITBland Active Member

    Joined:
    Jun 22, 2017
    433
    254
    3
    Location:
    New Orleans, La area, US
    Vehicle:
    2011 Prius
    Model:
    Three
    #6 ITBland, Jul 7, 2018
    Last edited: Jul 7, 2018
    edthefox5 likes this.
  7. ITBland

    ITBland Active Member

    Joined:
    Jun 22, 2017
    433
    254
    3
    Location:
    New Orleans, La area, US
    Vehicle:
    2011 Prius
    Model:
    Three

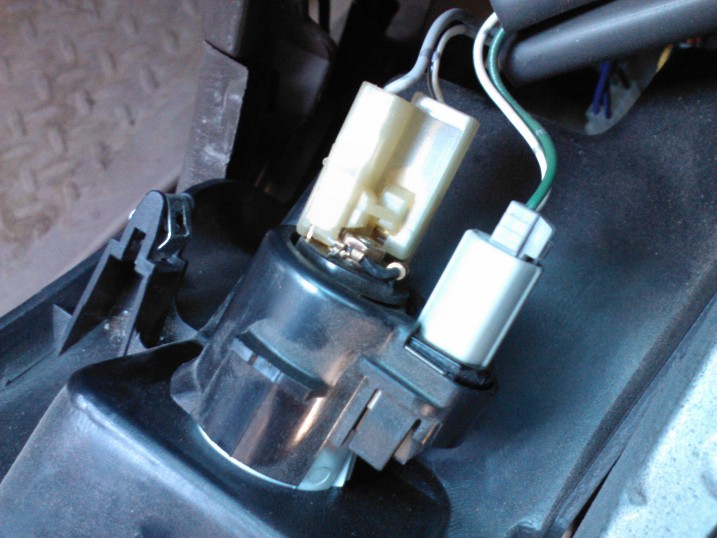

    Oh, if the fuses check OK, get a meter (or test light) and see if you have power to the plug in the back of the power outlet. There is a small fusible link made into the outlet that may have blown. If you look closely at this picture, you can see it on the back of the outlet.
    [​IMG]
    (Thanks to @shanecrow99 and this post: power outlet fuse location, for the reminder.)

  8. edthefox5

    edthefox5 Senior Member

    Joined:
    Jul 25, 2007
    7,415
    3,145
    0
    Location:
    Clearwater, Florida
    Vehicle:
    2007 Prius
    Model:
    Two
    No blown fuse the socket is bad. Replaced my front one twice in the last 11 years. Real PIA!

    padroo likes this.
  9. daveyboy

    daveyboy Junior Member

    Joined:
    Jul 28, 2009
    56
    10
    0
    Location:
    nj
    Vehicle:
    2007 Prius
    Model:
    N/A
    found the blown fuse in interior panel got a new 15 amp fuse but is has to be a smaller shallower version.
    thanks for all the helpful info!
    Still could use a foto of anyones simliar 2007 prius int and ext fuse boxes.....

  10. ITBland

    ITBland Active Member

    Joined:
    Jun 22, 2017
    433
    254
    3
    Location:
    New Orleans, La area, US
    Vehicle:
    2011 Prius
    Model:
    Three
    Yes, always a rude surprise:confused:, they use the Low Profile mini fuse.
    Try THIS (LMGTFY)
