How to connect front door speakers?

Discussion in 'Gen 3 Prius Audio and Electronics' started by Wouter73, Mar 19, 2020.

  1. Wouter73

    Wouter73 Junior Member

    Joined:
    Jan 1, 2018
    14
    0
    0
    Location:
    Netherlands
    Vehicle:
    2007 Prius
    Model:
    II
    Hello everyone,

    I was able to install a new android radio unit with everything working except for the front door speakers. I do have them in my door so they should work. By removing the door panel l was able to see that l had to look for a pink and purple wire, you can see in the picture l found the connector with the matching wires. It was plugged into the blue connector you see on the left. (I unplugged it to get a better look). When connected corrrectly is that the way the door speakers should work? I can't see how the connection is supposed to be connected to the radio
    Or, do l need a separate wiring 'bit' to connect the white plug directly into the back of the radio unit? Any help much appreciated!

    Edit.. when the white/blue plugs are connected the tweeters on top of the dash work but the speakers in the door (still) won't




    IMG_20200319_161042.jpg IMG_20200319_161014.jpg

    #1 Wouter73, Mar 19, 2020
    Last edited: Mar 19, 2020
  2. h3x

    h3x Junior Member

    Joined:
    Jul 13, 2020
    8
    6
    0
    Location:
    Poland
    Vehicle:
    2011 Prius
    Model:
    Premium w/ Solar Cells
    Have you solved it already? I have exactly the same problem.

  3. DJ Q

    DJ Q Junior Member

    Joined:
    Feb 7, 2018
    52
    24
    0
    Location:
    Trinidad & Tobago
    Vehicle:
    2013 Prius
    Model:
    N/A
    Are you using stock or aftermarket speakers?

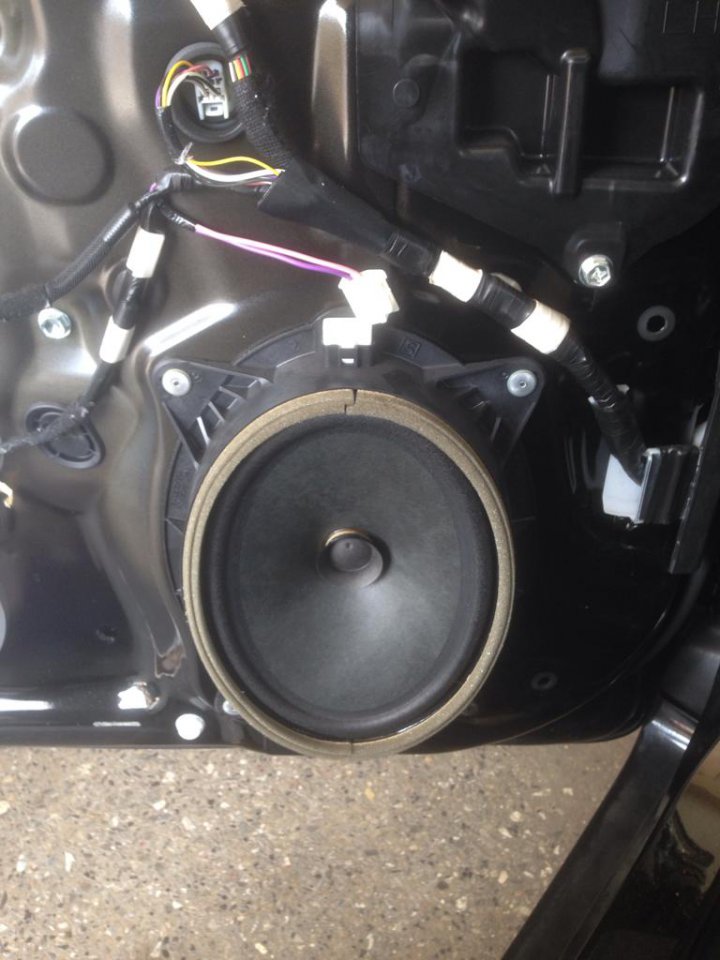

    If stock, the speaker connection goes directly to the top of the speaker as shown here:

    [​IMG]

  4. hoffeck

    hoffeck Member

    Joined:
    Sep 22, 2020
    41
    52
    0
    Location:
    Germany
    Vehicle:
    2010 Prius
    Model:
    N/A
    I had the same problem.
    The door speakers have their own amplifier. This needs extra voltage.
    Pin 9 of the first plug is the connection you need to connect 12 volts when the radio is switched on.

    TOYOTA_CQ_TS7471A__86120_12880_car_stereo_wiring_diagram_harness_pinout_connector.jpg

    h3x likes this.
  5. Evoking

    Evoking Junior Member

    Joined:
    Aug 6, 2020
    91
    16
    0
    Location:
    Pomona
    Vehicle:
    2010 Prius
    Model:
    Base
    I just got my android radio put in on my 2010 gen 3 but I didn’t have this problem maybe it’s just the harness your using

  6. h3x

    h3x Junior Member

    Joined:
    Jul 13, 2020
    8
    6
    0
    Location:
    Poland
    Vehicle:
    2011 Prius
    Model:
    Premium w/ Solar Cells
    The problem is, when you have European version of JBL, with Fujitsu Ten amplifier.
    Like hoffeck, say.

    Photos prepared for "my friend" from China ;)


    Attached Files:

    • 1.jpg
      File size:
      97.7 KB
      Views:
      0
    • 2.jpg
      File size:
      102.4 KB
      Views:
      0
    • 3.jpg
      File size:
      102.1 KB
      Views:
      0
    SFO likes this.
