How to remove this panel? Want to add 12 volt power outlet.

Discussion in 'Gen 4 Prius Accessories and Modifications' started by JStrenk, May 10, 2019.

  1. JStrenk

    JStrenk Member

    Joined:
    Nov 29, 2011
    197
    97
    0
    Location:
    Ravenna
    Vehicle:
    2016 Prius
    Model:
    Two

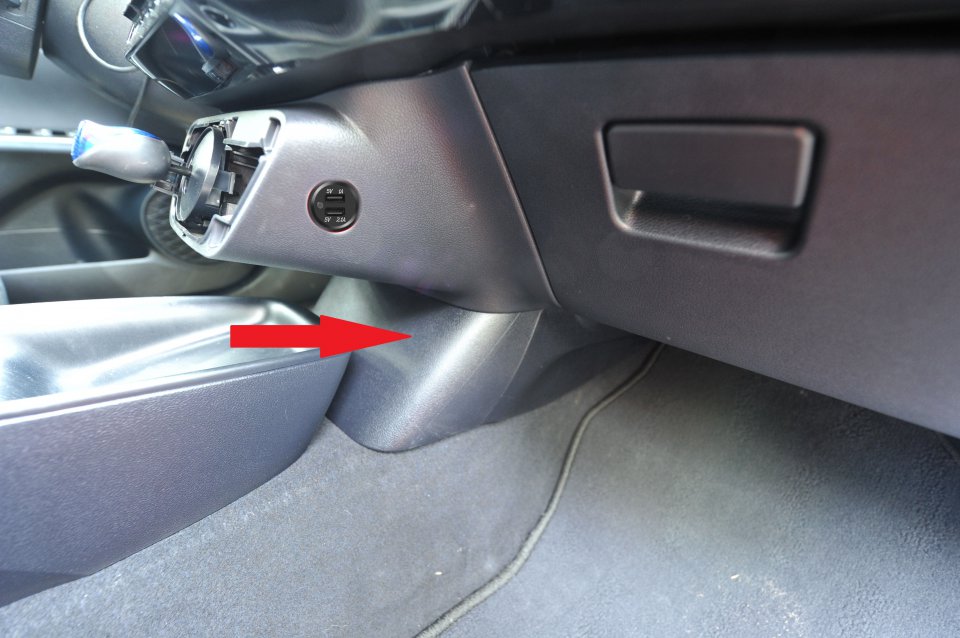

    I'm thinking od adding some more poower ports and this panel looked like a good place.
    How does one remove it?

    [​IMG]

    #1 JStrenk, May 10, 2019
  2. Plus IV

    Plus IV LowGen4

    Joined:
    Dec 2, 2011
    451
    397
    0
    Location:
    Ladera Ranch, Ca
    Vehicle:
    2016 Prius
    Model:
    Four Touring
    Just a slight tug to release the clips. If you have a panel removal tool, it’s very easy.


    2016 Prius 4 Touring
    IG - LowGen4
    Megan Racing Coilovers
    Niche Targa 18x8

    #2 Plus IV, May 10, 2019
  3. JStrenk

    JStrenk Member

    Joined:
    Nov 29, 2011
    197
    97
    0
    Location:
    Ravenna
    Vehicle:
    2016 Prius
    Model:
    Two
    Thanks, I was hoping it was that easy.

    #3 JStrenk, May 10, 2019
  4. JStrenk

    JStrenk Member

    Joined:
    Nov 29, 2011
    197
    97
    0
    Location:
    Ravenna
    Vehicle:
    2016 Prius
    Model:
    Two
    IMG_7427.JPG IMG_Power.jpg IMG_usb01.JPG IMG_USB02.JPG IMG_7427.JPG IMG_Power.jpg IMG_usb01.JPG IMG_USB02.JPG Well I pulled that panel off and there is a big heat duct behind there. Not much room for a power plug.

    Decided to put it into the center consol where it would not be in the way. They fit nicely behind the knee.

    There is a USB plug on the passenger side and a 12 volt power plug on the drivers side.

    All I need now is a place to hook up some power. Found this fuse box under the dash and wonder if i can tap into that. The power outlets have their own fuses.
    Kind of miss having the battery in the back all of the sudden.

    #4 JStrenk, May 16, 2019
    Last edited: May 16, 2019
  5. JStrenk

    JStrenk Member

    Joined:
    Nov 29, 2011
    197
    97
    0
    Location:
    Ravenna
    Vehicle:
    2016 Prius
    Model:
    Two
    How do you replace these fuses?

    #5 JStrenk, May 16, 2019
  6. Elektroingenieur

    Elektroingenieur Senior Member

    Joined:
    Jan 8, 2017
    2,264
    3,027
    9
    Location:
    California
    Vehicle:
    2016 Prius
    Model:
    Three Touring
    To replace the 30-ampere POWER (power window), P/SEAT (power seat), or S/ROOF (sliding roof, i.e., moonroof) fuses on the side of the Instrument Panel Junction Block Assembly, you could remove the entire assembly using the procedures in the Repair Manual (more info) for removing and installing the Main Body ECU. The remaining fuse position is not used on Prius cars.

    If I had to replace one myself, though, I might crawl under the instrument panel and then gently remove the fuse using bent-nose pliers. Since the Lower No. 1 Instrument Panel Airbag Assembly is nearby, I’d disconnect the negative terminal of the auxiliary (12-volt) battery and wait at least 90 seconds before starting work.

    The replacement fuse is Toyota part number 90982-08306, the Pacific Engineering Corp. SFBC-M series (PDF).

    #6 Elektroingenieur, May 17, 2019
