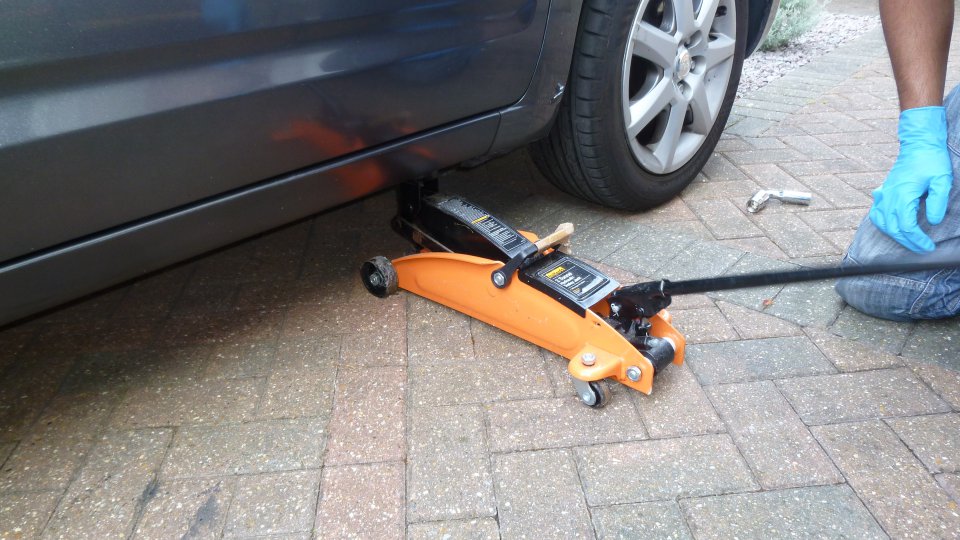

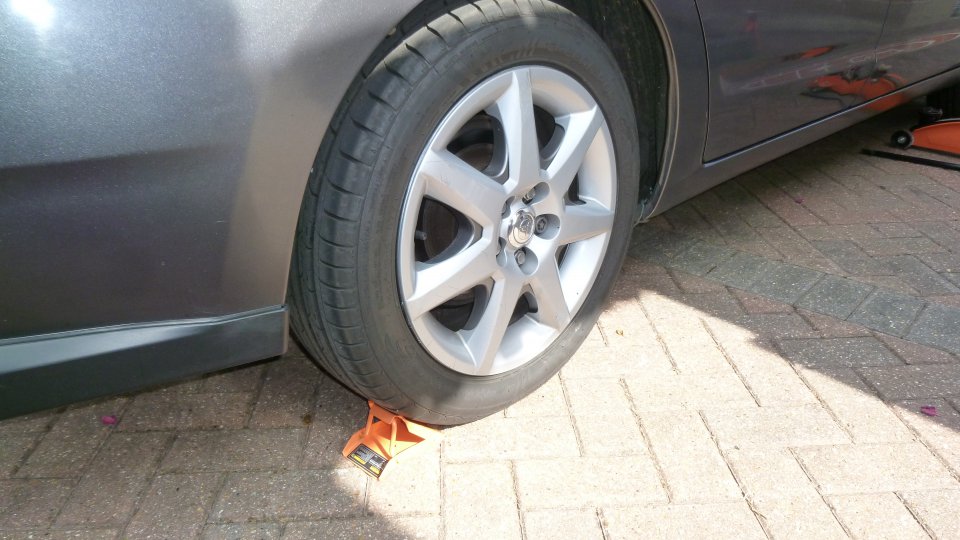

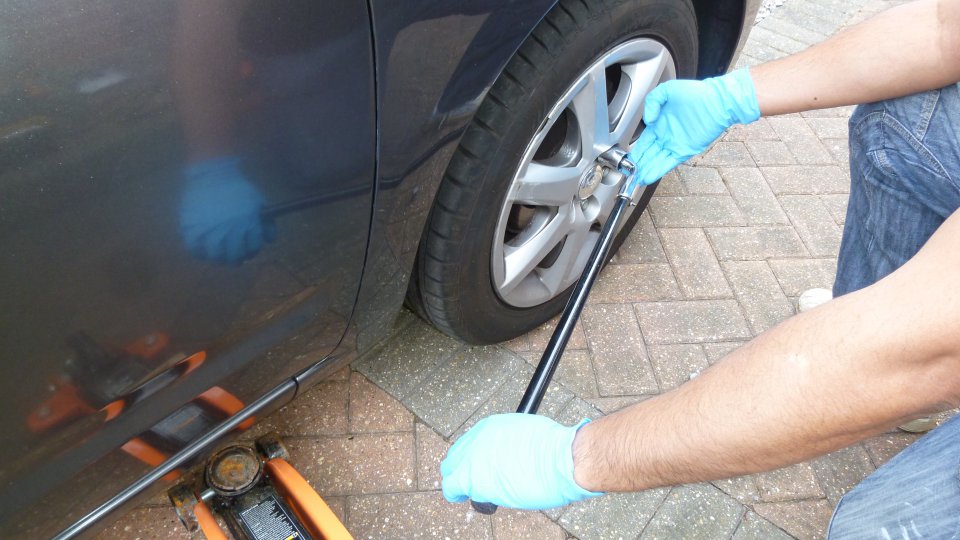

HOW TO : Replace Front Brake Pads and Discs (Rotors) Prius Gen 2

Discussion in 'Gen 2 Prius Care, Maintenance and Troubleshooting' started by prius-walla, Jul 26, 2013.

  1. Mylar

    Mylar Member

    Joined:
    Mar 25, 2010
    163
    33
    0
    Location:
    Cincinnati, OH
    Vehicle:
    2019 Prius
    Model:
    Limited

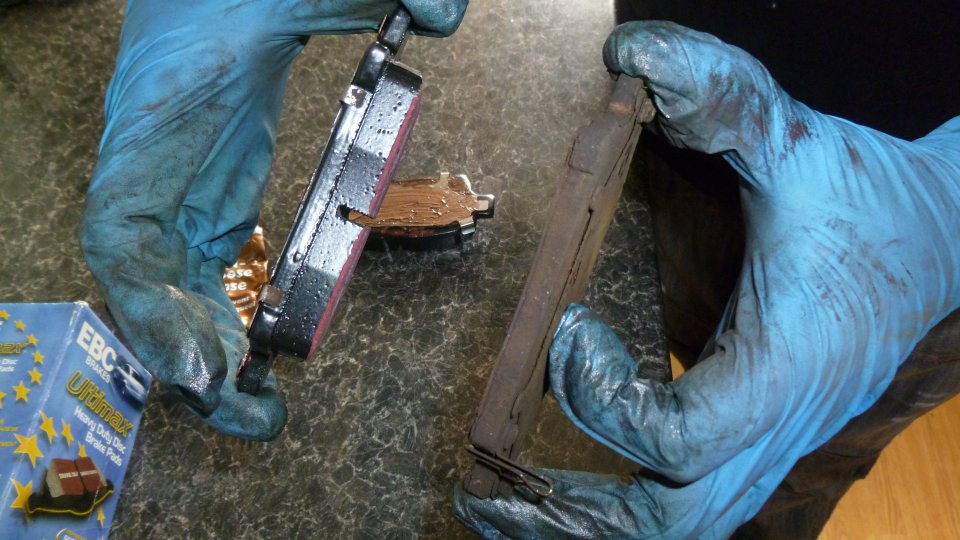

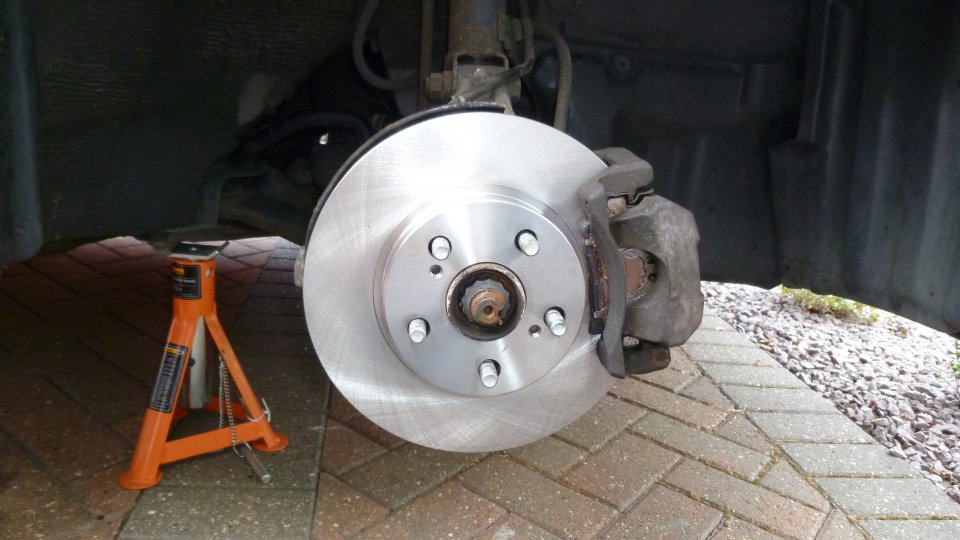

    Thanks for the write-up on changing the front disk brake pads and rotors! I just replaced both pads and rotors on my 2006 Prius for the first time at 132K miles. The job went fairly smooth. The only issue I had was getting both top bolts out of the brake pad mounts in order to remove the rotors. As an FYI, I did not remove the battery cable nor did I remove the fuses and I had no problems with warning lights when I started the car up once I was finished with the job. Here are a few pics.[​IMG][​IMG]

  2. Britprius

    Britprius Senior Member

    Joined:
    Jun 14, 2010
    5,194
    1,914
    0
    Location:
    Herefordshire England
    Vehicle:
    2008 Prius
    Mylar, the reason for disconnecting the battery, or removing the relays is not to stop the car giving warning lights. The reason this is done is for safety to prevent crushed fingers, and to prevent the pistons from being ejected requiring the brakes to be bled. This is the reason Toyota call for this in the procedure. It does not guarantee fault codes will not be issued.
    These problems will not arise every time work is carried out on the brakes, but there is a strong possibility. Doing the work without carrying out the correct method is to say the leased foolish, but it is your car, and hands so you may do as you wish. However telling people that the recommendations are not required is not doing them any favors, and could be putting them at risk of injury.

    John (Britprius)

  3. edthefox5

    edthefox5 Senior Member

    Joined:
    Jul 25, 2007
    10,096
    4,802
    0
    Location:
    Clearwater, Florida
    Vehicle:
    2007 Prius
    Model:
    Two
    Very nice. I also flush out the holes in the caliper body. If you don't newly greased pins will just pick up all the rust and dirt that's in the caliper hole. That's the trick to making Napa & Auto parts stores rebuilt calipers last. There's so much slag and crap in those reman holes they never clean it out and a bath won't get it. Have to use a gun bore brush. Makes for a nice clean pin hole when your done. Happy clean & greased pins make for perfect brakes.

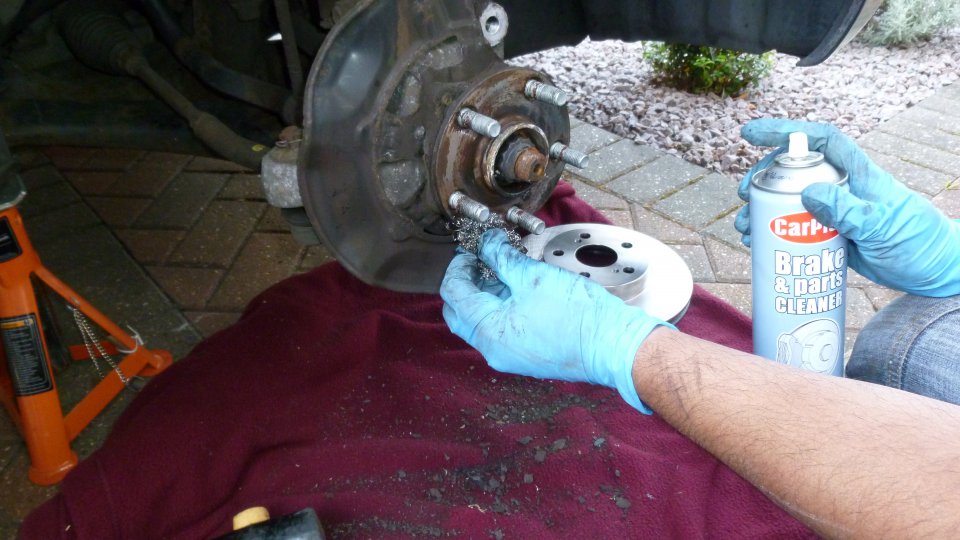

    That and I would have applied grease to the hub mating surface as you roughed up the rust and that will just make it rust faster. I also apply grease to the mating surface to hub area of the tire. Just don't get outside of the rim and the hub & tire seal it permanently no grease leak out. When I go to put the tire back on I take out the center cover of the mag. After tire on I fill that hole up with synthetic grease and then put the cap back on. No leak out either.
    Keeps hub castle nut from rusting and tire comes right off next time.

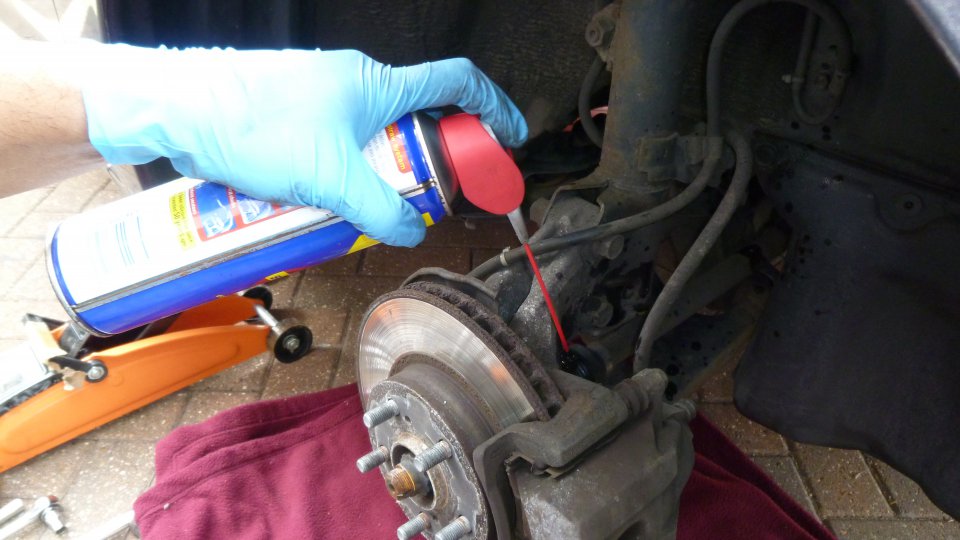

    Better off using PB Blaster on a stuck bolts. That's the best penetrating oil and made for that purpose.
    Blaster 11 oz. Penetrating Catalyst Lubricant-16PB-THD at The Home Depot

    And all that suspension running gear can be kept from rusting by just spraying some grease on all those bolts and suspension parts. CSP spray made by PB Blaster is made for that and an excellent product. And use Black Magic Protectant rubber conditioner on all 4 cv boots and they'll last forever.
    Blaster Corrosion Stop Protectant - PB Blaster

  4. R-P

    R-P Active Member

    Joined:
    Dec 6, 2011
    804
    288
    0
    Location:
    Netherlands
    Vehicle:
    2009 Prius
    Model:
    II
    Excellent write up!!! Just did this (and a wheel bearing) yesterday with your first thread printed out as my guide!

    Some strange loud beeping scared the begeezes out of me when finally starting the car up again...

    Turned out to be the aftermarket radio complaining about loosing the station memory... :)

  5. HTMLSpinnr

    HTMLSpinnr Super Moderator
    Staff Member

    Joined:
    Dec 8, 2003
    5,339
    917
    251
    Location:
    Surprise, AZ (Phoenix)
    Vehicle:
    2018 Tesla Model 3
    Model:
    N/A
    Because forcing dirty fluid back into the system is rarely a good idea (you force any air, water, and contaminants back up the line), I was of the impression that opening the bleed screw before pushing the piston back was the better approach. I know this is the procedure for cars with ABS motors as well.

  6. FlyboyTR

    FlyboyTR Member

    Joined:
    Nov 23, 2010
    83
    56
    0
    Location:
    Mobile, AL
    Vehicle:
    2012 Prius v wagon
    Model:
    Three

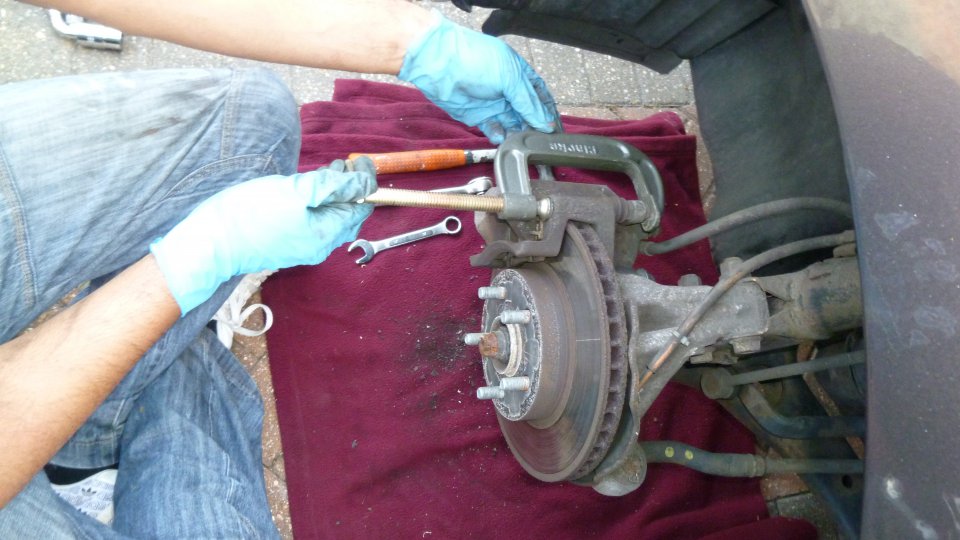

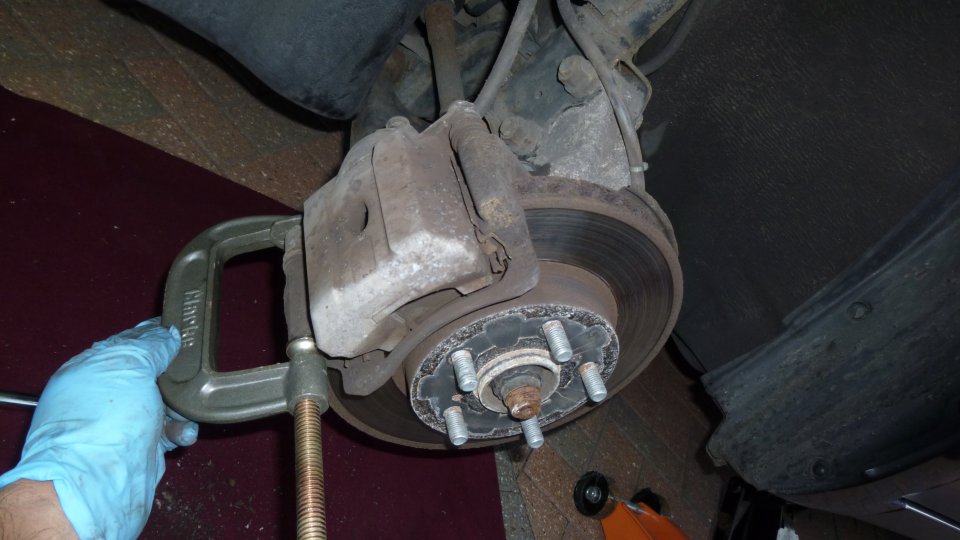

    It was brake time... I am no stranger to doing a brake job. However, while trying to push the brake caliper piston back in using my trusty C-clamp, something happened. There was a snap or crack...like hard plastic broke. After searching locally I was able to get a new reman caliper overnighted. What I discovered is that my piston is not metal/steel, it is some type of phenolic resin. That was why is cracked. I don't know if all Gen 2's have this, but if so, I would recommend putting a pad over the piston and apply pressure to the pad, rather than directly to the back of the piston. This was a first for me!

    prius-walla likes this.
  7. Britprius

    Britprius Senior Member

    Joined:
    Jun 14, 2010
    5,194
    1,914
    0
    Location:
    Herefordshire England
    Vehicle:
    2008 Prius
    Unless you have the VCI with Tech stream it is not a good idea with the Prius to open any part of the hydraulic circuit.
    The hydraulic circuit is not like any other cars with ABS motors.
    Below is the circuit With 10 electrically operated solenoids, and 7 pressure sensors. If any of the sensors see low pressure a brake fault code is issued, and this occurs if a bleed screw is opened. Techstream is required to bleed the brakes correctly (all lines and valves). There is a work around but this does not bleed all of the lines, and risks leaving air in the system. That in turn can lead to noisy operation (barking) when the brakes are applied.
    Remember this is also part of the stability control system.

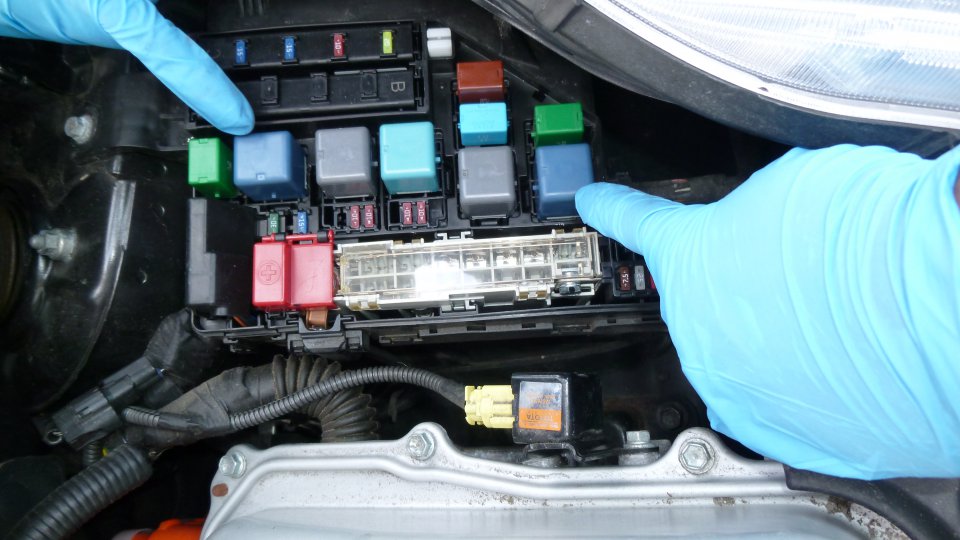

    It is also not a good idea to work on the brakes without removing the two light blue relays in the fuse box as called for in the Toyota workshop manual. Disconnecting the 12 volt battery as a backup is good practice although not called for in the manual.
    .brake map.jpg

    John (Britprius)

  8. Iannini George

    Iannini George New Member

    Joined:
    Oct 22, 2014
    7
    1
    0
    Vehicle:
    2009 Prius
    Model:
    II

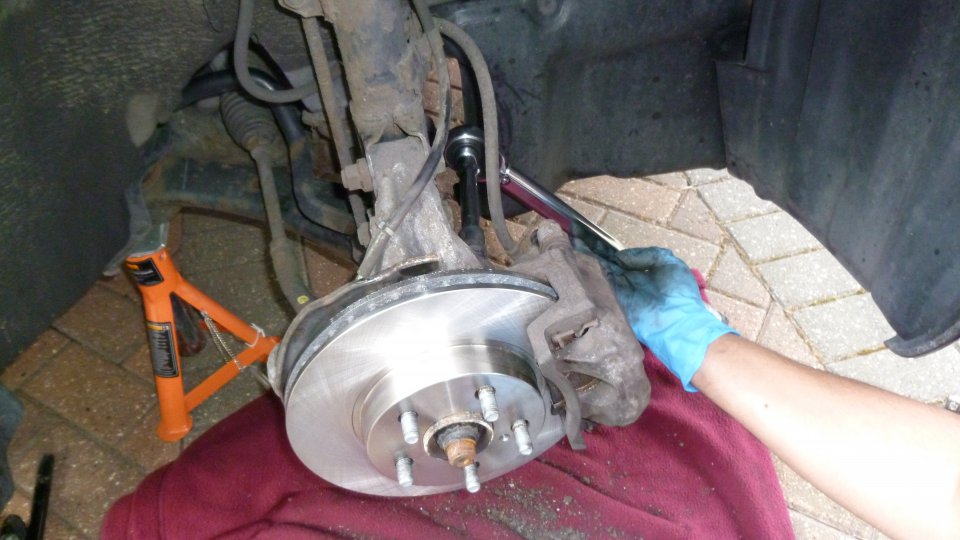

    Fantastic detailed procedure for replacing discs and rotors in Prius 2009. One note of caution for others. The two 17 mm caliper mounting bolts can be a real problem to remove. Two reasons are rust and use of blue permatex thread locking compound or worse. I have not been able to get them off and have used WD40, PB Blaster etc. Have also failed w breaker bars and extenders. Tried using my car jack as a tool to exert more force on the socket. Lastly, used MAP torch on bolts multiple times. All have failed. Tomorrow I am going to try the MAP followed by use of a Twin action 750 ft lb impact hammer/drill. Will let you know if it works.

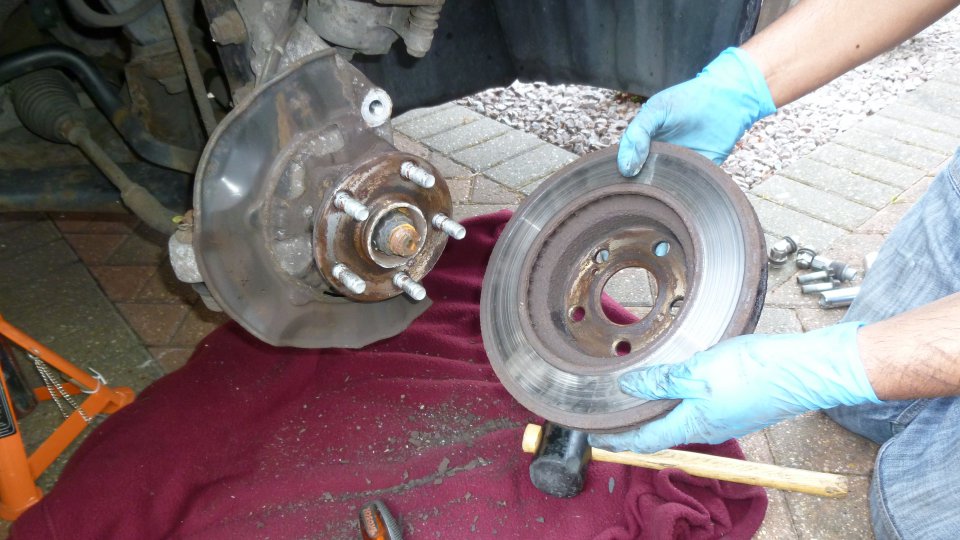

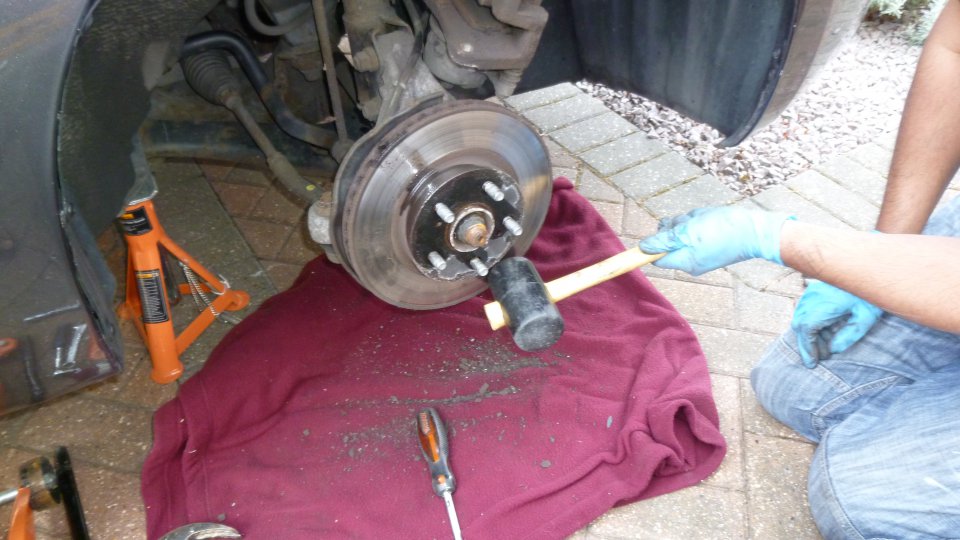

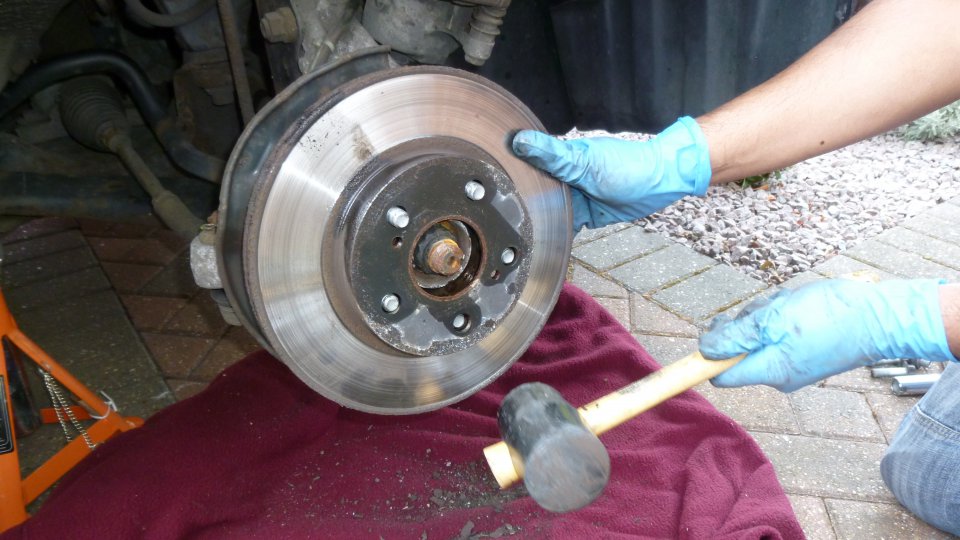

    As far as getting the rotor off. There are two small screw holes 6mm reported by another post that allows you to get it off without using a rubber mallet. My only question is what is the threading in TPIs (number of threads per inch?).
    Again thanks for a great teaching lesson.

  9. Mendel Leisk

    Mendel Leisk Senior Member

    Joined:
    Oct 17, 2010
    55,335
    38,587
    80
    Location:
    Greater Vancouver, British Columbia, Canada
    Vehicle:
    2010 Prius
    Model:
    Touring
    It's m8x1.25.

    Some bugger musta used loctite on the caliper bolts, that's strange.

  10. FlyboyTR

    FlyboyTR Member

    Joined:
    Nov 23, 2010
    83
    56
    0
    Location:
    Mobile, AL
    Vehicle:
    2012 Prius v wagon
    Model:
    Three
    OK....well obviously I messed up. I failed to do solid research before working on the brake system. I failed to disconnect the battery before starting, that caused, at some point the brake system to push the piston out...then I broke the piston trying to push it back in, then had to replace the caliper. Now I have Traction Control, ABS, VSC and Brake lights on. I have tried some of the fixes reported in several places, including the paperclip trick to reset everything... no joy. It looks like I may be stuck taking it to the dealer. I am not happy about this...but even worse, I'm not happy because I caused the problem by not fully researching the persnickety brake system on the Prius. ...sigh.......

  11. Britprius

    Britprius Senior Member

    Joined:
    Jun 14, 2010
    5,194
    1,914
    0
    Location:
    Herefordshire England
    Vehicle:
    2008 Prius
    Sorry to hear your woes with the braking system, but you can still fix this without going to the dealer.
    Purchase a mini VCI with Techstream, and bleed the brakes the correct way. There is a walk through for this within Techstream. This will also enable you to clear any fault codes.
    You will then have the equipment for further use not just on your Prius, but any Toyota, and it should also work for engine problems on any OBD2 compliant car. At around $25 it is going to be cheaper than the dealer, and give you the satisfaction of solving the problem.

    John (Britprius)

    Daves09prius and SageBrush like this.
  12. Iannini George

    Iannini George New Member

    Joined:
    Oct 22, 2014
    7
    1
    0
    Vehicle:
    2009 Prius
    Model:
    II
    Thank you for giving the exact metric on the pre-drilled holes that allow you to easily remove the rotor.
    Was finally able to get 17 mm caliper mounting bolts off w a dual impact hammer/torque wrench rated at max to 750 ft lbs. There wasn't any blue loctite and they were very clean for bolts in a 5 yr old car.
    Question - Do you know any easy was to get the 4 x's 14mm axle bolts off. The flange of axle boot band does not allow any impact or the hundreds of other sockets to engage the bolt heads. Maddening job and very poor engineering IMHO. Thx
    George

  13. Six7390GT

    Six7390GT Junior Member

    Joined:
    Jan 9, 2011
    13
    2
    0
    Location:
    Washington State
    Vehicle:
    2005 Prius
    Model:
    N/A
    Used this post for a front rotor and pad change at 154K, including the suggestion from Britprius to leave the cap on the master cylinder. It's not any different from standard brakes once you follow the initial procedures in this post. I would add that the ABS motor relays are just pressed in. Mine were pretty tight and required more force to get out than I thought prudent.

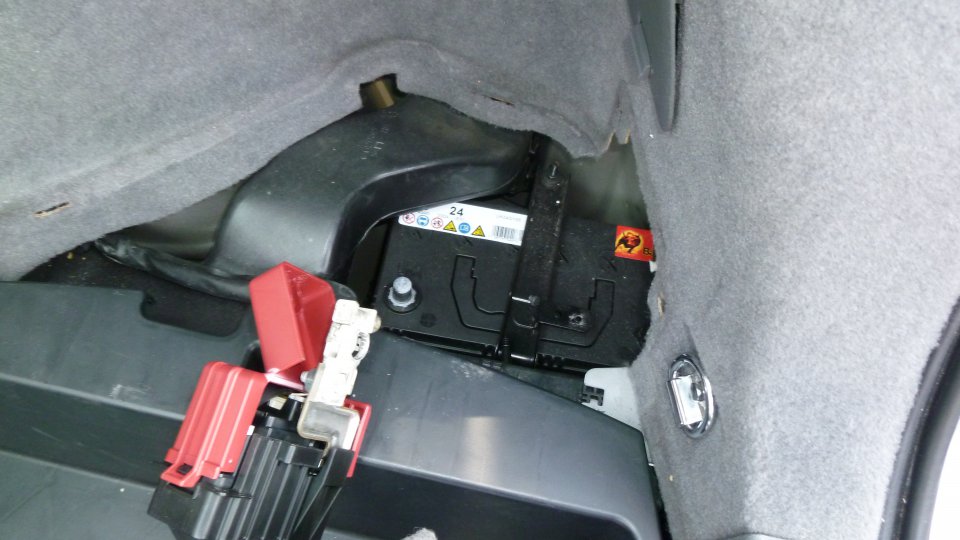

    Also, after disconnecting my 12V battery, I allowed the rear hatch to partially latch. I had to crawl in thru the back seats to release it so I could hook the battery back up.

  14. Mendel Leisk

    Mendel Leisk Senior Member

    Joined:
    Oct 17, 2010
    55,335
    38,587
    80
    Location:
    Greater Vancouver, British Columbia, Canada
    Vehicle:
    2010 Prius
    Model:
    Touring
    ^ A pair of of heavy, insulated rubber gloves comes in handy with the 12 volt: stuff the battery's negative cable into one, and lay the other across the hatch latching mechanism.

    prius-walla likes this.
  15. R-P

    R-P Active Member

    Joined:
    Dec 6, 2011
    804
    288
    0
    Location:
    Netherlands
    Vehicle:
    2009 Prius
    Model:
    II
    I thought you were going to say something about needing thick insulated gloves for 12V :ROFLMAO:

    Your advice sounds excellent (y)

  16. marxatax

    marxatax Junior Member

    Joined:
    Mar 31, 2012
    4
    2
    0
    Location:
    Pacific
    Vehicle:
    1999 Prius
    Model:
    N/A
    This description is good for Gen 1 Prius as well. When freeing the piston with a G clamp avoid trouble by using the old pad between the piston and the clamp. Thanks for a good clear description.

    prius-walla likes this.
  17. edthefox5

    edthefox5 Senior Member

    Joined:
    Jul 25, 2007
    10,096
    4,802
    0
    Location:
    Clearwater, Florida
    Vehicle:
    2007 Prius
    Model:
    Two
    Its a C clamp not a G clamp.

    In a G2 not neccessary to unbolt anything to disconnect
    The 12 volt. Pry the red cover off of the positive pole
    By prying on the side clips.
    Under that cover are 2 wires that terminate in white plastic clips. Press the clip leve lever and pull the wires out the battery is now out of circuit. Toyota gives you the proper method use it.

  18. sorka

    sorka Active Member

    Joined:
    May 9, 2008
    1,004
    196
    0
    Location:
    Merced, CA
    Vehicle:
    2019 Prius
    Model:
    Limited
    Still have about 80% of the original pads on our 188K mile 2009 Touring.

  19. prius-walla

    prius-walla Junior Member

    Joined:
    Feb 11, 2011
    28
    25
    0
    Location:
    essex UK
    Vehicle:
    2006 Prius
    Model:
    N/A
    This thread may be useful as a sticky as there is now so much useful info in it regarding the front brakes servicing. I have searched this thread and it isn't easy to find meaning other who could need and use the info are missing it.

  20. 69shovlhed

    69shovlhed Surly tree hugger

    Joined:
    May 13, 2012
    2,170
    746
    0
    Location:
    Delaware
    Vehicle:
    2017 Prius Prime
    Model:
    Prime Premium
    excellent write up and we always love pix.

    I have never removed the cap from a brake reservoir, and I've done literally thousands of brake jobs. also, remove the caliper from the mounting bracket first and it should be easier to access the 17mm mounting bolts. and yes, always use the old pad when pushing the piston in. it spreads the load around the edge of the piston. make sure your C clamp is centered on the piston so you don't cock the piston and jam it.

    if when using the 8x1.25 bolts to push the rotor off the hub, it seems to be stuck, you hit the rotor with a large mallet and tighten the bolts a little more, hit and tighten until it comes loose. if they are badly rusted, you might just strip the threads out of the rotor if you don't use the mallet too.
