Hybrid battery No. 2 Frame wire voltage sensor HACK

Discussion in 'Gen 2 Prius Main Forum' started by Aegean, Dec 21, 2021.

  1. Aegean

    Aegean Active Member

    Joined:
    Aug 18, 2019
    324
    142
    0
    Location:
    Alexandria VA
    Vehicle:
    2006 Prius
    Model:
    ----USA----
    I see frequent hybrid battery failures due to P3011-P3024 voltage difference between modules. Is it possible to HACK the system by adding some type of voltage regulator/balancer between the No. 2 frame wire and the battery CPU? This way the CPU will get a similar voltage from all 14 modules using the average voltage value and will not throw codes. Is it going to work?

    #1 Aegean, Dec 21, 2021
  2. ChapmanF

    ChapmanF Senior Member

    Joined:
    Mar 30, 2008
    16,841
    11,491
    0
    Location:
    Indiana, USA
    Vehicle:
    2010 Prius
    Model:
    IV
    That seems likely backwards: you see frequent P3011-P3024 voltage difference between modules due to hybrid battery failures.

    #2 ChapmanF, Dec 21, 2021
  3. PriusCamper

    PriusCamper Senior Member

    Joined:
    Mar 3, 2012
    7,599
    3,133
    0
    Location:
    Pacific Northwest, USA
    Vehicle:
    2007 Prius
    Model:
    Two
    It's easier to just use Dr. Prius app as you drive to clear codes as they come up... That way you can also monitor battery temp to make sure you don't overheat your pack.

    #3 PriusCamper, Dec 21, 2021
  4. Aegean

    Aegean Active Member

    Joined:
    Aug 18, 2019
    324
    142
    0
    Location:
    Alexandria VA
    Vehicle:
    2006 Prius
    Model:
    ----USA----
    Temperature control should be covered with the HACK as originally designed with the three thermistors sampling just 3 modules out of 28 and adjusting fan speed. This sampling gave me the following idea for the HACK.

    HACK: We can connect the 14 voltage sensors from the No. 2 frame wire to just 2 blocks instead of 14 blocks. This way the battery CPU will receive identical voltage from 7 blocks at each connection. Even if a cell in a module fails it would not be measured as it will not be connected to a voltage sensor wire. Actually several modules can have voltage difference but as long as they are not in the 2 blocks that are monitored there will be no P3011-P3024 codes.

    For example we can connect wire leads #2, #3, #4, #5, #6, #7 and #8 together at block 4. Similarly, we can connect wire leads #9, #10, #11, #12, #13, #14 and #15 together at block 9. The #1 wire stays as is.

    What do you think of this idea?


    #4 Aegean, Dec 22, 2021
    Last edited: Dec 22, 2021
    nancytheprius likes this.
  5. 2010moneypit?

    2010moneypit? Member

    Joined:
    Oct 26, 2021
    224
    70
    0
    Location:
    Beaumont ca
    Vehicle:
    2010 Prius
    Model:
    V
    Seems unsafe to bypass the safety system. If you have a cell that is very low how do you keep trying to charge it it could overheat.

    #5 2010moneypit?, Dec 22, 2021
  6. ChapmanF

    ChapmanF Senior Member

    Joined:
    Mar 30, 2008
    16,841
    11,491
    0
    Location:
    Indiana, USA
    Vehicle:
    2010 Prius
    Model:
    IV
    This seems like another solution to the problem "how do I keep driving on my failed battery until the tops blow off?"

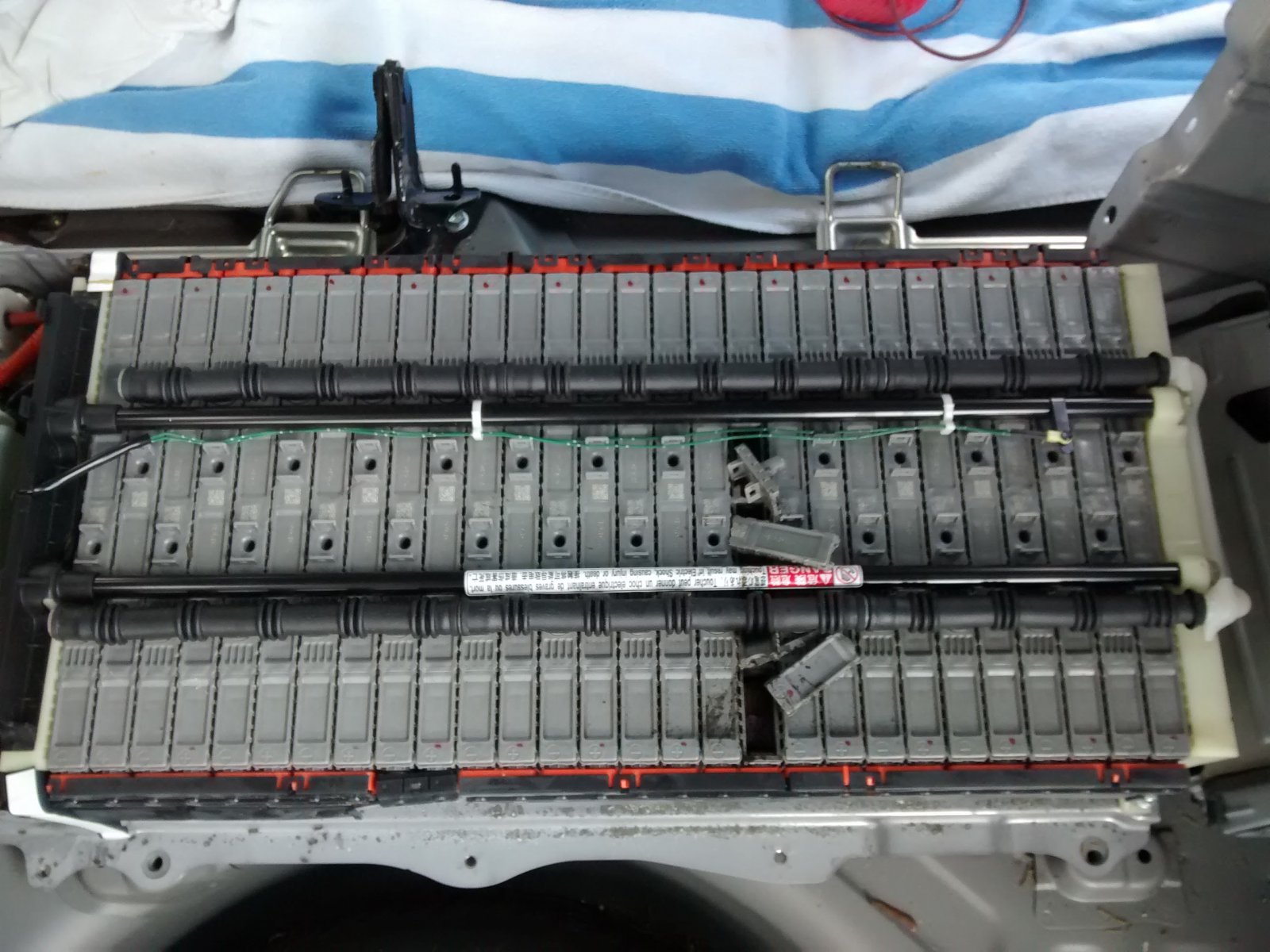

    [​IMG]

    It just seems like one of the more needlessly elaborate solutions to that problem. I think most people who want to do that just keep resetting the codes and driving until the tops blow off.

    #6 ChapmanF, Dec 22, 2021
    Last edited: Dec 22, 2021
    Travis Decker and Another like this.
  7. mr_guy_mann

    mr_guy_mann Senior Member

    Joined:
    Sep 3, 2020
    1,568
    652
    0
    Location:
    NJ-USA
    Vehicle:
    2006 Prius
    Model:
    Four
    Why not just fix the actual problem with the car?

    Also, I wouldn't expect it to work as the ecu measures voltage between each of the pairs of wires. 1 to 2, 2 to 3, 3 to 4, etc. Start tying any of the sense wires together and you don't have any voltage difference across them and the ecu will be sad.

    Posted via the PriusChat mobile app.

    #7 mr_guy_mann, Dec 22, 2021
  8. Aegean

    Aegean Active Member

    Joined:
    Aug 18, 2019
    324
    142
    0
    Location:
    Alexandria VA
    Vehicle:
    2006 Prius
    Model:
    ----USA----
    You are correct! I just realized the battery CPU does not measure voltage from a single negative post on Block 1 but as you said it measure voltage drop between successive blocks. Maybe there is another way to trick the CPU.

    As far as the need for the hack, I think that the system is very sensitive and throws codes a little early as a warning. I am sure the battery modules could last a few thousand miles more before repair except when there is a burnt cell in one of the modules.

    #8 Aegean, Dec 22, 2021
  9. Travis Decker

    Travis Decker Active Member

    Joined:
    Jul 15, 2015
    139
    109
    0
    Location:
    Portland OR
    Vehicle:
    2012 Prius
    Model:
    II
    Toyota engineers have no idea what they are doing? Just replace the battery if it fails. Not even worth thinking you are smarter than Toyota and “hacking” imho

    #9 Travis Decker, Dec 24, 2021
  10. Aegean

    Aegean Active Member

    Joined:
    Aug 18, 2019
    324
    142
    0
    Location:
    Alexandria VA
    Vehicle:
    2006 Prius
    Model:
    ----USA----
    Toyota engineers are doing a great job but still many car enthusiasts modifying and improving their cars. If there is the slightest opportunity to optimize battery management why not trying?

    #10 Aegean, Dec 24, 2021
  11. ChapmanF

    ChapmanF Senior Member

    Joined:
    Mar 30, 2008
    16,841
    11,491
    0
    Location:
    Indiana, USA
    Vehicle:
    2010 Prius
    Model:
    IV
    Kind of comes down to, what are the odds that corrupting the information the battery ECU relies on to manage the battery ends up optimizing it?

    #11 ChapmanF, Dec 24, 2021
  12. rjparker

    rjparker Senior Member

    Joined:
    Jun 6, 2008
    4,814
    2,631
    2
    Location:
    Texas Hill Country
    Vehicle:
    2012 Prius v wagon
    Model:
    Three
    There is an opportunity to optimize battery management. You hire a software prodigy, reverse engineer the code in your gen2 and ideally gen3 and gen4, cherry pick the incremental improvements, apply them to reengineered code for your gen2, test and iteratively develop the new code and finally, you have successfully hacked the battery management system.

    Might as well cut to the chase and buy a Rav4 Prime with 300 hp, 42 miles ev and decent mpg. But if you do reverse engineer and improve the Toyota code, a major business opportunity to market the results will appear.

    #12 rjparker, Dec 24, 2021
  13. mr_guy_mann

    mr_guy_mann Senior Member

    Joined:
    Sep 3, 2020
    1,568
    652
    0
    Location:
    NJ-USA
    Vehicle:
    2006 Prius
    Model:
    Four
    Toyota engineers were a little "conservative" in their design as they wanted owners to bring a failing battery in to be replaced instead of throwing codes after it had already completely failed.

    Posted via the PriusChat mobile app.

    #13 mr_guy_mann, Dec 25, 2021
(You must log in or sign up to post here.)
Loading...
