Initializing the tire pressure warning system

Discussion in 'Gen 1 Prius Plug-in 2012-2015' started by ukr2, May 19, 2012.

  1. ukr2

    ukr2 Senior Member

    Joined:
    Feb 5, 2007
    1,009
    275
    31
    Location:
    Victor, NY
    Vehicle:
    2021 Prius Prime
    Model:
    XLE
    Did I miss a meeting ???

    My Base model PIP does NOT have a Set button for the tire pressure warning system. WHAT !!! It is NOT below and to the right or left of the Steering Wheel.

    I haven't noticed anyone mention it here for the PIP.

    The FEATURES page for the PIP lists the Tire Pressure Monitor System (TPMS) as Standard for the Base and Advanced models.



  2. Rebound

    Rebound Senior Member

    Joined:
    Mar 11, 2010
    3,961
    2,609
    0
    Location:
    Portland, OR
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    It's there. Stick your head under the steering wheel and you'll see the button.

  3. ukr2

    ukr2 Senior Member

    Joined:
    Feb 5, 2007
    1,009
    275
    31
    Location:
    Victor, NY
    Vehicle:
    2021 Prius Prime
    Model:
    XLE
    Nope, not there.

    You also have a Base model. If you have one, take a photo of yours, also showing the steering wheel.

  4. PRPrius

    PRPrius Active Member

    Joined:
    Jul 5, 2004
    327
    198
    2
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Advanced
    The button is to the right of the OBD port. Look underneath the dashboard on the driver side. It is right after the knee airbag. Right above the brake pedal.

  5. Conrad

    Conrad Junior Member

    Joined:
    May 16, 2011
    23
    1
    0
    Location:
    Santa Clarita, CA
    Vehicle:
    2005 Prius
    Model:
    Three
    When you say 'reset'. What do it reset and where do you read the results? Gotta admit I havn't read the manual. Can't get past the Caution notes, they scare the hell outa me. Only had the vehicle for 2 months and got 1900 miles on it. Love it.

  6. Rebound

    Rebound Senior Member

    Joined:
    Mar 11, 2010
    3,961
    2,609
    0
    Location:
    Portland, OR
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    There are pressure sensors in each tire. When you reset the system, it sets the current tire pressure as the "baseline," so if pressure falls below that amount, it warns you.

    Whenever you add air, you should reset it. You want to be warmed of pressure loss, not that the pressure dropped below X psi.

  7. ukr2

    ukr2 Senior Member

    Joined:
    Feb 5, 2007
    1,009
    275
    31
    Location:
    Victor, NY
    Vehicle:
    2021 Prius Prime
    Model:
    XLE
    Rebound,

    There is a blank cover for a device on the right and 2 blank covers on the left, on either side of the gas door button.
    But no Tire Reset button.

    Did you find your button?
    If you did, take a photo.

  8. Rebound

    Rebound Senior Member

    Joined:
    Mar 11, 2010
    3,961
    2,609
    0
    Location:
    Portland, OR
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    Sure, it's the button that says SET. It's farther underneath than you think.
    [​IMG]

    4 people like this.
  9. qbee42

    qbee42 My other car is a boat

    Joined:
    Mar 2, 2006
    18,058
    3,073
    7
    Location:
    Northern Michigan
    Vehicle:
    2006 Prius
    TPMS is required by law. Even base models have to have it.

    Tom

  10. ukr2

    ukr2 Senior Member

    Joined:
    Feb 5, 2007
    1,009
    275
    31
    Location:
    Victor, NY
    Vehicle:
    2021 Prius Prime
    Model:
    XLE

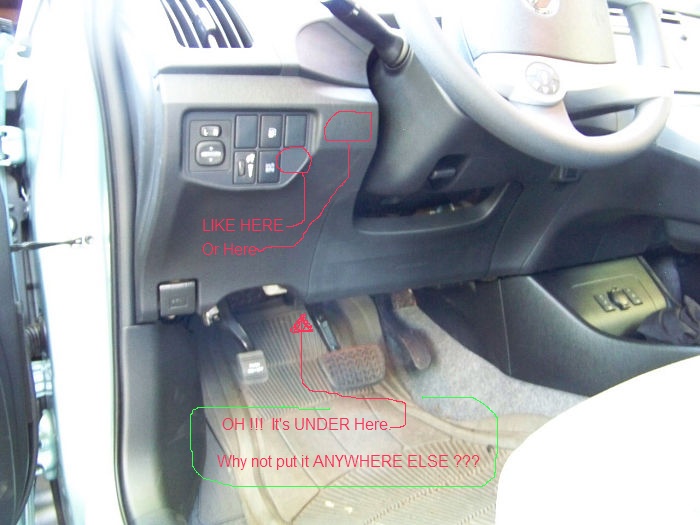

    [​IMG]

    OMG. Thanks Rebound.

    WHY the hell did they put it UNDER there.
    I had to put my head BELOW the seat to see it.
    CRAZY.
    I want to speak to the engineer that approved that location.

    Is the Tire Pressure Set button in this location for the Advanced model too?

    WOW.

  11. radiocycle

    radiocycle Active Member

    Joined:
    May 10, 2007
    550
    78
    0
    Location:
    Vallejo, CA
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    But why take up valuable dash real estate for something that you will use very seldom? It wasn't such a bad placement IMHO...

  12. Rebound

    Rebound Senior Member

    Joined:
    Mar 11, 2010
    3,961
    2,609
    0
    Location:
    Portland, OR
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    What I think is that most owners don't read the manuals, and the TPMS Reset isn't a button that should be pressed at just any old time. Therefore, it's placed in a location accessible for mechanics and for those owners who will take the effort to use it correctly.

  13. Erikon

    Erikon Active Member

    Joined:
    Dec 5, 2009
    819
    105
    0
    Location:
    Rochester, NY
    Vehicle:
    2010 Prius
    Model:
    III
    The gen 3 manual doesn't show it in that area, I think they just used the gen 2 diagram.
