Installed pioneer AVIC F900bt 2 din nav unit

Discussion in 'Gen 2 Prius Audio and Electronics' started by dan_ep82, Jul 16, 2014.

  1. dan_ep82

    dan_ep82 Junior Member

    Joined:
    Jul 5, 2014
    14
    1
    0
    Location:
    UK
    Vehicle:
    2012 Prius
    Model:
    Excel
    Greetings from the uk!

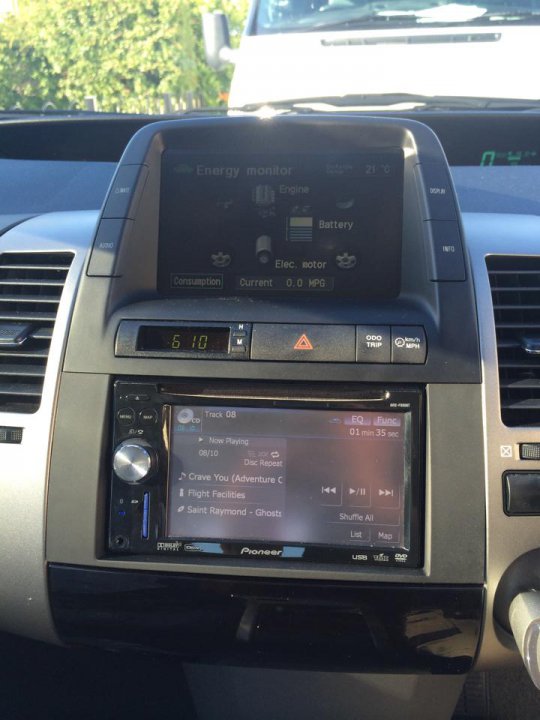

    just completed an install in my 05 prius with no factory nav but jbl sound system, install went smoothly i used the metra wiring adaptors and i bought a prius specific harness for the axxess steering wheel controls and it seems to make my steering wheel backlights still operate somehow!? from what i have read these would fail to illuminate once factory deck was removed?

    anyway great helpful information on this site i had to order all the parts over from US as nothing is sold over here to do the swap! as far as i can tell hardly anybody (if anybody) has done a 2 din head unit swap in the UK!

    #1 dan_ep82, Jul 16, 2014
  2. Dilin

    Dilin New Member

    Joined:
    Jul 17, 2014
    1
    0
    0
    Location:
    Melbourne, Australia
    Vehicle:
    2006 Prius
    Model:
    N/A
    Hi from Australia.

    I have an 06 Prius, and the exact same head unit waiting to be installed! any help would be great!

    Also, a couple of questions:

    The MFD (Screen on top) works with no issues, after the removal of the standard head unit?
    Just wanted to know what parts were required for your install?

    #2 Dilin, Jul 17, 2014
  3. dan_ep82

    dan_ep82 Junior Member

    Joined:
    Jul 5, 2014
    14
    1
    0
    Location:
    UK
    Vehicle:
    2012 Prius
    Model:
    Excel
    Hi there everything works just as it should! i used the metra 95-8240B facia adaptor, the metra TYTO-01 jbl interface and the Metra Axxess ASWC-1 steering control interface! i also used one of these:

    Toyota Prius 04-09 ISO Adaptor Lead Wiring Car Radio Harness Connector | eBay

    and one of these to make life easy!



    remember to use the 68 ohm resistor its detailed in the instructions you get!

    thanks

    #3 dan_ep82, Jul 18, 2014
  4. rathore4u

    rathore4u Junior Member

    Joined:
    Dec 15, 2013
    3
    0
    0
    Vehicle:
    2007 Prius
    Model:
    IV
    Hi @dan_ep82
    I want to do the same for my prius here in UK. Did you buy all this stuff from different sellers in US or one seller that could send all parts in one pack.

    Thanks

    #4 rathore4u, Aug 26, 2014
  5. dan_ep82

    dan_ep82 Junior Member

    Joined:
    Jul 5, 2014
    14
    1
    0
    Location:
    UK
    Vehicle:
    2012 Prius
    Model:
    Excel
    Hi there i had to buy the items from various places in usa! i ordered a facia from amazon and that came in 2 days! everything else took couple weeks so my advise would be to order everything from amazon!

    thanks

    #5 dan_ep82, Aug 26, 2014
  6. wa-chiss

    wa-chiss Member

    Joined:
    Aug 28, 2014
    124
    36
    0
    Location:
    Brownwood, Texas
    Vehicle:
    2005 Prius
    Model:
    N/A
    The only functions that you will notice won't work, are the beeping when you touch the screen, and the ability to change stations, volume, etc. with the MFD.

    #6 wa-chiss, Aug 31, 2014
