Is there a way to get a video input to nav screen without using a Costaltech adapter?

Discussion in 'Gen 2 Prius Audio and Electronics' started by Jimbo69ny, Mar 9, 2012.

  1. Jimbo69ny

    Jimbo69ny Active Member

    Joined:
    Feb 27, 2012
    700
    101
    0
    Location:
    Ithaca, NY
    Vehicle:
    Other Electric Vehicle
    Model:
    N/A
    Just as the title says...

    Id like a video input but I dont want to shell out $299. :/

    Is there a video in for the rear back up camera? Maybe I could install a switchbox and add a video in for my cell phone.

    Possible?

  2. Jimbo69ny

    Jimbo69ny Active Member

    Joined:
    Feb 27, 2012
    700
    101
    0
    Location:
    Ithaca, NY
    Vehicle:
    Other Electric Vehicle
    Model:
    N/A
    Also, for people who have added video to their MFD, how is the screen resolution? Is it even worth the effort? I have an 08 pkg 6 with OEM nav.

  3. 90miler

    90miler Member

    Joined:
    Dec 18, 2011
    53
    50
    0
    Location:
    Mobile, Alabama
    Vehicle:
    2009 Prius
    Model:
    N/A
    I have pretty much the same question for a 2008 Gen II, which did not come originally equipped with a camera or a nav system. I am trying to install one of these cheap backup cameras I bought on eBay to the non-nav mfd. Thought I had it figured out from some sites & articles I found on the web before I ordered my camera. But, when I pulled the mfd out this past weekend to connect the camera, I found out that I have a 28-pin socket instead of a 40-pin like I have seen in all the sites & articles. I guess maybe that is b/c I don't have the nav system(?).

    Jimbo69ny: Maybe these attached files that I found while searching the web will help you, I don't know. I am thinking you can figure out from these where the camera input wires go. (The photo file is in spanish. I attempted an online translation, which is in the Word file.) I can't confirm any of it is right, since the sockets/connectors for my non-nav model are different, and I haven't been able to try mine yet.

    I need similar info for the non-nav model. Anyone know which pins to tap for the camera (CA+) and the reversing signal feeds when you have the non-nav, 28-pin mfd version? Help, someone? Please & Thanks!


    Attached Files:

  4. frayz

    frayz Junior Member

    Joined:
    Jun 25, 2010
    33
    5
    0
    Location:
    Mobile, Al
    Vehicle:
    2008 Prius
    Model:
    N/A
    bump. i'd like to know this as well

  5. ive

    ive Member

    Joined:
    Jun 8, 2013
    103
    36
    0
    Vehicle:
    2008 Prius
    Model:
    II
    you may check the wiki of the german priusfreunde forum. I cannot post a link yet. Not enough posts :-(
    Marko

  6. ive

    ive Member

    Joined:
    Jun 8, 2013
    103
    36
    0
    Vehicle:
    2008 Prius
    Model:
    II
    Post 2

  7. ive

    ive Member

    Joined:
    Jun 8, 2013
    103
    36
    0
    Vehicle:
    2008 Prius
    Model:
    II
    Post 3
    One to go before I can link the pinout of the 28-pin connector

  8. ive

    ive Member

    Joined:
    Jun 8, 2013
    103
    36
    0
    Vehicle:
    2008 Prius
    Model:
    II
    one more to go....
    sorry for filling up this threat....:(

  9. ive

    ive Member

    Joined:
    Jun 8, 2013
    103
    36
    0
    Vehicle:
    2008 Prius
    Model:
    II
    one more

  10. ive

    ive Member

    Joined:
    Jun 8, 2013
    103
    36
    0
    Vehicle:
    2008 Prius
    Model:
    II

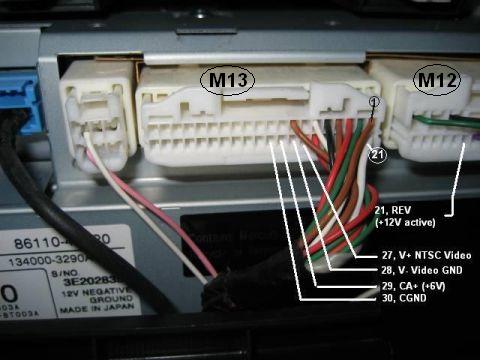

    You need to connect the reverse 12V signal to activate the display's video input.
    If you fit a switch, you can have it always off, on selecting reverse or always on.
    The reverse signal is available from behind the dash or put a line from the rear lights together with the camera lines.

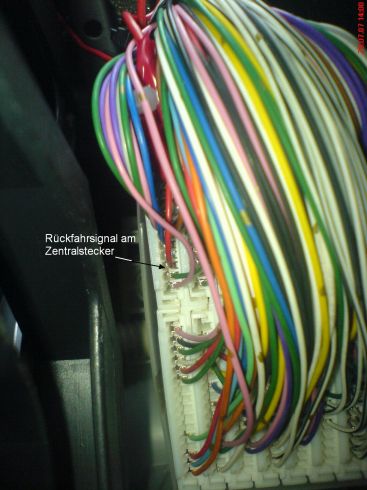

    The EXE versions have the REV signal on the central connector (5H, Pin 14)

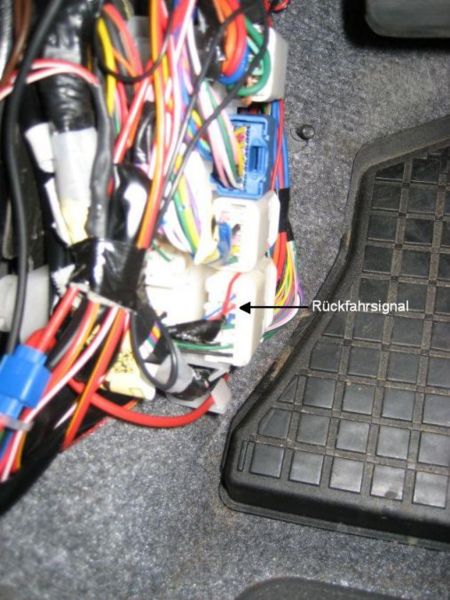

    The SOL have it on the connector IF, Pin 6

    The pictures are from the german priusfreunde forum, specifically their priuswiki

    Regards
    Marko


    Attached Files:

    SFO and bisco like this.
  11. Dovydas

    Dovydas New Member

    Joined:
    Jun 10, 2017
    16
    1
    0
    Location:
    DROGHEDA
    Vehicle:
    2009 Prius
    Model:
    One
    Still can't get you.
    Is that any chance to instal camera on base MFD with 28 pin connector instead of 40?

  12. David_1

    David_1 New Member

    Joined:
    Sep 17, 2017
    4
    0
    0
    Location:
    Europe
    Vehicle:
    2009 Prius
    Model:
    N/A
    Hi guys,
    I have read many topics about rear camera install multiple times, and here is my question:
    We have a 2007 Prius Executive (Germany model), and it has Navigation, but no camera.I would like to know if there is an easy and affordable way to add the rear camera. One of the posts here mentioned that models 2007 and newer have the wires already installed.
    When we removed the covering in the trunk behind the camera, we found a free connector (picture attached).
    Please let me know if anyone has any knowledge about this issue.


    Attached Files:

  13. Elektroingenieur

    Elektroingenieur Active Member

    Joined:
    Jan 8, 2017
    253
    380
    9
    Location:
    California
    Vehicle:
    2016 Prius
    Model:
    Three Touring
    If the wires going into the connector are white with black stripes (Toyota’s usual color code for ground wires), with the possible exception of one black wire, and the connector is in the rear of the car, it’s probably the S20 Junction Connector, part of the ground (DC return) distribution system; one of the wires is connected to a ground point on the body. In Toyota vehicles, junction connectors are used to connect several wires together, rather than to connect a wire harness to equipment or to a different wire harness.

    I don’t know if a Prius made in 2007 would have the wiring for a backup camera, which Toyota calls the Rear Television Camera Assembly. If this wiring is present, then you might find connector V6 inside the back door (liftgate); this is a four-position, sealed connector with a black housing, connected to white, red, and black wires in a shielded cable. At the audio head unit, these wires would be connected to terminals 7, 8, 16, and 15 of connector L148, a sixteen-position connector with a white housing.

    The complete Electrical Wiring Diagram for your car (EM12A6E) is available by subscription to Toyota-Tech.eu. This document doesn’t say, however, which unused wires or connectors are present on vehicles that weren’t built with the options that require them.

  14. David_1

    David_1 New Member

    Joined:
    Sep 17, 2017
    4
    0
    0
    Location:
    Europe
    Vehicle:
    2009 Prius
    Model:
    N/A
    Thank you,
    I think the wires are white with black stripes. Also one could be black... I guess this is not for camera, right?
    How will I recognize the V6 connector? By wire colors?
    Audio head unit is radio?

  15. Elektroingenieur

    Elektroingenieur Active Member

    Joined:
    Jan 8, 2017
    253
    380
    9
    Location:
    California
    Vehicle:
    2016 Prius
    Model:
    Three Touring
    You’re welcome.
    Correct.
    Yes, along with the color of the housing (black), the number of terminals (four), and that it’s a sealed (water-resistant) connector. The approximate location is also shown in the Electrical Wiring Diagram.
    Yes. In a Prius car with a backup camera, the picture is displayed there when reversing.
