JBL amp wiring in Prius 2005, 86280-0W240

Discussion in 'Gen 2 Prius Audio and Electronics' started by radarama, Oct 16, 2013.

  1. radarama

    radarama New Member

    Joined:
    Oct 16, 2013
    2
    0
    0
    Vehicle:
    2005 Prius
    Model:
    N/A
    Hi everyone!

    I've been looking all over for a wiring diagram for the JBL amp sitting in my 2005 Prius, the plugs going in to the amp has a billion wires and I've got no clue what they are. The model no. on the amp is 86280-0W240. Can anyone point me in the right direction? Any help appreciated.. Thanks! :)

  2. Britprius

    Britprius Senior Member

    Joined:
    Jun 14, 2010
    5,194
    1,827
    0
    Location:
    Herefordshire England
    Vehicle:
    2008 Prius
    Welcome to PC.
    I believe I have A wiring diagram for the JBL system. Unfortunately I will not be able to post it till Friday. Hope this will be of help.

    John (Britprius)

    radarama likes this.
  3. Britprius

    Britprius Senior Member

    Joined:
    Jun 14, 2010
    5,194
    1,827
    0
    Location:
    Herefordshire England
    Vehicle:
    2008 Prius

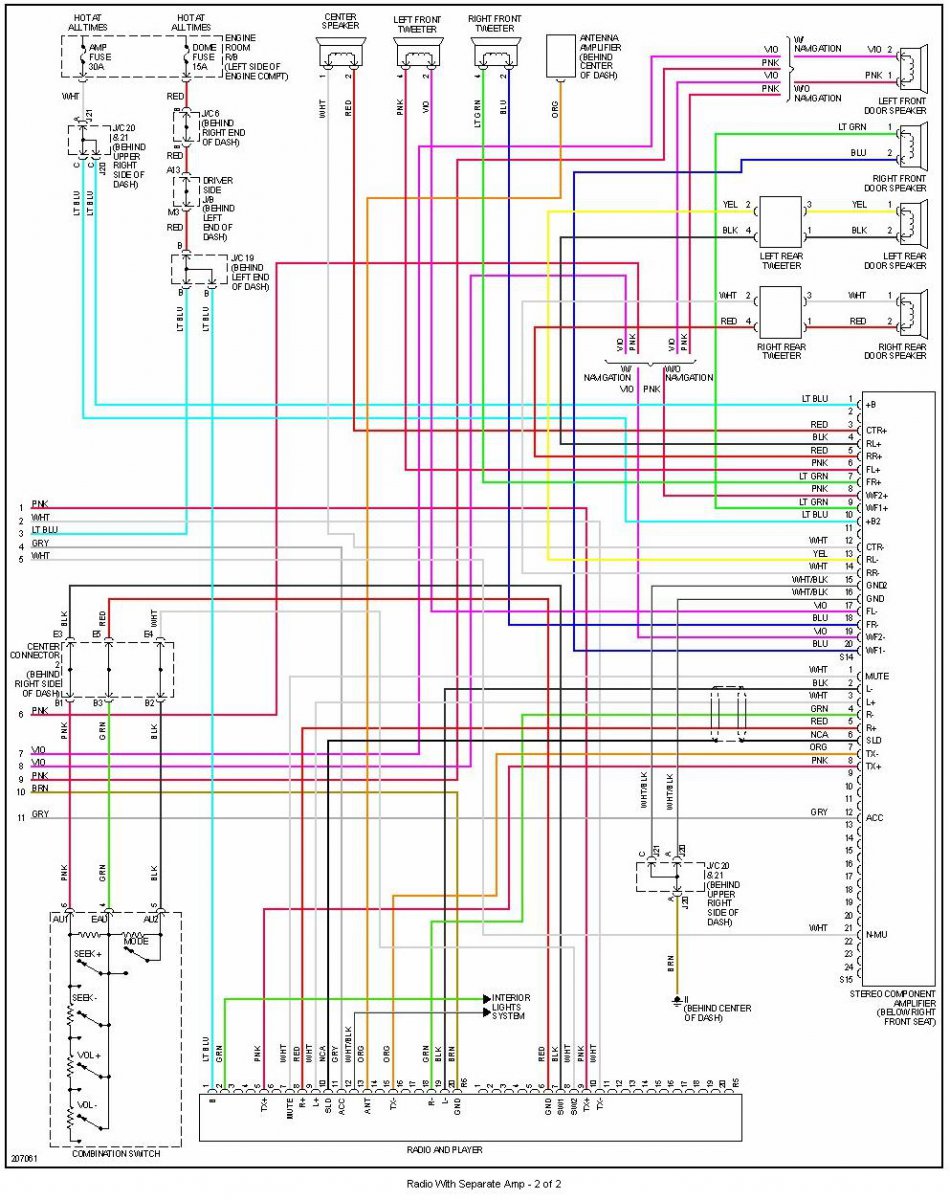

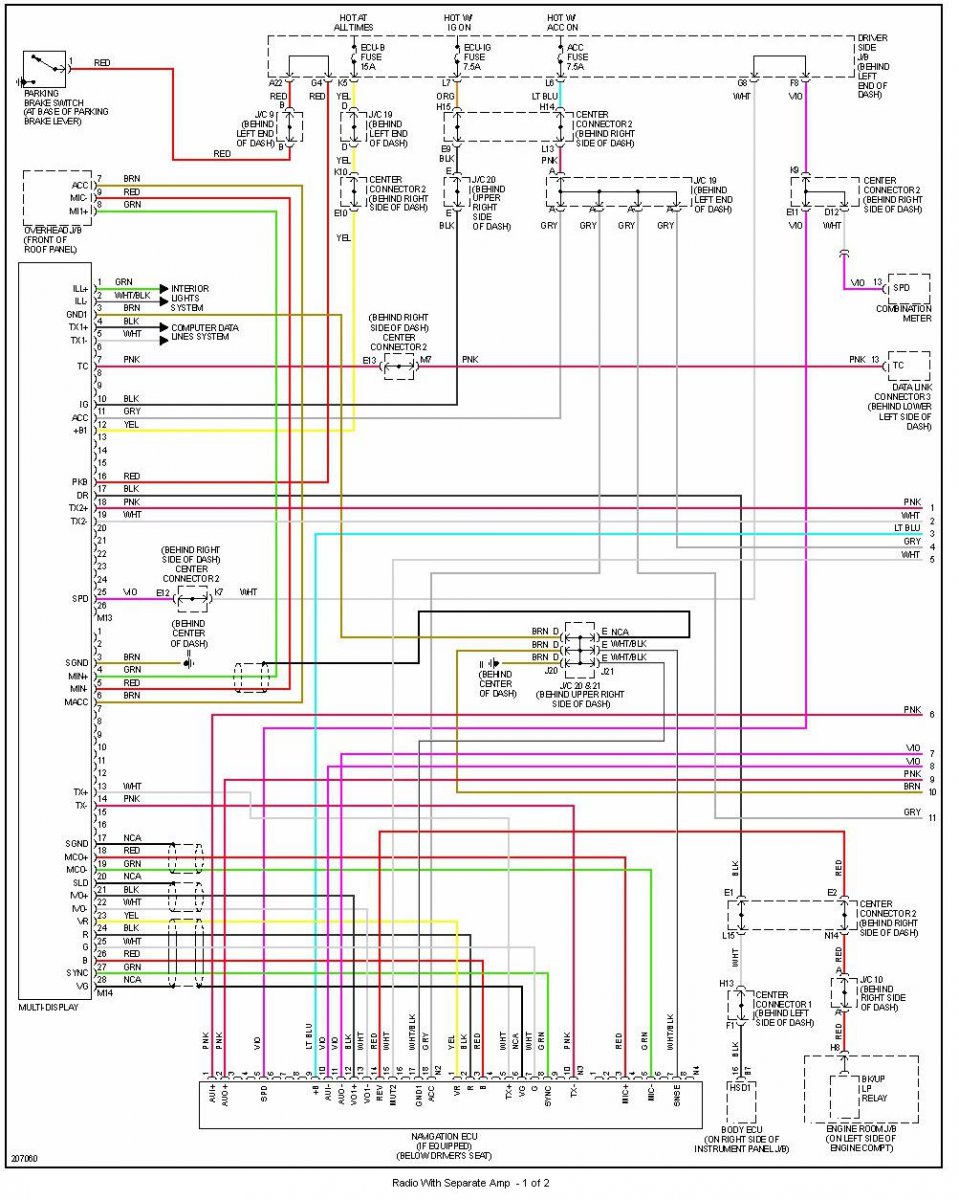

    JBL wiring diagram with separate amp:- Radio w_Separate Amp 1of2.jpg
    Radio w_Separate Amp 2of2.jpg

    Hope this helps. If you cannot read the diagram because it is to small let me know, and I may be able to send you this via a PM (private message).

    John (Britprius)

    HeadOfJarg and SFO like this.
  4. radarama

    radarama New Member

    Joined:
    Oct 16, 2013
    2
    0
    0
    Vehicle:
    2005 Prius
    Model:
    N/A
    Fantastic, thank you! If you could PM me I would be grateful, a bit difficult to read some of it. :)

  5. Britprius

    Britprius Senior Member

    Joined:
    Jun 14, 2010
    5,194
    1,827
    0
    Location:
    Herefordshire England
    Vehicle:
    2008 Prius
    I have sent you a PM.

    John (Britprius)

  6. Jeff Tremble

    Jeff Tremble Junior Member

    Joined:
    Jun 22, 2014
    2
    0
    0
    Location:
    Bergen County NJ
    Vehicle:
    2005 Prius
    Model:
    II
    John, If you still have those files could you please message them to me as well. Thank you in advanced.

  7. sounds_great

    sounds_great Junior Member

    Joined:
    Jul 6, 2006
    34
    1
    0
    +1 Thank you!

  8. Big Tex

    Big Tex New Member

    Joined:
    Apr 11, 2015
    8
    4
    0
    Location:
    USA
    Vehicle:
    2005 Prius
    Model:
    II
    Hello I am working on upgrading my 2005 with JBL and I would love a higher res version of this diagram. Thanks!

  9. Big Tex

    Big Tex New Member

    Joined:
    Apr 11, 2015
    8
    4
    0
    Location:
    USA
    Vehicle:
    2005 Prius
    Model:
    II

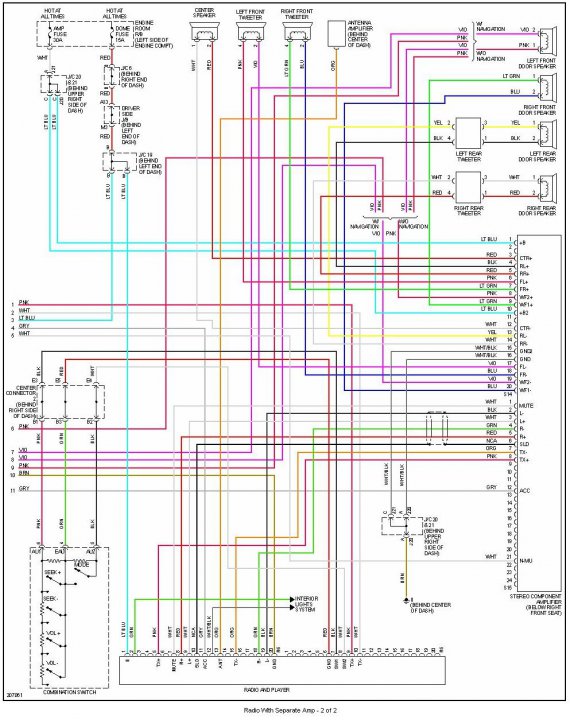

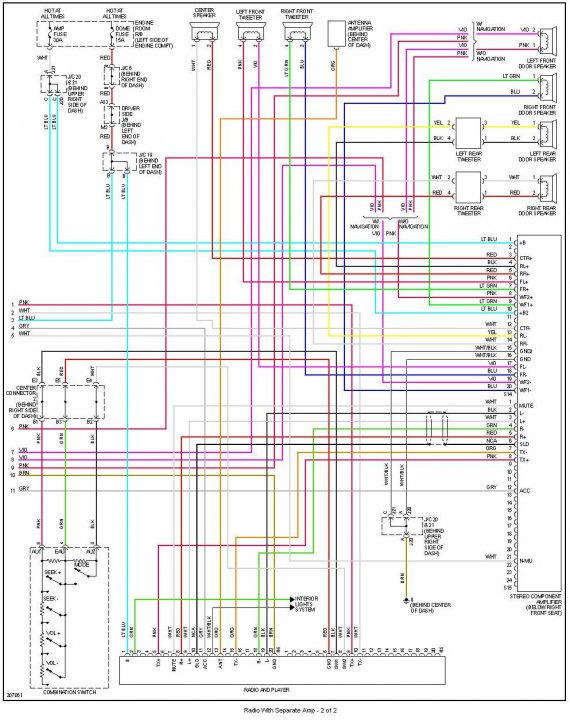

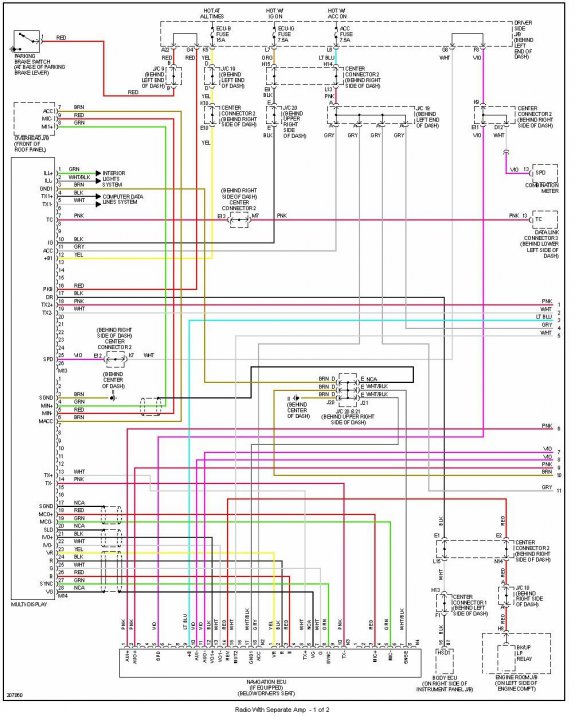

    Thanks John! Let's see if I can attach them to this thread for others to see as well...

    [​IMG] [​IMG]

  10. JJsCarAudio101

    JJsCarAudio101 New Member

    Joined:
    Jan 5, 2015
    17
    1
    12
    Location:
    Los Angeles CA
    Vehicle:
    2012 Prius
    Model:
    Three
    Very helpfull shcematic. thanks for posting

  11. quatvnn

    quatvnn New Member

    Joined:
    Feb 17, 2016
    1
    0
    0
    Location:
    Hanoi
    Vehicle:
    2010 Prius
    Model:
    II
    Can anyone help me pls. I am installing the after market HU to the OEM JBL amplifier 86280-0W640 but ít does not work.

  12. 69shovlhed

    69shovlhed Surly tree hugger

    Joined:
    May 13, 2012
    2,063
    658
    0
    Location:
    sterling, VA
    Vehicle:
    2006 Prius
  13. Marclais

    Marclais Junior Member

    Joined:
    Feb 21, 2016
    3
    0
    0
    Location:
    Sacramento
    Vehicle:
    2005 Prius
    Model:
    III
    Question: looking at this diagram... If I removed thw head unit completely, then just spliced a headphone jack wire into the R and L + and -, would this effectively give me a line in?

    My MFD is broken and all the audio I listen to is through my phone. I'd like to just hard wire in a Bluetooth adapter and eliminate the head unit altogether. Would this work?

  14. 69shovlhed

    69shovlhed Surly tree hugger

    Joined:
    May 13, 2012
    2,063
    658
    0
    Location:
    sterling, VA
    Vehicle:
    2006 Prius
    I doubt it. best solution is an aftermarket 2din headunit

  15. Baoht1986

    Baoht1986 New Member

    Joined:
    Mar 3, 2016
    1
    0
    0
    Location:
    Hd
    Vehicle:
    2012 Prius
    Model:
    IV
    Rất cảm ơn bạn

  16. Michael Szatmary

    Michael Szatmary Junior Member

    Joined:
    Sep 21, 2015
    7
    1
    0
    Location:
    Denver, Colorado USA
    Vehicle:
    2005 Prius
    Model:
    N/A
    I have a 2005 Prius w/separate JBL amp and purchased the 2006 factory xm radio receiver and a cable harness for the interface. I believe the cable I received is the wrong cable for this installation but was able to connect and successfully interface the xm receiver with the multi function display which indicated and displayed I was receiving XM radio stations. However the cable I have does not appear to be the correct cable to interface with the amp and as a result I do not get any sound out of the system. Any information on wiring details between the multi function display, JBL amp and XM receiver would be greatly appreciated. With those details I think I can modify the cable harness that I have to work . If you have the part number for the proper cable I can also look for that but these are so old now I'm not sure I can find one. Thanks for your time and help.

  17. Classic Car Guy

    Joined:
    Dec 23, 2018
    105
    28
    0
    Location:
    Oregon
    Vehicle:
    2007 Prius
    Model:
    II
    Hi John,
    Just a follow up on the JBL 2007 factory amp for I want to add a Rockford Fosgate amp for an additional subwoofer. Provided I have the High line inverter to RCA so I can plug to the additional subwoofer amp. I saw your schematic and I was planning to connect it to the amplifier input if that's correct as I have an additional drawing on the schematic. attached. its the Green line with the Red dot. Is this correct? or should I go with the jbl amp out rear speaker going to the inverter?
    Thanks Joe




    Attached Files:

    #17 Classic Car Guy, Feb 24, 2019
    Last edited: Feb 24, 2019
  18. Britprius

    Britprius Senior Member

    Joined:
    Jun 14, 2010
    5,194
    1,827
    0
    Location:
    Herefordshire England
    Vehicle:
    2008 Prius
    I used the rear speaker JBL output to drive my amp, but there is no reason why you cannot use your method shown.
    I only look in on PC occasionally as I have sold my Prius, and bought a Lexus GS450H hybrid.

    John.

  19. Classic Car Guy

    Joined:
    Dec 23, 2018
    105
    28
    0
    Location:
    Oregon
    Vehicle:
    2007 Prius
    Model:
    II
    Hi John,
    Oh okay. Congratulations on the new car!
    Thanks for that diagram and I was able to get the back system running. The bass frequency is right on the money. Good thing I had the chance to install it last Sunday. Great!

  20. Teajelly

    Teajelly New Member

    Joined:
    Sep 14, 2019
    1
    0
    0
    Location:
    CA
    Vehicle:
    2004 Prius
    Model:
    ----USA----
    Could you send me this diagram as well? I’m installing a subwoofer in my Prius. Can I tap into this amp instead of going into the dash? If I can, which wires do I splice into? Thanks

Loading...
