LED-backed Lower Rear Red Reflectors

Discussion in 'Prius v Accessories and Modifications' started by Air_Boss, Jul 4, 2014.

  1. Air_Boss

    Air_Boss Senior Member

    Joined:
    Jun 2, 2012
    3,902
    1,064
    0
    Location:
    New Yawk
    Vehicle:
    2012 Prius v wagon
    Model:
    Five
    I conclude the backfeed is internal to the LED-backed lower rear reflectors, from low (white) to high (red).

  2. Air_Boss

    Air_Boss Senior Member

    Joined:
    Jun 2, 2012
    3,902
    1,064
    0
    Location:
    New Yawk
    Vehicle:
    2012 Prius v wagon
    Model:
    Five

    This was no muss, no fuss. Connected up with 24 awg Posi-taps. Thanks for the pictorial!

  3. tanasit

    tanasit Member

    Joined:
    Mar 26, 2012
    399
    60
    0
    Location:
    Philadelphia
    Vehicle:
    2012 Prius v wagon
    Model:
    Five
    Do you have to remove the lens's cover from underneath or you can just pry off the stock lens from the outside because I saw the clips on the kit that I bought, which look like it can be pushed in to lock?
    Thanks,

  4. Air_Boss

    Air_Boss Senior Member

    Joined:
    Jun 2, 2012
    3,902
    1,064
    0
    Location:
    New Yawk
    Vehicle:
    2012 Prius v wagon
    Model:
    Five
    One retaining screw in center of back of bezel (rear of bumper cover, from beneath), the two friction clips are for secondary retention and location.

    tanasit likes this.
  5. tanasit

    tanasit Member

    Joined:
    Mar 26, 2012
    399
    60
    0
    Location:
    Philadelphia
    Vehicle:
    2012 Prius v wagon
    Model:
    Five
    Thanks for super fast reply.:)

  6. tanasit

    tanasit Member

    Joined:
    Mar 26, 2012
    399
    60
    0
    Location:
    Philadelphia
    Vehicle:
    2012 Prius v wagon
    Model:
    Five

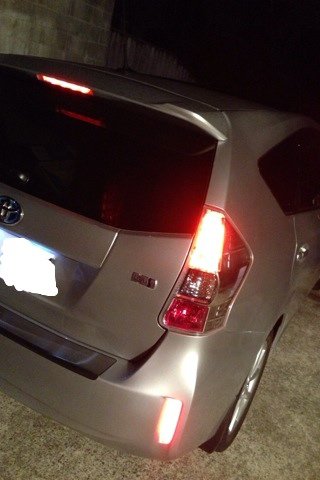

    Just installed mine yesterday connecting both parking and brake lights, NO third brake light glow as seen below (y):
    [​IMG]

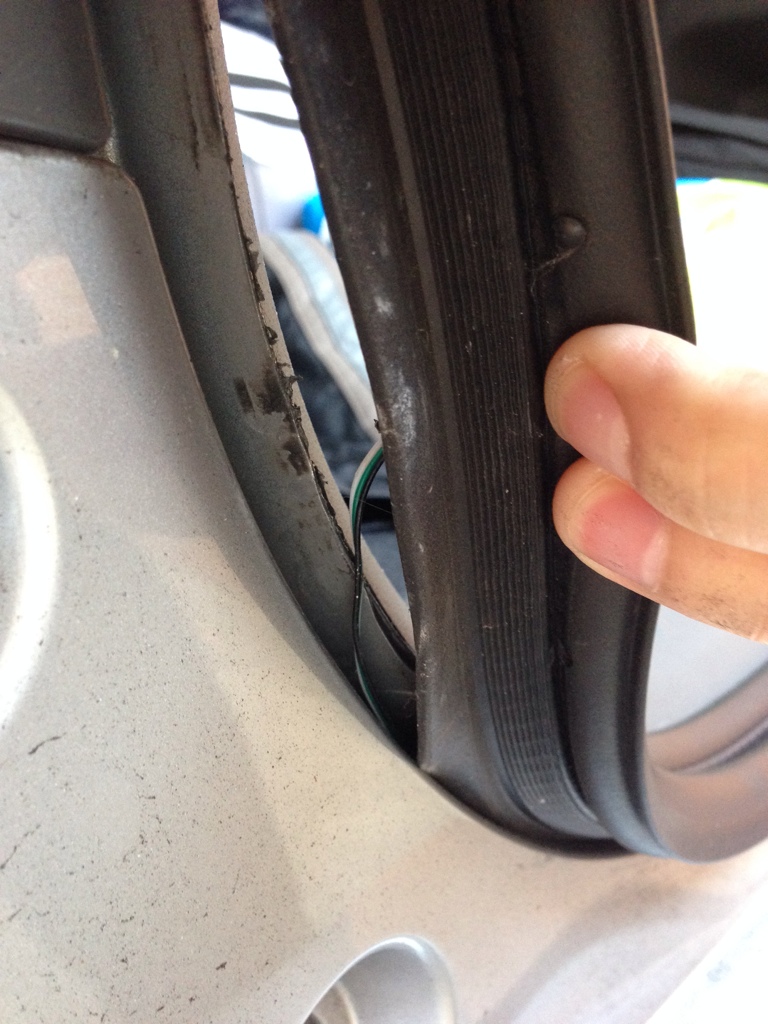

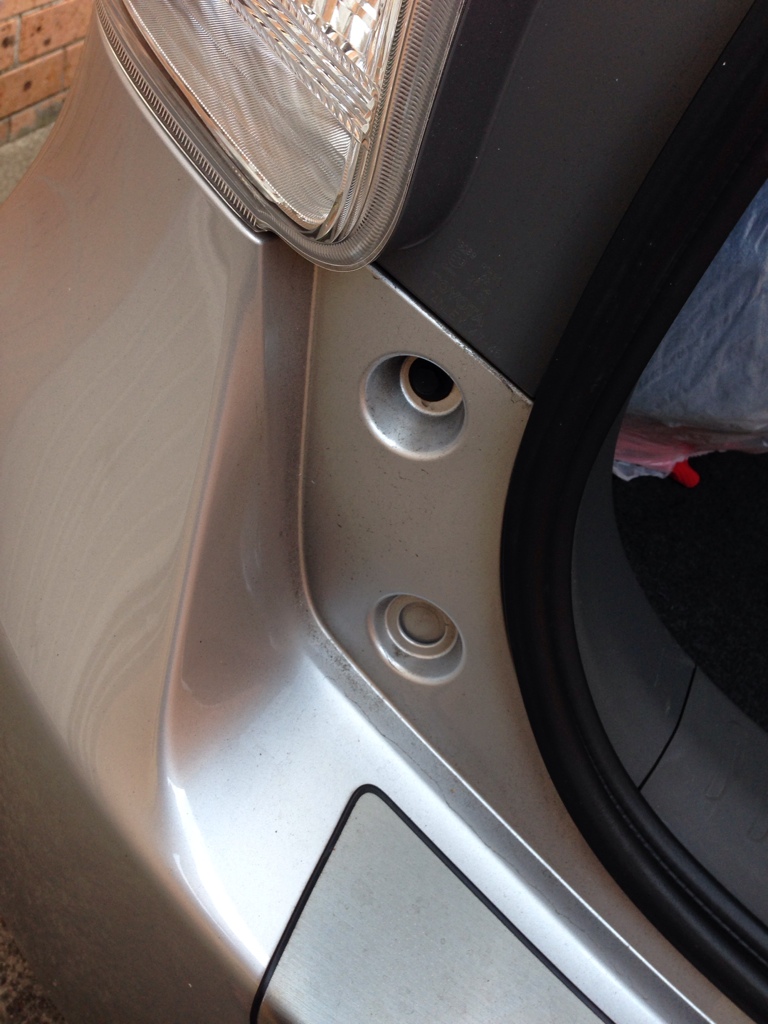

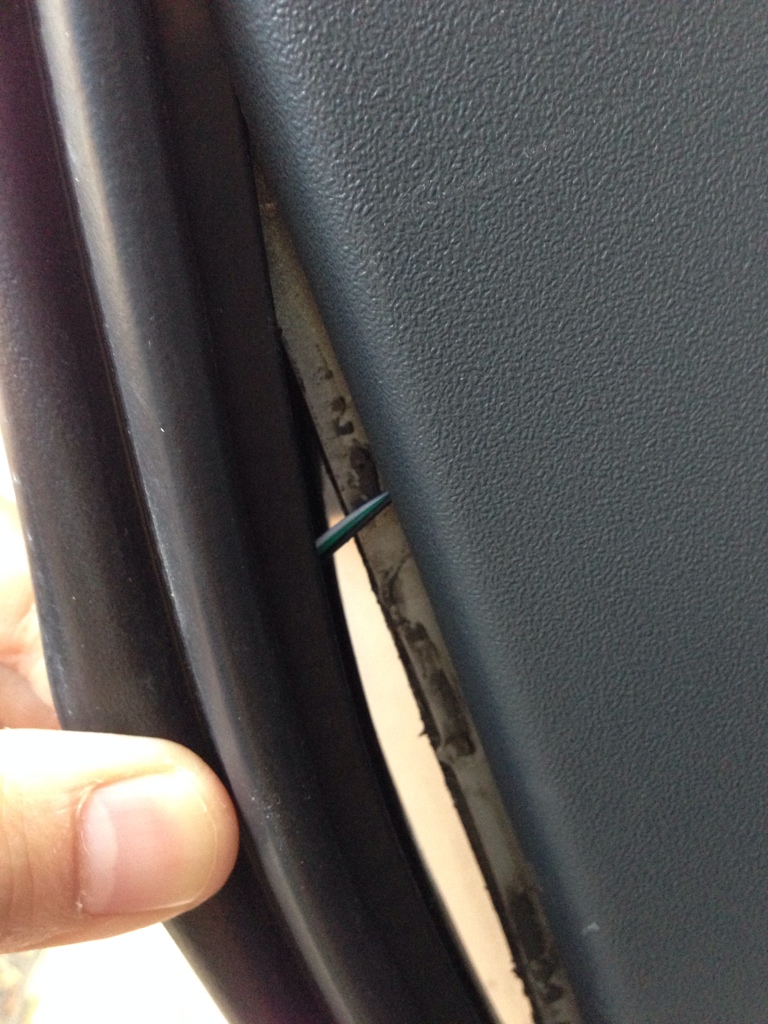

    I am not sure if you have a short circuit somewhere but I cut a notch where the wires passes under the weather strip to relief the pressure and taped up the wires at that spot for extra protection as seen below:
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

  7. xliderider

    xliderider Senior Member

    Joined:
    Apr 19, 2012
    7,842
    3,099
    0
    Location:
    Honolulu, HI
    Vehicle:
    2011 Prius
    Model:
    Three
    I was going to say that having wires against bare sheet metal edges looks like a short circuit waiting to happen.

    SCH-I535

  8. Air_Boss

    Air_Boss Senior Member

    Joined:
    Jun 2, 2012
    3,902
    1,064
    0
    Location:
    New Yawk
    Vehicle:
    2012 Prius v wagon
    Model:
    Five
    True, though the metal edges are formed and painted, not sharp -- until cut by the Dremel tool.

  9. tanasit

    tanasit Member

    Joined:
    Mar 26, 2012
    399
    60
    0
    Location:
    Philadelphia
    Vehicle:
    2012 Prius v wagon
    Model:
    Five
    That's why I used Super Tough 3M tape over that spot after I rounded off the sharp edges with a jewelry file. ;)

  10. rdgrimes

    rdgrimes Senior Member

    Joined:
    Jun 7, 2013
    1,740
    444
    4
    Location:
    New Mexico, USA
    Vehicle:
    2018 Prius Prime
    Model:
    N/A
    There's always going to be a certain amout of movement and rubbing involved in a situation like that. It WILL short, sooner or later.

    I'd be drilling a hole and using a rubber grommet.

    xliderider likes this.
  11. tanasit

    tanasit Member

    Joined:
    Mar 26, 2012
    399
    60
    0
    Location:
    Philadelphia
    Vehicle:
    2012 Prius v wagon
    Model:
    Five
    Tight fit and fully seated inside the weather strip? Time will tell.:unsure:

  12. rdgrimes

    rdgrimes Senior Member

    Joined:
    Jun 7, 2013
    1,740
    444
    4
    Location:
    New Mexico, USA
    Vehicle:
    2018 Prius Prime
    Model:
    N/A
    Every time the gate opens or closes, every time you hit a bump, hot/cold cycles....... lots of movement.
    Check it in a few months, you'll the tape wearing away.

  13. tanasit

    tanasit Member

    Joined:
    Mar 26, 2012
    399
    60
    0
    Location:
    Philadelphia
    Vehicle:
    2012 Prius v wagon
    Model:
    Five
    Good reasons, so I will report back in a few months.(y)
    Thanks,

  14. Air_Boss

    Air_Boss Senior Member

    Joined:
    Jun 2, 2012
    3,902
    1,064
    0
    Location:
    New Yawk
    Vehicle:
    2012 Prius v wagon
    Model:
    Five
    FWIW, I went back and connected the stop lamp function. Works fine and get no current bleed into the CHMSL.

    Brake lamp conspicuity greatly improved, day and night.

  15. Eric "v"

    Eric "v" Member

    Joined:
    Nov 17, 2014
    229
    44
    0
    Location:
    'Vegas, NV, Baby
    Vehicle:
    2013 Prius v wagon
    Model:
    Two
    I "need" these lights - as parking lights only.

    PRICE??

  16. Air_Boss

    Air_Boss Senior Member

    Joined:
    Jun 2, 2012
    3,902
    1,064
    0
    Location:
    New Yawk
    Vehicle:
    2012 Prius v wagon
    Model:
    Five
    Including shipping
    From SHARE+STYLE via Rakuten, including shipping, $62, though that was when the Yen was higher. I'd estimate $60 today.

  17. gmdog2

    gmdog2 Junior Member

    Joined:
    Aug 30, 2012
    18
    11
    0
    Location:
    Augusta, MI
    Vehicle:
    2012 Prius v wagon
    Model:
    Three
    Nice convo, great information..thx to all involved..Ordering today..
    nice

  18. Eric "v"

    Eric "v" Member

    Joined:
    Nov 17, 2014
    229
    44
    0
    Location:
    'Vegas, NV, Baby
    Vehicle:
    2013 Prius v wagon
    Model:
    Two
    Just ordered these yesterday.
    I'm doing it for the added safety. Las Vegas is a 24 hour drinking and drugs town and every little bit of illumination helps.
    I'll hook them up as "parking lights", not as brake lights.

  19. Air_Boss

    Air_Boss Senior Member

    Joined:
    Jun 2, 2012
    3,902
    1,064
    0
    Location:
    New Yawk
    Vehicle:
    2012 Prius v wagon
    Model:
    Five
    You know they can be both, right? They are a three wire, dual density LED array.

  20. Eric "v"

    Eric "v" Member

    Joined:
    Nov 17, 2014
    229
    44
    0
    Location:
    'Vegas, NV, Baby
    Vehicle:
    2013 Prius v wagon
    Model:
    Two
    I may have my local custom shop do the install for making them dual purpose lights IF indeed they don't reduce the normal brake light brightness.
