LED operations?

Discussion in 'Gen 1 Prius Plug-in 2012-2015' started by 3prongpaul, Mar 15, 2015.

  1. 3prongpaul

    3prongpaul Hybrid Shop Owner, worked on 100's of Prius's

    Joined:
    Jul 18, 2010
    946
    704
    1
    Location:
    Boulder Hybids, Boulder, CO
    Vehicle:
    2006 Prius
    Model:
    N/A

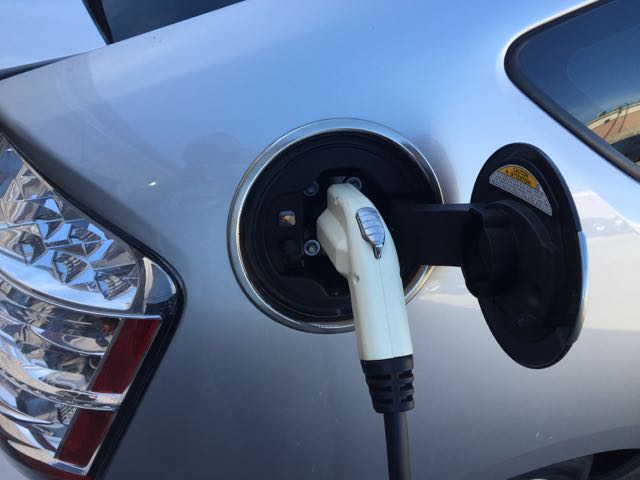

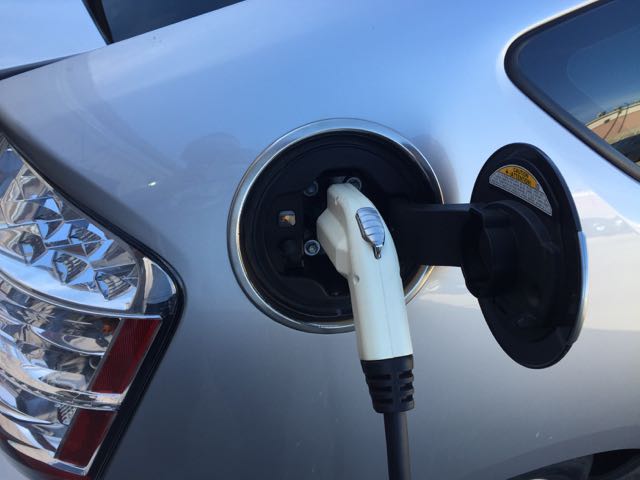

    I had a customer that wanted a PIP charge port installed into his Gen2 Prius with our aftermarket 17kwh Nissan LEAF battery pack (~50 mile range!) so we got a genuine G3 PIP port from a salvage yard and did some bodywork to make it look as factory as we could.

    Can a PIP owner please confirm how the LEDs in the charge port are supposed to work?

    I made the illumination LED at the top come on as the door opens then go off when J1772 plugs in to the port.

    I have the charging LED to the left of the J1772 come on Orange and stay Orange until the cable is unplugged.

    What does the real G3 PIP do?
    Does the charging LED change color or go off once fully charged?


    #1 3prongpaul, Mar 15, 2015
    Tracksyde likes this.
  2. evfinder

    evfinder Member

    Joined:
    Jul 29, 2011
    293
    72
    0
    Location:
    Los Angeles, CA
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    It goes out when the charge is complete.

    #2 evfinder, Mar 15, 2015
  3. Eug

    Eug Swollen Member

    Joined:
    Jan 13, 2004
    869
    166
    0
    Location:
    Earth (for now)
    Vehicle:
    2012 Prius Plug-in
    Cool. Looks good.

    As for the light, it comes on when you first plug it in, and then is on only when it's charging.

    If you have the timer set, the LED will shut off, and then come on when it starts charging.
    Once the charging is finished, the LED will shut off.

    #3 Eug, Mar 15, 2015
  4. mrbigh

    mrbigh Prius Absolutum Dominium

    Joined:
    Sep 6, 2005
    3,686
    693
    2
    Location:
    Long Island, NY
    Vehicle:
    Other Electric Vehicle
    I does go off

    #4 mrbigh, Mar 16, 2015
  5. bisco

    bisco cookie crumbler

    Joined:
    May 11, 2005
    97,057
    44,036
    0
    Location:
    boston
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    tell us more about your 50 mile pip!!!:)

    #5 bisco, Mar 16, 2015
  6. kenmce

    kenmce High Voltage Member

    Joined:
    May 4, 2004
    1,411
    432
    0
    Location:
    NY
    Vehicle:
    Other Hybrid
    Model:
    Limited
    I think you've got it right. The white LED is just to help you find the fitting. The yellow one means charging. Everything is off after it's done.

    #6 kenmce, Mar 17, 2015
  7. PriusC_Commuter

    PriusC_Commuter Active Member

    Joined:
    Mar 21, 2013
    914
    306
    0
    Location:
    Los Angeles/ Orange County, CA
    Vehicle:
    2014 Prius Plug-in
    Model:
    Plug-in Base
    Yellow light means it's charging, yellow light off means not charging (or done charging).
    While LED is used when the door is opened to line up the plug, and turns off when charging begins or if doors are locked I believe.

    #7 PriusC_Commuter, Mar 18, 2015
