Lets see your Charge station Photo

Discussion in 'Gen 1 Prius Plug-in 2012-2015' started by Bill Collins, Oct 9, 2013.

  1. Bill Collins

    Bill Collins Junior Member

    Joined:
    Sep 4, 2011
    80
    13
    0
    Location:
    East rutherford N.J.
    Vehicle:
    2013 Prius Plug-in
    Model:
    Plug-in Base

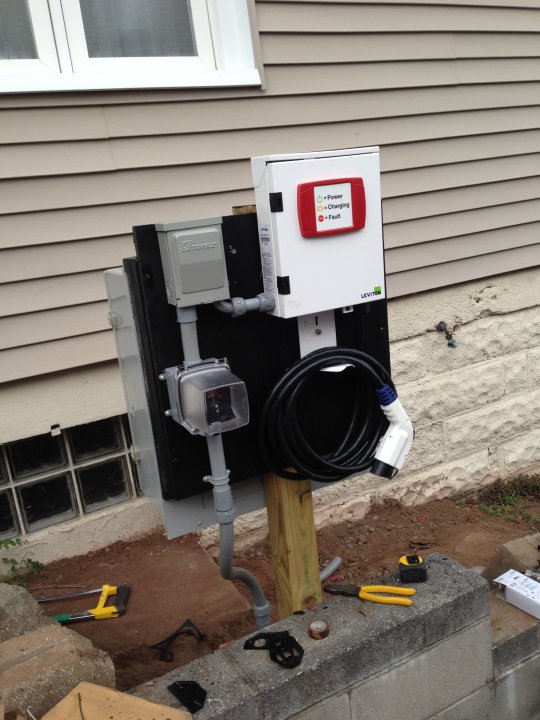

    IMG_0486.jpg Mine is in my driveway.. its a leviton model EVB45-3PT 240 VOLT as you see in the pic

    Hi Burrito! likes this.
  2. Paradox

    Paradox Prius Enthusiast / Moderator
    Staff Member

    Joined:
    Sep 22, 2005
    29,111
    8,580
    201
    Location:
    USA
    Vehicle:
    2014 Prius v wagon
    Model:
    Five

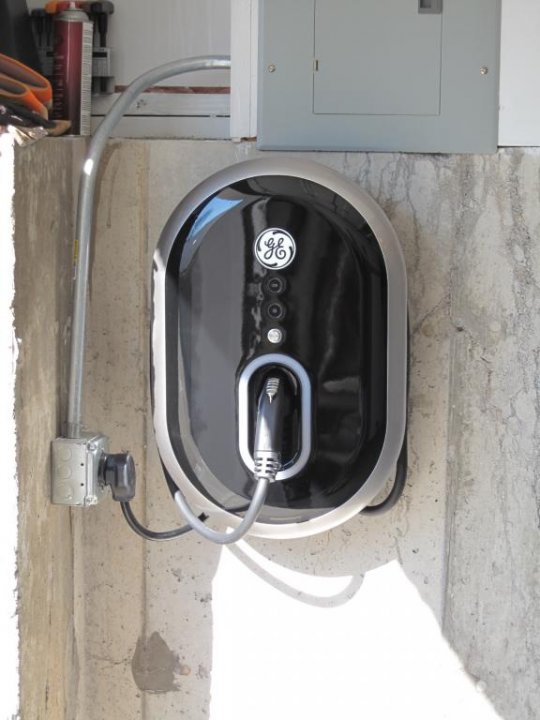

    In my garage


    Attached Files:

    Hi Burrito! likes this.
  3. Bill Collins

    Bill Collins Junior Member

    Joined:
    Sep 4, 2011
    80
    13
    0
    Location:
    East rutherford N.J.
    Vehicle:
    2013 Prius Plug-in
    Model:
    Plug-in Base
    If you click on my small pic it will enlarge..I have it Hardwired but we put a new hole in the side and blocked the bottom where the short cable with the plug was ..Added a safty shut off (Top Box)and second set of outlets (In a bubble Box)..one a 110 and another 220 for the upgraded Prius evse..all on a post and 24"x24" plywood . was going to use the nema box in the rear but now its just a storage box for whatever

  4. -1-

    -1- Don

    Joined:
    Jan 16, 2013
    1,247
    434
    8
    Location:
    Chester, Virginia
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Advanced
    :)Nice work guys. This was my second install, to what I figured was the ideal location. Required running another 240v dedicated line. I only have to deal with the six foot section of cord which hangs on a hook.


    [​IMG]

    [​IMG]

    Hi Burrito! and bvoyles like this.
  5. uropip

    uropip Member

    Joined:
    Jul 27, 2013
    138
    37
    0
    Location:
    S.E. MASS
    Vehicle:
    2013 Prius Plug-in
    Model:
    Plug-in Base
    not fancy by any means...
    Leviton Level 1 jobby with selectable amperage
    [​IMG]

    Hi Burrito! likes this.
  6. davidhuff

    davidhuff Junior Member

    Joined:
    Mar 5, 2010
    63
    2
    0
    Location:
    Salem,OR
    Vehicle:
    2013 Prius Plug-in
    Model:
    Plug-in Base

  7. davidhuff

    davidhuff Junior Member

    Joined:
    Mar 5, 2010
    63
    2
    0
    Location:
    Salem,OR
    Vehicle:
    2013 Prius Plug-in
    Model:
    Plug-in Base
    Who makes this charger?
    Sure looks great!

  8. -1-

    -1- Don

    Joined:
    Jan 16, 2013
    1,247
    434
    8
    Location:
    Chester, Virginia
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Advanced
    :)Leviton, same as Bill Collins in the first post. My is the 16A version, his is the 30A.

  9. markrivers

    markrivers Senior Member Emeritus

    Joined:
    Sep 3, 2011
    77
    13
    0
    Location:
    Los Angeles
    Vehicle:
    2011 Prius
    Model:
    Four

    It's a Leviton with 40amps

  10. bina12834

    bina12834 New Member

    Joined:
    Oct 8, 2013
    28
    1
    0
    Vehicle:
    Other Non-Hybrid
    Model:
    N/A
    man i wish i had a driveway or garage so i could install a charging station.

  11. markrivers

    markrivers Senior Member Emeritus

    Joined:
    Sep 3, 2011
    77
    13
    0
    Location:
    Los Angeles
    Vehicle:
    2011 Prius
    Model:
    Four

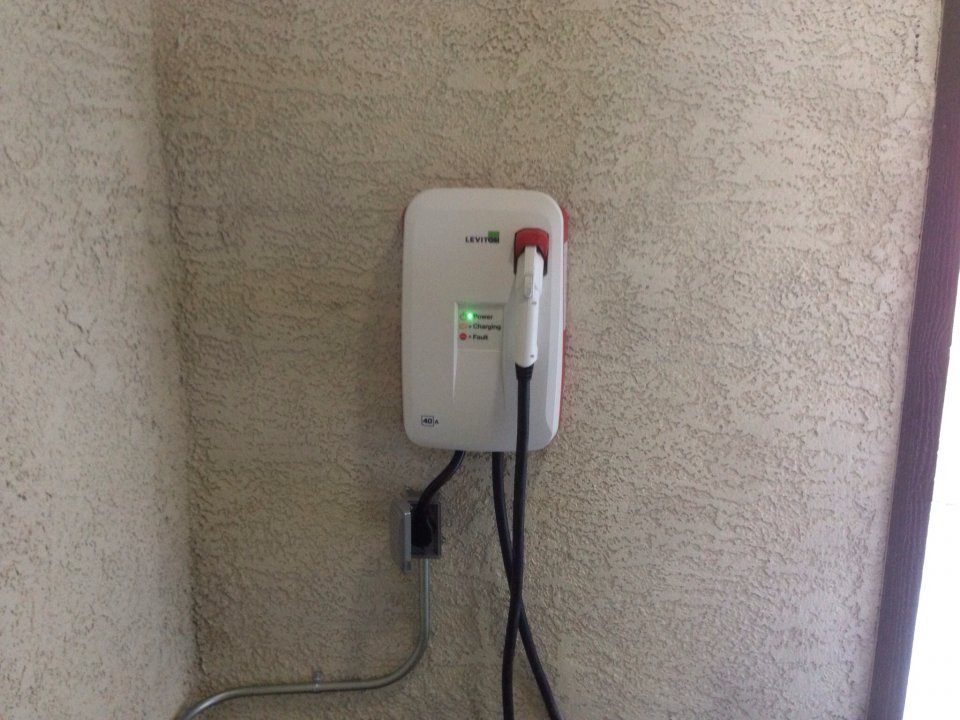

    ^ actually, i live on a 3rd floor. this installation is on a hallway ( 1st floor) near a common garage. The electrician constructed a conduit from my main panel all the way to where it's positioned now.
    It was hard and expensive. But it was worth it.

    -1- likes this.
  12. F8L

    F8L Protecting Habitat & AG Lands

    Joined:
    Aug 14, 2006
    19,011
    4,054
    50
    Location:
    Grass Valley, CA.
    Vehicle:
    Other Non-Hybrid
    Model:
    N/A
    All of you fancy folk. :p

    I went el cheapo. $220 for a 220v EVSE upgrade PIP EVSE. $150 for a 220v outlet and circuit breaker install. A couple cents for a screw and zip tie.


    Attached Files:

    chesleyn and Hi Burrito! like this.
  13. SimiPrius

    SimiPrius Member

    Joined:
    May 8, 2010
    247
    60
    0
    Location:
    Simi Valley,Ca
    Vehicle:
    2012 Prius Plug-in
  14. chesleyn

    chesleyn Active Member

    Joined:
    Mar 27, 2012
    596
    157
    0
    Location:
    Los Angeles
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base

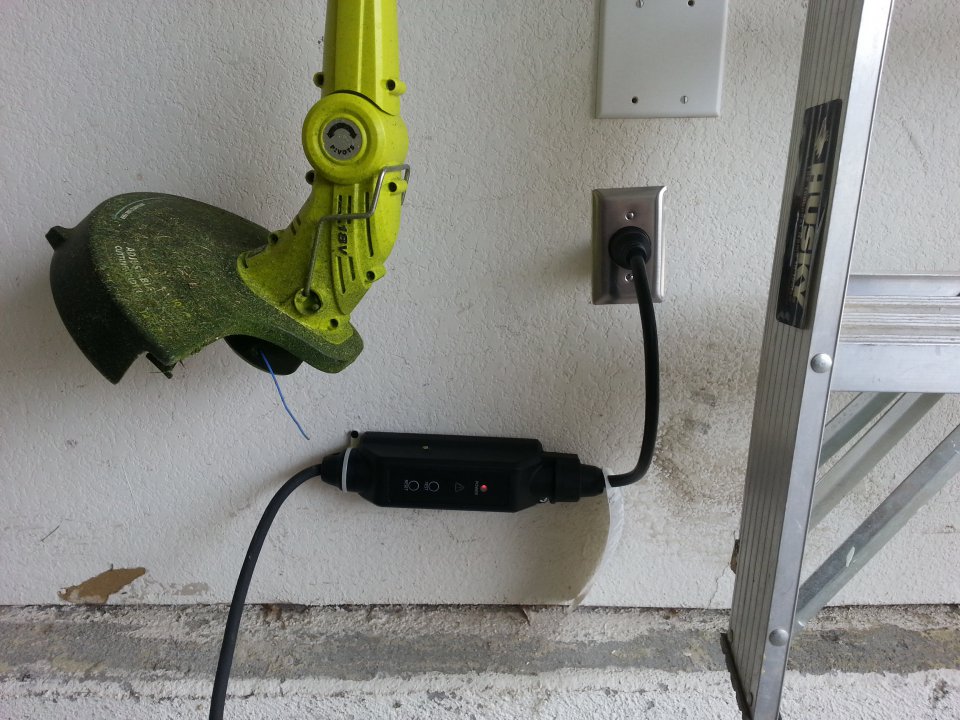

    Here here.. I went el cheapo too (y)

    Mine is outside though.

    F8L likes this.
  15. retired4999

    retired4999 Prius driver since 2005

    Joined:
    Aug 11, 2011
    2,652
    622
    15
    Location:
    Eau Claire, Wi.
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    My moto always. The KISS method! :)

    Screw eyelet on wall, screw through hole on cord box.

  16. hill

    hill High Fiber Member

    Joined:
    Jun 23, 2005
    15,989
    5,884
    54
    Location:
    South OC So Cal & Nashville, TN
    Vehicle:
    2004 Prius
    Model:
    IV
    For those that go the cheep route - just make sure what you're doing is to code / safe. Do NOT be the 1st PiP owning person (like the Volt owner below who went cheep on their charge wiring) to get laughed at for cutting corners.
    ;)

    [​IMG]
    .

    F8L and jdk2 like this.
  17. jdk2

    jdk2 Active Member

    Joined:
    Mar 6, 2010
    751
    215
    0
    Location:
    Raleigh, NC
    Vehicle:
    2013 Prius Plug-in
    Model:
    Plug-in Advanced
    Man, that's no lauging matter. If the fire didn't kill me, SHE would!

    F8L likes this.
  18. mrbigh

    mrbigh Prius Absolutum Dominium

    Joined:
    Sep 6, 2005
    3,686
    682
    2
    Location:
    Long Island, NY
    Vehicle:
    Other Electric Vehicle
    Now the Family is " Char...plus"

  19. pwp1943

    pwp1943 PHEV Afficionado

    Joined:
    May 9, 2010
    50
    4
    0
    Location:
    Boston
    Vehicle:
    2013 Prius Plug-in
    Model:
    Plug-in Base
    [​IMG]

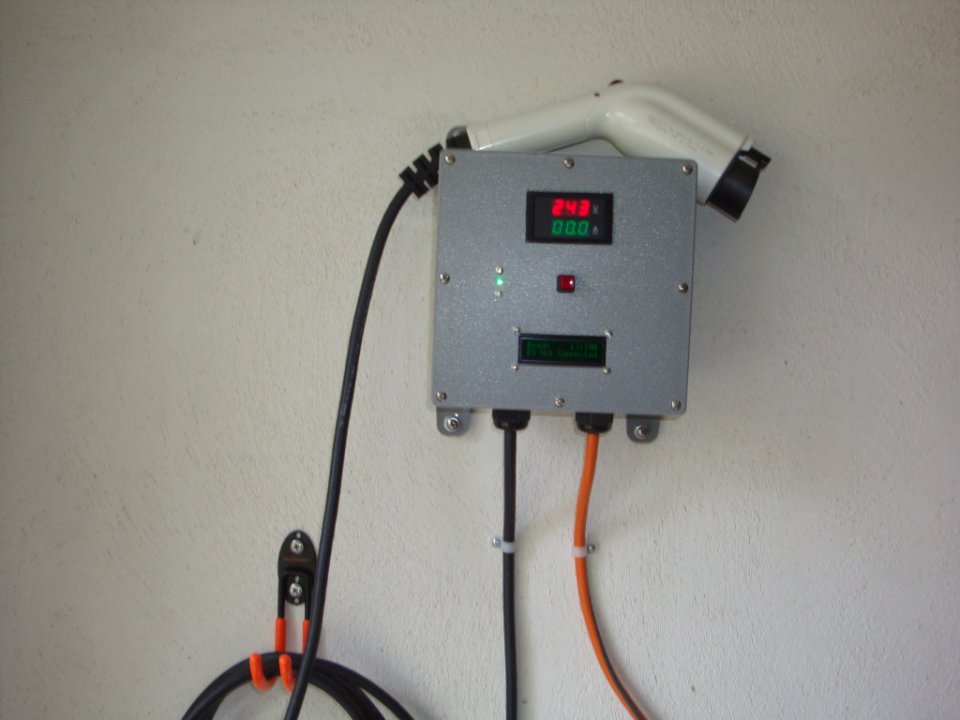

    Here is my EVSE level 2 charger. It came from the OpenEVSE project as a kit. The kit can be found on the web with a Google search. The kit box is mounted on the inside wall of my garage. I had to have a 220 volt outlet wired from my breaker box. The orange wire goes to a 220 plug. The plug for my box is only about 20 feet away from the outlet so wiring was easy. It is wired for 20 amps in case I need higher current for a future car. The PIP only needs 9.5 amps at 240 VAC, so I fused the EVSE box at 15 amps and put 15 amp breakers in the main box. In addition there is a circuit that senses maximum charging current in the electronics and it is set to disable the charger at 10 amps. There is plenty of safety and margin in my installation. As a benefit it only takes about 90 minutes to get a full charge compared to the Toyota supplied cable.


    Attached Files:

    • EVSE.jpg
      File size:
      70.9 KB
      Views:
      313
    mrbigh likes this.
  20. SAronian

    SAronian Active Member

    Joined:
    Mar 18, 2013
    334
    144
    0
    Location:
    Oakland, CA
    Vehicle:
    Other Electric Vehicle
    Model:
    N/A

    Me too. Seemed like a flexible and winning combination.

    F8L likes this.
