Light & more Space under the Flying Bridge

Discussion in 'Gen 3 Prius Accessories and Modifications' started by DadofHedgehog, Jan 12, 2014.

  1. DadofHedgehog

    DadofHedgehog Active Member

    Joined:
    Jun 17, 2012
    681
    281
    0
    Location:
    northern Virginia
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Advanced

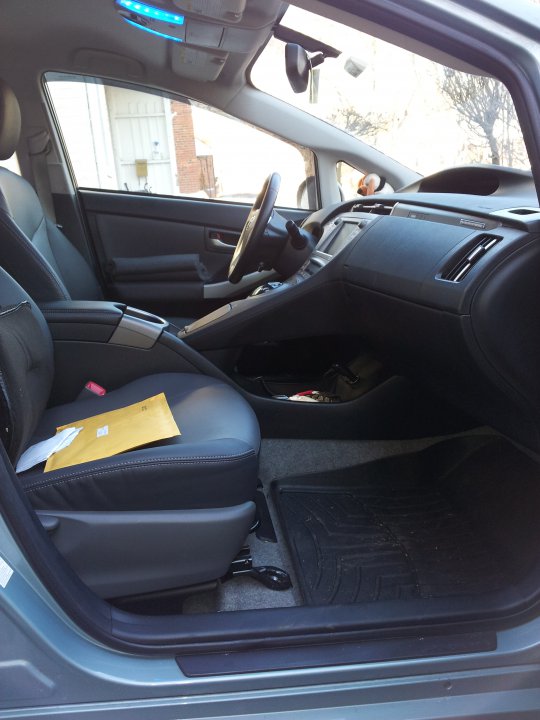

    20140112_142831.jpg Ever since I got a Stage 10 shifter in Summer 2012, I wanted to eliminate the useless fist-size plastic roof bulge under the flying bridge.

    In late December I found my son's former motorcycle parts bin in the basement (the Hedgehog is now Ford Fusion Energi-equipped and living in Kentucky). Among other stuff, there they were - his old LED motorcycle license plate "bolts". Ha haa!

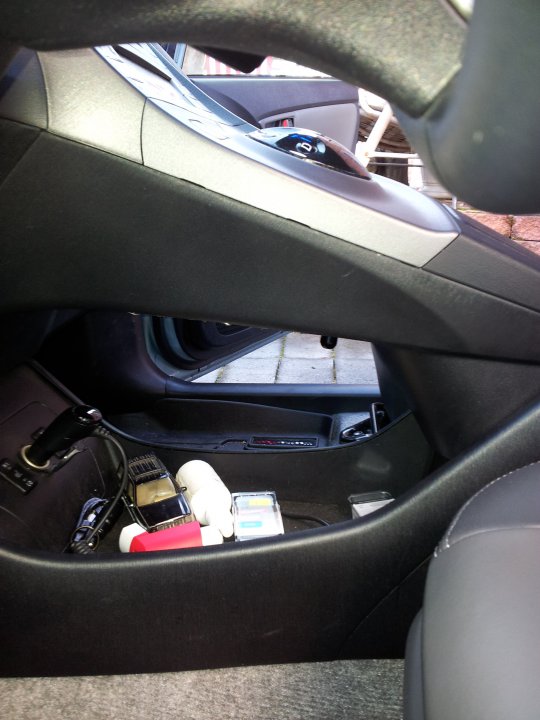

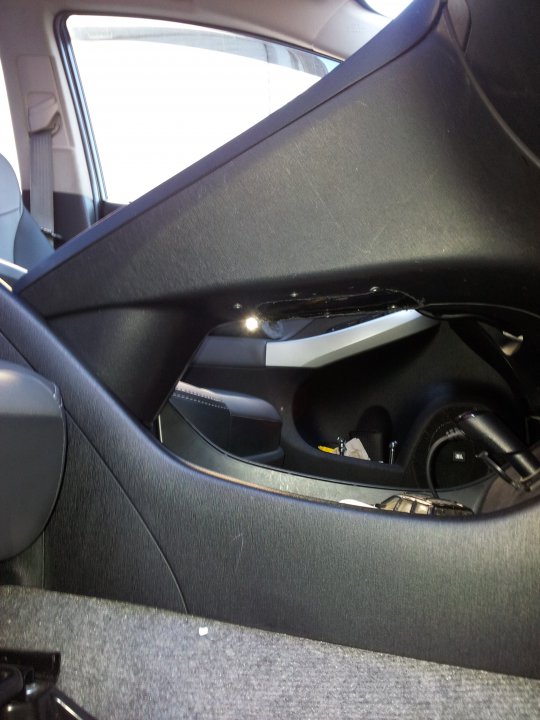

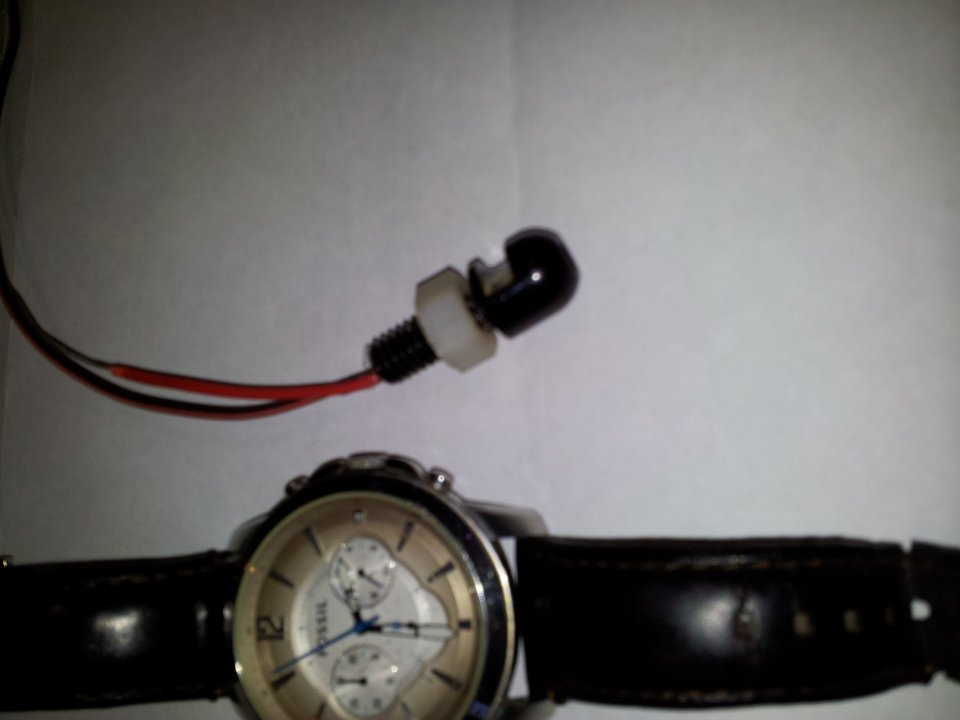

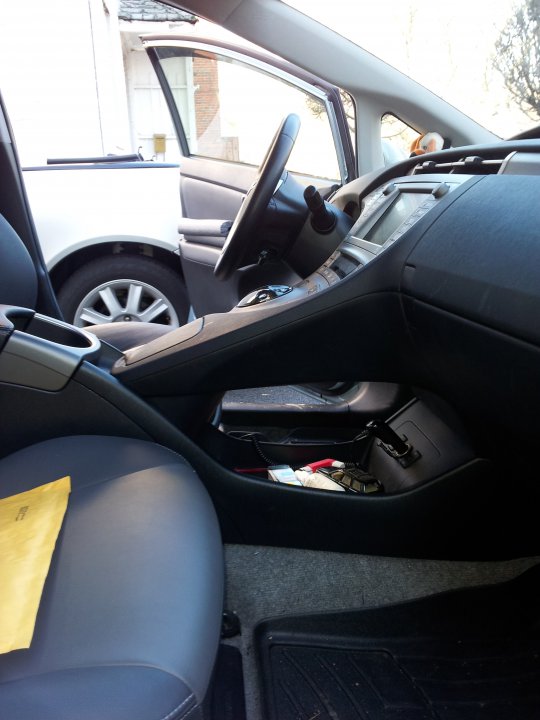

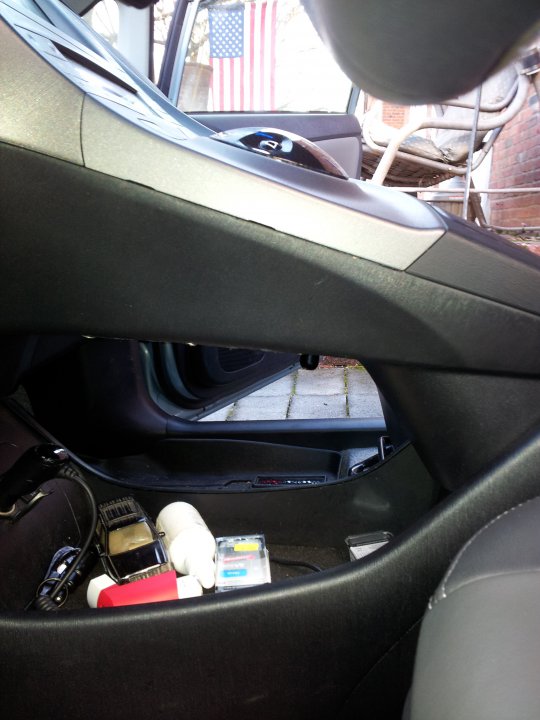

    Well, any holiday project worth its salt doesn't get done until January. Here are some pix: the Flying Bridge in silhouette without the old shifter bulge (much neater IMHO), the li'l nub of the LED "bolt", the LED bolt lit up, and its sister LED bolt next to my watch for scale.

    A shoutout to the Stage 10 crew who told me which shifter wires to tap (Toyota OEM side, not/not the Stage 10 side of the connecting plug). There are two white wires on the OEM side - the white wire toward the center (not the one on the very edge) provides 12 Volt power while the only red wire is the Ground.

    In-the-dark pix will follow when it gets dark tonight. I hope the level of light is just right - not too bright, but bright enough to be useful.

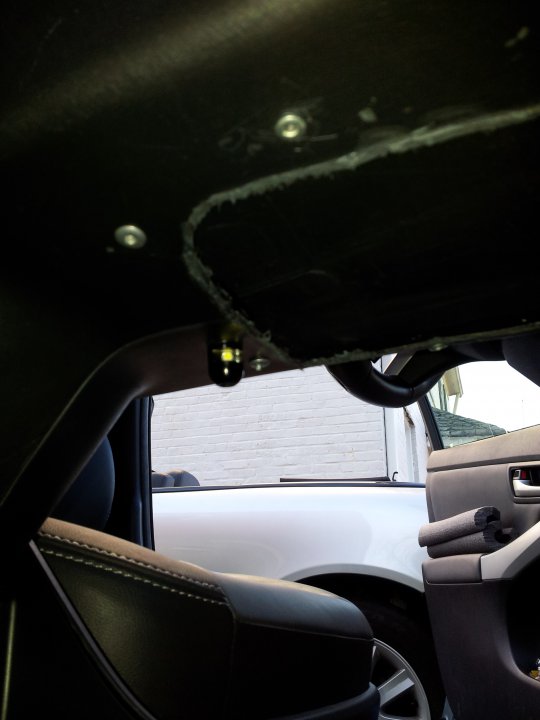

    My motivation: to be able to find little things on the compartment floor on long trips in the night without rooting around. As a bonus, I Dremeled the now-useless plastic "fist bulge" off the roofline and closed the gap with a stiff black plastic piece and six rivets.

    Challenges: disassembling 1/2 of the flying bridge to cautiously get everything right. There are some finicky weird metal welded pieces in there. I suggest asking the friendly Toyota parts guy to print you off a schematic of the Flying Bridge parts (all on one page) which makes things much less guess-like during disassembly.

    Electrical stuff: straightforward once the plastic surgery w/rivets is done. No surprises there.


    Attached Files:

    metro-mike likes this.
  2. DadofHedgehog

    DadofHedgehog Active Member

    Joined:
    Jun 17, 2012
    681
    281
    0
    Location:
    northern Virginia
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Advanced
    My apologies to all - I noticed after posting that i didn't orient the pix correctly. I'll edit now.

  3. bisco

    bisco cookie crumbler

    Joined:
    May 11, 2005
    107,571
    48,862
    0
    Location:
    boston
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    well done! as your next projest, would you mind cutting out the whole flying bridge?:p

    PriusCamper and DadofHedgehog like this.
  4. DadofHedgehog

    DadofHedgehog Active Member

    Joined:
    Jun 17, 2012
    681
    281
    0
    Location:
    northern Virginia
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Advanced
    Actually I'd love to except I need the shifter.

    PriusCamper likes this.
  5. mrstop

    mrstop PWR Mode

    Joined:
    Jun 22, 2012
    742
    329
    109
    Location:
    Cincinnati, OH
    Vehicle:
    2012 Prius
    Model:
    Two
    Interesting mod. Did you see any practical reason why the bulge was there? Is it needed when you had the stock shifter, but not the Stage 10 shifter?

  6. phoenixgreg

    phoenixgreg Senior member

    Joined:
    Apr 7, 2010
    1,157
    288
    66
    Location:
    Phoenix
    Vehicle:
    2010 Prius
    Model:
    II

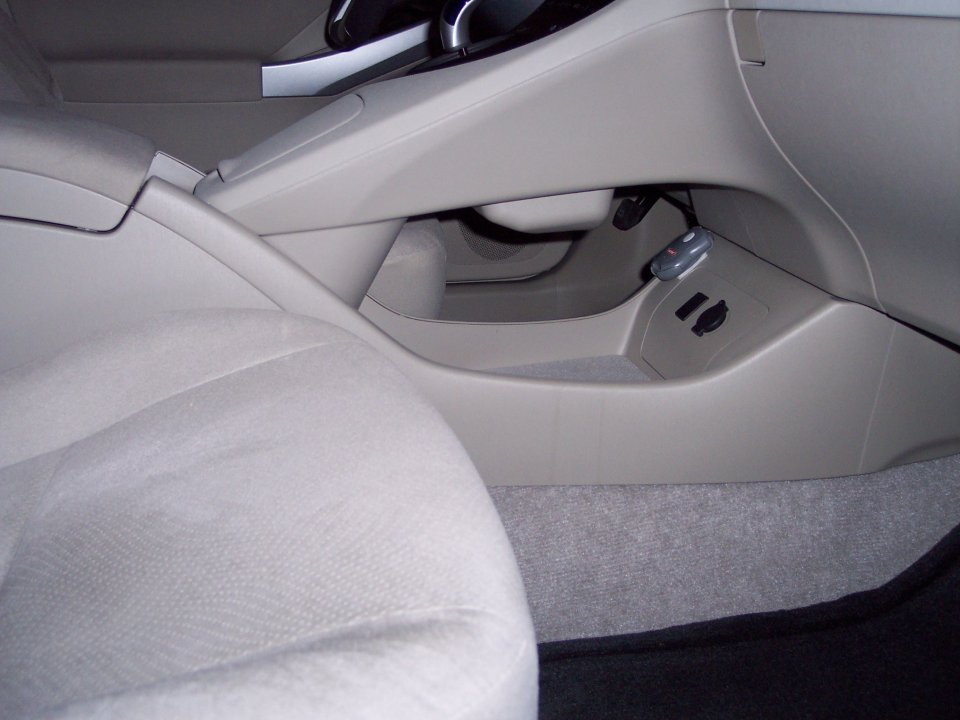

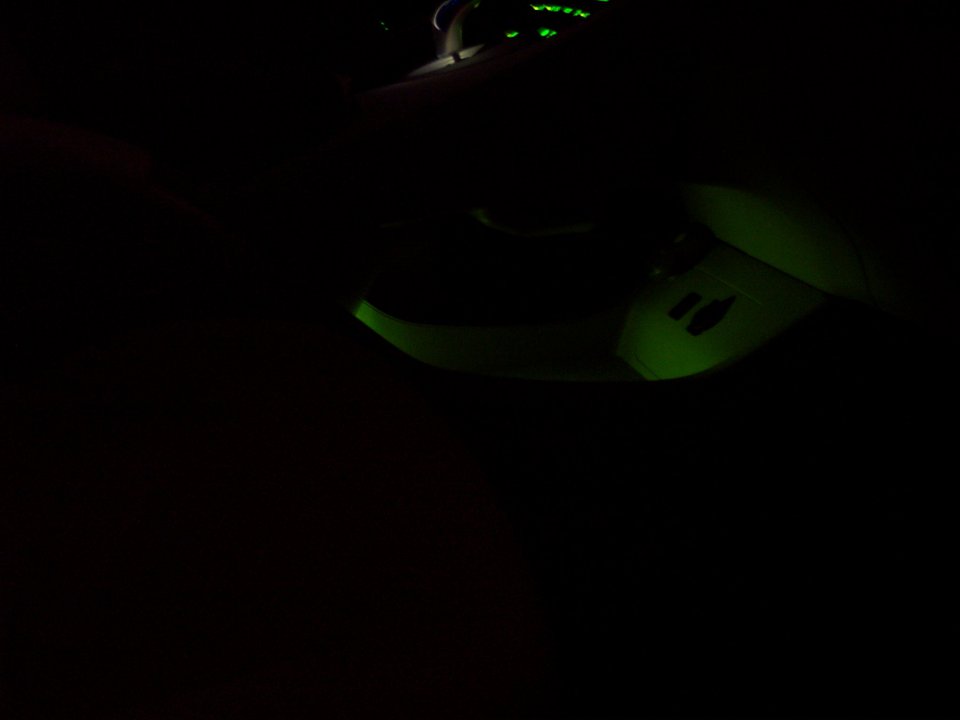

    Nice job OP...I did a similar mod several years ago but mine is just a green LED mounted in that rectangular plastic panel below the cupholder. The LED comes on with the headlights and gives an ambient splash of green lighting so as not to distract driving at night. I can see what's down there well enough, but it's not too bright either.
    day picture.jpg night picture.jpg

    DadofHedgehog likes this.
  7. DadofHedgehog

    DadofHedgehog Active Member

    Joined:
    Jun 17, 2012
    681
    281
    0
    Location:
    northern Virginia
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Advanced
    Exactly correct. The OEM shifter has a mechanical pivot point with the visible stick above it and a corresponding length of it hidden in the bulge below the pivot point. Since the shifting (either shifter) is actually controlled by electronic fly-by-wire contacts, once the mechanical "choosing of contacts" is transferred from stick-moving (OEM) to button-pushing (Stage 10), the "roof bulge" under the flying bridge is just empty space.

    It's easy to see in any GenIII Prius, whatever shifter is installed: just pry up the large silver triangular plastic bezel which wraps around the shifter with your fingers or maybe a dull edge like a butter knife, from the left (driver's knee) side. It comes right up and thee you see the OEM shifter mechanism and the space enclosed by the plastic "roof bulge" underneath.
    The Stage 10 shifter is essentially a flat pancake so it actually just floats in the top of the empty space within the flying bridge's center.

  8. DadofHedgehog

    DadofHedgehog Active Member

    Joined:
    Jun 17, 2012
    681
    281
    0
    Location:
    northern Virginia
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Advanced
    Good job to you as well. Had I been more motivated I'd have hunted up a blue LED to match my EXLEDUSA overall blue cabin lighting (BTW the EXLEDUSA Pius kit is a great and easy-to-install mod). As it is, reuse of my son's LED bike bolt also gives just the right amount of light to see and locate items on the cargo shelf without being a visual distraction at night. Being a license plate LED bolt, of course its light is white (n) but hey it was free and it was here, ya know?

    phoenixgreg likes this.
  9. DadofHedgehog

    DadofHedgehog Active Member

    Joined:
    Jun 17, 2012
    681
    281
    0
    Location:
    northern Virginia
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Advanced
    Oh BTW if anyone out there is looking for an OEM Gen III shifter just PM me. Free to a good home.

  10. 70AARCUDA

    70AARCUDA Active Member

    Joined:
    Mar 9, 2014
    845
    209
    0
    Location:
    Tucson, AZ
    Vehicle:
    2014 Prius
    Model:
    Four
    I jokingly refer to the 'flying bridge' as Lt. Uhura's STAR TREK "Enterprise" cockpit!

    DadofHedgehog likes this.
  11. PriusCamper

    PriusCamper Senior Member

    Joined:
    Mar 3, 2012
    10,775
    4,372
    0
    Location:
    Pacific Northwest, USA
    Vehicle:
    2007 Prius
    Model:
    Two

    If I ever upgrade from a Gen2 to a Gen3 that's the first thing I'd do... I have really long legs and when I removed the center console from my Gen2 the car was twice as comfortable for long road trips 'because I was able to occasionally stretch my legs while in cruise control.

    So someday I'll upgrade to a Gen3 or Gen4 and put in new carpet, new upholstery (w/memory foam) and somehow I'll find a way to relocate w/push button shifter and all other electronics somewhere on a redesiged/simplified dashboard.

    My most favorite design element of the Gen2 Prius is the simple clean look of the front dashboard... I hope someday to redo the interior of a gen3 or gen4 to bring back that look. I know in the PriusV they kept that look to create the appearance of "more space."

    Anyone have any tips, ideas or concerns about doing that?

  12. DadofHedgehog

    DadofHedgehog Active Member

    Joined:
    Jun 17, 2012
    681
    281
    0
    Location:
    northern Virginia
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Advanced
    When I took apart all the plastic for the Flying Bridge to install my motorcycle LED license bolt light under it, I realized that apart from all the plastic panels and the wiring for the three engine control buttons and the shifter, the FB contains nothing except a really clumsily, complexly designed set of interlocking metal plates - IMHO for longitudinal torsion stability of the FB itself. In that light, the issue is more of how to finish off the remaining "abutments" of the FB once it's cut out so that they are visually acceptable rather than any internal structural reinforcement. Of course, relocating the three traction buttons and the shifter present their own problems. I think a switch to a bush button shifter like the Stage 10 etc. would make this mod easier, because pushbutton shifters require almost no depth.

    If you ever do it I'd love to see a write-up + pics.

    PriusCamper likes this.
  13. PriusCamper

    PriusCamper Senior Member

    Joined:
    Mar 3, 2012
    10,775
    4,372
    0
    Location:
    Pacific Northwest, USA
    Vehicle:
    2007 Prius
    Model:
    Two
    Hopefully... I'll start doing this work for other car owners rather than waiting for a vehicle upgrade... And yes it might take some custom injection molding, or fiberglass work, or maybe I can find some perfectly shaped plastic off of a random car in a junk yard?
