Map Light Wiring Diagram

Discussion in 'Gen 3 Prius Audio and Electronics' started by Ironworm, Dec 14, 2017.

  1. Ironworm

    Ironworm Junior Member

    Joined:
    Nov 8, 2013
    11
    0
    0
    Vehicle:
    2012 Prius
    Model:
    Five
    Hello,

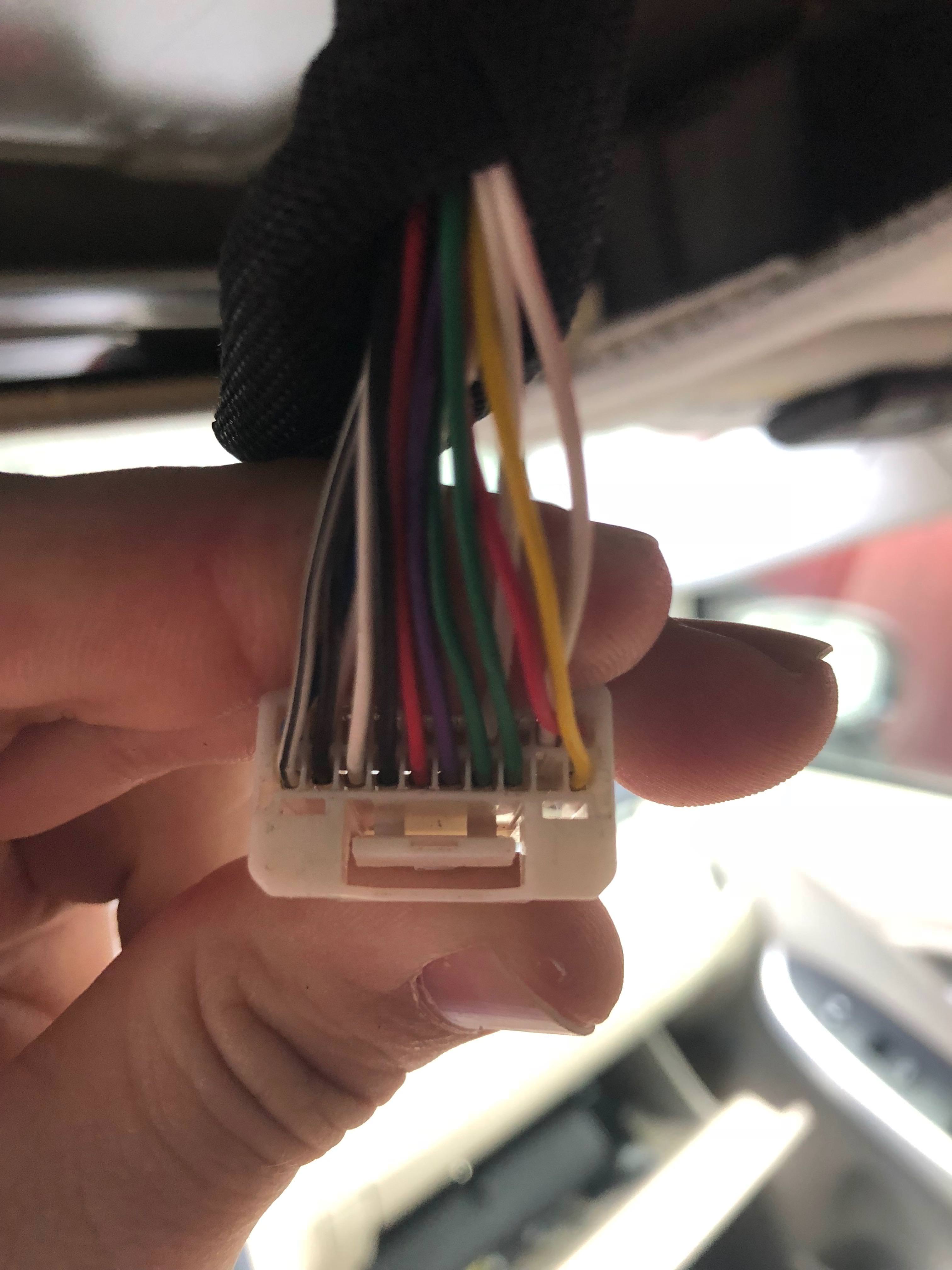

    I am looking to hardwire some devices and I found a power connecting the map/dome lights. Doing research the plug seems to be the J33 plug, does anybody have a diagram on which wires are hot with ign on and the ground wires?

    [​IMG]

    #1 Ironworm, Dec 14, 2017
  2. frodoz737

    frodoz737 Top Wrench

    Joined:
    Aug 26, 2010
    4,297
    2,347
    33
    Location:
    Texas
    Vehicle:
    2015 Prius
    Model:
    Four
    Can only help with the 2010 Model at present, but this may get you in the ball park.


    Attached Files:

    #2 frodoz737, Dec 14, 2017
  3. ErikJ

    ErikJ New Member

    Joined:
    Jan 3, 2018
    23
    6
    0
    Location:
    Palo Alto, CA
    Vehicle:
    2015 Prius Plug-in
    Model:
    Plug-in Base
    Don't know if you're still looking for this info, but here it is for a 2014:

    1 - GROUND
    2 - MICROPHONE -> SNS2
    3 - MICROPHONE -> MCO-
    4 - MICROPHONE -> MCO+
    5 - MICROPHONE -> MACC
    6 - BLANK
    7 - BLANK
    8 - GEARSHIFT ILLUMINATION +
    9 - SWITCH ILLUMINATION +
    10 - BLANK
    11 - DOOR SIGNAL FROM BODY ECU (ACTIVE LOW)
    12 - DOOR -> REAR DOME LIGHT
    13 - SAFETY CONNECT GREEN LIGHT +12V
    14 - SAFETY CONNECT RED LIGHT +12V
    15 - SAFETY CONNECT SOS BUTTON +
    16 - SAFETY CONNECT SOS BUTTON -
    17 - ON -> REAR DOME LIGHT (GROUND)
    18 - BLANK
    19 - COMMON -> REAR DOME LIGHT (+12V)
    20 - UNSWITCHED +12V

    #3 ErikJ, May 23, 2018
    anonymous and Ian Wong like this.
  4. 4est

    4est Active Member

    Joined:
    Mar 4, 2017
    207
    121
    0
    Location:
    Romania
    Vehicle:
    2013 Prius Plug-in
    Model:
    Excel
    I wired my dashcam from that connector. But I do not remember the pins

    Just try to find the largest one for ign
    Ground I think its white

    #4 4est, Jun 2, 2018
  5. anonymous

    anonymous Member

    Joined:
    May 18, 2015
    169
    94
    0
    Location:
    US
    Vehicle:
    2011 Prius
    Model:
    II
    there is no ign...

    ground is white with black stripe it appears

    #5 anonymous, Apr 11, 2024
  6. anonymous

    anonymous Member

    Joined:
    May 18, 2015
    169
    94
    0
    Location:
    US
    Vehicle:
    2011 Prius
    Model:
    II
    here's what it looks like without any of the extra features


    no ign, only constant 12v and gnd... no good for dash cam

    #6 anonymous, Apr 11, 2024
