My Duinomite Mega Canview V4 equivalent Project

Discussion in 'Prius PHEV Plug-In Modifications' started by lopezjm2001, Jul 19, 2012.

?
  1. Yes

    11 vote(s)
    100.0%
  2. Prefer to use Android Torque device

    0 vote(s)
    0.0%
  3. Prefer to use Scangauge

    0 vote(s)
    0.0%
  1. lopezjm2001

    lopezjm2001 Senior Member

    Joined:
    Apr 14, 2009
    1,146
    407
    5
    Location:
    Sydney Australia
    Vehicle:
    Other Electric Vehicle
    Model:
    N/A
    HI FWD,

    This is the readme.txt file that is supplied with the latest BASIC program. It sounds like you never bothered reading it.

    If you do not like how the program works or you think there is a mistake or a problem, want to use a LCD screen with pushbuttons then feel free to make your own changes. I like it the way it is.

    However I will take note of any problems you encounter and I may or may not deal with it later. Thanks for bringing up any problems you have.

    UPDATE: The status screen now shows "Warm up" (Unsolicited CANbus message H3C8 Data0=6) instead of "ICE Run" when started. Once the ICE has warmed up it will show "ICE Run"


  2. Flying White Dutchman

    Flying White Dutchman Senior Member

    Joined:
    Dec 29, 2007
    4,374
    313
    0
    Vehicle:
    Other Non-Hybrid
    Model:
    N/A
    I asked you about that before and you told me the car meedeed to he hookedup.
    That you changed that and added it to the readme i did not now.
    I did not read the readme every time you put a new code up......

    -Tapatalk

  3. lopezjm2001

    lopezjm2001 Senior Member

    Joined:
    Apr 14, 2009
    1,146
    407
    5
    Location:
    Sydney Australia
    Vehicle:
    Other Electric Vehicle
    Model:
    N/A
    I bought this programmable keypad here Cherry G84-4700 Programmable Keypad Squirrel Grey PS2 G84-4701TNAUS | eBay
    The instructions to program the keypad keys is not too hard to follow and it works (instructions are attached in PDF). Once the keys are programmed they stay in memmory despite powering down. It just uses the num lock key (the one next to F1) to program the keys and the numlock key is the only key which cannot be programmed. The PS2 plug inlet on the Cherry keypad is for plugging in a full ps2 keyboard which is used during programming the Cherry keypad by capturing the full ps2 keyboard data. I just happened to have a vinyl label printer at work that I have used to relabel the keys. See Photo below. This is just one option that works. It can be used with a cheap VGA 7" monitor that does not have a touch screen panel.

    I tried it out and it just sits on the arm rest and I have quick access whilst driving. I will try sticking the keypad down with velcro tape. It sits well in the cup holder of the middle console as shown in the photos.


    Attached Files:

  4. Flying White Dutchman

    Flying White Dutchman Senior Member

    Joined:
    Dec 29, 2007
    4,374
    313
    0
    Vehicle:
    Other Non-Hybrid
    Model:
    N/A
    Thats a nice sollution

    Great find

    -Tapatalk

  5. lopezjm2001

    lopezjm2001 Senior Member

    Joined:
    Apr 14, 2009
    1,146
    407
    5
    Location:
    Sydney Australia
    Vehicle:
    Other Electric Vehicle
    Model:
    N/A
    Today was a scorcher. The ambient temperature reached 41 deg.C. After driving in forced EV mode for about 45 mins to work the ECT reached 46 deg.C. I also drove to work with the airconditioning running at full power to cool down the cabin and the two Enginer Converters. See photo below. Is anybody getting any readings for the Catalyst 1 and 2 temperatures and water outlet temperatures ?

    planetaire likes this.
  6. planetaire

    planetaire Plug in 20 kWh 85 km/h or > 208km range

    Joined:
    Aug 11, 2009
    190
    139
    15
    Location:
    France
    Vehicle:
    2007 Prius
    Model:
    II
    Lopezjm

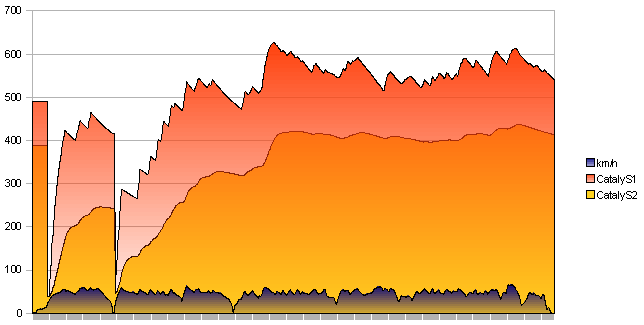

    Yes, B1S1 and B1S2 are sollicitated pid and give you the 2 catalyst temp (computed values).
    I used this pid years ago when using tactrix dongle. They are now described in berkeley xls.

    One exemple in celsius here:

    [​IMG]

    I don't know what is water outlet temp.

    :)

  7. lopezjm2001

    lopezjm2001 Senior Member

    Joined:
    Apr 14, 2009
    1,146
    407
    5
    Location:
    Sydney Australia
    Vehicle:
    Other Electric Vehicle
    Model:
    N/A
    Thanks Planetaire. I cannot get values for B1S1 or B1S2 using my miniVCI using techstream software so I assume that my particular model 2004 does not measure these values. I used the solicited PIDs given by Berkley.xls but all I get is 0.





    I think it is the water outlet of the CHS (coolant heat storage) tank. It is a totally seperate temperature sensor to the ECT sensor.



    [email protected] likes this.
  8. Flying White Dutchman

    Flying White Dutchman Senior Member

    Joined:
    Dec 29, 2007
    4,374
    313
    0
    Vehicle:
    Other Non-Hybrid
    Model:
    N/A
    Mmm your cooling must be working great.. my inverter temp on canview have reached 65 C on regular bases during the summer and that was even without the plugin.....


    -Tapatalk

  9. planetaire

    planetaire Plug in 20 kWh 85 km/h or > 208km range

    Joined:
    Aug 11, 2009
    190
    139
    15
    Location:
    France
    Vehicle:
    2007 Prius
    Model:
    II
    Did you test in OOG mode or Hybrid mode ?

    Here, in France, we don't have any coolant heat storage tank. So I cannot test this pid.
    :)

  10. lopezjm2001

    lopezjm2001 Senior Member

    Joined:
    Apr 14, 2009
    1,146
    407
    5
    Location:
    Sydney Australia
    Vehicle:
    Other Electric Vehicle
    Model:
    N/A

  11. Flying White Dutchman

    Flying White Dutchman Senior Member

    Joined:
    Dec 29, 2007
    4,374
    313
    0
    Vehicle:
    Other Non-Hybrid
    Model:
    N/A
    Edit

    Moved to other topic.

    +++++++

    Hey planitaire

    How is your cells temparatures nowadays?

    I Am close to 0 celsius
    At 7 today

    Cells are just a geen above-mentioned that , car is outside.

    Cells

    -Tapatalk

  12. vincent1449p

    vincent1449p Active Member

    Joined:
    May 24, 2004
    894
    331
    0
    Location:
    Singapore
    Vehicle:
    2012 Prius c
    How does the ECM know if the car is warm up if it does not measure these values? If it did not display in Techstream, it does not necessary mean those PIDs are not supported. I suggest you try 213D and 213F, these 2 are also catalyst temp.

    Vincent

    [email protected] likes this.
  13. lopezjm2001

    lopezjm2001 Senior Member

    Joined:
    Apr 14, 2009
    1,146
    407
    5
    Location:
    Sydney Australia
    Vehicle:
    Other Electric Vehicle
    Model:
    N/A
    Thanks Vincent. I tried it and the result is the same. The reason I am getting zero is because nothing is returned from the requested PID. If a zero was returned then the formula would give me a value of -40.

    Incidentally I also get the same zero result for Vehicle load and absolute load value and which also do not show up on the Techstream software.

  14. vincent1449p

    vincent1449p Active Member

    Joined:
    May 24, 2004
    894
    331
    0
    Location:
    Singapore
    Vehicle:
    2012 Prius c
    You might want to check your region selection for Techstream. AFAIK, CHS is only for North America region, did you fit an aftermarket CHS?

    Vincent

  15. lopezjm2001

    lopezjm2001 Senior Member

    Joined:
    Apr 14, 2009
    1,146
    407
    5
    Location:
    Sydney Australia
    Vehicle:
    Other Electric Vehicle
    Model:
    N/A
    I did not know that. I doubt if I have a CHS, probably not since I cannot get a temperature value for it.
    My Techstream software has a setup for either USA or Europe. I had it setup for USA and then changed it to Europe and still could not find Catalyst temperatures.

  16. vincent1449p

    vincent1449p Active Member

    Joined:
    May 24, 2004
    894
    331
    0
    Location:
    Singapore
    Vehicle:
    2012 Prius c
    Yours must be the older ver., the newer ver. has North America, Europe, Japan and Other. I think Australia falls in the Other region.

    Vincent

  17. lopezjm2001

    lopezjm2001 Senior Member

    Joined:
    Apr 14, 2009
    1,146
    407
    5
    Location:
    Sydney Australia
    Vehicle:
    Other Electric Vehicle
    Model:
    N/A
    Yeap, Version 4.21.002. I will try to get the latest version 7 for miniVCI tomorrow. Maybe there is a different PId address for the catalyst temperatures.

  18. lopezjm2001

    lopezjm2001 Senior Member

    Joined:
    Apr 14, 2009
    1,146
    407
    5
    Location:
    Sydney Australia
    Vehicle:
    Other Electric Vehicle
    Model:
    N/A
    I have updated to Techstream Ver 7.10.030 and then setup area selection to "Other" and still will not show temperature values for the catalytic converters.

  19. vincent1449p

    vincent1449p Active Member

    Joined:
    May 24, 2004
    894
    331
    0
    Location:
    Singapore
    Vehicle:
    2012 Prius c
    Hmmm...that is puzzling. If the CHS does not show up, the region setting should be correct.

    I have 2 more suggestions:
    1. In Techstream, instead of "Connect to Vehicle", use "Generic OBDII". This forces the scanner to read standard PIDs as defined by SAE J1979.
    2. Try Mode 01 instead of Mode 21, 013C or 013E, for std PIDs.
    Vincent

  20. NortTexSalv04Prius

    NortTexSalv04Prius Active Member

    Joined:
    Nov 14, 2009
    915
    114
    0
    Location:
    Texas
    Vehicle:
    2004 Prius
    Model:
