My Headlight Mods: Mini H1, Blacked Housing and LEDs

Discussion in 'Gen 2 Prius Accessories & Modifications' started by Justdidit, Jan 16, 2013.

?
  1. USDM - With Amber lens and reflector

    27.3%
  2. JDM - No reflector and Amber LED bulb for parking light

    72.7%
  1. Justdidit

    Justdidit LVNPZEV

    Joined:
    Jun 12, 2012
    1,880
    708
    75
    Location:
    Carrollton, Texas
    Vehicle:
    2007 Prius
    Model:
    Four Touring
    Been playing with the idea of upgrading the brightness of the LEDs in the strip area.
    [​IMG]
    SPECIFICATIONS from eBay seller jeledhk:
    0.5W 5MM WIDE VIEW 60 DEGREE WHITE 0.5W LED
    Luminous Intensity-MCD: Typ: 100,000 mcd
    [​IMG]

    [​IMG]


    [​IMG]

    Bear with the soldering... I'm still learning.. LOL
    [​IMG]

    Compared to the last set of 5mm 20,000mcd leds (right) these are much bighter at 100,000mcd (left)
    [​IMG]

    Holes pre-drilled 3/16 bit - used the lines to keep the holes straight with the car.
    [​IMG]

    Heat Shrink wrapped and installed
    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Main reason for looking for brighter lights NOT prewired... the solder broke on a couple LEDs that were pre-wired - so I 'made' my own...MUCH brigher.

    Test the brightness:
    [​IMG]

    Hopefully wrap these up soon...

  2. Justdidit

    Justdidit LVNPZEV

    Joined:
    Jun 12, 2012
    1,880
    708
    75
    Location:
    Carrollton, Texas
    Vehicle:
    2007 Prius
    Model:
    Four Touring
    Is this set of (2)11 5mm LEDs too bright for DRLs??

    [​IMG] [​IMG]

    Comparing the LEDs before install..

    cozmisu, Daves09prius and Mistah Ya like this.
  3. Daves09prius

    Daves09prius Active Member

    Joined:
    Nov 20, 2010
    680
    161
    0
    Location:
    Gettysburg, PA
    Vehicle:
    2009 Prius
    Model:
    One
    That's so awesome! Too bright for DRLs? -- I don't think they're too bright. Maybe take pictures of them outside in the daylight just to be sure.

  4. DarkPri503

    DarkPri503 Junior Member

    Joined:
    May 1, 2013
    68
    12
    0
    Location:
    Salem
    Vehicle:
    2005 Prius
    Model:
    II

    Daves09prius likes this.
  5. cozmisu

    cozmisu Junior Member

    Joined:
    Oct 26, 2011
    24
    1
    0
    Location:
    Romania
    Vehicle:
    2008 Prius
    Model:
    II
  6. Justdidit

    Justdidit LVNPZEV

    Joined:
    Jun 12, 2012
    1,880
    708
    75
    Location:
    Carrollton, Texas
    Vehicle:
    2007 Prius
    Model:
    Four Touring
    Where did your friend hear that NICHIA made all the LEDs in our cars? As I'm just getting into this LED thing, so I'm learning little bits at a time.

    I can tell you the 44,000mcd most likely won't be bright enough for DRL - i know the first set of 20,000mcd LEDs sure weren't. They were more for accent lighting. Looked cool but thats about it.

    The newer 100,000mcd LEDs i'm testing now are super bright. As bright they were, the heat is too much. I've also got some 160,000mcd and a set pf 240,000mcd LEDs. I need to find some way to dissipate the heat or lower the brightness or I will burn out the LEDs on just one trip to work...I've been getting some help from PC user 'KK6PD' - as I work thru my heat and resistor learning experience.

    KK6PD likes this.
  7. KK6PD

    KK6PD _ . _ . / _ _ . _

    Joined:
    Mar 24, 2008
    4,003
    944
    118
    Location:
    Los Angeles Foothills
    Vehicle:
    Other Hybrid
    Model:
    N/A
    So this is what you have been tapping me for, very nice.
    +1 Nice work
    Glad I could assist!

    Justdidit likes this.
  8. cozmisu

    cozmisu Junior Member

    Joined:
    Oct 26, 2011
    24
    1
    0
    Location:
    Romania
    Vehicle:
    2008 Prius
    Model:
    II
  9. Justdidit

    Justdidit LVNPZEV

    Joined:
    Jun 12, 2012
    1,880
    708
    75
    Location:
    Carrollton, Texas
    Vehicle:
    2007 Prius
    Model:
    Four Touring
    FYI... the chrome amber bulbs got SUPER hot - don't recommend those at all. I have modified the 7w cree amber bulbs so they don't stick so far out. These are by far the brightest amber leds using the T10/168/194 socket I've found.

    2 x Yellow T10 T15 921 912 W5W 158 161 168 CREE R5 7W LED Reverse Turn Signal | eBay
    [​IMG]

    Even brighter than the "9w amber eagle eye Led" 2X 9W LED Amber High Power Eagle Eye Rear Back Up Reverse Tail Light Lamp Silver | eBay
    [​IMG]

  10. Justdidit

    Justdidit LVNPZEV

    Joined:
    Jun 12, 2012
    1,880
    708
    75
    Location:
    Carrollton, Texas
    Vehicle:
    2007 Prius
    Model:
    Four Touring

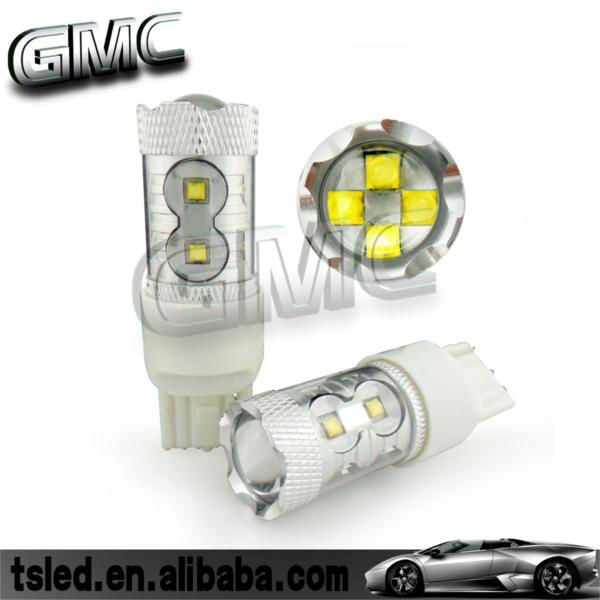

    Testing out these Super Bright 60w T20 socket Yellow and White 7440 LEDs
    [​IMG]

    (12 ) 5 watt CREE LEDs = 60W

  11. Justdidit

    Justdidit LVNPZEV

    Joined:
    Jun 12, 2012
    1,880
    708
    75
    Location:
    Carrollton, Texas
    Vehicle:
    2007 Prius
    Model:
    Four Touring

    You must be referring to the G3 Package 5 LED headlights... Most lighting in the G2 are ur standard filament bulbs.

    Low Beam Headlight Bulb Size: 9003/HB2
    High Beam Headlight Bulb Size: 9003/HB2
    Parking Light Bulb Size: 2825
    Front Turn Signal Light Bulb Size: 992 (7440A)
    Rear Turn Signal Light Bulb Size: 992 (7440A)
    Tail Light Bulb Size: 2825
    Stop Light Bulb Size: 7440
    High Mount Stop Light Bulb Size: LED
    Fog/Driving Light Bulb Size: 9006
    License Plate Light Bulb Size: 168
    Back Up Light Bulb Size: 7440
    Front Side Marker Light Bulb Size: 2825
    Map Light Bulb Size: 168
    Dome Light Bulb Size: DE3175
    Step/Courtesy Light Bulb Size: 168
    Trunk/Cargo Area Light Bulb Size: DE3022

    Although the G2's LEDs in the steering wheel, door controls and other lighting could be from Nichia...I don't know if anyone can verify this is such.
