Need help! Gas engine overheating. Cannot resolve.

Discussion in 'Gen 3 Prius Care, Maintenance & Troubleshooting' started by Sergey K, Apr 1, 2019.

  1. Grit

    Grit Senior Member

    Joined:
    Aug 22, 2017
    5,588
    3,844
    1
    Location:
    Wilkes Land
    Vehicle:
    2012 Prius
    Model:
    Four
    :ROFLMAO::ROFLMAO::ROFLMAO::ROFLMAO::ROFLMAO::ROFLMAO::ROFLMAO::ROFLMAO::ROFLMAO::ROFLMAO::ROFLMAO::ROFLMAO::ROFLMAO::ROFLMAO::ROFLMAO::ROFLMAO:

  2. rjparker

    rjparker Tu Humilde Sirviente

    Joined:
    Jun 6, 2008
    5,494
    3,095
    2
    Location:
    Texas Hill Country
    Vehicle:
    2012 Prius v wagon
    Model:
    Three
    Partial from
    4th-Generation Toyota Prius Teardown (Part 1) - MarkLines Automotive Industry Portal

    Stronger airflow in combustion chambers
    [​IMG]

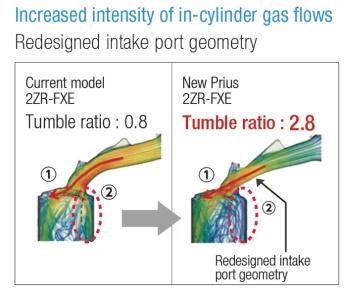

    The re-designed intake port shape (Source: Toyota)
    The first improvement was changing the shape of the intake port based on an analysis of the "tumble flow," which is the vertical swirl of air-fuel mixture entering the combustion chamber. As illustrated in the image on the right, (1) the airflow was made straight and, (2) the inverse tumble component that blocks the tumble flow was reduced. As a result, the tumble ratio was improved from 0.8 to 2.8, the combustion velocity increased, and induction of a large volume of EGR (exhaust gas recirculation) gas became possible.

    The shapes of the combustion chamber and the piston-top surfaces account for the tumble flow described above.

    Large-volume cooled EGR
    The EGR distribution passage in the intake manifold has been restructured to a tournament design. This allows a larger amount of EGR gas to enter evenly into each cylinder.

    [​IMG]

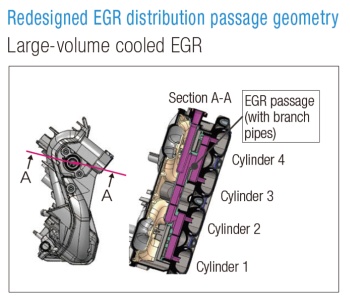

    The intake manifold cross-section (Source: Toyota) [​IMG]

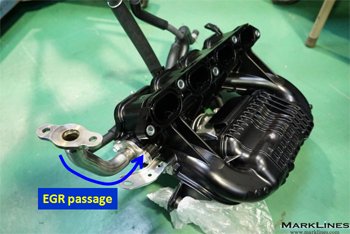

    The aluminum pipe at the left connects to the EGR passage


    [​IMG]

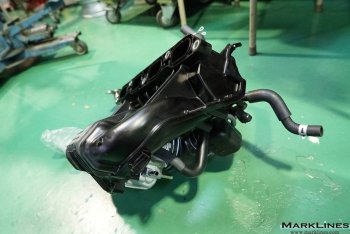

    An external view of the intake manifold[​IMG]

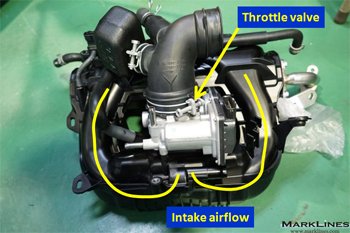

    The throttle valve (center)
    The intake manifold that directs air into the intake port is shaped so that it branches into two passages from the throttle valve, and supplies intake air into the respective ports after converging once at the collector located immediately before the cylinder head. This design ensures a smooth flow of intake air by increasing the cross-sectional area that the incoming air passes through, which minimizes air resistance and interference between cylinders.



    [​IMG]

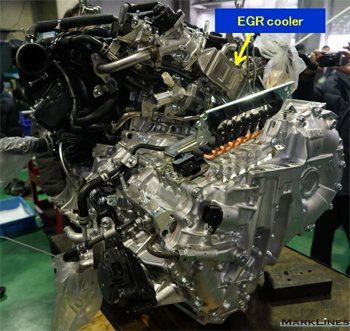

    The EGR cooler configured at the back of the engine [​IMG]

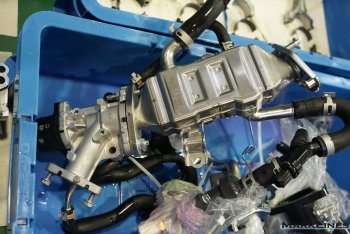

    The EGR cooler unit


    A newly-designed water jacket spacer optimizes cylinder bore wall temperature
    [​IMG]

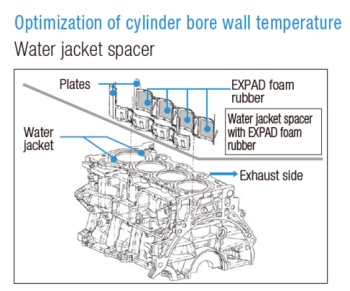

    The structure of the water jacket spacer (Source: Toyota)
    In order to achieve optimized cooling by means of the cylinder bore region, a water jacket spacer consisting of stainless steel and foam rubber has been adopted. This involves a foam rubber with a brand name of EXPAD being placed in the coolant passage at the bottom of the cylinder bore. This allows a large amount of coolant to flow over the upper part of the cylinder bore, which becomes very hot, and ameliorates knocking by raising the cooling effect. At the same time, allowing a smaller amount of coolant to flow to the lower half portion of the bore to maintain a high temperature. With these techniques, fuel efficiency is achieved by making the expansion factors of the upper and lower cylinder bore even, and piston action friction is standardized at a low level.

    Plus new inverter and hv battery design.

    #202 rjparker, Jul 6, 2021
    Last edited: Jul 6, 2021
    Raytheeagle, Mendel Leisk and jzchen like this.
  3. Mendel Leisk

    Mendel Leisk Underfoot

    Joined:
    Oct 17, 2010
    49,104
    35,022
    80
    Location:
    Greater Vancouver, British Columbia, Canada
    Vehicle:
    2010 Prius
    Model:
    Touring
    I think the “tournament flow” of EGR gasses through intake was adopted in a (2012 model year) revision, at least the concept: 1>2>4 passages, instead of previous 1>4.

    that was touted as a cure for the EGR blues for a while, then not so much.

    there are other improvements in 4th gen Exhaust Gas Recirculation though, intake location and increased volume.

  4. アレン・スピクタロン

    Joined:
    Mar 18, 2020
    405
    74
    7
    Location:
    Puerto Rico
    Vehicle:
    2012 Prius c
    Model:
    One
    I know this is quite an old thread, but it could simply be a stuck thermostat, have you tried removing the old one and replacing it with a new one?

  5. Jacob Bonner

    Jacob Bonner Member

    Joined:
    Feb 7, 2019
    86
    42
    1
    Location:
    United States
    Vehicle:
    2012 Prius
    Model:
    Two
    Update: So I've been driving around the last few days with the thermostat taken out of the thermostat housing, running about 150-160 degrees Fahrenheit. I ordered a Dorman thermostat to see if I had any better luck with that than the Toyota thermostat. Replaced it today, gave it a test run and it was back to running at 220 degrees and higher... so I do think there is a separate issue causing the heating, apart from the thermostat. Perhaps it is the 3rd gen computer not being compatible with the 4th gen engine, as has been suggested.

    Anywho.. I removed the Dorman thermostat and put the Toyota thermostat back in. This time, I cut the jiggle pin with wire cutters and drilled the hole out to 3/16". Then I drilled two new holes about 1/8". Test drove it and it stayed around 175-185 degrees on the highway (upwards of 195 degrees when accelerating). I'm hoping to take it on the interstate in a few days to test it. It's slightly cool, but I'm not going to worry too much about it at this point. If I were to do it over again I'd probably just drill one additional hole.

    Note: not sure how I commandeered this thread. :oops: ... I'm thinking I moved to this one because I thought the problem was the water pump, which had been an ongoing conversation here. It's also entirely possible I'm a little a.d.h.d. :D

  6. michael hochmeyer

    michael hochmeyer New Member

    Joined:
    Sep 4, 2021
    4
    0
    0
    Location:
    queen creek arizona
    Vehicle:
    2010 Prius
    Model:
    I
    HI SERGEY DID YOU EVER FIND OUT WHAT WAS THE CAUSE OF YOU OVER HEATING IN THE CAR ? I HAVE SAME SENERIO I ALSO TOOK APART THE EGR SYSTEM AND CLEANED EVERYTHING THIS OUT NO CODES JUST STILL OVERHEATS SAME AS YOURS . IF IF FOUND ANYTHING ELSE OR RESOLVED IT COULD YOU PLEASE LET ME KNOW ? THANK YOU MIKE

  7. Shahzad Nayyar

    Shahzad Nayyar Junior Member

    Joined:
    Aug 31, 2015
    84
    19
    0
    Location:
    Pakistan
    Vehicle:
    2015 Prius
    Model:
    N/A
    Please check post 35
    Posted via the PriusChat mobile app.

  8. Boston2008Gen2

    Boston2008Gen2 Junior Member

    Joined:
    Sep 7, 2012
    59
    1
    0
    Location:
    Houston TX
    Vehicle:
    2012 Prius v wagon
    Model:
    III

    My 2012 Prius V (Wagon) runs 197.5f and above all time. Is that normal or I have air pocket? I don't have any warning, I recently changed pump and have been watching since then. 197f and up , is that normal?

  9. Mendel Leisk

    Mendel Leisk Underfoot

    Joined:
    Oct 17, 2010
    49,104
    35,022
    80
    Location:
    Greater Vancouver, British Columbia, Canada
    Vehicle:
    2010 Prius
    Model:
    Touring
    Are you running pretty steady, all day, Uber, deliveries, something like that?

  10. Boston2008Gen2

    Boston2008Gen2 Junior Member

    Joined:
    Sep 7, 2012
    59
    1
    0
    Location:
    Houston TX
    Vehicle:
    2012 Prius v wagon
    Model:
    III
    I have never seen reading below 197 any time of the day unless engine is Off at lights. In Hwy at 70mph, consistently I see 197.5 to 200, since I am watching it after changing my WP, I become worried at 200 and remove my feet from gas pedal. Yes it's always above 197.5f if engine on.

    Mendel Leisk likes this.
  11. AzusaPrius

    AzusaPrius Senior Member

    Joined:
    May 27, 2020
    1,176
    567
    0
    Location:
    California
    Vehicle:
    2010 Prius
    Model:
    IV
  12. rjparker

    rjparker Tu Humilde Sirviente

    Joined:
    Jun 6, 2008
    5,494
    3,095
    2
    Location:
    Texas Hill Country
    Vehicle:
    2012 Prius v wagon
    Model:
    Three
    Under a heavy load I will see 203f for a short time. Either a serious incline at 25 mph or a serious tollway at 80 mph. Depending on the conditions the engine's "typical" coolant temp (warmed up) is between 170f-203f. Quite a range due to the inherent thermal cycling of this engine, a clear issue that contributes to certain problems like oil leaks and head gaskets.

    I continuously monitor the CAN bus for accurate speed and realtime temp.
    Prius P10 Scanner.jpg

    Boston2008Gen2 likes this.
  13. tankyuong

    tankyuong Senior Member

    Joined:
    Nov 9, 2012
    1,511
    644
    0
    Location:
    Central MO
    Vehicle:
    2012 Prius c
    Model:
    II
    Sounds normal

    Boston2008Gen2 likes this.
  14. アレン・スピクタロン

    Joined:
    Mar 18, 2020
    405
    74
    7
    Location:
    Puerto Rico
    Vehicle:
    2012 Prius c
    Model:
    One
    I don't think that is the cause of oil leaks and head gasket issues, the Toyota Aqua [Prius C] works in a similar way and does not suffers from these issues.

  15. Boston2008Gen2

    Boston2008Gen2 Junior Member

    Joined:
    Sep 7, 2012
    59
    1
    0
    Location:
    Houston TX
    Vehicle:
    2012 Prius v wagon
    Model:
    III

    I did cut the Jiggle pin, now my engine stays at 195f at hwy and goes till 199 when doing high acceleration. I live in Texas and hence Jiggle pin fix is advisable. If anyone living in up north, i wouldn't recommend it since warm up will be really long. Mine takes about 25mins in cold morning. Adding additional hole to thermostat is Big now since constant flow of coolant will make engine run cold and warm up time will be more. I am happy with cutting Jiggle pin since i live it hotter climate - no need for heating about 10months a year.

  16. Profanas

    Profanas Junior Member

    Joined:
    Nov 19, 2019
    35
    5
    0
    Location:
    Lithuania
    Vehicle:
    2013 Prius+ MPV
    Model:
    III


    I have same problem like Sergey With load (Mountain + AC + summer heat) engine overheating, i already blown head gasket because didn't see engine overheat, now after headgasket fix i have engine temp gauge installed + new water pump.

    I have Prius plus+ (EU version) with about 600.000km on clock. I think my cooling system have air, but interesting is that - i dont have any temp sensor or air ventil on this hose.. why? i try just push that hose, maybe that's how the air will go away.

    Question, please see pic, why no any temp sensor or air ventil????? hose i think is original

    what i don't like it to - that my water cooling reservoir is the same level like this hose.. i think i will try slightly raise the reservoir (2-3 cm)


    Attached Files:

    #216 Profanas, Mar 27, 2022
    Last edited: Mar 27, 2022
  17. Mendel Leisk

    Mendel Leisk Underfoot

    Joined:
    Oct 17, 2010
    49,104
    35,022
    80
    Location:
    Greater Vancouver, British Columbia, Canada
    Vehicle:
    2010 Prius
    Model:
    Touring
    Toyota discontinued the vent, in model year 2012 I think. You can pull one of the EGR hoses off (the one in your picture) and try filling coolant some more. You might get air out. Pour coolant till it starts coming out of disconnected hose, then quickly reconnect hose.

  18. Profanas

    Profanas Junior Member

    Joined:
    Nov 19, 2019
    35
    5
    0
    Location:
    Lithuania
    Vehicle:
    2013 Prius+ MPV
    Model:
    III
    Thanks, i will try, but i dont have temp sensor to.. its in another place? maybe engine block?

    And i have one more question, what is this? some sensor, but i cant find any cable to connect (prity same place like that hose)


    Attached Files:

  19. Mendel Leisk

    Mendel Leisk Underfoot

    Joined:
    Oct 17, 2010
    49,104
    35,022
    80
    Location:
    Greater Vancouver, British Columbia, Canada
    Vehicle:
    2010 Prius
    Model:
    Touring
    Same area on my 2010:


    the centre of picture is the temp sensor and coolant vent bolt (vent bolt missing since 2012 model year).

    coming off lower/front (of black plastic piece) you can just see hose, which goes to pipe on EGR cooler.

  20. ASRDogman

    ASRDogman Senior Member

    Joined:
    May 29, 2018
    4,523
    2,589
    0
    Location:
    Florida
    Vehicle:
    2010 Prius
    Model:
    Two
    I just did the egr system cleaning, and replaced the impeller for the water pump.
    I filled up the coolant, s l o w l y, and had not problem. This is the 3rd time I've done it.
    Never opened the valve. I've done several different models of coolant changes and never
    had a problem. But I always fill slowly, and a little at a time.

    Maybe you are filling to quickly?
