New OEM hv battery post stud snapped

Discussion in 'Gen 2 Prius Care, Maintenance and Troubleshooting' started by jgcannon2, Jan 1, 2021.

  1. ChapmanF

    ChapmanF Senior Member

    Joined:
    Mar 30, 2008
    11,760
    8,499
    0
    Location:
    Indiana, USA
    Vehicle:
    2010 Prius
    Model:
    IV
    If there's a rebuilder out there publishing a PDF that says 60 instead of 48, those guys might be throwing in a 60 in lb T handle instead, and we'd still have mishaps....

    donbright and Mendel Leisk like this.
  2. donbright

    donbright Member

    Joined:
    Feb 17, 2018
    132
    88
    33
    Location:
    oklahoma
    Vehicle:
    2007 Prius
    Model:
    Two
    the prices they are selling and the marketing they are using...... smh.....

    2k1Toaster likes this.
  3. alftoy

    alftoy Member

    Joined:
    Mar 16, 2009
    211
    88
    0
    Location:
    Saskatchewan, Canada
    Vehicle:
    2008 Prius
    Model:
    Premium
    Harbor Freight retail $19.95

    1/4 in. Drive Click Type Torque Wrench

    Mendel Leisk likes this.
  4. jgcannon2

    jgcannon2 New Member

    Joined:
    Dec 31, 2020
    22
    4
    0
    Location:
    Usa
    Vehicle:
    2008 Prius
    Model:
    II
  5. strawbrad

    strawbrad http://minnesotahybridbatteries.com

    Joined:
    Aug 9, 2011
    915
    895
    0
    Location:
    Minnesota
    Vehicle:
    2005 Prius
    Model:
    II
    Yeah, 60 inch pounds did not snap the battery studs. It's really hard to measure the difference the difference between 48 and 60 inch pounds. Here's a cheap 60 inch pound t handle with a 5/16" socket. A 5/16" and 8mm sockets are interchangeable. The difference is in thousandths of an inch. It is preset and freewheels once 60 inch pounds is met. It could be a good option for a DIY build. The wrench is designed to tighten hose clamps.

    https://www.lowes.com/pd/AMERICAN-VALVE-Torque-Wrench/1244081

    [​IMG]

    jgcannon2 and Mendel Leisk like this.
  6. ChapmanF

    ChapmanF Senior Member

    Joined:
    Mar 30, 2008
    11,760
    8,499
    0
    Location:
    Indiana, USA
    Vehicle:
    2010 Prius
    Model:
    IV
    With a good T handle set for the specified torque of 48 in lb, you could probably call it right ten times out of ten.

    jgcannon2, strawbrad and Mendel Leisk like this.
  7. dolj

    dolj Senior Member

    Joined:
    May 14, 2012
    5,236
    2,830
    0
    Location:
    Wellington, New Zealand
    Vehicle:
    2007 Prius
    Model:
    N/A
    By any chance is your new 1/4 inch in*lbs torque wrench dual calibrated with in*lbs on one side and in N*m (metric) on the other? I've been caught out with this once. Fortunately, I felt something was not right and checked it before I did anything disastrous.

    Mendel Leisk likes this.
  8. strawbrad

    strawbrad http://minnesotahybridbatteries.com

    Joined:
    Aug 9, 2011
    915
    895
    0
    Location:
    Minnesota
    Vehicle:
    2005 Prius
    Model:
    II
    The OP had a 48 in lb wrench and goofed up 2 out of four times. :(

  9. ChapmanF

    ChapmanF Senior Member

    Joined:
    Mar 30, 2008
    11,760
    8,499
    0
    Location:
    Indiana, USA
    Vehicle:
    2010 Prius
    Model:
    IV
    The OP wrote:


  10. strawbrad

    strawbrad http://minnesotahybridbatteries.com

    Joined:
    Aug 9, 2011
    915
    895
    0
    Location:
    Minnesota
    Vehicle:
    2005 Prius
    Model:
    II
    You went way past 60 inch pounds to break the posts. Maybe it was a faulty wrench but there was operator error. With experience you can tell when you are way past the safe limits of a 5mm stud.

    Mendel Leisk likes this.
  11. alftoy

    alftoy Member

    Joined:
    Mar 16, 2009
    211
    88
    0
    Location:
    Saskatchewan, Canada
    Vehicle:
    2008 Prius
    Model:
    Premium
    HF user review for the the torque wrench

    No more stripping fasteners!
    I've ALWAYS stripped fasteners because I am very heavy handed. Per new electrical codes, every fastener on equipment must now be torqued to proper values. Since I needed torque wrenches, I figured I try Harbor Freight. Now these wrenches are heavy and the "lock" that keeps the handle from moving off of the value you set isn't the most user friendly. You have to really tighten the knurled set screw to keep the handle from twisting hence moving your setting. With that said, you can't get a less expensive torque wrench that has 4% +- accuracy. It also comes with a calibration certification. In my business, you MUST have a calibration certificate and the Plant I just worked at accepted it with no issues. However, it will cost you more to recertify this wrench than to just buy a new one so I'll be giving the expired ones away.

    jgcannon2 likes this.
  12. ChapmanF

    ChapmanF Senior Member

    Joined:
    Mar 30, 2008
    11,760
    8,499
    0
    Location:
    Indiana, USA
    Vehicle:
    2010 Prius
    Model:
    IV

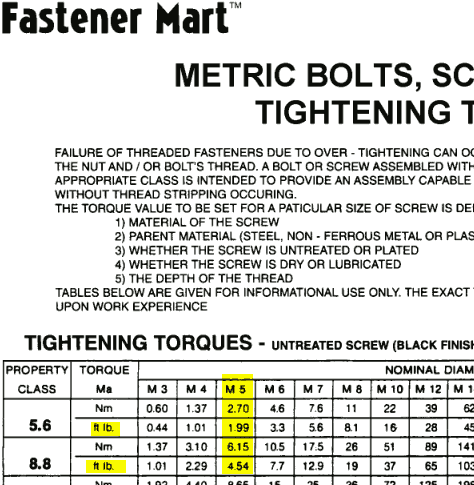

    The experience has to involve knowing the material of the M5 stud too. If you've got an M5 stud made from property class 5.6 steel, you're going for not quite 24 inch pounds. If it's property class 8.8 steel, you're going for not quite 55 inch pounds. (Quite a difference!)

    [​IMG]

    If it's a specialty stud made from unidentified electrical terminal material as part of a battery, there's probably no generic table to look up the safe torque in, so you're kind of reliant on the manufacturer to say what it is.

  13. jgcannon2

    jgcannon2 New Member

    Joined:
    Dec 31, 2020
    22
    4
    0
    Location:
    Usa
    Vehicle:
    2008 Prius
    Model:
    II
    Thanks; I've got one ordered.



  14. jgcannon2

    jgcannon2 New Member

    Joined:
    Dec 31, 2020
    22
    4
    0
    Location:
    Usa
    Vehicle:
    2008 Prius
    Model:
    II
    Actually, the first one,I felt the wrench "give" and thought it was up to value. It didn't fall off. #2 clearly snapped off, and I went to check #1 for finger tightness, then it fell off. So, #3 and #4 are just finger tight right now. I realized something was wrong and stopped. So I could still break them, too.

    Hopefully the t wrench you suggested will help me get it right; thank for the suggestion. Right, something didn't feel right, but I've only tightened lug nuts, so I have no idea what 48 or 60 in lbf feels like.


  15. jgcannon2

    jgcannon2 New Member

    Joined:
    Dec 31, 2020
    22
    4
    0
    Location:
    Usa
    Vehicle:
    2008 Prius
    Model:
    II
    Absolutely agree, operator error. It certainly didn't feel right, but I have no experience with this level.


  16. jgcannon2

    jgcannon2 New Member

    Joined:
    Dec 31, 2020
    22
    4
    0
    Location:
    Usa
    Vehicle:
    2008 Prius
    Model:
    II
    Yes, has both scales. Checked 3x to be sure I was on in lbf, so I messed up some other way.


  17. TMR-JWAP

    TMR-JWAP Senior Member

    Joined:
    Aug 12, 2016
    3,850
    4,313
    0
    Location:
    Columbia, SC
    Vehicle:
    2007 Prius
    Model:
    Touring
    hmmmmm....one thing you have to recognize is the HF torque wrenches, regardless of what they say, are NOT 'click' style wrenches. They do not make a firm click and release. What happens, is the handle makes a very slight pivot near the head. If you're torqueing and waiting for a click, that may be the problem. The handle will perform the 'pivot' and if not recognized, will easily allow the operator to continue cranking on it.

    jgcannon2, strawbrad and SFO like this.
  18. strawbrad

    strawbrad http://minnesotahybridbatteries.com

    Joined:
    Aug 9, 2011
    915
    895
    0
    Location:
    Minnesota
    Vehicle:
    2005 Prius
    Model:
    II
    The "click" of a Harbor Freight 1/4" torque wrench is very subtle. It's easy to miss and keep going past the set value. Also the 12" long handle is complete overkill for 48 inch pounds. The math shows that only 4 pounds of force is needed at the end of the wrench. A four inch long wrench would be more appropriate for tightening 5mm studs by hand.

    donbright and jgcannon2 like this.
  19. jgcannon2

    jgcannon2 New Member

    Joined:
    Dec 31, 2020
    22
    4
    0
    Location:
    Usa
    Vehicle:
    2008 Prius
    Model:
    II
    THANK YOU for that explanation! That's exactly my problem! I'm running around with two different wrenches trying them on the car lugs, and I can't get either one to click... This explains why! Yeah, no wonder I busted things!



  20. jgcannon2

    jgcannon2 New Member

    Joined:
    Dec 31, 2020
    22
    4
    0
    Location:
    Usa
    Vehicle:
    2008 Prius
    Model:
    II
    Gawd, no wonder! Thanks for the additional explanation. I can imagine that smaller force from your description. Very helpful.
