No, that wasn't a mouse in the heater

Discussion in 'Generation 1 Prius Discussion' started by ChapmanF, Aug 30, 2014.

  1. ChapmanF

    ChapmanF Senior Member

    Joined:
    Mar 30, 2008
    24,978
    16,266
    0
    Location:
    Indiana, USA
    Vehicle:
    2010 Prius
    Model:
    IV
    It sounded pretty convincingly like a mouse scrabbling around in the heater, but it was just the air mix damper mechanism jittering back and forth because (like so many other things in the Gen 1 that use a potentiometer to give position feedback), the contacts had become noisy and it was trying to "hold" position while the position signal jumped around.

    PriusChat won't let me upload servo.webm as a video, but if you want to see/hear the action you can download servo.webm.zip and unzip it and view it.

    The manual says to remove the instrument panel (!!) to reach this guy, which is ludicrous. Duck under the steering column and you're looking right at it; three Phillips screws out and it's in your hand. It's trivial to take apart, no Dremeling or gluing. A cotton swab with a contact cleaner/lube like GC Jiffy Bath and it's all steady and quiet again.

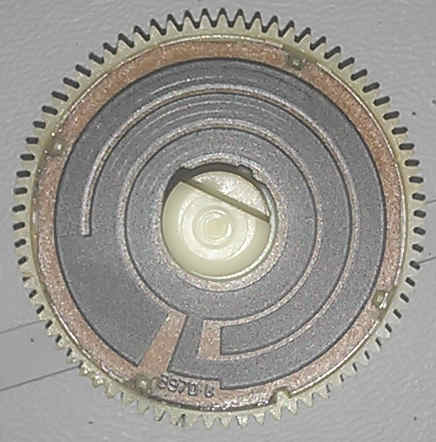

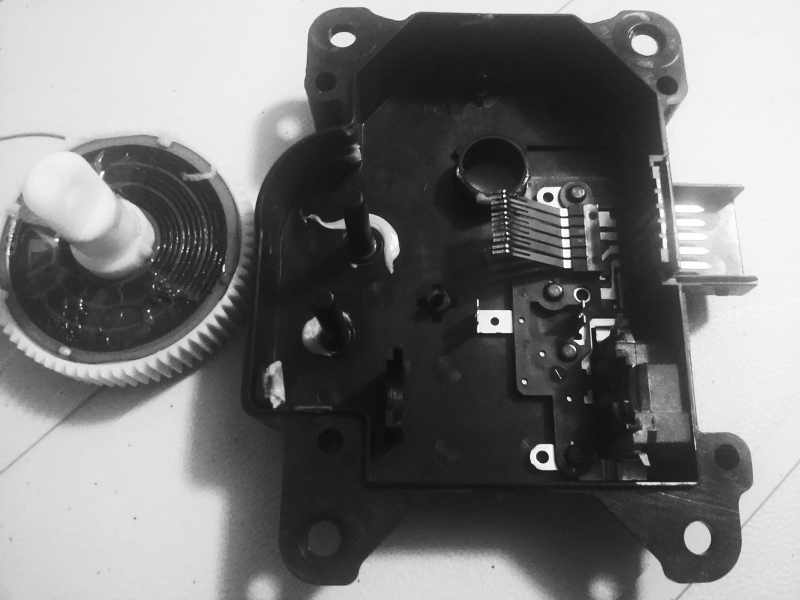

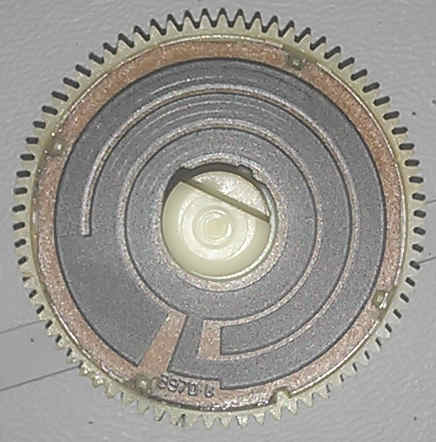

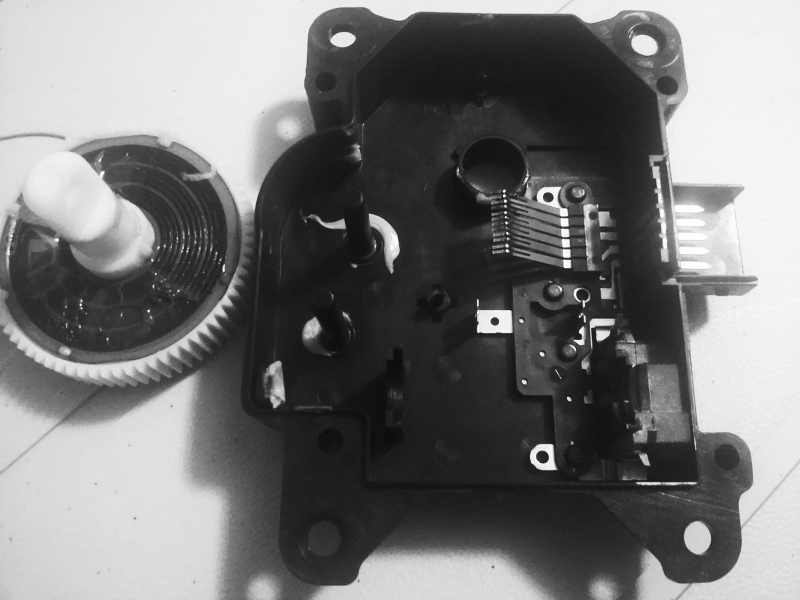

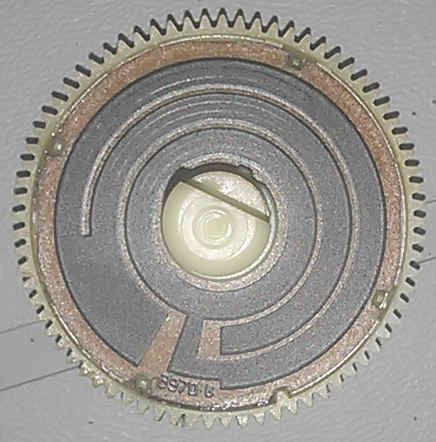

    servo.jpg servogear.jpg

    -Chap


    Attached Files:

    #1 ChapmanF, Aug 30, 2014
    Last edited: Aug 30, 2014
    Jakob, landspeed, Nelsonprius and 6 others like this.
  2. bwilson4web

    bwilson4web BMW i3 and Model 3

    Joined:
    Nov 25, 2005
    27,699
    15,687
    0
    Location:
    Huntsville AL
    Vehicle:
    2018 Tesla Model 3
    Model:
    Prime Plus
    I'm glad the repair worked but I've been pursuing the 'tin whisker' hypothesis. My testing of failed accelerator pedal encoders suggested a 9V battery while running the part stop-to-stop will 'burn out' the existing whiskers. It is not a permanent fix nor would cleaning because tin whiskers form spontaneously. But 'burning them out,' would in theory subject the nucleating source to a thermal stress . . . whacking that mole.

    Regardless, excellent description of the part and location.

    Bob Wilson

  3. ChapmanF

    ChapmanF Senior Member

    Joined:
    Mar 30, 2008
    24,978
    16,266
    0
    Location:
    Indiana, USA
    Vehicle:
    2010 Prius
    Model:
    IV
    I guess something that hasn't been clear to me is ... does every instance of potentiometer noisiness turn out to be an instance of tin whisker growth? The way I thought I understood it, tin whiskers have been an increasing nuisance since the elimination of lead from solders and tinning alloys, but even old vintage stereos and such that go way back into the tin-lead days still get "noisy" pots and switches, which the old-timey way to fix was to squirt in contact cleaner and work it around, which does still seem to work. (In fact, I need to do that on my old vintage stereo again when I get a chance.)

    Does the 'contacts get dirty/oxidized' hypothesis still account for anything these days, or do tin whiskers always turn out to be the real culprits?

    -Chap

    p.s. I guess when my steering gear was going, I did drive around for a while with a chart recorder and catch that the glitches really did look like spikes toward ground, as if perhaps being shorted by a whisker. I didn't do any similar data gathering to see just what the signal looked like from this servo ... it's too easy to just take it out, clean it up, and say 'next project'.

    bwilson4web likes this.
  4. bwilson4web

    bwilson4web BMW i3 and Model 3

    Joined:
    Nov 25, 2005
    27,699
    15,687
    0
    Location:
    Huntsville AL
    Vehicle:
    2018 Tesla Model 3
    Model:
    Prime Plus
    I won't rule out 'crap in the gap' but the encoders Doug pioneered in cleaning and my subsequent sustaining efforts never found any visible debris. Then the NASA tin whisker analysis of a failing Camry encoder and my subsequent 'burn out' tests suggested this is the likely root cause.

    My ears are open but did you see visible debris on the cleaning material? Tin whiskers are very, very, small almost invisible to the unaided eye.

    Bob Wilson

  5. Mike500

    Mike500 Senior Member

    Joined:
    Mar 1, 2012
    2,593
    764
    0
    Vehicle:
    2012 Prius v wagon
    Model:
    Two
    The RoHS rules that limit cadmium and hexa-chrome compounds that are less likely to "wisker" than tin and zinc doesn't help much either.

  6. Darla

    Darla Junior Member

    Joined:
    May 12, 2018
    12
    2
    0
    Location:
    Tracy, CA
    Vehicle:
    2007 Prius
    Model:
    Three
    I'm having trouble viewing your video. It allows me to view it but not hear the audio. I'm trying to figure out if the sound my car is making near the dash is similar to yours. If you have time to check out my post with my video and let me know if this is what it sounded like for you, I would really appreciate it!

    Please Help, Noise Behind Dash! | PriusChat

  7. ChapmanF

    ChapmanF Senior Member

    Joined:
    Mar 30, 2008
    24,978
    16,266
    0
    Location:
    Indiana, USA
    Vehicle:
    2010 Prius
    Model:
    IV
    I listened to yours when you first posted it, and I found the audio so faint I couldn't decide anything from it ... that's why I linked from your thread to here.

    It's odd that you're not getting audio from my webm here. I just downloaded it straight from PriusChat myself and played it to see if something might have happened to it on PC's servers, but it plays just fine for me, after unzipping, either in Firefox or with mpv. The audio is rather loud, as I boosted the level before uploading it.

    Maybe try another browser or media player for playing it?

    -Chap

  8. Diemaster

    Diemaster Active Member

    Joined:
    Oct 31, 2017
    290
    260
    2
    Location:
    so. cal
    Vehicle:
    2017 Prius Prime
    Model:
    Prime Advanced
    this. grant it ROHS solder is difficult to work with.

  9. ChapmanF

    ChapmanF Senior Member

    Joined:
    Mar 30, 2008
    24,978
    16,266
    0
    Location:
    Indiana, USA
    Vehicle:
    2010 Prius
    Model:
    IV
    All the same, pots do just get dirty/noisy with time, and have done since long before ROHS. I have an elderly vintage stereo preamp whose volume and balance knobs will inevitably get noisy and need the occasional teardown and spray with Jiffy Bath, and I had a turntable whose speed regulation would get all jumpy every few years until I sprayed down the 33/45 button contacts and the fine-adjust pot. Ask me if that was annoying! (And not just because it sounded awful, but the disassembly to reach those parts was really tedious.)

    My method for cleaning up the heater servo was just to open it up and swab down the pot contacts and paths with Jiffy Bath, same as my lifelong procedure for cleaning any similar thing, and it worked and the thing held rock-solid position after. Now, Bob's speculations about tin whiskers are attractive because they suggest a possible fix with a nine-volt battery and no disassembly needed, and I am not saying for sure that approach wouldn't work; I never tried, so I don't know. All I'm saying is I approached the problem as a classic dirty pot scenario, and that approach worked out well for me.

    -Chap

    mroberds likes this.
  10. audiodave

    audiodave Active Member

    Joined:
    Feb 3, 2017
    788
    269
    0
    Location:
    US
    Vehicle:
    2004 Prius
    Model:
    Five
    Any electronical contact like that has the potential to oxidise and or get dirty.

    Posted via the PriusChat mobile app.

  11. ChapmanF

    ChapmanF Senior Member

    Joined:
    Mar 30, 2008
    24,978
    16,266
    0
    Location:
    Indiana, USA
    Vehicle:
    2010 Prius
    Model:
    IV
    A satisfied customer. :)

    For future reference, the Gen 3 Prius replaced these actuators having potentiometer-style feedback with a new design using Hall-effect sensors for the feedback. So this should be a very uncommon issue in Gen 3 or later. Gen 1s and 2s are likely to experience it as they age, and as you can see, it's very easy to fix.

    The one exception might be if the air-inlet damper is the one that gets noisy. The other two servos (air mix for temperature, and outlet select) are on the easy-to-reach side of the heater case. The air inlet one is much harder to reach on the other side of the case, sandwiched between it and the blower. The dash might really have to come off to reach that one. I never had to do it (had my Gen 1 up to 230,something thousand), but it is built the same as the other two, so somebody keeping a Gen 1 or 2 super long might eventually have to deal with it.

    -Chap

  12. MegansPrius

    MegansPrius GoogleMeister, AKA bongokitty

    Joined:
    Nov 19, 2006
    2,437
    27
    0
    Location:
    Chicago, IL
    Vehicle:
    2007 Prius
    Model:
    II
    We’ve got this noise now coming from under the steering wheel (not at all from the engine compartment) in our 2007 Prius. In looking to remove the part to clean it, access to one screw is rather blocked by a large silver metal piece. Did you use a bent screwdriver to remove or was this other piece not there in your model?


    Attached Files:

  13. ChapmanF

    ChapmanF Senior Member

    Joined:
    Mar 30, 2008
    24,978
    16,266
    0
    Location:
    Indiana, USA
    Vehicle:
    2010 Prius
    Model:
    IV
    This is the Gen 1 forum (2001–2003), and the access is very easy for those.

    Your 2007 Gen 2 is very similar, except, as you've seen, there's an extra box in the way. You'll want to see the way yitznewton handled it.

    agaisin likes this.
  14. MegansPrius

    MegansPrius GoogleMeister, AKA bongokitty

    Joined:
    Nov 19, 2006
    2,437
    27
    0
    Location:
    Chicago, IL
    Vehicle:
    2007 Prius
    Model:
    II
  15. VESPAGUY

    VESPAGUY Junior Member

    Joined:
    Jun 21, 2012
    36
    12
    0
    Location:
    KCMO
    Vehicle:
    2006 Prius
    Model:
    Five
    We have what I believe to be this same 'Funny Squeaky Sound" emitting from under the Steering wheel... AND on the Passenger side, and occasional sound which is best described as a plastic-on-plastic rubbing sound. Are there damper doors that open and close but sometimes go awry and constantly open and close, open and close, open and close...???

    Jakob likes this.
  16. ChapmanF

    ChapmanF Senior Member

    Joined:
    Mar 30, 2008
    24,978
    16,266
    0
    Location:
    Indiana, USA
    Vehicle:
    2010 Prius
    Model:
    IV
    That's what this thread is about. Each of those servos has a position sensor attached, sending its position back to the control unit.

    When the control unit wants that door to be at position X, it looks at the present position signal. If that's above X, the control unit powers the motor to move the door downward. If the current position is below X, the control unit powers the motor to move the door upward. Normally, the control unit stops moving the door once the reported position is X.

    If the position sensor has become electrically dirty, so it is sending back a position signal that keeps jumping around above and below the actual position, then the control unit will be looking at that position signal, and keep thinking the door position has shifted away from X, and keep sending power to the motor one way or the other to drive the door back toward the wanted position.

    That's why cleaning the electrically dirty position sensor solves the problem.

  17. Frontporch

    Frontporch Member

    Joined:
    Dec 18, 2015
    421
    90
    0
    Location:
    Nj
    Vehicle:
    2007 Prius
    Model:
    N/A
    I just removed the motor right next to the accelerator pedal that I believed was making the noises in my dash. After cleaning it up the noises didn't go away. I noticed that even with this unit unplugged, the noises remained.

    Looking under the dash there is a second motor that is going bonkers. I probably should have taken a better look at this when it was acting up. Getting the motor next to the accelerator pedal was a bear. The second screw had no room and I didn't have a close quarters phillips head. Sad thing is the second motor is now behind the one I had out and put back in.

    I probably need to give that one a cleaning. I would use names, but I am not sure the function of these motors, whether its a blend door or a motor to select where to deliver air... not sure. Anyhow... has anyone remove and cleaned the upper motor? I think I am going to remove the accelerator pedal and see if I can get my arm through there. Looks like a harness and one easily accessible bolt for the accelerator pedal.

  18. ChapmanF

    ChapmanF Senior Member

    Joined:
    Mar 30, 2008
    24,978
    16,266
    0
    Location:
    Indiana, USA
    Vehicle:
    2010 Prius
    Model:
    IV
    I believe the one you did first is for temperature blend, the one you are looking at doing is for outlet select, and the one on the far side of the unit is for inlet select (fresh vs. recirculate).

    Frontporch likes this.
  19. Frontporch

    Frontporch Member

    Joined:
    Dec 18, 2015
    421
    90
    0
    Location:
    Nj
    Vehicle:
    2007 Prius
    Model:
    N/A
    I was just looking at rock auto and saw there were 3. Yikes. What you said also makes sense because the amount of noise changes most when I select different modes

    will try today to get that one out from underneath but this is hell on my back so I may not spend too much time on it

  20. Frontporch

    Frontporch Member

    Joined:
    Dec 18, 2015
    421
    90
    0
    Location:
    Nj
    Vehicle:
    2007 Prius
    Model:
    N/A
    Accelerator pedal is held down by two 10mm bolts. One is under the temperature blend motor. In retrospect
    I probably should have looked to replace the rear temperature blend motor”s Phillips head screw with a short screw with a bolt head. Also considered not putting back that screw altogether. Should have at least tested without it
